1. Introduction
Thank you for purchasing the Blackmore Pro Audio BRS-1107 Rechargeable Bluetooth Speaker. This portable speaker is designed to provide high-quality audio with versatile connectivity options, including Bluetooth, USB, SD card, and AUX-in. It also features an FM radio and dynamic LED illumination to enhance your listening experience. Please read this manual carefully before operating the device to ensure proper use and to maximize its performance.
2. Safety Instructions
- Do not expose the unit to extreme temperatures, humidity, or direct sunlight.
- Do not disassemble or modify the speaker. Refer all servicing to qualified personnel.
- Keep the unit away from water and other liquids. This product is not waterproof.
- Use only the provided charging cable.
- Ensure proper ventilation around the speaker during operation.
- Avoid placing heavy objects on the speaker.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Package Contents
Please check that all items are present in the box:
- Blackmore Pro Audio BRS-1107 Speaker
- USB Charging Cable
- Remote Control

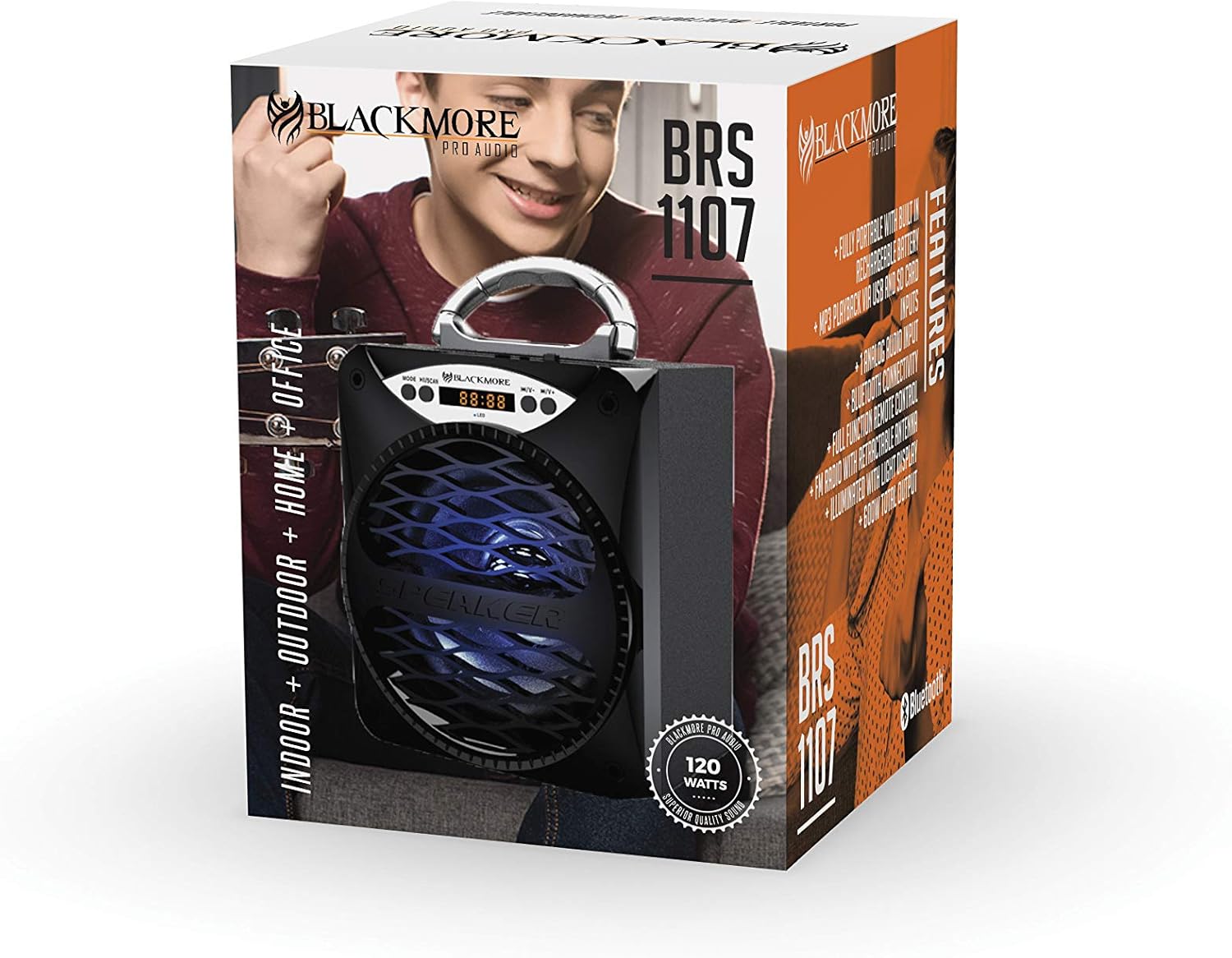

Image: Blackmore Pro Audio BRS-1107 speaker in its retail packaging, showing the product and its box.
4. Product Overview
Familiarize yourself with the various parts and controls of your BRS-1107 speaker.
Image: Front view of the Blackmore Pro Audio BRS-1107 speaker, highlighting the control panel with buttons and LED display, the speaker grille with LED illumination, and the top carrying handle.
Control Panel Features:
- MODE/SCAN Button: Press to switch between Bluetooth, FM, USB, SD, and AUX modes. Long press for FM auto-scan.
- LED Display: Shows current mode, track number, or FM frequency.
- Previous Track/Volume Down Button (-): Short press for previous track, long press to decrease volume.
- Play/Pause Button (►||): Play or pause audio playback.
- Next Track/Volume Up Button (+): Short press for next track, long press to increase volume.
- USB Port: For USB flash drive playback.
- SD Card Slot: For SD card playback.
- AUX-in Port: For connecting external audio devices via 3.5mm cable.
- DC 5V Charging Port: For charging the speaker's internal battery.
- Power Switch: On/Off toggle for the speaker.
5. Setup
5.1. Charging the Speaker
- Locate the DC 5V charging port on the speaker.
- Connect the small end of the provided USB charging cable to the speaker's charging port.
- Connect the standard USB end of the cable to a USB power adapter (not included) or a computer's USB port.
- The LED indicator will illuminate to show charging status. It will turn off or change color when fully charged.
- A full charge typically takes 3-4 hours.
5.2. Powering On/Off
- To power on the speaker, slide the Power Switch to the 'ON' position. The LED display will light up.
- To power off the speaker, slide the Power Switch to the 'OFF' position.
6. Operating Instructions
6.1. Bluetooth Pairing
- Power on the speaker. It will automatically enter Bluetooth mode, indicated by a flashing 'BLUE' on the LED display and an audible prompt.
- On your mobile device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
- Select 'BRS-1107' from the list of devices.
- Once paired, the speaker will emit an audible confirmation, and the 'BLUE' indicator will stop flashing.
- You can now play audio wirelessly from your device through the speaker.
6.2. USB/SD Card Playback
- Insert a USB flash drive or SD card (with MP3 audio files) into the corresponding port/slot on the speaker.
- The speaker will automatically switch to USB or SD card mode and begin playing the audio files. If it does not switch automatically, press the 'MODE' button until the correct mode is selected.
- Use the 'Previous Track', 'Play/Pause', and 'Next Track' buttons to control playback.
6.3. AUX-in Playback
- Connect one end of a 3.5mm audio cable (not included) to the AUX-in port on the speaker.
- Connect the other end of the cable to the audio output jack of your external device (e.g., MP3 player, computer).
- Press the 'MODE' button until 'AUX' is displayed on the LED screen.
- Control playback and volume from your external device.
6.4. FM Radio Operation
- Press the 'MODE' button until 'FM' is displayed on the LED screen.
- To auto-scan and save available FM stations, long press the 'MODE/SCAN' button. The speaker will scan and store stations automatically.
- Once scanning is complete, use the 'Previous Track' and 'Next Track' buttons to navigate between saved stations.
6.5. LED Light Control
The speaker features dynamic LED illumination. The lights typically activate automatically when the speaker is powered on. There is no specific button for LED control mentioned, indicating they are integrated with the power function or cycle automatically.
6.6. Remote Control Usage
The included remote control provides convenient access to various functions:
- Power: Turn the speaker on/off.
- Mode: Switch between input modes (Bluetooth, FM, USB, SD, AUX).
- Volume +/-: Adjust the master volume.
- Play/Pause: Control playback.
- Previous/Next: Skip tracks or navigate FM stations.
- EQ: Cycle through equalizer presets (if available).
- Number Pad: Directly select tracks from USB/SD card (e.g., press '05' for track 5).
7. Maintenance
7.1. Cleaning
- Before cleaning, ensure the speaker is powered off and disconnected from any power source.
- Wipe the exterior of the speaker with a soft, dry, lint-free cloth.
- Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
7.2. Storage
- When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures.
- It is recommended to fully charge the battery before storing for long durations to maintain battery health.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on. | Battery is depleted. | Charge the speaker using the provided USB cable. |
| No sound from speaker. | Volume is too low. | Increase the volume on the speaker and the connected device. |
| Incorrect mode selected. | Press the 'MODE' button to select the correct input source (Bluetooth, USB, SD, AUX, FM). | |
| Device not properly connected (AUX). | Ensure the 3.5mm audio cable is fully inserted into both the speaker and the external device. | |
| Bluetooth pairing fails. | Speaker is not in pairing mode. | Ensure the speaker is in Bluetooth mode (flashing 'BLUE' on display). |
| Device is too far from speaker. | Move the Bluetooth device closer to the speaker (within 10 meters). | |
| Bluetooth list needs refreshing. | Turn off and on Bluetooth on your device, then try pairing again. | |
| USB/SD card not playing. | Incorrect file format or corrupted files. | Ensure files are in MP3 format. Try a different USB/SD card. |
| Card/drive not inserted correctly. | Re-insert the USB drive or SD card firmly. | |
| Poor FM radio reception. | Weak signal or interference. | Relocate the speaker to an area with better reception. Perform auto-scan again. |
9. Specifications
| Feature | Specification |
|---|---|
| Model Name | BRS-1107 |
| Speaker Type | Bookshelf |
| Special Feature | Portable |
| Connectivity Technology | Bluetooth, Auxiliary |
| Wireless Communication Technology | Bluetooth |
| Bluetooth Range | 10 Meters |
| Speaker Size | 6.5 Inches |
| Woofer Diameter | 6.5 Inches |
| Speaker Maximum Output Power | 250 Watts |
| Power Source | Battery Powered |
| Battery Type | 1 Lithium Polymer battery (included) |
| Includes MP3 player? | Yes |
| Control Method | Remote |
| Color | Black |
| Item Weight | 2.44 pounds |
| Package Dimensions | 9.57 x 7.44 x 5.63 inches |
| Is Waterproof | FALSE |
| Manufacturer | Blackmore |
| UPC | 710645124749 |
10. Warranty and Support
10.1. Warranty Information
This product comes with a Limited Warranty. Please refer to the warranty card included in your package or contact Blackmore Pro Audio customer support for detailed warranty terms and conditions.
10.2. Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact Blackmore Pro Audio customer support. Contact information can typically be found on the product packaging or the official Blackmore Pro Audio website.
