BRITAX B-Safe Ultra Infant Car Seat Instruction Manual

1. Product Overview

The Britax B-Safe Ultra Infant Car Seat is engineered for safety, comfort, and ease of use. It features two layers of side impact protection and the Britax SafeCell Impact Protection system, which includes a steel frame, energy-absorbing base, and V-shaped tether. The Safe Center LATCH system simplifies base installation, and the European Belt Guide allows for secure installation without the base, making it rideshare-ready. This car seat is compatible with Britax and BOB single strollers for travel system convenience.

Image 1.1: Top-down view of the Britax B-Safe Ultra Infant Car Seat, showcasing its design and harness system.

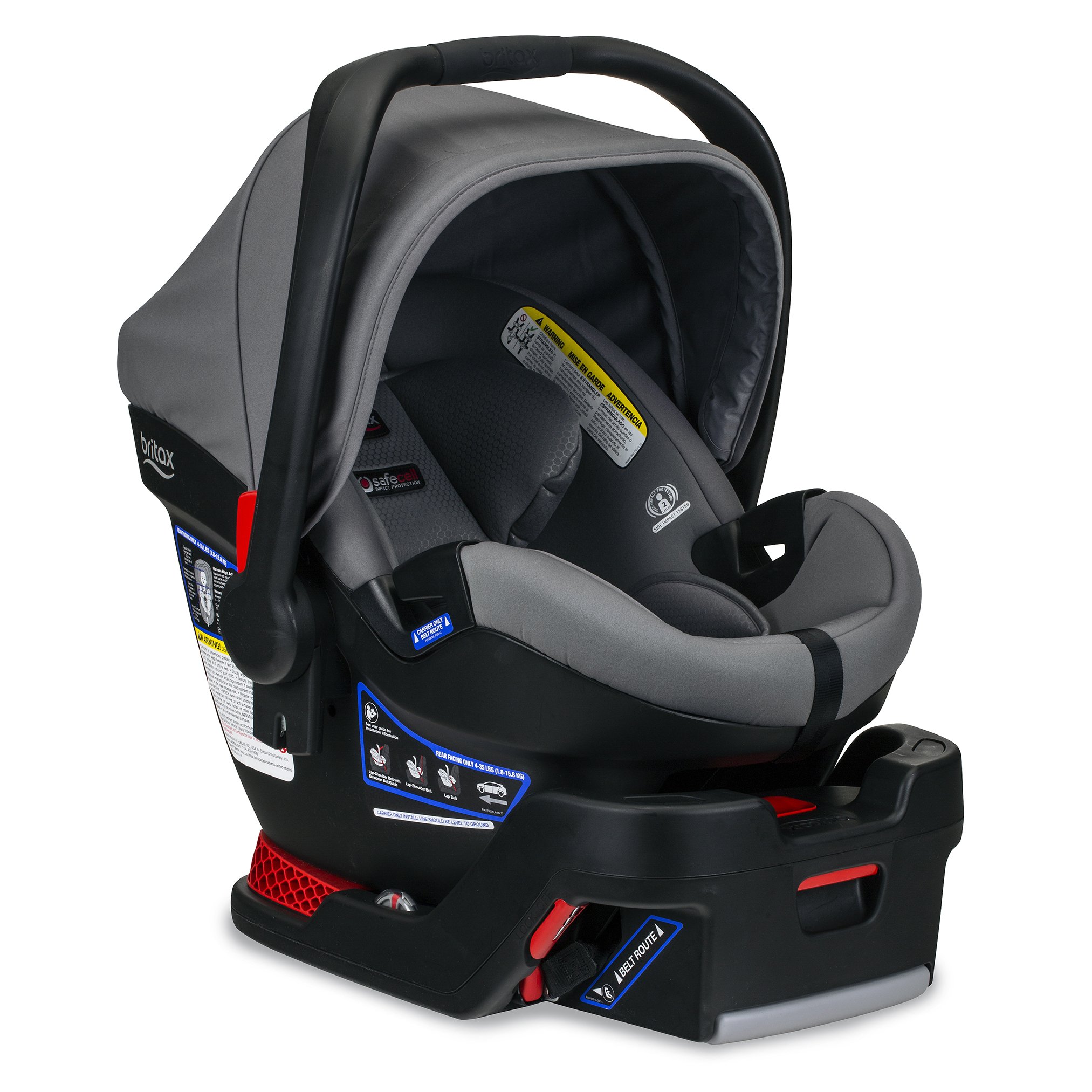

Image 1.2: Side view of the Britax B-Safe Ultra Infant Car Seat, highlighting its ergonomic shape and handle.

Key Features:

• Advanced Safety: Features 2 layers of side impact protection, quick-adjust head protection, a steel frame, and an impact-absorbing base.
• Rideshare Ready: European Belt Guide enables secure installation without the base when needed.
• Easy Installation: Utilizes Safe Center LATCH or built-in seat belt lock-offs for secure infant car seat base installation.
• No Re-threading: Quick-adjust harness and 2-position buckle ensure a comfortable fit as your child grows without the need for re-threading.
• Optimal Recline: Spring-assisted recline and indicators help achieve the best vehicle installation angle.
• Travel System Compatibility: Works with all Britax Single Strollers using built-in adapters and with all BOB Single and Duallie strollers (adapter sold separately).

2. Setup and Installation

Proper installation of your infant car seat base is crucial for your child's safety. Follow these steps carefully for LATCH installation. Refer to your vehicle's owner's manual for specific LATCH anchor locations.

2.1. Installing the Base with LATCH System

1. Place the car seat base on the vehicle seat.
2. Pull up on the recline adjustment lever located on the front of the base. Adjust the base up or down until the red marker is visible between the two lines on the recline angle indicators.
3. Firmly pull to remove the lower connectors from their storage compartments in the base.
4. Press and hold the lower connector release button, then pull the lower connectors to lengthen the straps.
5. Press the lower connectors onto their adjacent vehicle lower anchors until a click is heard. Pull on the lower connectors to verify they are securely attached.
6. While pressing the center of the base firmly into the vehicle seat, pull up on the lower connector straps located in the center of the base to tighten.
7. To achieve the tightest install, you can push on the right or left side of the base while simultaneously pulling the corresponding LATCH webbing.
8. Feed any excess webbing back into the base and ensure that the lower connector straps are flush with the base.
9. Check that the lower connector straps are tight and that the base is secure. The base is secure if it moves less than one inch (2.5 cm) from side-to-side or front-to-back at the vehicle belt path.
10. Confirm that the recline angle is correct by checking that the red marker is visible between the two lines on the recline angle indicators.

Image 2.1: Close-up of the car seat base, showing the LATCH belt path and recline indicator.

2.2. Attaching and Removing the Infant Car Seat from the Base

1. Place the infant car seat into the installed base and press down firmly until a click is heard, indicating it is securely latched.
2. Pull up on the infant car seat to verify attachment.
3. To remove the infant car seat, pull and hold the release lever located on the back of the infant car seat.
4. Lift the infant car seat up from the base.

3. Operating the Car Seat

Ensure your child is properly secured in the car seat for every ride. The B-Safe Ultra is designed for rear-facing use only.

3.1. Child Placement and Harness Adjustment

1. Place your infant in the car seat, ensuring their back is flat against the seat back.
2. Bring the harness straps over your child's shoulders and buckle the chest clip and crotch buckle.
3. Tighten the harness straps until they are snug against your child's body. You should not be able to pinch any excess webbing at the shoulder.
4. Adjust the chest clip to armpit level.
5. The quick-adjust harness allows for easy height adjustments as your child grows without re-threading. Refer to the full user manual for detailed instructions on harness height adjustment.

Image 3.1: A hand demonstrating the adjustment of the car seat harness for a snug fit.

Image 3.2: The Britax B-Safe Ultra Infant Car Seat properly installed in a vehicle in the rear-facing position.

4. Maintenance

Regular cleaning and maintenance will help prolong the life of your car seat. Always refer to the complete instruction manual for detailed cleaning instructions.

4.1. Cleaning Instructions

• Fabrics: The car seat cover and soft goods can typically be machine washed on a gentle cycle with cold water and mild detergent. Air dry only. Do not bleach or iron.
• Harness Straps: Wipe harness straps with a damp cloth. Do not machine wash, bleach, or iron harness straps, as this can weaken them.
• Buckle: Clean the buckle by rinsing it with warm water. Do not use soaps or lubricants.
• Plastic and Metal Parts: Wipe plastic and metal parts with a damp cloth and mild soap.

4.2. Storage

When not in use, store the car seat in a cool, dry place away from direct sunlight. Ensure all components are dry before storing.

5. Troubleshooting

If you encounter issues with your Britax B-Safe Ultra Infant Car Seat, please refer to the following common troubleshooting tips. For more complex issues, consult the full user manual or contact Britax customer support.

5.1. Common Issues

• Loose Installation: If the car seat base moves more than one inch at the belt path, re-read the installation instructions carefully. Ensure you are pressing the base firmly into the vehicle seat while tightening the LATCH straps or vehicle seat belt. Check for any obstructions under the base.
• Harness Difficulty: If the harness is difficult to tighten or loosen, check for twists in the webbing. Ensure the harness adjuster mechanism is free of debris. Do not lubricate the harness.
• Car Seat Not Latching to Base: Ensure the base is correctly installed and level. Check for any obstructions preventing the car seat from fully engaging with the base. Press down firmly until a clear click is heard.

6. Specifications

Below are the technical specifications for the Britax B-Safe Ultra Infant Car Seat (Model E1C008N).

7. Warranty and Support

For detailed warranty information, product registration, or to contact customer support, please refer to the official Britax website or the warranty card included with your product. It is recommended to register your product to receive important safety updates and recall notifications.

Britax Customer Service: Please visit the Britax official website for contact details and support resources.
