Teka DEP 90 INOX 40472150 Range Hood User Manual

1. Introduction

Thank you for choosing the Teka DEP 90 INOX 40472150 Range Hood. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read these instructions carefully before use and keep them for future reference.

The Teka DEP 90 INOX 40472150 is a 90 cm (36") wide wall-mounted decorative range hood with a pyramidal design and telescopic chimney, crafted from stainless steel. It features LED lighting for enhanced visibility over your cooking area.

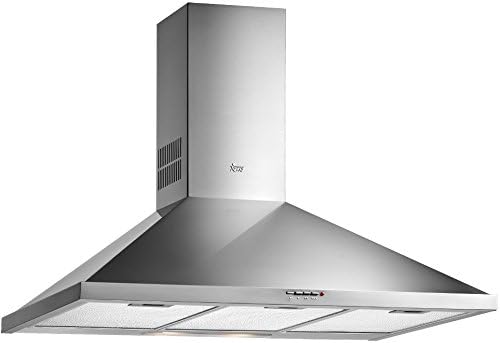

Figure 1.1: Teka DEP 90 INOX 40472150 Range Hood. This image shows the front view of the stainless steel range hood with its pyramidal design and control panel.

2. Safety Instructions

To ensure safe operation, please observe the following safety precautions:

• Electrical Safety: Ensure the power supply voltage matches the rating label on the appliance (127 Volts). The appliance must be properly grounded. Do not use extension cords or adapters.
• Installation: Installation must be performed by a qualified technician in accordance with local regulations and building codes. Ensure adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
• Usage: This appliance is intended for domestic use only. Do not flambé under the range hood. Do not leave frying pans unattended during use, as overheated oil can ignite. Clean grease filters regularly to prevent fire hazards.
• Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Maintenance: Always disconnect the appliance from the power supply before cleaning or performing any maintenance.

3. Setup and Installation

The Teka DEP 90 INOX 40472150 is designed for wall mounting. Professional installation is recommended.

3.1 Unpacking

Carefully remove the range hood from its packaging. Inspect the appliance for any damage. Retain packaging materials for potential future transport or return.

3.2 Components Included

• Teka DEP 90 INOX 40472150 Range Hood
• Telescopic Chimney
• Mounting Screws
• Instruction Manual (this document)

3.3 Mounting Requirements

• Mounting Type: Wall Mount
• Ventilation Type: Exhaust (requires external ducting)
• Electrical Connection: 127 Volts. A dedicated, grounded electrical outlet is required.
• Clearance: Refer to local building codes and the provided dimension diagram for minimum clearance requirements above the cooking surface.

Figure 3.1: Dimensional Diagram of the Teka DEP 90 INOX Range Hood. This diagram illustrates the key measurements for installation, including width (600/700/900 mm options, with 900mm being this model), depth (480 mm), and chimney height (min 470 mm, max 800 mm).

3.4 Installation Steps (General Guidelines)

1. Mark the mounting points on the wall according to the dimension diagram and the hood's mounting brackets.
2. Drill holes and insert wall plugs. Secure the mounting bracket to the wall using the provided screws.
3. Mount the range hood body onto the bracket.
4. Connect the exhaust ducting to the hood's outlet and route it to the exterior. Ensure the ducting is sealed properly.
5. Install the telescopic chimney sections, securing them to the wall and the hood body.
6. Connect the range hood to the electrical supply.
7. Test all functions of the range hood.

4. Operating Instructions

The Teka DEP 90 INOX 40472150 features user-friendly controls for fan speed and lighting.

4.1 Control Panel

The range hood is equipped with either push-button or knob controls, typically located on the front panel. These controls allow you to:

• Turn the fan ON/OFF: Activates or deactivates the exhaust fan.
• Adjust Fan Speed: Select from multiple fan speeds (e.g., low, medium, high) to suit your cooking needs. Higher speeds are for intense cooking with more smoke and odors.
• Turn Lights ON/OFF: Activates or deactivates the integrated LED lighting system.

4.2 LED Lighting

The range hood is fitted with energy-efficient LED lights (120.00 Watts total for the unit, including motor) to illuminate your cooking surface. Use the light button to switch them on or off as required.

4.3 Recommended Usage

• Turn on the range hood a few minutes before you start cooking to create an airflow.
• Keep the range hood running for several minutes after cooking to clear any residual smoke or odors.
• Adjust the fan speed according to the intensity of cooking.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Teka range hood.

5.1 Cleaning the Baffle Filters

The range hood is equipped with baffle filters designed to trap grease particles. These filters must be cleaned regularly to maintain efficiency and prevent fire hazards.

• Frequency: Clean filters at least once a month, or more frequently depending on cooking habits.
• Removal: To remove, locate the release latches or handles on each filter. Disengage and carefully pull the filter downwards or outwards.
• Cleaning Method: Wash the filters by hand in hot soapy water or in a dishwasher. Ensure they are completely dry before re-installing.
• Re-installation: Insert the dry filters back into their slots, ensuring they are securely latched.

5.2 Exterior Cleaning

Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Do not use abrasive pads, harsh detergents, or corrosive cleaners, as these can damage the finish.

5.3 LED Light Replacement

LED lights have a long lifespan. If replacement is necessary, contact a qualified service technician or refer to the detailed service manual for specific instructions.

6. Troubleshooting

If you encounter issues with your range hood, refer to the following common troubleshooting steps. For problems not listed here, or if issues persist, contact Teka customer service.

• Hood does not turn on:
  • Check if the appliance is properly plugged into a live electrical outlet.
  • Check the circuit breaker or fuse box for tripped breakers or blown fuses.
  • Ensure the control buttons are pressed correctly.
• Poor suction performance:
  • Clean the baffle filters. Clogged filters significantly reduce airflow.
  • Check for obstructions in the exhaust ducting.
  • Ensure the exhaust ducting is properly installed and sealed, without excessive bends or restrictions.
  • Verify that the fan speed is set appropriately for the cooking task.
• Lights are not working:
  • Check if the light switch is in the ON position.
  • If individual LED lights are out, they may need replacement by a qualified technician.
• Excessive noise:
  • Ensure the baffle filters are correctly installed and secured.
  • Check for loose components or screws.
  • Verify that the exhaust ducting is not vibrating against other structures.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or service requests, please contact Teka customer service or visit the official Teka website. Keep your proof of purchase for warranty claims.

Manufacturer: Teka

Brand Store: Teka Official Store on Amazon.com.mx
