1. Introduction
Thank you for purchasing the FORTE KSMT40-D43 Extendable Dining Table. This manual provides important information regarding the assembly, operation, maintenance, and safety of your new dining table. Please read these instructions carefully before assembly and retain them for future reference.
The KSMT40-D43 is a versatile dining table featuring a Pinia white decor finish and composite wood construction. It is designed to be extendable, offering flexibility for various dining needs.
2. Safety Information
- Read all instructions: Ensure you understand all assembly steps and safety warnings before beginning.
- Adult assembly required: This product should be assembled by adults.
- Use appropriate tools: Ensure you have the necessary tools for assembly.
- Clear workspace: Assemble the table in a spacious, clean area to prevent damage or loss of parts.
- Heavy item: The table weighs 45 kg. Exercise caution when lifting or moving. It is recommended to have at least two people for lifting and assembly.
- Maximum weight capacity: Do not exceed the recommended maximum weight of 20 kg on the table surface.
- Stability: Ensure the table is placed on a flat, stable surface.
- Children: Keep children away from the assembly area. Small parts can be a choking hazard.
- Maintenance: Regularly check all connections and tighten them if necessary to ensure stability.
3. Package Contents
Your FORTE KSMT40-D43 dining table is shipped in multiple packages. Please verify that all components are present before beginning assembly. The package includes the extendable dining table components and one shelf.
Image: Illustration of multiple packages, indicating that the product may arrive in several shipments.
If any parts are missing or damaged, please contact Forte customer support immediately.
4. Assembly Instructions
Assembly of the FORTE KSMT40-D43 dining table is required. Please follow the steps below carefully. It is recommended to have two people for assembly.
- Unpack Components: Carefully unpack all parts and hardware from the boxes. Place them on a soft, clean surface to prevent scratches.
- Identify Parts: Refer to the included assembly diagram (if provided in the physical package) to identify all table legs, top panels, and extension mechanisms.
- Attach Legs: Securely attach the table legs to the main table frame using the provided hardware. Ensure all screws are tightened firmly but do not overtighten.
- Assemble Main Tabletop: Connect the main tabletop sections. Pay attention to the alignment of the ABS edges for a seamless finish.
- Install Extension Mechanism: If the extension mechanism is separate, install it according to the diagram. Ensure it slides smoothly.
- Final Tightening: Once all parts are assembled, re-check and tighten all screws and fasteners to ensure the table is stable and secure.
- Positioning: Carefully lift and place the assembled table in its desired location. Avoid dragging the table to prevent damage to the legs or floor.

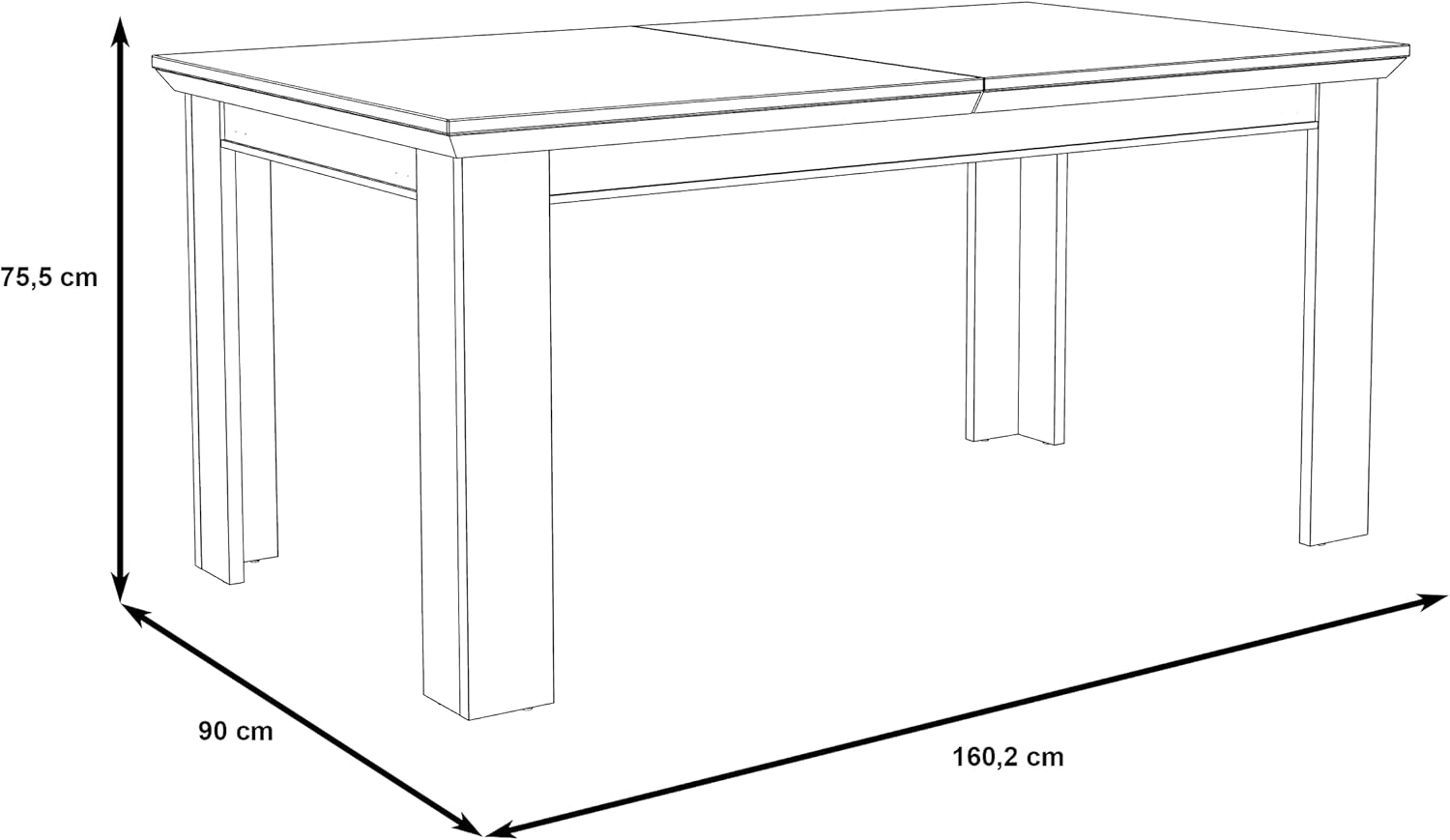

Image: Dimensional drawing of the dining table, showing height (75.5 cm), width (90 cm), and length (160.2 cm). This diagram is crucial for understanding the table's structure during assembly.
Image: Detail of the table leg, showing the decorative base. Ensure these are securely attached during assembly.
Image: Detail of the table's edge and top surface, highlighting the finish and ABS edges. Proper alignment is key during assembly.
5. Operating Instructions (Extending the Table)
The FORTE KSMT40-D43 dining table features an extendable design, allowing you to easily adjust its length to accommodate more guests. The table can be extended up to 207 cm.
- Clear the Table: Remove all items from the tabletop before extending or retracting.
- Unlock Mechanism: Locate any locking mechanisms under the table that secure the tabletop sections. Unlock them.
- Pull Apart: Gently pull the two main halves of the tabletop apart. The extension leaves are typically stored within the table frame or need to be inserted.
- Insert Extension Leaf: Place the extension leaf (or leaves) into the gap created. Ensure it sits flush and securely.
- Push Together: Carefully push the main tabletop halves back together until they meet the extension leaf, creating a continuous surface.
- Lock Mechanism: Re-engage any locking mechanisms to secure the extended table.
To retract the table, reverse these steps: unlock, pull apart, remove extension leaf, push halves together, and lock.
6. Care and Maintenance
Proper care will ensure the longevity and appearance of your FORTE KSMT40-D43 dining table. The surfaces are designed to be easy to maintain and stain-resistant.
- Cleaning: Wipe the table surface with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Dry immediately with a clean cloth.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or strong chemical agents, as these can damage the finish.
- Protect from Heat and Moisture: Always use coasters for drinks and placemats for hot dishes to prevent rings and heat damage.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration over time.
- Regular Checks: Periodically check all screws and fittings and tighten them as needed to maintain stability.
- Moving the Table: When moving the table, always lift it rather than dragging it to prevent damage to the legs and floor.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Table is wobbly or unstable. | Loose screws or uneven floor. | Check and tighten all assembly screws. Ensure the table is on a flat surface; use furniture glides or shims if necessary. |
| Extension mechanism is stiff or stuck. | Dust/debris in the runners or misaligned parts. | Clean the runners with a damp cloth. Ensure the table halves are pulled/pushed evenly. Do not force the mechanism. |
| Scratches or marks on the surface. | Sharp objects, abrasive cleaning, or heavy impact. | Use placemats and coasters. Clean with soft cloths. For minor scratches, furniture repair kits may be used (test in an inconspicuous area first). |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Forte customer support.
8. Product Specifications
| Model Number | KSMT40-D43 |
| Brand | Forte |
| Dimensions (L x W x H) | 160 x 90 x 75 cm (unextended) |
| Extended Length | Up to 207 cm |
| Weight | 45 kg |
| Maximum Weight Capacity | 20 kg |
| Material | Composite wood (houtstof), Plastic top material (Kunststof) |
| Color | Pinia white decor |
| Seating Capacity | 8 |
| Special Features | Extendable, ABS edges, FSC-certified wood, Easy-care surfaces, Stain-resistant |
| Assembly Required | Yes |

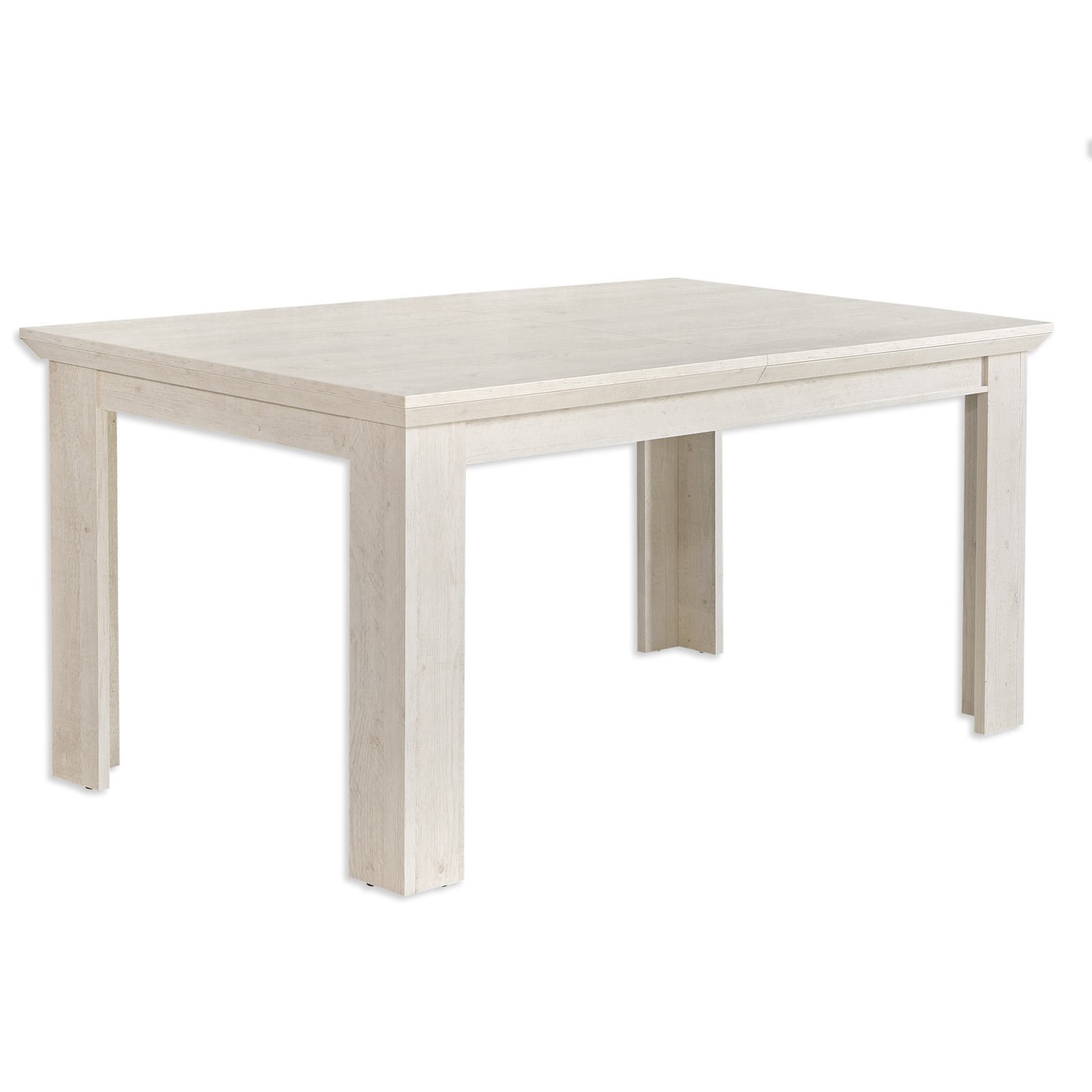

Image: The FORTE KSMT40-D43 dining table in a Pinia white decor finish, showcasing its design and color.
9. Warranty and Customer Support
Forte Möbel products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the documentation included with your purchase or visit the official Forte Möbel website.
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Forte customer support. Have your model number (KSMT40-D43) and purchase details ready when contacting support.
Manufacturer: Forte Möbel
First Available Date: February 21, 2020
