Whirlpool 14 Place Settings PowerClean Technology Dishwasher

1. Introduction

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your new Whirlpool 14 Place Settings PowerClean Technology Dishwasher. Please read this manual thoroughly before using the appliance and retain it for future reference.

Your Whirlpool dishwasher is designed to provide superior cleaning performance with features like PowerClean Technology and 6th Sense Technology, ensuring optimal results while conserving resources.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.

• Read all instructions before using the dishwasher.
• Connect the dishwasher to a properly grounded outlet only.
• Do not operate the dishwasher if it has a damaged power cord or plug.
• Keep children away from the dishwasher, especially when it is operating.
• Use only detergents and rinse aids specifically designed for dishwashers.
• Do not touch the heating element during or immediately after use.
• Ensure all sharp items are placed in the cutlery basket with the sharp points down.
• Do not overload the dishwasher.

3. Product Overview

The Whirlpool PowerClean Dishwasher is a freestanding unit designed for efficient dishwashing. Key features include:

• 14 Place Settings: Accommodates a large volume of dishes, suitable for families up to 6 members.
• 8 Wash Programs: Offers a variety of cycles for different cleaning needs.
• PowerClean Technology: Specialized jets for powerful cleaning of heavily soiled pots and pans.
• 6th Sense Technology: Intelligently senses the soil level and adjusts the wash cycle for optimal performance and resource savings.
• Ultra Quiet Performance: Operates at a low noise level of 44 dB.
• Stainless Steel Inner Tub: Durable and hygienic interior.
• Flexible Loading Solutions: Features 8 foldable lower racks and 4 foldable upper racks for versatile loading.
• Half-Load Option: For smaller loads, saving water and energy.

Figure 3.1: Front view of the Whirlpool 14 Place Settings Dishwasher.

Figure 3.2: Overview of key features including 8 wash programs, 44 dB noise level, and 6th Sense Technology.

4. Setup and Installation

Proper installation is crucial for the performance and longevity of your dishwasher. It is recommended that installation be performed by a qualified technician.

4.1 Unpacking

• Carefully remove all packaging materials.
• Check for any shipping damage. Report any damage immediately to your dealer.
• Ensure all included components are present: 1 Dishwasher, Inlet pipe, Outlet pipe, Daily Reference Guide, and Installation Guide.

4.2 Placement

• Place the dishwasher on a flat, stable surface.
• Ensure adequate space for door opening and proper ventilation.
• The product dimensions are approximately 60 cm (Depth) x 60 cm (Width) x 85 cm (Height).

Figure 4.1: Side view illustrating the approximate dimensions of the dishwasher (85 cm height, 60 cm width, 60 cm depth).

4.3 Connections

• Water Supply: Connect the inlet pipe to a cold water supply with appropriate pressure.
• Drainage: Connect the outlet pipe to a suitable drain. Ensure the drain hose is not kinked or obstructed.
• Electrical Connection: Connect the dishwasher to a grounded 230 Volts, 1900 Watts power outlet.

Figure 4.2: Rear view showing the inlet and outlet pipes, and the power cord connection point.

5. Operating Instructions

Follow these steps for optimal dishwashing results.

5.1 Loading the Dishwasher

Proper loading is essential for effective cleaning and drying. The dishwasher offers flexible loading solutions with 8 foldable lower racks and 4 foldable upper racks.

• Scrape off large food particles from dishes before loading.
• Place larger items (pots, pans, dinner plates) in the lower rack. Utilize the PowerClean area for heavily soiled items.
• Place glasses, cups, and smaller bowls in the upper rack.
• Ensure dishes do not block the spray arms.
• Place cutlery in the cutlery basket with handles down for forks and spoons, and handles up for knives for safety.

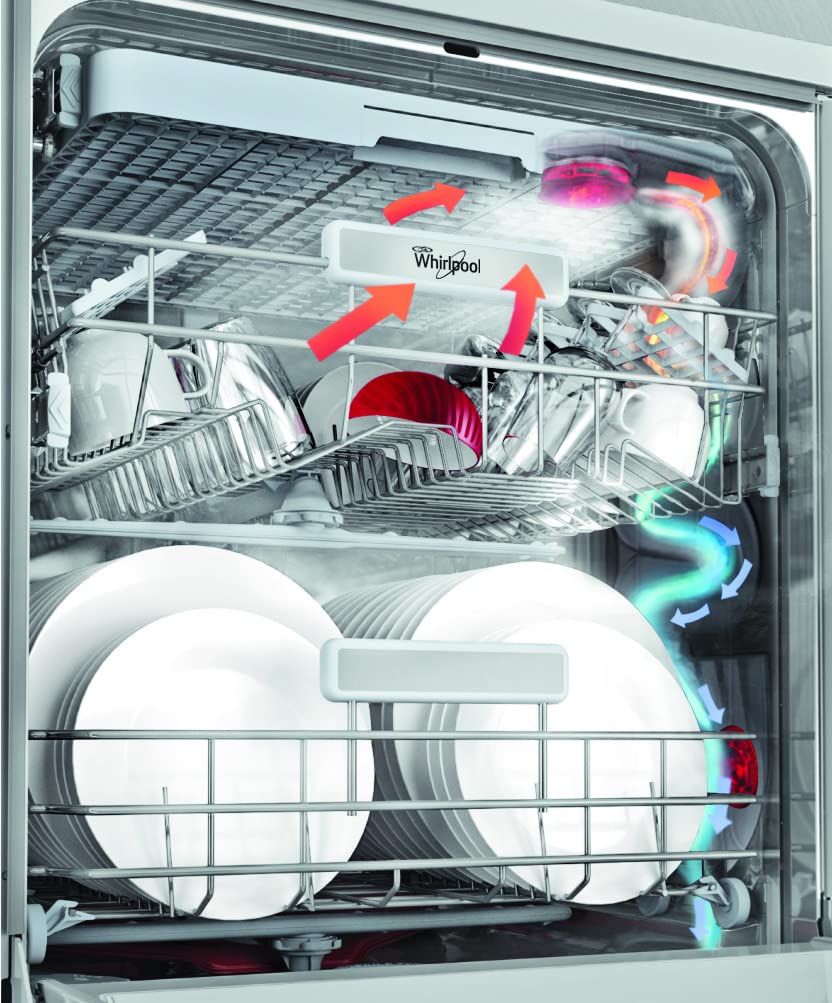

Figure 5.1: Example of a fully loaded dishwasher, demonstrating the 14 place setting capacity and flexible rack space.

Figure 5.2: Interior view highlighting the PowerClean jets designed for intensive cleaning of stubborn food residues.

5.2 Adding Detergent and Rinse Aid

• Fill the detergent dispenser with the recommended amount of dishwasher detergent.
• Check the rinse aid dispenser and refill if necessary. Rinse aid helps with drying and prevents spots.

5.3 Selecting a Wash Program

Your dishwasher features 8 wash programs to suit various needs. Refer to the control panel for program selection.

Select the desired program using the control panel. The 6th Sense Technology automatically optimizes water and energy consumption based on the load's soil level.

Figure 5.3: Visual representation of performance features including 1-hour clean and dry, 14 place setting, 30% more rack space, and A++ energy rating.

5.4 Starting the Dishwasher

• Close the dishwasher door firmly.
• Press the Start button. The cycle will begin.

6. Maintenance and Care

Regular maintenance ensures the longevity and efficiency of your dishwasher.

6.1 Cleaning the Filters

• The filter system should be cleaned regularly to ensure optimal performance.
• Remove the filter assembly at the bottom of the dishwasher.
• Rinse the filters under running water to remove any food particles.
• Reassemble and replace the filters securely.

6.2 Cleaning the Interior and Exterior

• Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.
• Clean the interior periodically with a dishwasher cleaner or a mixture of vinegar and baking soda.

6.3 Winterizing (if applicable)

• If the dishwasher is to be left in an unheated place during winter, drain all water from the appliance to prevent freezing damage.

7. Troubleshooting

Before contacting service, refer to this section for common issues and their solutions.

If the problem persists after attempting these solutions, please contact customer service.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

Your Whirlpool Dishwasher comes with a 2 years comprehensive warranty on the product from the date of purchase. Please retain your purchase receipt for warranty claims.

Figure 9.1: Visual confirmation of 2 years warranty, Half-Load Option, and Stainless Steel Inner Tub.

9.2 Customer Support

For any queries, service requests, or technical assistance, please contact Whirlpool customer support:

• Toll Free: 1800 208 1800
• Email: helpdeskindia@whirlpool.com
• Manufacturer Address: Whirlpool of India Ltd. Plot No. A-4, MIDC Ranjangaon, Taluka Shirur, Dist: Pune, Maharashtra 412220, India.

You can also visit the official Whirlpool Store on Amazon for more product information and support resources.
