Yamata FY44-04 Industrial Chain Stitch Overlock Machine User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Yamata FY44-04 Industrial Chain Stitch Overlock Machine. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.

The Yamata FY44-04 is a high-speed industrial overlock machine designed for chain stitching, featuring 2 needles and 4 threads, an automatic lubrication system, and a maximum speed of 6000 stitches per minute (SPM). It is equipped with a 1/2 HP motor and operates on 220V.

2. Safety Instructions

Always prioritize safety when operating industrial machinery. Failure to follow these instructions may result in injury or damage to the machine.

• Ensure the machine is unplugged from the power source before performing any assembly, maintenance, cleaning, or when changing needles or threads.
• Always use the provided eye, finger, and belt protectors during operation.
• Keep hands and loose clothing away from moving parts, especially needles, loopers, and the belt.
• Operate the machine only in a well-lit and ventilated area.
• Ensure the machine is placed on a stable, level surface.
• Do not allow unauthorized personnel to operate or tamper with the machine.
• Verify that the power supply matches the machine's voltage requirements (220V for this model).
• In case of unusual noise, smoke, or malfunction, immediately turn off and unplug the machine.

3. Product Overview

The Yamata FY44-04 is an industrial-grade overlock machine designed for durability and high performance. Key features include:

• Automatic Lubrication System: Ensures consistent oiling of moving parts, reducing wear and extending machine life.
• High Speed Operation: Capable of up to 6000 stitches per minute for efficient production.
• Low Noise Level: Engineered for quieter operation in an industrial setting.
• Safety Protectors: Includes eye, finger, and belt protectors for operator safety.
• 2 Needles, 4 Threads: Configured for robust chain stitching.
• Adjustable Stitch Length and Differential Feed: Easy-to-handle systems for precise control over stitch formation and fabric handling.
• Thread Path Identification: Internally engraved color-coded guides for simplified threading.
• Oil Level Indicator: A clear window to monitor oil levels and flow.
• Height-Adjustable Stand: For ergonomic working conditions.

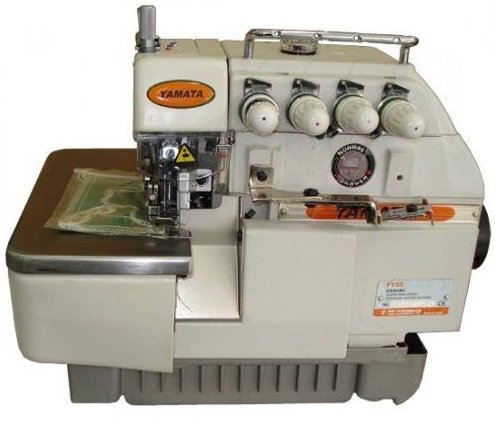

Figure 1: Front view of the Yamata FY44-04 Industrial Chain Stitch Overlock Machine.

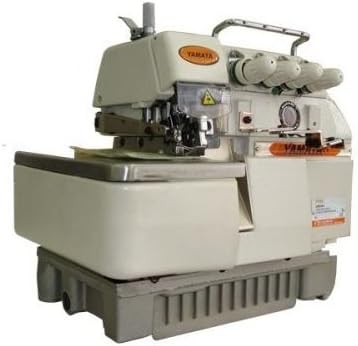

Figure 2: Detailed view of the machine head, showing thread guides and tension dials.

4. Setup

4.1 Unpacking and Assembly

Carefully remove all components from the packaging. The assembly of the machine, including the stand and motor, is the responsibility of the buyer. Refer to the separate assembly guide (if provided) or consult a qualified technician for assistance.

4.2 Power Connection

1. Ensure the machine's power switch is in the OFF position.
2. Verify that your power outlet provides 220V. This machine is designed for 220V operation. Connecting to an incorrect voltage may cause severe damage.
3. Plug the machine's power cord into a grounded 220V electrical outlet.

4.3 Lubrication System Setup

The machine features an automatic lubrication system. Before first use, ensure the oil reservoir is filled with appropriate industrial sewing machine oil. The oil level indicator provides a visual reference for the oil supply.

4.4 Threading the Machine

The Yamata FY44-04 has a color-coded thread path system to simplify threading. Follow the engraved color guides inside the machine for each of the 4 threads. Proper threading is crucial for correct stitch formation and to prevent thread breakage.

5. Operating Instructions

5.1 Basic Operation

1. Ensure the machine is properly threaded and the oil reservoir is adequately filled.
2. Turn on the power switch.
3. Place the fabric under the presser foot.
4. Lower the presser foot using the lever.
5. Gently press the foot pedal to start sewing. The machine can reach speeds of up to 6000 SPM.
6. Guide the fabric smoothly through the machine.
7. When finished, lift the presser foot and carefully remove the fabric.

5.2 Adjusting Stitch Length and Differential Feed

The machine features easy-to-handle adjustment systems for stitch length and differential feed. These controls allow you to fine-tune the stitch appearance and prevent fabric stretching or puckering. Refer to the specific dials or levers on the machine head for these adjustments. Experiment with scrap fabric to achieve the desired stitch quality for your material.

6. Maintenance

6.1 Lubrication

The automatic lubrication system requires regular monitoring. Check the oil level indicator frequently and refill the reservoir with recommended industrial sewing machine oil when necessary. Ensure the oil flow is visible through the indicator.

6.2 Cleaning

Regular cleaning is vital for optimal performance. Disconnect the power before cleaning.

• Remove lint and dust from the needle plate, feed dogs, and looper area using a brush or vacuum cleaner.
• Wipe down the exterior of the machine with a soft, dry cloth.
• Periodically clean the silicone reservoir system.

6.3 Needle and Looper Replacement

Replace needles regularly, especially if they become bent, dull, or broken. Always use the correct type and size of needles for industrial overlock machines. Refer to the machine's specifications for recommended needle types. Looper replacement should be performed by a qualified technician.

7. Troubleshooting

This section provides general troubleshooting tips. For complex issues, contact a qualified service technician.

8. Specifications

9. Warranty and Support

For information regarding the product warranty, please refer to the documentation provided at the time of purchase or contact your seller directly. Warranty terms and conditions may vary.

For technical support, spare parts, or service inquiries, please contact your authorized Yamata dealer or the manufacturer's customer service department. Ensure you have your machine's model number (FY44-04) and purchase details available when seeking support.
