Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your DELTA Flynn 144768C-SS One-Handle Bathtub and Shower Faucet with Valve. This product is designed to enhance your bathing experience with its functional features and durable construction.

Key features include a full body spray for consistent water coverage, WaterSense certification ensuring at least 20% less water usage than the industry standard, and Monitor Technology for maintaining a safe water temperature within 3 degrees Fahrenheit, protecting against sudden pressure changes. The faucet features a sleek stainless steel finish with Brilliance, a proprietary process that resists corrosion, tarnishing, and discoloration. It is ADA compliant and includes the necessary trim and a Multi-Choice Universal Valve with rough-in.

2. Safety Information

• Always turn off the main water supply before attempting any installation, repair, or maintenance.
• Ensure all local plumbing and building codes are strictly followed during installation.
• Wear appropriate personal protective equipment, such as safety glasses, to prevent injury during installation.
• Do not use harsh chemicals or abrasive cleaners on the faucet finish, as this may cause damage and void the warranty.

3. Package Contents

Verify that all components are present before beginning installation:

• Shower Head
• Shower Arm and Flange
• Valve Trim (including handle and escutcheon)
• Tub Spout
• Multi-Choice Universal Valve (rough-in valve)

4. Setup and Installation

Installation of the DELTA Flynn Bathtub and Shower Faucet requires plumbing knowledge. If you are unsure about any steps, it is recommended to consult a professional plumber. The Multi-Choice Universal Valve provides flexibility for various installation types.

General Installation Steps:

1. Prepare the Installation Area: Turn off the water supply. Remove any existing fixtures.
2. Install the Rough-in Valve: Secure the Multi-Choice Universal Valve body within the wall according to the manufacturer's instructions and local plumbing codes. Ensure proper depth and alignment.
3. Connect Water Lines: Connect the hot and cold water supply lines to the appropriate inlets on the valve body.
4. Install Shower Arm and Head: Thread the shower arm into the wall fitting and secure the shower head.
5. Install Tub Spout: Attach the tub spout to the stub-out pipe.
6. Install Valve Trim: Mount the escutcheon plate and handle assembly onto the rough-in valve.
7. Test for Leaks: Turn on the water supply and check all connections for leaks.

5. Operating Instructions

The DELTA Flynn faucet features a single handle for controlling both water temperature and flow.

• Turning On/Off: Lift the handle to turn on the water flow. Push down to turn off.
• Adjusting Water Temperature: Rotate the handle left for hotter water (indicated by a red symbol) and right for colder water (indicated by a blue symbol). The Monitor Technology helps maintain your desired temperature.
• Adjusting Water Flow: The flow rate is controlled by how far the handle is lifted.
• Full Body Spray: The shower head provides a consistent and powerful full body spray for an effective rinse.

6. Maintenance

Proper care and maintenance will ensure the longevity and appearance of your DELTA Flynn faucet.

• Cleaning the Finish: Clean the stainless steel finish with a soft, damp cloth. For stubborn spots, use a mild soap and water solution, then rinse thoroughly and dry. The Brilliance finish is designed to resist scratches and discoloration.
• Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any products containing bleach, acids, or solvents, as these can damage the finish.
• Shower Head Maintenance: Periodically clean the spray nozzles of the shower head to remove mineral buildup. Many DELTA shower heads feature soft rubber nozzles that can be easily wiped clean.

7. Troubleshooting

If you encounter any issues with your DELTA Flynn faucet, refer to the following common troubleshooting tips:

• Low Water Pressure: Check if the shower head nozzles are clogged with mineral deposits. Clean them as described in the Maintenance section. Ensure the main water supply is fully open.
• Temperature Fluctuations: The Monitor Technology in your valve is designed to prevent sudden temperature changes. If you experience inconsistent water temperature, ensure the valve is properly installed and the hot/cold water supplies are correctly connected.
• Leaks: Check all connections for tightness. If a leak persists from the handle or spout, the internal cartridge may need replacement.
• Cartridge Replacement: If the cartridge needs to be replaced due to wear or damage (e.g., from freezing), identify the specific part number for the 144768C-SS model. Contact DELTA customer support or a qualified plumber for assistance in obtaining and installing the correct replacement part.

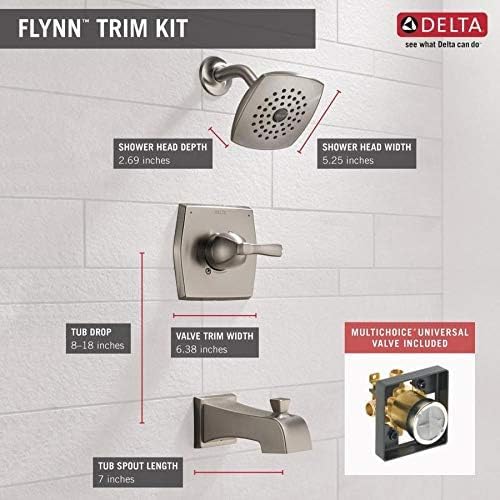

8. Specifications

9. Warranty

The DELTA Flynn 144768C-SS One-Handle Bathtub and Shower Faucet with Valve is backed by a Lifetime Limited Warranty. This warranty covers defects in material and workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed. For complete details regarding warranty coverage, terms, and conditions, please refer to the official DELTA warranty documentation included with your product or visit the DELTA Faucet website.

10. Support

For further assistance, technical support, or to inquire about replacement parts, please contact DELTA Faucet customer service. You can find contact information and additional resources on the official DELTA Faucet website:

www.deltafaucet.com

Please have your model number (144768C-SS) and purchase date available when contacting support.
