Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Frigidaire FG4H2272UF 36-inch Gallery Series Counter Depth French Door Refrigerator. Please read all instructions carefully before using your appliance to ensure optimal performance and longevity.
Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury to persons. Keep this manual for future reference.
- Ensure the refrigerator is properly grounded.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
Setup and Installation
Proper installation is crucial for the performance and safety of your refrigerator.
Unpacking
Remove all packaging materials, tape, and protective film from the refrigerator. Dispose of packaging materials responsibly.
Location Requirements
- Place the refrigerator on a level, sturdy floor capable of supporting its weight.
- Allow adequate clearance around the appliance for proper air circulation (minimum 1 inch at sides and back, 2 inches at top).
- Avoid direct sunlight or proximity to heat sources like ovens or radiators.
- Ensure the refrigerator is connected to a dedicated, grounded electrical outlet.
Leveling the Refrigerator
Use the leveling legs to ensure the refrigerator is stable and the doors close properly. The front should be slightly higher than the back to allow doors to close easily.
Door Alignment
Adjust the door hinges if necessary to ensure proper alignment and a tight seal.
Figure 1: Exterior view of the Frigidaire FG4H2272UF French Door Refrigerator in Stainless Steel. This image shows the overall design and the counter-depth profile.
Operating Your Refrigerator
Your Frigidaire refrigerator is designed for efficient food storage with various features to maintain freshness.
Temperature Control
The electronic temperature controls are located on the dispenser panel. Set the refrigerator and freezer temperatures according to your needs. Recommended settings are typically 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer.
Interior Features
- Adjustable Shelves: Customize shelf height to accommodate various food items.
- Crisper Drawers: Designed to maintain optimal humidity levels for fruits and vegetables.
- Custom-Flex Temp Drawer: This versatile drawer allows you to select specific temperature settings for different food types, such as meat, seafood, cold drinks, or wine.
Figure 2: Interior view of the refrigerator compartment with empty shelves and drawers, highlighting the spacious design.
Figure 3: Interior view of the refrigerator compartment filled with various food items, demonstrating storage capacity and organization.
Figure 4: Close-up of the empty crisper drawers, showing their design for humidity control.
Figure 5: Crisper drawers filled with fresh produce, illustrating their practical use.
Figure 6: The Custom-Flex Temp Drawer shown empty and partially open, with temperature selection options visible.

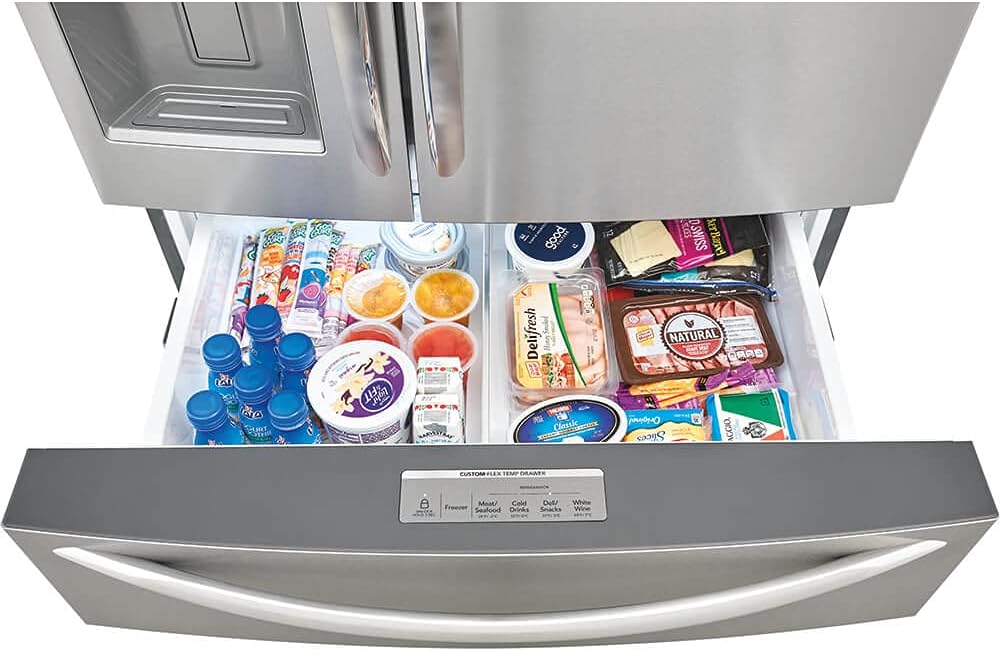

Figure 7: The Custom-Flex Temp Drawer filled with various items, demonstrating its flexible storage capabilities.
Freezer Compartment
The bottom freezer drawer provides ample space for frozen goods. Ensure packages are sealed to prevent freezer burn.
Figure 8: The freezer drawer shown filled with frozen food items, illustrating its storage capacity.
Maintenance and Care
Regular maintenance helps ensure your refrigerator operates efficiently and extends its lifespan.
Cleaning the Interior
Clean the interior regularly with a mild soap and water solution. Rinse thoroughly and dry. Remove shelves and drawers for easier cleaning.
Cleaning the Exterior (Stainless Steel)
For stainless steel surfaces, use a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain to prevent streaking. Avoid abrasive cleaners or scouring pads.
Condenser Coils
Periodically clean the condenser coils located at the back or bottom of the refrigerator. Dust and debris can accumulate, reducing efficiency. Unplug the appliance before cleaning.
Frost Free System
Your refrigerator features a Frost Free defrost system, which automatically prevents frost buildup in the freezer compartment. Manual defrosting is not required.
Troubleshooting
Before calling for service, review the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power outage; thermostat set too high; door left open; condenser coils dirty. | Check power supply; adjust thermostat; ensure door is closed; clean condenser coils. |
| Ice maker not producing ice | Water supply turned off; clogged water filter; ice maker switch off; freezer temperature too high. | Check water line connection and valve; replace water filter; ensure ice maker switch is ON; lower freezer temperature. |
| Unusual noises | Refrigerator not level; items vibrating against each other; normal operating sounds (e.g., defrost cycle, compressor). | Level the refrigerator; rearrange items; consult the "Normal Operating Sounds" section in the full manual (if available). |
| Water leaking | Clogged defrost drain; loose water line connection. | Clear defrost drain; tighten water line connections. |
If problems persist after attempting these solutions, contact qualified service personnel.
Specifications
| Feature | Detail |
|---|---|
| Brand | Frigidaire |
| Model Number | FG4H2272UF |
| Capacity | 21.8 Cubic Feet |
| Product Dimensions (D x W x H) | 37 x 71 x 33 inches |
| Installation Type | Freestanding |
| Form Factor | French Door |
| Color | Silver (Stainless Steel) |
| Defrost System | Frost Free |
| Door Material Type | Stainless Steel |
| Shelf Type | Adjustable Shelves |
| Refrigerant | R-600A |
| Certification | Energy Star |
Warranty and Support
For detailed warranty information, please refer to the warranty card included with your appliance or visit the official Frigidaire website. For technical support, service requests, or to purchase replacement parts, please contact Frigidaire customer service or visit their official support portal.
Online Resources: www.frigidaire.com
