Seek Thermal RevealPRO RQ-AAA Thermal Imaging Camera

Introduction

The Seek Thermal RevealPRO RQ-AAA is a high-resolution infrared camera designed for thermal imaging professionals. This rugged and easy-to-use device combines a high-performance 320 x 240 thermal sensor with intuitive software to facilitate faster job completion and reduce callbacks. It features a powerful 300-lumen LED light, adjustable thermal level, span, and emissivity settings, a long-lasting rechargeable battery, and a large color display, all housed within a durable, rubberized casing.

Key Features

• Ruggedized Design: Built for durability on job sites and for home use.
• High-Resolution Thermal Sensor: Features a 320 x 240 thermal sensor for clear and detailed thermal images.
• Problem Identification: Helps identify issues invisible to the naked eye, such as energy loss, electrical and mechanical failures, and water damage.
• Integrated LED Flashlight: A powerful 300-lumen LED light is available at the touch of a button.
• Adjustable Settings: Offers adjustable thermal level, span, and emissivity settings for precise measurements.
• Long-Lasting Battery: Equipped with a rechargeable battery for extended use.
• Large Color Display: Provides a clear and intuitive interface for viewing thermal data.

Setup

1. Charging the Device: Connect the provided USB cable to the device's USB-C port and to a compatible USB power adapter. Allow the device to fully charge before first use.
2. Power On/Off: Press and hold the power button located on the device to turn it on or off.
3. Initial Calibration: The device will perform an initial calibration upon startup. Ensure it is held steady during this process.

Operating Instructions

1. Viewing Thermal Images: Point the camera towards the area of interest. The thermal image will be displayed on the large color screen.
2. Adjusting Palettes: Use the navigation buttons to cycle through the 9 available color palettes to best visualize temperature differences.
3. Adjusting Thermal Level & Span: Access the settings menu to fine-tune the thermal level and span for specific measurement requirements.
4. Emissivity Settings: Select from 4 emissivity presets or manually adjust the emissivity based on the material being inspected for accurate temperature readings.
5. Capturing Photos: Press the designated capture button to save thermal images to the device's internal storage.
6. Using the LED Flashlight: Activate the 300-lumen LED flashlight by pressing its dedicated button for illumination in dark environments.

Maintenance

• Cleaning the Lens: Use a soft, lint-free cloth to gently clean the thermal lens. Avoid abrasive materials or harsh chemicals.
• Battery Care: Recharge the device regularly. Avoid fully depleting the battery for prolonged periods to maintain battery health.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• Software Updates: Check the manufacturer's website for any available firmware updates to ensure optimal performance.

Troubleshooting

• Device Not Powering On: Ensure the battery is sufficiently charged. Connect to a power source and attempt to power on again.
• Unclear Thermal Images: Verify the lens is clean. Adjust thermal level, span, and emissivity settings to suit the environment and target.
• Inaccurate Temperature Readings: Confirm the correct emissivity setting is applied for the material being measured. Ensure the device is within its specified operating temperature range.
• Device Freezing: Perform a soft reset by holding down the power button until the device restarts. If the issue persists, contact customer support.

Specifications

Warranty and Support

Specific warranty and support details are not provided in the product information. Please refer to the official Seek Thermal website or contact their customer service for comprehensive warranty information and support options.

Product Media

Seek Thermal RevealPRO held in hand, displaying a thermal image of an electrical circuit with hot spots.

Seek Thermal RevealPRO showing a thermal image of a pipe with a hot spot.

Seek Thermal RevealPRO displaying a thermal image of mechanical components with heat signatures.

Two technicians inspecting an electrical panel using the Seek Thermal RevealPRO camera.

Seek Thermal RevealPRO on a workbench with tools, showing a thermal image of a structure.

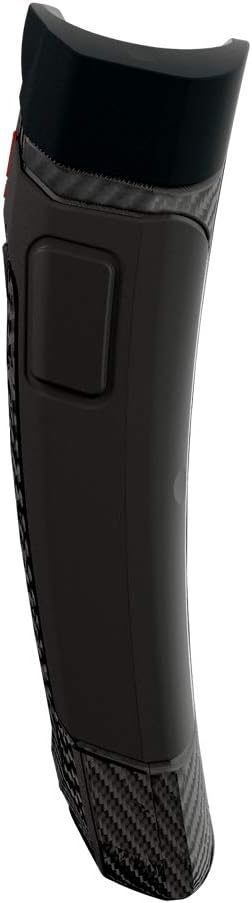

Side profile of the Seek Thermal RevealPRO camera, highlighting its ergonomic design.
