DELTA 40'x20' Budget PVC Party Tent Instruction Manual

1. Product Overview

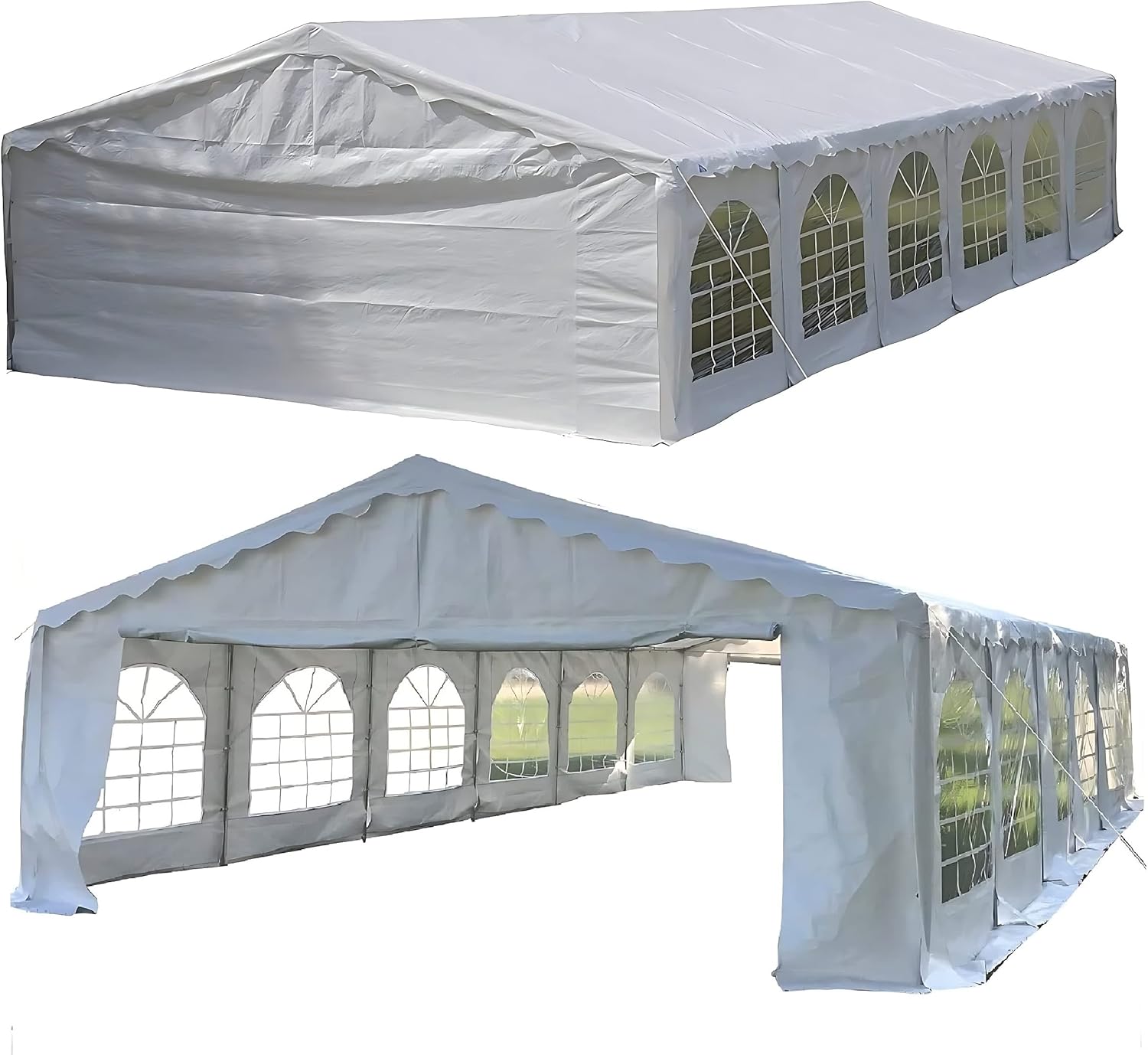

The DELTA 40'x20' Budget PVC Party Tent is designed for various outdoor events, offering reliable shelter and protection. Its robust construction ensures durability and stability for both commercial and recreational use.

• Durable Steel Frame: Features a sturdy 1.5 inches (38mm) galvanized steel tube frame with 1.66 inches (42mm) metal connectors, ensuring reliable support. Includes 4 super stakes for added stability.
• Heavy Duty PVC Material: Crafted from top-grade PVC for the top cover, window walls, and end panels. This material is waterproof, UV-resistant, and provides excellent protection against sun and rain.
• Versatile Use: Ideal for weddings, parties, picnics, BBQs, and other outdoor gatherings, providing shade and rain protection.
• Quick Setup & Easy Takedown: User-friendly push-button system allows for hassle-free assembly and disassembly.

2. Safety Information

Please read and understand all safety warnings before assembly and use.

• Caution: Handle the steel frame with care during assembly and disassembly to avoid injury.
• Stability: Properly secure the tent to prevent tipping or damage, especially in windy conditions.
• Suffocation Risk: Ensure the PVC cover and sidewalls are used safely to avoid suffocation risks.
• Weight: Use caution when handling the product, as it is heavy (approximately 397 lbs).
• Weather Conditions: Do not use the tent in extreme weather conditions such as heavy winds, snow, or thunderstorms. Disassemble the tent if severe weather is anticipated.

3. Components List

Before beginning assembly, verify that all components listed below are present and undamaged. Refer to the packing list for exact quantities.

Component	Description	Image
Galvanized Steel Tubes	Main frame poles (1.5 inches / 38mm diameter).
Metal Connectors	Connectors for frame poles (1.66 inches / 42mm diameter).
PVC Top Cover	Waterproof and UV-resistant roof cover.
PVC Window Walls	Side panels with clear arched windows.
PVC End Panels	Solid end panels for the tent.
Super Stakes	4 heavy-duty stakes for ground anchoring.
Bungee Cords	Elastic cords for securing the cover and sidewalls to the frame.

4. Setup Instructions

Assembly of the DELTA 40'x20' Party Tent requires at least 4-6 people due to its size and weight. Follow these steps carefully for a safe and efficient setup.

4.1 Site Preparation

1. Choose a flat, level area free from overhead obstructions (trees, power lines) and underground utilities.
2. Clear the area of any sharp objects, debris, or anything that could puncture the tent material.
3. Ensure adequate space around the tent for securing ropes and stakes.

4.2 Frame Assembly

1. Unpack all steel tubes and connectors. Lay them out according to the frame diagram (refer to included diagram in physical manual).
2. Begin by assembling the roof frame. Connect the ridge poles and rafters using the appropriate metal connectors. Ensure all push-button connections click into place securely.
3. Once the roof frame is complete, attach the leg poles to the corners and intermediate points of the roof frame.
4. Gradually lift the frame, with multiple people assisting, ensuring it remains stable.
5. Attach the base plates to the bottom of each leg pole.

4.3 Cover Installation

1. Carefully unfold the PVC top cover and drape it over the assembled frame. Ensure the cover is centered and evenly distributed.
2. Secure the top cover to the frame using the provided bungee cords. Thread the bungee cords through the grommets on the cover and around the frame poles.
3. Attach the PVC window walls and end panels to the frame using the integrated fasteners or bungee cords. Ensure they are taut and properly aligned to prevent gaps.

4.4 Anchoring the Tent

1. Drive the super stakes into the ground at each corner and along the sides of the tent, ensuring they are firmly embedded.
2. Attach guy ropes (if included, or use strong ropes) from the tent frame to the stakes, pulling them taut to provide additional stability.
3. Double-check all connections and anchoring points to ensure the tent is secure before use.

4.5 Video Guide

For a visual guide on setting up your DELTA Party Tent, please watch the official setup video:

5. Operating the Tent

Once assembled, the DELTA Party Tent provides a versatile space for various activities.

• Ventilation: The removable sidewalls allow for adjustable ventilation. Open or remove panels as needed for airflow.
• Entry/Exit: Utilize the end panels for entry and exit. Some models may feature zippered doors for convenience.
• Lighting: Consider external lighting solutions if the tent will be used after dark. Avoid open flames inside the tent.
• Capacity: Adhere to safe occupancy limits. The 40'x20' tent can accommodate a significant number of guests, but avoid overcrowding.

6. Maintenance

Proper maintenance will extend the lifespan of your DELTA Party Tent.

• Cleaning: Clean the PVC cover and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
• Frame Care: Inspect the galvanized steel frame periodically for any signs of rust or damage. Clean and treat any rust spots to prevent further corrosion.
• Storage: When not in use, disassemble the tent and store all components in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure all fabric parts are completely dry to prevent mold and mildew.
• Inspection: Before each use, inspect all poles, connectors, covers, and ropes for wear, tears, or damage. Replace any damaged parts immediately.

7. Troubleshooting

Common issues and their solutions:

8. Specifications

• Brand: DELTA
• Model Number: PVC-BUDGET-4020-WHTE
• Dimensions: 40'x20' (Length x Width)
• Material: Polyvinyl Chloride (PVC) for cover, Galvanized Steel for frame
• Color: White
• Water Resistance Level: Waterproof
• Ultraviolet Light Protection: Yes
• Assembly Required: Yes
• Approximate Weight: 397 lbs
• Manufacturer: WPIC
• Country of Origin: China

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact DELTA customer support directly. Keep your proof of purchase for any warranty claims.

For technical assistance, replacement parts, or further inquiries, please contact WPIC-Store, the manufacturer, or visit their official website. Contact details are typically provided in the packaging or on the product's listing page.

WPIC-Store: Visit DELTA Store on Amazon
