Fragola Performance Systems 601506#6 PTFE Hose 15 Feet Instruction Manual

Introduction

This instruction manual provides essential information for the proper handling, installation, and maintenance of your Fragola Performance Systems 601506#6 PTFE Hose. Please read this manual thoroughly before use to ensure safe and effective operation. This hose is designed for high-performance automotive and racing applications.

Product Overview

The Fragola Performance Systems 601506#6 PTFE Hose is a high-quality, durable hose constructed from Polytetrafluoroethylene (PTFE) material, known for its excellent chemical resistance and high-temperature capabilities. This 15-foot hose is engineered for demanding automotive and racing environments, offering reliable fluid transfer for systems such as air conditioning. Its design emphasizes high performance and race-proven quality.

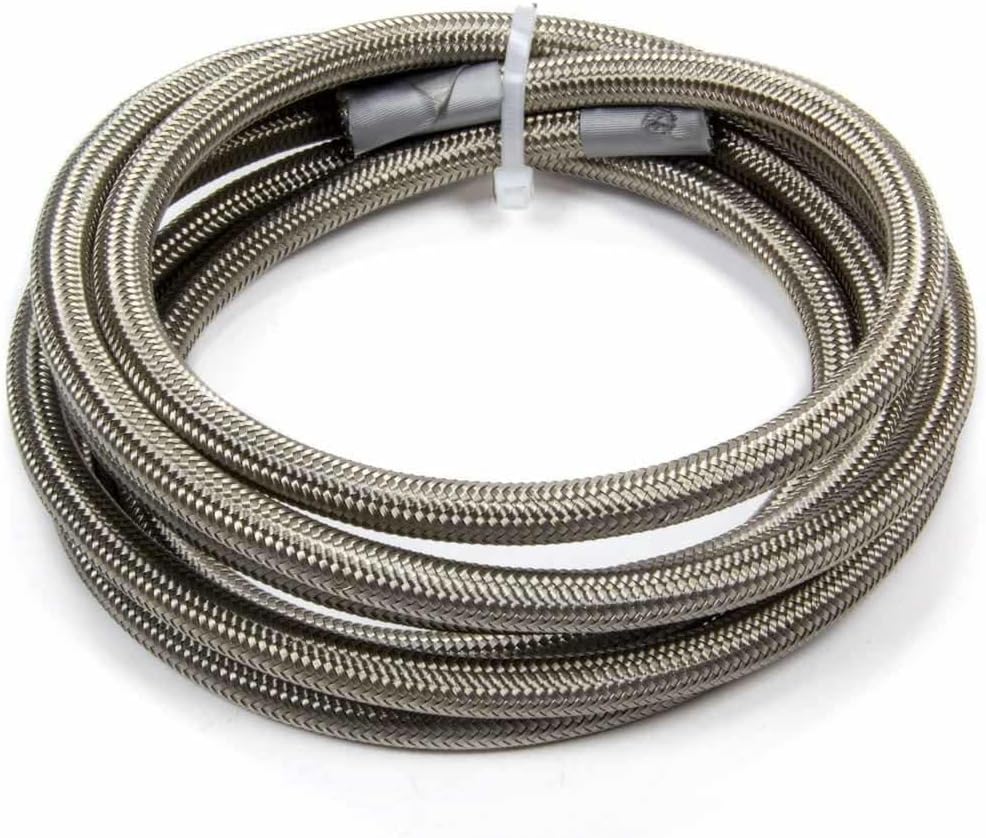

Image: A 15-foot length of Fragola Performance Systems #6 PTFE hose, coiled and secured with a white zip tie. The hose features a natural silver braided exterior, indicative of its PTFE construction, designed for high-performance applications.

Safety Information

Always prioritize safety when working with automotive components and fluids. Failure to follow safety guidelines can result in injury or damage to property.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle or system is depressurized and cooled before working on fluid lines.
• Handle fluids responsibly and dispose of them according to local regulations.
• Use only tools appropriate for the task.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Installation Instructions

Proper installation is crucial for the performance and longevity of your PTFE hose. This hose requires compatible fittings (sold separately) for connection to your system.

1. Preparation: Ensure your work area is clean and free of debris. Gather all necessary tools, including a sharp hose cutter designed for braided hose, and compatible PTFE hose fittings.
2. Cutting the Hose: Measure the required length carefully. Use a specialized hose cutter to achieve a clean, square cut. Avoid using saws or abrasive tools that can fray the braid or damage the PTFE liner.
3. Fitting Assembly: Follow the specific instructions provided with your chosen PTFE hose fittings. Generally, this involves inserting the hose into the socket, then threading the nipple into the hose and socket assembly. Ensure all connections are tight and secure.
4. Routing: Route the hose carefully, avoiding sharp bends, kinks, or contact with hot or moving parts. Allow for sufficient slack to accommodate engine movement or vibration.
5. Securing: Use appropriate clamps or ties to secure the hose at regular intervals, preventing chafing or excessive movement.
6. Leak Check: After installation, pressurize the system and thoroughly inspect all connections for leaks. Address any leaks immediately before operating the vehicle or system.

Operating Guidelines

Once installed, the Fragola PTFE hose is designed for continuous operation within its specified parameters. Regular monitoring is recommended.

• System Compatibility: Ensure the hose is used within a system compatible with its pressure and temperature ratings.
• Fluid Compatibility: PTFE is highly resistant to many chemicals, but always verify compatibility with the specific fluids being transferred.
• Avoid Over-Pressurization: Do not exceed the maximum operating pressure of the hose or the system it is integrated into.
• Regular Inspection: Periodically inspect the hose and fittings for any signs of wear, damage, or leaks, especially after demanding use.

Maintenance

Minimal maintenance is required for the Fragola PTFE hose, but periodic checks will extend its lifespan and ensure optimal performance.

• Cleaning: Clean the exterior of the hose with a mild detergent and water if necessary. Avoid harsh chemicals or abrasive cleaners that could damage the braided cover.
• Inspection: Regularly check the entire length of the hose for cuts, abrasions, kinks, bulges, or any signs of fluid seepage. Pay close attention to areas near fittings and where the hose might rub against other components.
• Fitting Integrity: Ensure all fittings remain tight. Do not overtighten, as this can damage the hose or fitting.
• Storage: If the hose is removed from service, store it in a clean, dry environment, away from direct sunlight and extreme temperatures. Avoid kinking or crushing the hose during storage.

Troubleshooting

If you encounter issues with your Fragola PTFE hose, consider the following common problems and solutions:

• Leaks at Fittings:
  • Cause: Improper assembly, damaged fitting, or insufficient tightening.
  • Solution: Disassemble, inspect fittings for damage, re-cut hose if necessary, and reassemble according to fitting manufacturer's instructions. Ensure proper torque.
• Reduced Flow:
  • Cause: Kinked hose, internal blockage, or collapsed liner.
  • Solution: Inspect the hose for kinks or damage. If the liner is collapsed or there's an internal blockage, the hose may need replacement.
• Hose Abrasion/Wear:
  • Cause: Contact with moving parts, sharp edges, or insufficient securing.
  • Solution: Re-route the hose to avoid contact. Use protective sleeves or additional clamps to prevent further abrasion. Replace severely abraded hose.

Specifications

Warranty and Support

For specific warranty information, please refer to the documentation provided by your retailer or contact Fragola Performance Systems directly. Product support and technical assistance can be obtained through the manufacturer's official channels.
