Wolf Guard LB-01A 433MHz Outdoor Alarm System Flash Siren User Manual

1. Product Overview

The Wolf Guard LB-01A is a wireless outdoor alarm system flash siren designed to enhance security for various properties. It features a powerful 110dB siren combined with a bright strobe light to effectively deter intruders. This system is easy to install and can be expanded with additional sensors and remote controls.

Figure 1: Front view of the Wolf Guard LB-01A outdoor alarm siren.

2. Package Contents

Verify that all items are present in the package before proceeding with installation.

• 1 x LB-01A Intruder Siren
• 1 x PIR Motion Detector
• 2 x Remote Controls
• 1 x Power Adapter (12V)
• 1 x User Manual (this document)
• 1 x CR2 Battery (pre-installed or separate for PIR)

Figure 2: Package contents of the Wolf Guard LB-01A alarm system.

3. Specifications

4. Safety Information

• Ensure the power adapter is connected to a suitable power outlet.
• Do not expose the siren to extreme temperatures or direct water immersion, despite its outdoor rating.
• Keep batteries out of reach of children. Dispose of used batteries responsibly.
• Avoid placing the siren directly next to ears when testing due to its high decibel output.

5. Setup and Installation

5.1. Siren Placement

The siren is designed for outdoor use and can be mounted on a wall or ceiling edge. Choose a location that provides optimal sound and light coverage for deterring intruders, such as a home courtyard, shop, or warehouse. Ensure the mounting surface is stable and secure.

Figure 3: Back view of the siren with mounting points.

5.2. Power Connection

Connect the provided 12V power adapter to the siren and plug it into a power outlet. The siren may also have an internal backup battery (not explicitly stated for siren, but PIR has CR2). Ensure the power connection is secure and protected from weather elements if installed outdoors.

Figure 4: Siren with power adapter and battery compartment.

5.3. PIR Motion Detector Setup

Install the CR2 battery into the PIR motion detector if not already pre-installed. Mount the PIR detector in an area where it can effectively detect movement, such as near entry points or high-traffic areas. Avoid placing it directly facing heat sources or windows where sunlight might cause false alarms. The PIR sensor is designed to be pet-friendly to minimize false alarms from small animals.

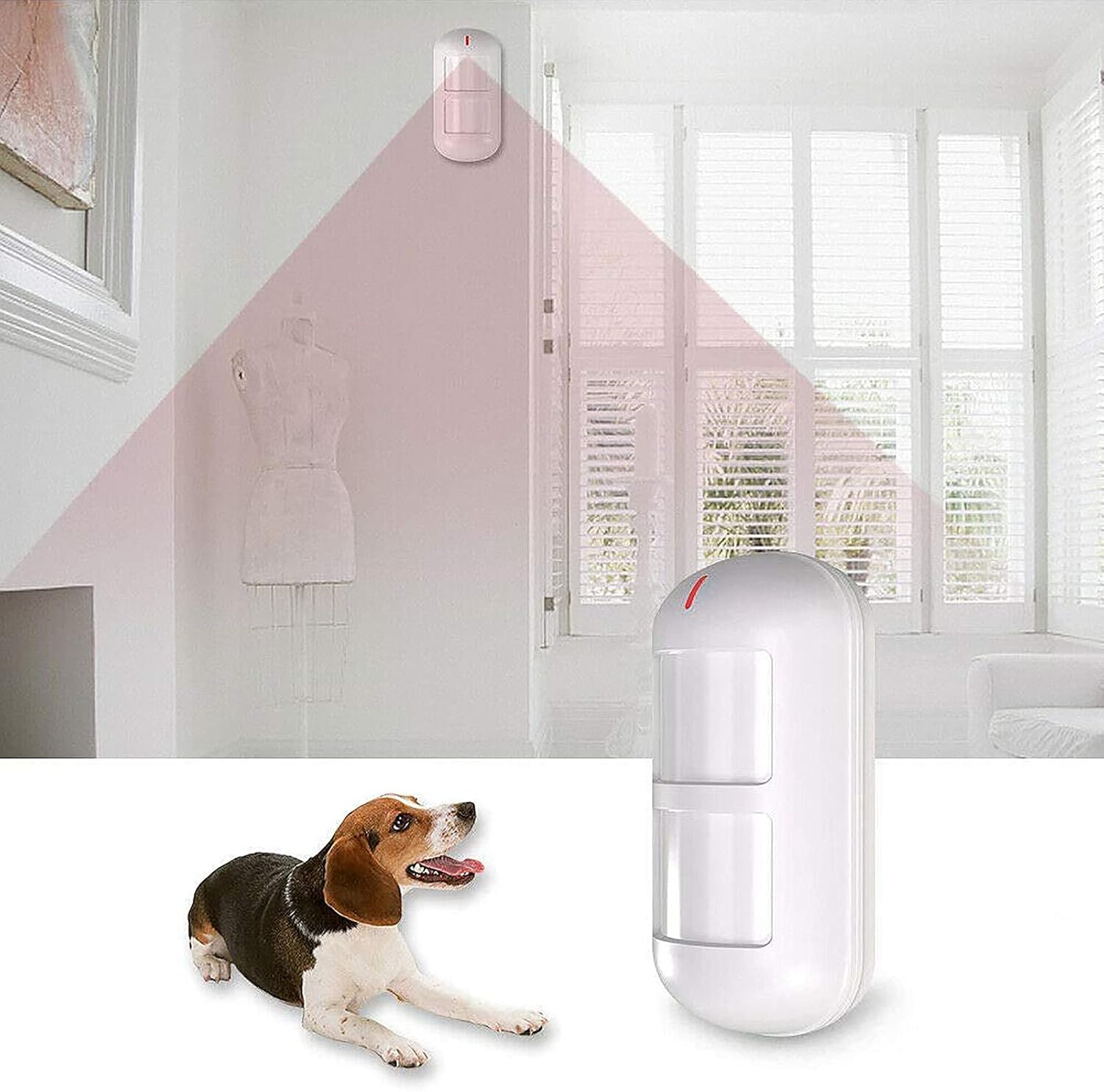

Figure 5: PIR motion detector with pet immunity feature.

6. Operating Instructions

The system is primarily controlled using the provided remote controls.

6.1. Remote Control Functions

• Arm (Locked icon): Activates the alarm system. The siren will sound if a paired sensor (e.g., PIR detector) is triggered.
• Disarm (Unlocked icon): Deactivates the alarm system. Sensors will not trigger the siren.
• Home Arm (House icon): Activates specific zones for arming while allowing free movement in others (e.g., perimeter sensors active, indoor PIR inactive). Refer to advanced settings for zone configuration.
• SOS (SOS icon): Triggers an immediate alarm, regardless of the system's armed status. Use in emergencies.

Figure 6: Remote control layout and functions.

6.2. Alarm Triggering

When the system is armed and a PIR motion detector senses movement, the siren will activate, emitting a 110dB sound and flashing its strobe light to alert and deter.

Figure 7: Alarm activation scenario.

7. Pairing Additional Devices

The Wolf Guard LB-01A system supports up to 99 additional wireless accessories, including door/window sensors, additional PIR detectors, and remote controls. The exact pairing procedure may vary slightly depending on the accessory type, but generally follows these steps:

1. Enter Pairing Mode: Consult the siren's specific instructions (or look for a "Learn" button/mode on the siren). This usually involves pressing a button on the siren for a few seconds until an indicator light or sound confirms pairing mode.
2. Activate Accessory: Trigger the new sensor (e.g., open a door/window for a contact sensor, wave hand in front of a PIR, press a button on a remote).
3. Confirmation: The siren will typically emit a beep or flash to confirm successful pairing.
4. Exit Pairing Mode: The siren will automatically exit pairing mode after a short period, or you may need to press the "Learn" button again.

Figure 8: Expandable system with various compatible sensors (Max 99 devices).

8. Maintenance

• Battery Replacement: The PIR motion detector uses a CR2 battery with an average life of 60 months. Replace the battery when the low battery indicator (if present) activates or when detection performance degrades.
• Cleaning: Periodically wipe the siren and sensors with a soft, dry cloth to remove dust and debris. Do not use abrasive cleaners or solvents.
• Functionality Check: Test the system regularly (e.g., monthly) by arming it and triggering a sensor to ensure the siren activates correctly.

9. Troubleshooting

10. Warranty and Support

For warranty information and technical support, please refer to the official Wolf Guard website or contact your retailer. Keep your purchase receipt as proof of purchase.

Manufacturer: Chi Tong Da

Brand: Wolf Guard
