InnovaGoods Woldy Foldable Wall Desk Instruction Manual

1. Product Overview

The InnovaGoods Woldy Foldable Wall Desk is a versatile and space-saving solution designed for home offices, study areas, or creative spaces. This wall-mounted unit features a foldable desk surface, integrated storage shelves, a chalkboard, and a cork board, providing a functional and organized workspace that can be neatly folded away when not in use.

2. Safety Warnings

Important: Read all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the desk is securely fixed to a suitable wall structure to prevent slipping or falling. Do not mount on light partition walls (e.g., plasterboard) without proper reinforcement.
• Consider the desk's weight capacity and ensure it is not overloaded. Distribute weight evenly on the desk surface and shelves.
• Keep small parts and mounting hardware out of reach of children.
• Always use appropriate tools and follow assembly steps carefully.
• Periodically check all screws and connections to ensure they remain tight and secure.

3. Package Contents

Verify that all components are present before beginning assembly:

• Main desk unit (wood components)
• Foldable desk surface with integrated chalkboard
• Cork board panel
• Mounting hardware (supports, wall plugs, screws)
• Assembly instructions (refer to this manual)

4. Setup and Assembly Instructions

Assembly requires careful attention and is recommended for two people due to the weight and size of the unit. Ensure you have the necessary tools (e.g., drill, screwdriver, level, measuring tape) before starting.

1. Choose a Suitable Location: Select a wall that is structurally sound and capable of supporting the desk's weight (approximately 16.3 kg) plus any items placed on it. Avoid mounting on drywall or plasterboard without locating studs or using appropriate heavy-duty anchors.
2. Mark Mounting Points: Hold the main desk unit against the wall at the desired height. Use a level to ensure it is straight. Mark the positions for the mounting screws.
3. Drill Pilot Holes: Drill pilot holes at the marked positions. Use a drill bit appropriate for your wall type and the provided wall plugs. Insert the wall plugs if necessary.
4. Attach the Main Unit: Secure the main desk unit to the wall using the provided screws and supports. Ensure all screws are tightened firmly.
5. Assemble Foldable Desk Surface: Attach the foldable desk surface to the main unit according to the detailed diagrams in the included paper instructions. Ensure the hinges and support mechanisms are correctly aligned and secured.
6. Install Cork Board: Place the cork board panel into its designated slot within the main unit.
7. Final Check: Once assembled, gently test the stability of the desk. Ensure it is firmly attached to the wall and that the folding mechanism operates smoothly.

5. Operating Instructions

5.1 Folding and Unfolding the Desk

• To Unfold: Release the latch mechanism located at the top of the foldable desk surface. Gently lower the desk surface until it is fully extended and supported by its leg. Ensure the leg is securely locked into place.
• To Fold: Clear all items from the desk surface. Disengage the leg support and carefully lift the desk surface upwards until it clicks into place with the latch mechanism, securing it against the main unit.

5.2 Using the Chalkboard

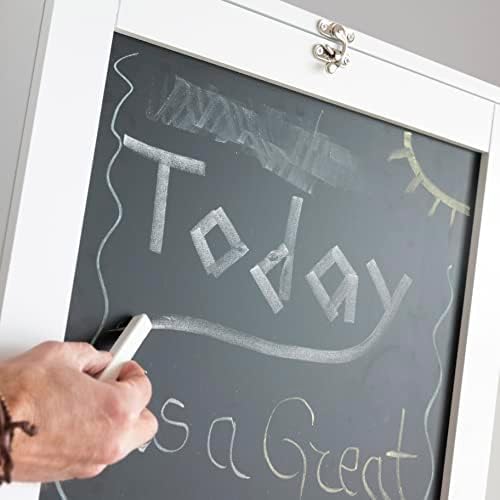

The exterior surface of the foldable desk serves as a chalkboard. Use standard chalk to write notes, reminders, or drawings. To clean, wipe with a damp cloth or a chalkboard eraser.

5.3 Using the Cork Board and Shelves

The internal cork board allows you to pin notes, photos, or documents using pushpins. The various shelves provide storage for books, stationery, decorative items, and other small objects.

6. Maintenance

• Cleaning: Wipe the wooden surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. For the chalkboard, use a damp cloth or a dedicated chalkboard eraser.
• Hardware Check: Periodically inspect all mounting hardware, hinges, and latches. Tighten any loose screws to maintain stability and safe operation.
• Avoid Overloading: Do not exceed the recommended weight capacity for the desk surface or shelves to prevent structural damage.

7. Troubleshooting

• Desk feels unstable after mounting:
  • Ensure the desk is mounted on a solid wall (e.g., concrete, brick, or wall studs). If mounted on drywall, verify that appropriate heavy-duty anchors were used and are securely installed.
  • Check all mounting screws and ensure they are fully tightened.
• Folding mechanism is stiff or difficult to operate:
  • Inspect hinges for any obstructions or damage.
  • Apply a small amount of silicone lubricant to the hinge points if necessary.
• Latch does not secure the desk in the folded position:
  • Check if the latch mechanism is bent or misaligned. Gently adjust if possible, or consider replacing if damaged.

8. Specifications

9. Warranty and Support

This product typically comes with a 2-year availability for spare parts. For specific warranty details, claims, or technical support, please refer to the documentation provided at the time of purchase or contact InnovaGoods customer service directly. Keep your proof of purchase for warranty purposes.
