TOTO Arvina Rectangular Vessel Bathroom Sink LT416G#01 Instruction Manual

1. Introduction

This manual provides essential information for the safe and proper installation, operation, and maintenance of your TOTO Arvina Rectangular 23-inch Vessel Bathroom Sink. The Arvina vessel sink features a modern, elegant design with thin, rounded edges and is equipped with CEFIONTECT glaze for enhanced cleanliness. It includes a front overflow and a single faucet mounting hole. Please read all instructions thoroughly before beginning installation or use.

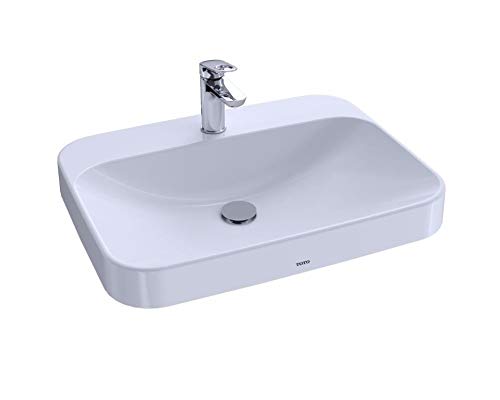

Image 1.1: TOTO Arvina Rectangular Vessel Bathroom Sink (Model LT416G#01)

2. Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
• Ensure all water supply lines are turned off before beginning any plumbing work.
• Handle the sink with care to avoid chipping or breaking, as ceramic can be fragile.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Do not use harsh chemicals or abrasive cleaners on the sink surface, as this may damage the CEFIONTECT glaze.

3. Package Contents

Verify that all components are present before beginning installation:

• TOTO Arvina Rectangular Vessel Bathroom Sink (Model LT416G#01)
• Installation Template

Note: Faucet, drain assembly, and mounting hardware are sold separately and are not included with the sink.

4. Setup and Installation

Professional installation is recommended for optimal results. An installation template is included to assist with proper placement and drilling.

4.1 Pre-Installation Steps

1. Unpack the sink and inspect it for any damage. Do not install a damaged product.
2. Ensure the countertop surface is clean, dry, and level where the sink will be placed.
3. Gather all necessary tools and additional components (faucet, drain, sealant, etc.).

4.2 Mounting the Vessel Sink

1. Position the included installation template on the countertop according to your desired placement and faucet configuration.
2. Carefully mark the locations for the drain hole and faucet hole(s) as indicated by the template.
3. Drill the necessary holes in the countertop using appropriate tools for your countertop material.
4. Apply a bead of silicone sealant around the perimeter of the drain hole on the countertop.
5. Carefully place the sink onto the countertop, aligning the drain hole of the sink with the hole in the countertop.
6. Press down firmly to ensure a good seal. Wipe away any excess sealant immediately.

4.3 Faucet and Drain Installation

1. Install the faucet according to the manufacturer's instructions, feeding the supply lines through the faucet hole in the sink.
2. Install the drain assembly according to the manufacturer's instructions, ensuring a watertight seal with the sink's drain opening.
3. Connect the water supply lines to the faucet and the drain trap to the drain assembly.
4. Turn on the water supply and check for any leaks at all connections.

5. Operating Instructions

The TOTO Arvina vessel sink is designed for standard bathroom use. Operate the faucet according to its manufacturer's instructions to control water flow and temperature. The front overflow is designed to prevent minor overfilling; however, continuous monitoring is recommended during use.

6. Maintenance and Care

Proper care will ensure the longevity and appearance of your TOTO Arvina sink.

6.1 Cleaning the Sink

• The sink features TOTO's CEFIONTECT glaze, a super-smooth, ion-barrier surface that helps keep the sink cleaner longer by minimizing waste from adhering to the ceramic.
• For daily cleaning, wipe the sink surface with a soft, dry cloth after each use to prevent water spots and mineral buildup.
• For more thorough cleaning, use a mild, non-abrasive liquid cleaner and a soft sponge or cloth. Rinse thoroughly with clean water and dry completely.
• Do not use: Abrasive cleaners, scouring pads, steel wool, strong acids or alkalis, or cleaners containing harsh chemicals, as these can damage the CEFIONTECT glaze and the sink's finish.

6.2 Overflow Care

Periodically clean the overflow channel to prevent buildup. A small brush can be used with a mild cleaner, followed by a thorough rinse.

7. Troubleshooting

This section addresses common issues you might encounter with your sink.

7.1 Leaks Around Drain or Faucet

• Cause: Loose connections or improper sealant application.
• Solution: Turn off water supply. Check and tighten all connections for the faucet and drain assembly. Reapply plumber's putty or silicone sealant if necessary, ensuring a proper seal.

7.2 Slow Drainage

• Cause: Partial clog in the drain or P-trap.
• Solution: Remove the drain stopper and clear any visible debris. If the issue persists, disassemble and clean the P-trap. Avoid pouring grease or large debris down the drain.

7.3 Water Spots or Stains

• Cause: Hard water deposits or residue from soap/cosmetics.
• Solution: Regularly wipe the sink dry after use. For stubborn spots, use a mild vinegar solution (diluted with water) or a specialized non-abrasive cleaner for hard water stains. Rinse thoroughly.

8. Specifications

9. Warranty Information

TOTO products are manufactured to high-quality standards. For detailed warranty information regarding your TOTO Arvina Rectangular Vessel Bathroom Sink, please refer to the official TOTO website or contact TOTO customer service. Keep your proof of purchase for warranty claims.

10. Customer Support

If you have any questions, require technical assistance, or need to report an issue with your TOTO Arvina sink, please contact TOTO customer support:

• Website: Visit the official TOTO USA website for FAQs, product registration, and support resources.
• Contact: Refer to the 'Contact Us' section on the TOTO website for phone numbers or email support.

Please have your model number (LT416G#01) and date of purchase available when contacting support.
