1. Important Safety Information
Please read all instructions carefully before installation and operation of your Glacier Bay HD873X-8627D tub and shower faucet. Failure to follow these instructions may result in personal injury or property damage. Retain this manual for future reference.
- Always shut off the main water supply before beginning any installation or repair work.
- Wear appropriate personal protective equipment, such as safety glasses.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Ensure all local plumbing and building codes are met.
2. Package Contents
Carefully unpack your new faucet and check that all parts are present. If any parts are missing or damaged, do not attempt to install the faucet. Contact Glacier Bay customer service for assistance.
- Single-handle faucet body
- Showerhead
- Tub spout
- Handle assembly
- Mounting hardware and seals
- Installation instructions (this manual)
3. Setup and Installation
Professional installation is recommended for optimal performance and to ensure compliance with all plumbing codes. The following steps provide a general overview of the installation process.
- Prepare the Installation Area: Shut off the main water supply to your home. Remove any existing faucet fixtures. Clean the mounting surface thoroughly.
- Install the Faucet Body: Follow the specific instructions provided with your rough-in valve (sold separately or pre-installed). Secure the faucet body to the wall according to the manufacturer's guidelines.
- Connect Water Lines: Connect the hot and cold water supply lines to the appropriate inlets on the faucet body. Ensure all connections are tight to prevent leaks.
- Install Tub Spout: Attach the tub spout to the designated outlet. Ensure it is securely fastened and sealed.
- Install Showerhead: Thread the showerhead onto the shower arm. Use plumber's tape on the threads to ensure a watertight seal.
- Install Handle: Attach the faucet handle to the valve stem. Secure it with the provided screw and cover cap.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. Operate the faucet to ensure proper water flow and temperature control.

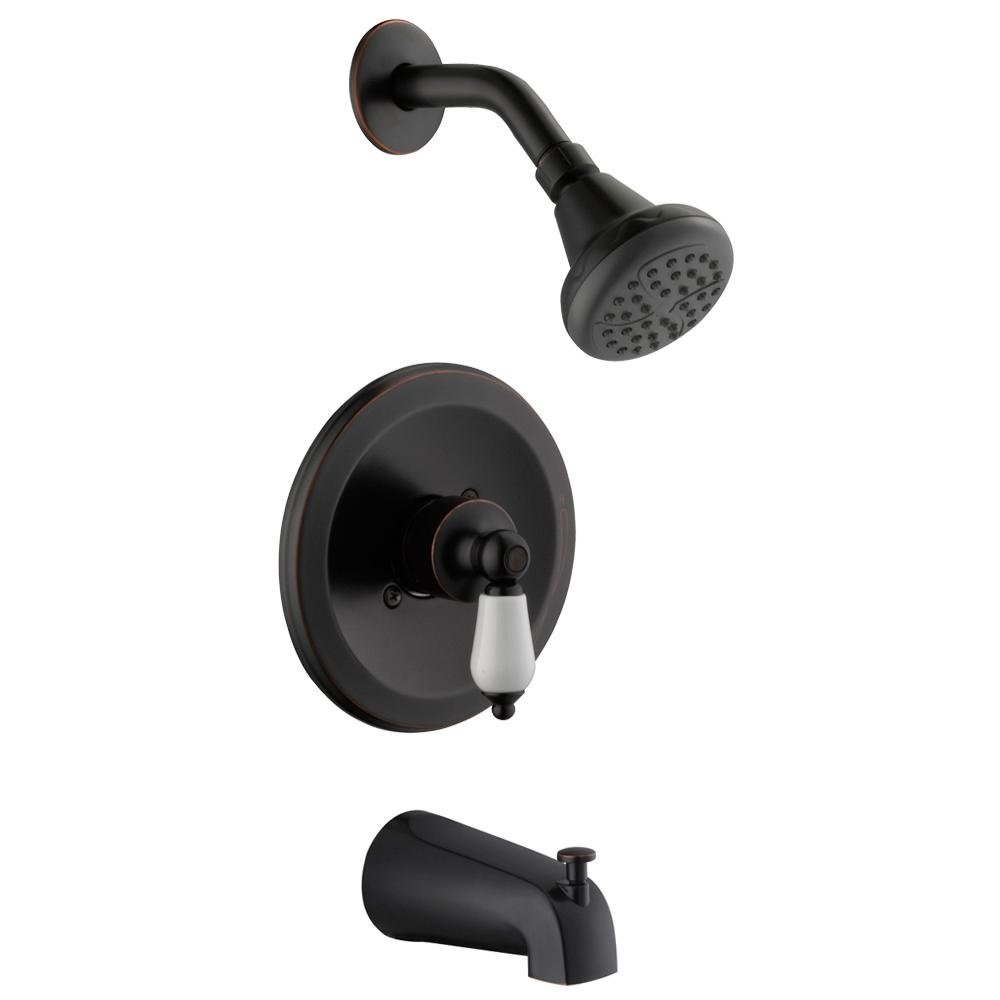

Image 1: The Glacier Bay HD873X-8627D single-handle tub and shower faucet in bronze finish. This image shows the complete faucet assembly, including the handle, tub spout, and showerhead, ready for installation.
4. Operation
Your Glacier Bay HD873X-8627D faucet features a single handle for controlling both water flow and temperature.
- Water Flow: Lift the handle to turn on the water and increase flow. Push the handle down to decrease flow and turn off the water.
- Temperature Control: Rotate the handle to the left for hot water and to the right for cold water. Adjust the handle position to achieve your desired water temperature.
- Diverter (if applicable): If your model includes a diverter on the tub spout, pull it up to redirect water flow from the tub spout to the showerhead. Push it down to return water flow to the tub spout.
5. Maintenance
Regular cleaning and maintenance will help preserve the finish and functionality of your faucet.
- Cleaning the Finish: Clean the faucet regularly with a soft cloth and mild soap. Rinse thoroughly with warm water and dry with a soft cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning the Showerhead: Mineral deposits can build up in the showerhead nozzles over time, affecting spray performance. Periodically clean the nozzles by gently rubbing them with your fingers or a soft brush. For stubborn deposits, you may need to soak the showerhead in a solution of white vinegar and water.
- Cartridge Maintenance: If you experience persistent drips or leaks from the handle, the internal cartridge may need to be replaced. Refer to the troubleshooting section or contact customer support for guidance.
6. Troubleshooting
Before calling for service, review the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Faucet drips or leaks | Worn cartridge, loose connections | Tighten connections. Replace cartridge if necessary (consult a plumber). |
| Low water pressure | Clogged aerator/showerhead, partially closed shut-off valve | Clean showerhead nozzles. Ensure shut-off valves are fully open. Check main water supply. |
| Water temperature too hot/cold | Improper cartridge adjustment, water heater settings | Adjust the temperature limit stop on the cartridge (refer to cartridge instructions). Check water heater settings. |
| Water not diverting to showerhead | Faulty diverter, low water pressure | Ensure diverter is fully engaged. Check water pressure. Replace diverter if damaged. |
If these solutions do not resolve the issue, contact Glacier Bay customer support or a qualified plumber.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Glacier Bay |
| Model Number | HD873X-8627D |
| Material | Metal (Brass handle) |
| Finish Type | Polished (Bronze) |
| Number of Handles | 1 |
| Mounting Type | Deck Mount (typically refers to the valve body, though this is a tub/shower trim) |
| Product Dimensions | 3 x 4 x 4 inches (approximate, for trim components) |
| Item Weight | 1 pound (16 ounces) |
8. Warranty and Support
For warranty information, product support, or to order replacement parts, please contact Glacier Bay customer service. Keep your purchase receipt as proof of purchase.
Contact information can typically be found on the Glacier Bay official website or on the product packaging.
