SCOSCHE BMLS HANDLEIT 3-in-1 Device User Manual

1. Introduction

The SCOSCHE BMLS HANDLEIT is a versatile 3-in-1 device designed for convenience and utility. It integrates an ultra-bright LED flashlight, a wireless Bluetooth speaker, and a 2200 mAh portable power bank into a single compact unit. This manual provides instructions for the proper setup, operation, and maintenance of your HANDLEIT device.

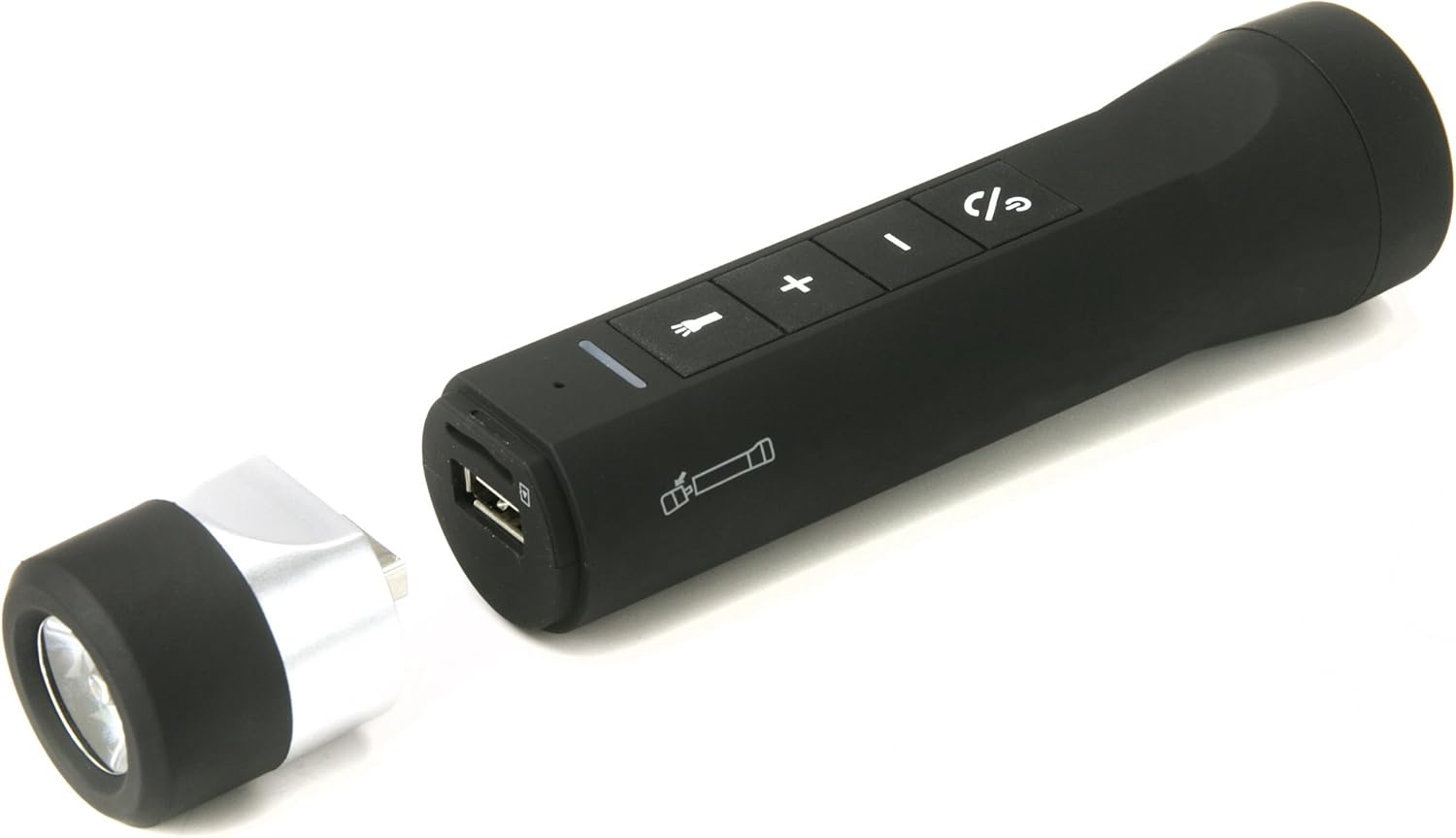

Image 1.1: The SCOSCHE BMLS HANDLEIT device with its detachable flashlight head.

2. Package Contents

Please verify that all items are present in your package:

• Flashlight/Speaker/Battery Pack Unit
• (1) USB A to USB A Charging Cable
• (1) Mount (for bike/stroller)
• (1) User Manual

3. Features

• Ultra-Bright LED Flashlight: Provides illumination with an SOS mode for emergencies.
• Wireless Bluetooth Speaker: Stream audio wirelessly from your Bluetooth-enabled devices.
• 2200 mAh Portable Battery Pack: Recharge your mobile devices on the go.
• Bike/Stroller Mount: Securely attach the device to handlebars for convenient use.

4. Setup

4.1 Charging the HANDLEIT Device

Before first use, fully charge your HANDLEIT device. Connect the supplied USB A to USB A charging cable to the device's input port and to a standard USB power source (e.g., computer USB port, wall adapter). The LED indicator will show charging status.

4.2 Mounting the Device

Attach the provided mount to your bicycle or stroller handlebar. Ensure the mount is securely fastened. Slide the HANDLEIT device into the mount until it clicks into place. The mount allows for 360-degree rotation for optimal positioning.

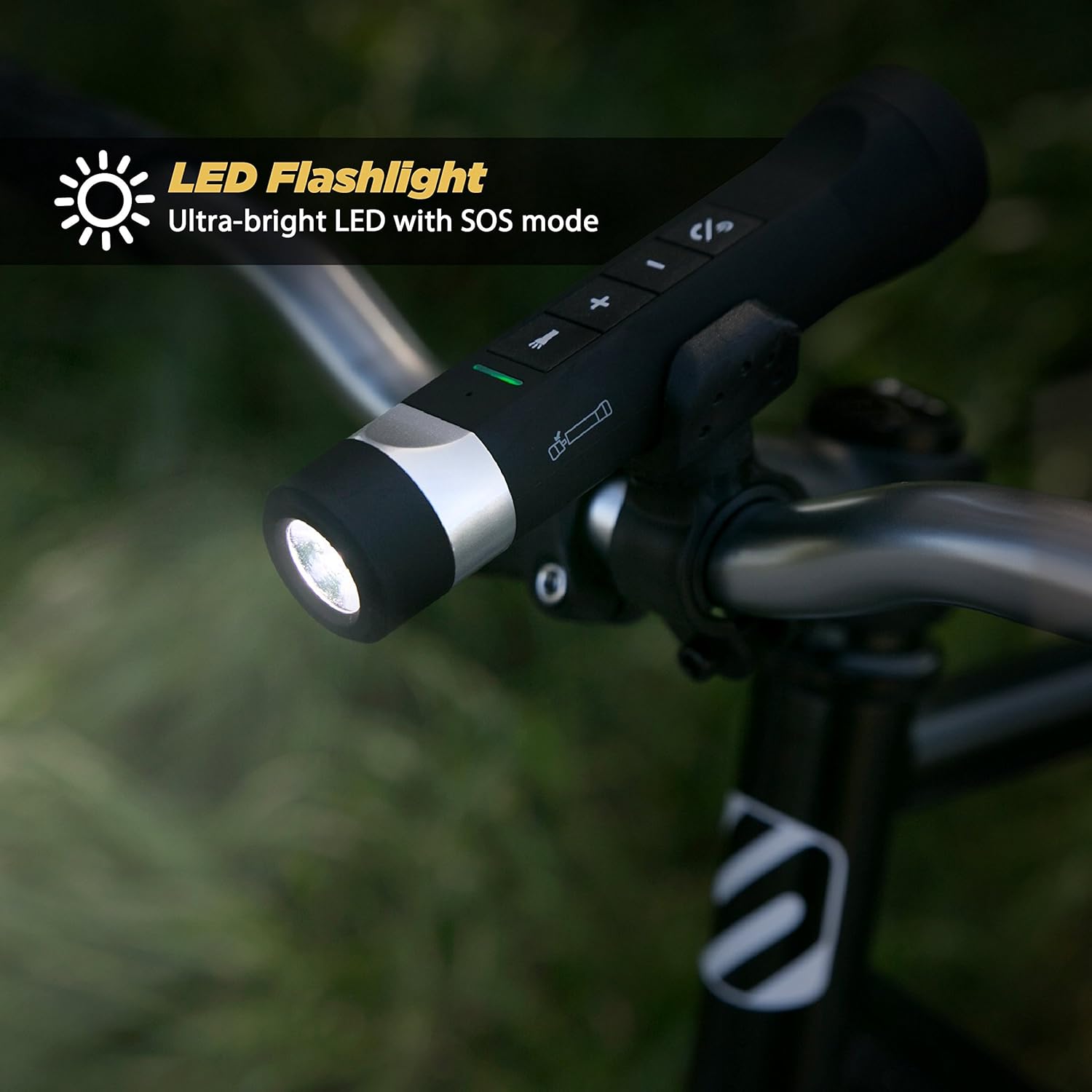

Image 4.1: The HANDLEIT device mounted on a bicycle handlebar, functioning as a flashlight.

5. Operating Instructions

5.1 Flashlight Operation

1. To turn the flashlight ON/OFF, press the flashlight button (typically marked with a lightbulb icon).
2. Press the flashlight button repeatedly to cycle through different brightness modes or activate the SOS flashing mode.

5.2 Bluetooth Speaker Operation

1. Power On: Press and hold the power button (often combined with the Bluetooth button) until you hear an audible tone or see the Bluetooth indicator light flash.
2. Pairing: On your mobile device, enable Bluetooth and search for available devices. Select "SCOSCHE HANDLEIT" from the list. Once paired, the indicator light will become solid.
3. Playing Music: Use your mobile device to control music playback. The HANDLEIT device may have volume control buttons (+/-) and a play/pause button.

Image 5.1: The HANDLEIT device mounted on a stroller, functioning as a wireless Bluetooth speaker.

5.3 Power Bank Functionality

1. Connect your mobile device's charging cable to the USB output port on the HANDLEIT device.
2. The HANDLEIT device will begin charging your connected device. Monitor your device's screen for charging status.

Image 5.2: The HANDLEIT device acting as a backup battery to charge a smartphone.

6. Maintenance

• Keep the device clean and dry. Wipe with a soft, damp cloth if necessary.
• Avoid exposing the device to extreme temperatures, direct sunlight, or moisture.
• Do not attempt to disassemble the device, as this will void the warranty.
• Store the device in a cool, dry place when not in use.

7. Troubleshooting

• Device not turning on: Ensure the device is fully charged. Connect it to a power source using the provided USB cable.
• Flashlight not working: Check battery level. If the battery is low, charge the device.
• Bluetooth not pairing: Ensure the device is in pairing mode. Turn off and on Bluetooth on your mobile device. Make sure the HANDLEIT device is within range.
• External device not charging: Ensure the HANDLEIT device has sufficient charge. Verify the charging cable is securely connected to both the HANDLEIT and your external device.
• Poor sound quality: Ensure the Bluetooth connection is stable and within range. Adjust volume on both the HANDLEIT and your connected device.

8. Specifications

9. Warranty and Support

The SCOSCHE BMLS HANDLEIT device comes with a 1-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact Scosche customer service. Keep your proof of purchase for warranty validation.

Manufacturer Contact Information: OXNARD, CA, 93033 US

For the most up-to-date support information, please visit the official Scosche website or refer to the contact details provided with your product packaging.
