ACOVA Regate Electric Towel Dryer RF Control 1250 W - White User Manual

1. Product Overview

The ACOVA Regate Electric Towel Dryer, model TSX, is a fluid-filled electric radiator designed for bathroom heating and towel warming. It features an ultra-flat design with flat horizontal tubes (70 x 11 mm) welded to vertical collectors (38 mm diameter), facilitating easy towel placement. This model operates with a remote RF control unit for temperature regulation and mode selection. The appliance is constructed from steel with a cataphoresis primary coat and an epoxy powder finish in Pure White (RAL 9016). It uses unalterable, high-performance mineral oil as its heat-transfer fluid and includes an immersion electrical resistance with an automatic circuit breaker. Wall projection is 113 mm.

2. Safety Instructions

Please read and understand all safety instructions before installing, operating, or maintaining this appliance. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• Electrical Installation: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes and regulations.
• Power Disconnection: Always disconnect the appliance from the main power supply before performing any maintenance, cleaning, or repairs.
• Water Proximity: Do not install the towel dryer directly above or too close to a bathtub, shower, or other water sources. Ensure it is installed in a zone compliant with electrical safety standards for bathrooms.
• Overheating: Do not cover the towel dryer excessively with towels or other materials, as this can lead to overheating and a fire hazard.
• Children and Vulnerable Persons: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Damage: Do not operate the appliance if it has a damaged cord or plug, or if it has been dropped or damaged in any manner. Contact a qualified service technician for examination and repair.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• ACOVA Regate Electric Towel Dryer unit
• RF Remote Control unit
• 4 adjustable wall mounting brackets
• Installation and User Manual (this document)

4. Setup and Installation

The ACOVA Regate Electric Towel Dryer is designed for wall mounting. Professional installation is highly recommended to ensure safety and compliance with electrical standards.

1. Site Selection: Choose a suitable location in the bathroom, ensuring it is away from direct water spray and complies with local electrical zone regulations.
2. Mounting: Securely attach the four adjustable wall mounting brackets to the wall using appropriate fasteners for your wall type. Ensure the brackets are level and spaced correctly to support the towel dryer.
3. Appliance Mounting: Carefully lift and position the towel dryer onto the installed wall brackets. Ensure it is firmly seated and stable. The appliance will project 113 mm from the wall once installed.
4. Electrical Connection: Connect the immersion electrical resistance to a dedicated and properly protected electrical circuit. This connection must be made by a qualified electrician.

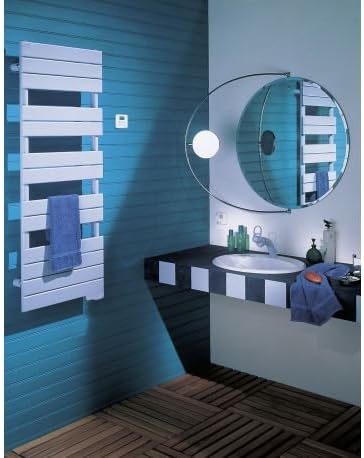

Image showing the ACOVA Regate Electric Towel Dryer mounted on a blue bathroom wall, demonstrating its typical installation and appearance.

5. Operating Instructions

The ACOVA Regate towel dryer is controlled via a remote RF unit. The regulation box is typically located on the right side of the product.

1. Power On/Off: Use the designated button on the RF remote control to switch the towel dryer on or off.
2. Temperature Setting: Adjust the desired room temperature using the temperature controls on the RF remote. The appliance will then regulate its heat output to maintain this temperature.
3. Operating Modes: The RF remote control typically offers various operating modes, such as:
   • Comfort Mode: Maintains the set temperature.
   • Eco Mode: Maintains a slightly lower temperature for energy saving.
   • Frost Protection Mode: Prevents the room temperature from dropping below a certain point (e.g., 7°C) to protect against freezing.
   • Timer Function: Allows for programmed operation periods.
   Refer to the specific instructions provided with your RF remote control for detailed information on pairing and using these functions.

Another view of the ACOVA Regate Electric Towel Dryer installed in a pink bathroom, highlighting its design and integration into a living space.

6. Maintenance

Regular cleaning will help maintain the appearance and efficiency of your towel dryer. Always ensure the appliance is disconnected from the main power supply before any cleaning or maintenance.

• Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners, solvents, or chemical cleaning agents, as these can damage the finish.
• Internal Maintenance: The fluid-filled system and electrical components are sealed and require no user-serviceable internal maintenance. Do not attempt to open the appliance.
• Inspection: Periodically inspect the power cord and the appliance for any signs of damage. If damage is found, discontinue use and contact a qualified technician.

7. Troubleshooting

If you encounter issues with your ACOVA Regate Electric Towel Dryer, refer to the following common troubleshooting steps:

• No Heat:
  • Check if the appliance is properly plugged into a functioning power outlet.
  • Verify that the circuit breaker for the bathroom is not tripped.
  • Ensure the RF remote control is paired correctly with the towel dryer and that the batteries are not depleted.
  • Confirm that the towel dryer is switched on and set to a temperature higher than the ambient room temperature.
• Uneven Heating:
  • Fluid-filled radiators are designed for even heat distribution. If you notice significant uneven heating, contact customer support.
• RF Remote Control Not Responding:
  • Replace the batteries in the remote control.
  • Ensure there are no obstructions between the remote and the towel dryer's receiver.
  • If necessary, re-pair the remote control with the towel dryer according to the remote's specific instructions.
• Unusual Noises or Odors:
  • Immediately disconnect the power supply.
  • Do not attempt to operate the appliance. Contact a qualified technician for inspection.

If the problem persists after attempting these steps, please contact ACOVA customer support or a qualified service technician.

8. Specifications

9. Warranty and Support

For detailed warranty information, terms, and conditions, please refer to the official ACOVA website or the documentation provided at the time of purchase. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical support, spare parts, or service inquiries, please contact your retailer or visit the ACOVA official support channels. Provide your product model number (Regate TSX 1250W) and ASIN (B079S2N1JY) when contacting support.
