1. Introduction
This manual provides essential information for the safe and efficient operation of your SHARP HT-SB110 2.0 Soundbar. Please read it thoroughly before using the product and retain it for future reference. The HT-SB110 is designed to enhance your audio experience with powerful sound output and versatile connectivity options.
2. Safety Information
Always follow basic safety precautions when using this product to reduce the risk of fire, electric shock, and injury.
- Do not expose this appliance to dripping or splashing.
- Do not place objects filled with liquids, such as vases, on the apparatus.
- Ensure proper ventilation. Do not block any ventilation openings.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
3. What's in the Box
Upon opening your SHARP HT-SB110 Soundbar package, please verify that all the following items are included:
- HT-SB110 Soundbar
- Remote Control
- UK & EU Power Lead
- Wall Mount Brackets
- Instruction Manual (this document)
- Quick Start Guide
Image: The Sharp HT-SB110 Soundbar, showcasing its sleek design and compact form factor.
4. Setup
4.1 Placement
The HT-SB110 Soundbar can be placed on a flat surface, such as a TV stand, or wall-mounted. Ensure it is positioned centrally below your television for optimal sound dispersion.
Image: The soundbar neatly positioned under a television, demonstrating a typical setup.
4.2 Connections
Connect the soundbar to your TV or other audio sources using the available ports. Ensure the soundbar is powered off before making any connections.
Image: The rear panel of the soundbar, highlighting the various input ports for connectivity.
- HDMI ARC/CEC: For the best audio quality and control, connect an HDMI cable from the soundbar's HDMI ARC port to your TV's HDMI ARC port. This allows your TV remote to control the soundbar's volume.
- Digital Optical-In: Connect an optical cable from your TV's optical output to the soundbar's OPTICAL input.
- Auxiliary (AUX): Use a 3.5mm audio cable to connect devices with an analog audio output to the soundbar's AUX input.
- Power: Connect the provided power lead to the soundbar's AC input and then to a wall outlet.
4.3 Video Guide: A Closer Look
Video: This video provides a detailed look at the Sharp HT-SB110 Soundbar, including unboxing, identifying components, and initial setup steps.
5. Operating
5.1 Basic Controls
The soundbar features intuitive controls on its top panel for easy access to essential functions.

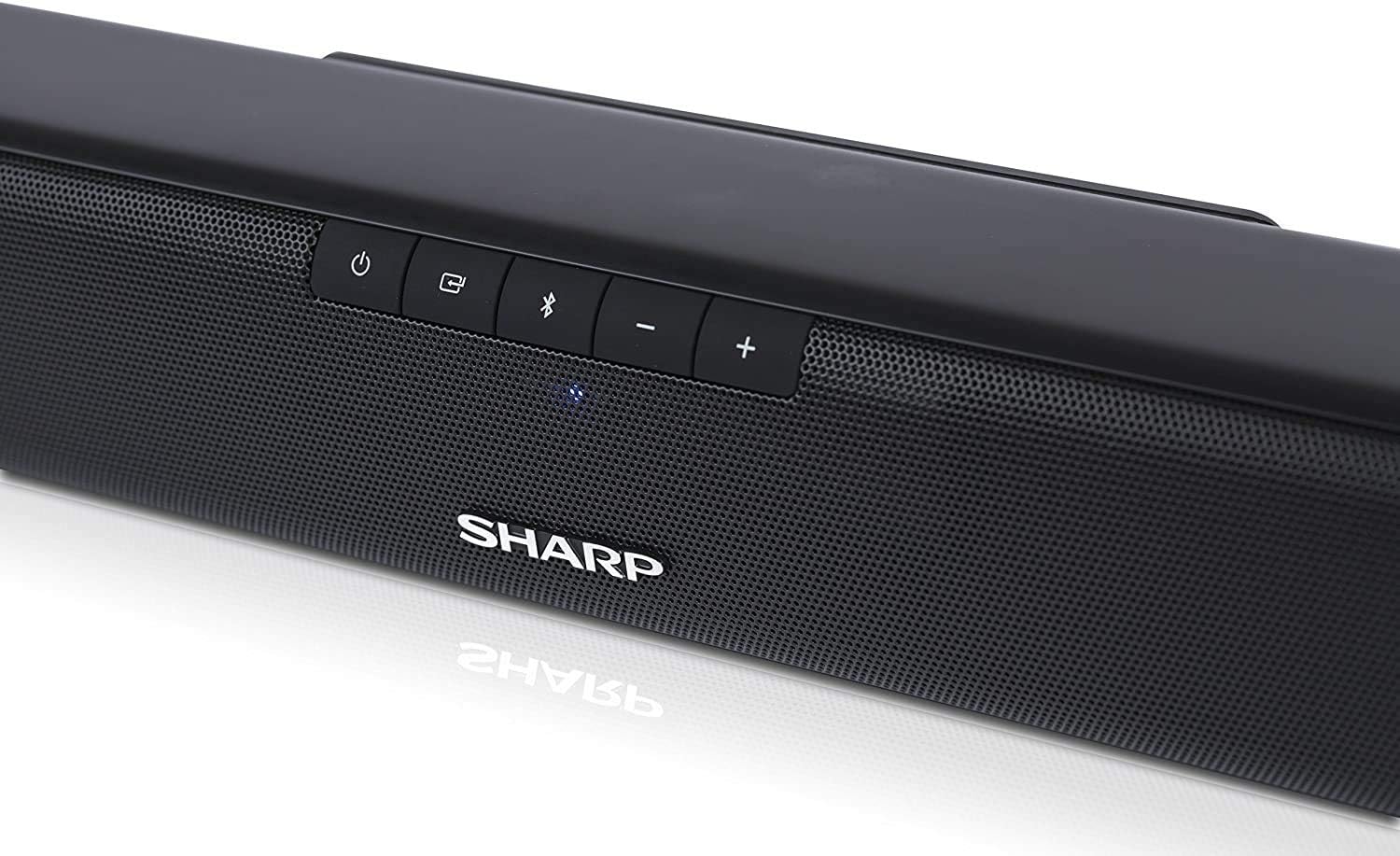

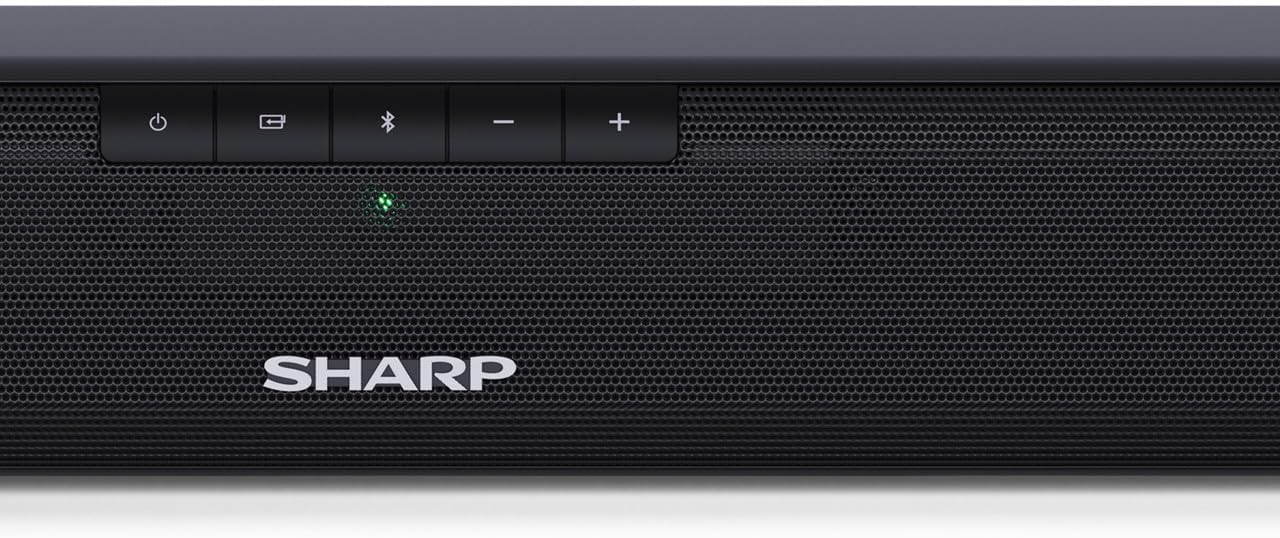

Image: A close-up view of the power, input, Bluetooth, and volume controls located on the top of the soundbar.
- Power Button: Press to turn the soundbar On or Off.
- Input Button: Cycle through available input sources (HDMI ARC, Optical, AUX, Bluetooth).
- Bluetooth Button: Press to enter Bluetooth pairing mode.
- Volume Buttons (+/-): Adjust the master volume level.
5.2 Remote Control
The included remote control provides full functionality for your soundbar, allowing you to control all settings from a distance.
Image: The compact remote control for the soundbar, featuring dedicated buttons for power, input, volume, and sound modes.
5.3 Sound Modes
Optimize your listening experience by selecting one of the pre-set sound modes:
- Movie Mode: Enhances dialogue clarity and provides a wider soundstage for films.
- Music Mode: Delivers balanced audio for music playback.
- Voice Mode: Boosts vocal frequencies for clearer speech, ideal for news or podcasts.
5.4 Bluetooth Pairing
To pair your Bluetooth device with the soundbar:
- Turn on the soundbar and press the Bluetooth button on the soundbar or remote control. The Bluetooth indicator light will flash.
- Enable Bluetooth on your smartphone, tablet, or other device.
- Search for
