Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of your Polaris Winch Remote Socket, part number 4014228. Please read this manual thoroughly before attempting any installation or operation to ensure safe and correct usage. Retain this manual for future reference.
Product Overview
The Polaris Winch Remote Socket (Part Number: 4014228) is a genuine OEM replacement component designed to integrate with your vehicle's winch system, allowing for the connection of a wired winch remote control. This socket facilitates convenient and safe operation of your winch from a distance, enhancing control during recovery or pulling operations.

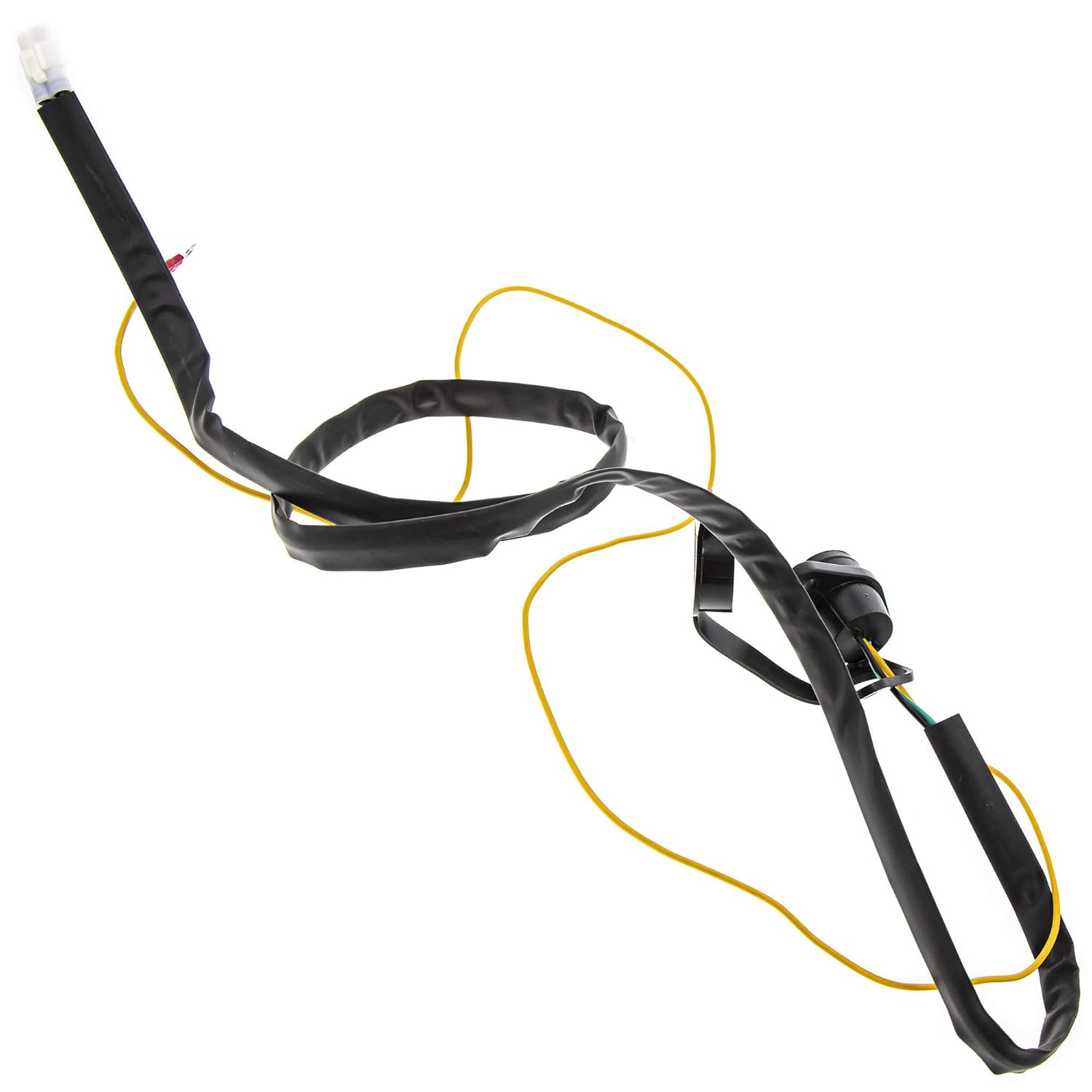

Image 1: Overview of the Polaris Winch Remote Socket 4014228, showing the socket, wiring harness, and connectors.
Compatibility
This Winch Remote Socket (Part Number: 4014228) is a direct replacement for part number 4013569 and is compatible with the following Polaris Ranger and RZR models:
- Ranger 570 EPS: 2016
- Ranger 570: 2016
- Ranger XP 900 EPS Deluxe: 2014-2016
- Ranger XP 900 EPS High Lifter: 2016
- Ranger XP 900 EPS Limited: 2014-2015
- Ranger XP 900 EPS NorthStar: 2015-2016
- Ranger XP 900 EPS Trail: 2016
- Ranger XP 900 EPS: 2014-2016
- Ranger XP 900: 2014-2016
- RZR XP Turbo EPS: 2016
What's in the Box
The package for the Polaris Winch Remote Socket 4014228 typically includes:
- One (1) Winch Remote Socket assembly with integrated wiring harness.
Image 2: The complete Winch Remote Socket assembly, including the socket, wiring, and connectors.
Safety Information
WARNING: Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or damage to the vehicle's electrical system.
- Ensure the vehicle is turned off and the parking brake is engaged before beginning installation.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- If you are unsure about any part of the installation process, consult a qualified service technician.
- Do not modify the wiring harness or socket. Use only genuine Polaris replacement parts.
- Keep hands and clothing clear of moving parts when operating the winch.
Setup and Installation
This section outlines the general steps for installing the Polaris Winch Remote Socket. Specific vehicle configurations may vary. Refer to your vehicle's service manual for detailed wiring diagrams and mounting locations.
- Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Disconnect the negative (-) terminal of the vehicle's battery.
- Locate Mounting Position: Identify the designated mounting location for the winch remote socket. This is typically on the dashboard, a control panel, or a specific area near the winch controls.
- Remove Existing Socket (if applicable): If replacing an existing socket, carefully disconnect its wiring and remove the old unit from its mounting position.
- Route Wiring: Carefully route the new socket's wiring harness through the vehicle's chassis to the winch control module or designated connection point. Ensure the wiring is secured away from hot or moving parts and sharp edges.
- Connect Electrical: Connect the socket's wiring harness to the vehicle's winch control system. Match the connectors carefully. The socket typically connects to the winch's control relay or contactor system. Ensure all connections are secure and properly insulated.
- Mount the Socket: Secure the new winch remote socket into its designated mounting hole. Ensure it is flush and firmly attached.
- Reconnect Battery: Once all connections are secure and the socket is mounted, reconnect the negative (-) terminal of the vehicle's battery.
- Test Functionality: Proceed to the "Operating Instructions" section to test the winch remote socket and connected remote.
Image 3: Close-up view of the wiring harness and connectors, essential for proper installation.
Operating Instructions
The Winch Remote Socket provides a connection point for a compatible wired winch remote control. Ensure your winch remote is designed for use with this socket type.
- Connect Remote: Insert the plug of your wired winch remote control firmly into the Winch Remote Socket. Ensure a secure connection.
- Engage Winch: Depending on your winch model, you may need to manually engage the winch clutch before operation.
- Operate Winch: Use the buttons on your wired remote control to operate the winch (e.g., "IN" to reel in, "OUT" to reel out).
- Disconnect Remote: After use, disconnect the wired remote control from the socket. It is recommended to store the remote in a clean, dry place.
Important: Always follow the safety guidelines provided with your winch and winch remote control. Do not operate the winch if the remote connection is loose or damaged.
Maintenance
Regular maintenance ensures the longevity and reliable performance of your Winch Remote Socket.
- Inspection: Periodically inspect the socket for any signs of damage, corrosion, or loose connections. Check the wiring harness for fraying or cuts.
- Cleaning: Keep the socket free of dirt, mud, and debris. Use a clean, dry cloth to wipe down the exterior. Avoid using harsh chemicals or abrasive cleaners.
- Moisture Protection: Ensure the protective cap (if equipped) is securely in place when the remote is not connected to prevent moisture and debris from entering the socket.
- Connection Check: Before each use, ensure the remote control plug makes a firm and secure connection with the socket.
Troubleshooting
If you experience issues with your Winch Remote Socket, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Winch remote not responding. |
|
|
| Socket appears damaged or corroded. |
|
|
| Intermittent remote function. |
|
|
If troubleshooting steps do not resolve the issue, contact Polaris customer support or a certified service technician.
Specifications
Key specifications for the Polaris Winch Remote Socket 4014228:
| Part Number | 4014228 |
| Replacement For | 4013569 |
| Brand | Polaris |
| Operation Mode | Manual (via remote) |
| Current Rating | 0.01 Amps |
| Contact Type | Normally Open |
| Connector Type | Molex |
| Terminal | Screw |
| Product Dimensions (L x W x H) | 10 x 6 x 1 inches |
| Item Weight | 3.2 ounces |
| Material | Stainless Steel (Contact Material) |
| International Protection Rating | IP00 |
| Control Method | Remote |
| Vehicle Service Type | UTV |
Warranty Information
This Polaris Winch Remote Socket is covered by Polaris's standard limited warranty for genuine OEM parts. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the official Polaris warranty documentation provided with your vehicle or visit the official Polaris website. Keep your proof of purchase for warranty purposes.
Support
For technical assistance, replacement parts, or further inquiries regarding your Polaris Winch Remote Socket, please contact Polaris Customer Service or visit your authorized Polaris dealer. You can find contact information and support resources on the official Polaris website.
Official Polaris Website: www.polaris.com
