Introduction
Welcome to your new TAINO Basic 6+1 Gas Barbecue. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your grill. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Information
WARNING: For outdoor use only. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Failure to follow these instructions could result in fire, explosion, or burn hazard.
- Always operate the grill on a level, stable surface, away from combustible materials.
- Keep children and pets away from the hot grill.
- Do not move the grill while it is in use or still hot.
- Ensure proper ventilation and never use the grill in an enclosed space.
- Check for gas leaks regularly using a soapy water solution. Never use a flame to check for leaks.
- Use only the specified gas type (Propane) and regulator.
- Disconnect the gas supply at the cylinder when the grill is not in use.
- Wear protective gloves when handling hot components or cleaning the grill.
Package Contents
Before assembly, ensure all parts are present and undamaged. Refer to the following list:
- Main Grill Unit (with 6 stainless steel burners and side burner)
- 3 Grill Grates
- Removable Grease Tray
- Lid with integrated thermometer
- Side shelves
- Wheels for mobility
- Assembly hardware (screws, nuts, etc.)
- Instruction Manual (this document)
Image: Front view of the TAINO Basic 6+1 Gas Barbecue, showing the main unit with lid closed, control knobs, side shelves, and cabinet doors.

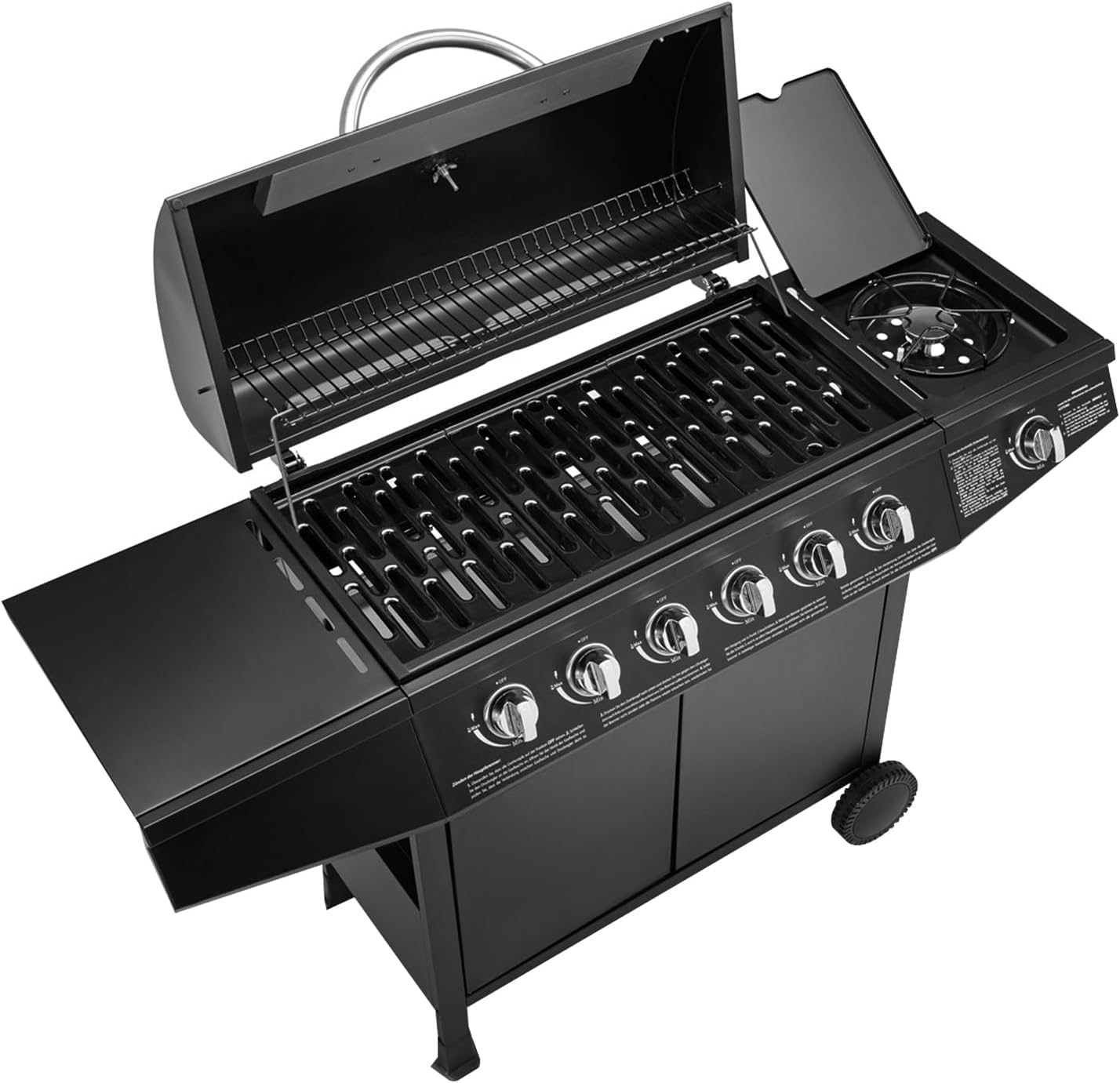

Image: Top-down view of the TAINO Basic 6+1 Gas Barbecue with the lid open, revealing the grill grates and the side burner on the right.
Assembly and Setup
The TAINO Basic 6+1 Gas Barbecue requires assembly. Follow these steps carefully. It is recommended to have two people for assembly.
- Unpack all components and verify against the package contents list.
- Attach the legs and wheels to the main body of the grill. Ensure all screws are tightened securely.
- Mount the side shelves to the main unit.
- Install the grill grates and the removable grease tray into the cooking chamber.
- Connect the gas hose and regulator to the grill's gas inlet and to your propane gas cylinder. Ensure all connections are tight and check for leaks using a soapy water solution (see Safety Information).
Image: Diagram showing the overall dimensions of the TAINO Basic 6+1 Gas Barbecue: 141 cm (width), 103 cm (height), 50 cm (depth), and cooking surface height of 84 cm.
Image: Diagram detailing the dimensions of the three grill grates, each approximately 24.3 cm wide and 33 cm deep, combining for a total width of 72.9 cm.
Operating Instructions
Before First Use
Before cooking, operate the grill for 15 minutes on high heat with the lid closed to burn off any manufacturing residues. This helps to season the grill and remove any protective oils.
Lighting the Main Burners
- Ensure the grill lid is open.
- Turn on the gas supply at the cylinder.
- Push and turn one control knob to the "HIGH" position.
- Press the igniter button (if separate) or continue holding the knob for integrated piezo ignition until the burner lights. You should hear a click and see a flame.
- Once lit, release the knob and adjust to the desired heat setting.
- Repeat for other main burners as needed.
Lighting the Side Burner
- Open the side burner lid.
- Push and turn the side burner control knob to the "HIGH" position.
- Press the igniter button or hold the knob for integrated piezo ignition until the burner lights.
- Once lit, release the knob and adjust.
Indirect Grilling
For indirect grilling, light the outer burners and leave the central burners off. Place food over the unlit burners to cook slowly with indirect heat.
Image: Front view of the TAINO Basic 6+1 Gas Barbecue with the lid closed, showcasing the control panel and the overall compact design.
Image: Close-up view of the TAINO Basic 6+1 Gas Barbecue's interior, showing the six stainless steel burners and the heat distribution plates above them.
Image: Close-up of the integrated thermometer on the lid of the TAINO Basic 6+1 Gas Barbecue, indicating temperature readings.
Maintenance and Cleaning
After Each Use
Turn off all burners and the gas supply at the cylinder. Allow the grill to cool completely before cleaning.
- Clean grill grates with a grill brush to remove food residue.
- Empty and clean the removable grease tray to prevent grease fires.
Regular Maintenance
- Periodically check the gas hose and connections for cracks, cuts, or leaks. Replace if damaged.
- Clean burner ports to ensure even flame distribution. Use a wire brush or a stiff wire to clear any blockages.
- Wipe down exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
- Store the grill in a dry, protected area when not in use, or use a weather-resistant grill cover to protect it from the elements.
Image: Close-up of the control knobs on the TAINO Basic 6+1 Gas Barbecue, showing the individual burner controls and ignition markings.
Image: View of the removable grease tray located beneath the burners of the TAINO Basic 6+1 Gas Barbecue, designed for easy cleaning.
Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner won't light | No gas flow; clogged burner port; faulty igniter. | Check gas cylinder and connections; clean burner ports; check igniter electrode and wiring. |
| Uneven flame or low heat | Clogged burner ports; low gas pressure. | Clean burner ports thoroughly; ensure gas cylinder is not empty and regulator is functioning correctly. |
| Gas smell during operation | Gas leak. | Immediately turn off gas supply at the cylinder. Check all connections with soapy water. If leak persists, do not use the grill and contact qualified service personnel. |
| Lid thermometer inaccurate | Sensor dirty or damaged; calibration needed. | Clean sensor if accessible; if consistently inaccurate, consider replacement or professional calibration. |
Product Specifications
- Brand: TAINO
- Model Number: 93422
- Dimensions (L x W x H): 141 cm x 50 cm x 103 cm (approx. 55.5 x 19.7 x 40.5 inches)
- Weight: 32 kg (approx. 70.55 lbs)
- Material: Stainless Steel (burners, handle), Steel (body)
- Color: Black
- Burners: 6 Main Burners + 1 Side Burner
- Fuel Type: Gas (Propane)
- Special Features: Removable grease tray, Integrated lid thermometer, Piezo ignition
- Assembly Required: Yes
- Manufacturer: Clic-Trade GmbH
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official TAINO website. Keep your proof of purchase for any warranty claims.
