Belanger B1812-50 Single Handle Pull-Out Kitchen Faucet User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Belanger B1812-50 Single Handle Pull-Out Kitchen Faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Retain this manual for future reference.

Figure 1: Belanger B1812-50 Single Handle Pull-Out Kitchen Faucet.

This image displays the Belanger B1812-50 kitchen faucet, featuring a polished chrome finish. The faucet includes a single handle for water control and a pull-out spray head, designed for standard kitchen sink installations.

2. Safety Information

• Always turn off the main water supply before beginning any installation or maintenance.
• Wear appropriate personal protective equipment, such as safety glasses, during installation.
• Ensure all connections are secure to prevent leaks.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Do not use abrasive cleaners or harsh chemicals on the faucet finish, as this may cause damage.

3. Included Components

Verify that all components are present before beginning installation:

• Belanger B1812-50 Faucet Assembly (main body with handle and pull-out spray head)
• Mounting Hardware
• Supply Lines (typically integrated or included)
• Installation Instructions (this manual)

4. Setup and Installation

4.1 Pre-Installation

1. Turn off the hot and cold water supply valves under the sink. If no shut-off valves are present, turn off the main water supply to the house.
2. Clear the area under the sink for easy access.
3. Remove your old faucet, if applicable. Clean the sink surface thoroughly.
4. Ensure your sink has the standard 3-hole, 8-inch centerset configuration required for this faucet.

4.2 Faucet Installation Steps

1. Position the Faucet: Place the faucet assembly onto the sink holes. Ensure the base gasket is properly seated to prevent leaks.
2. Secure the Faucet: From underneath the sink, thread the mounting nuts onto the faucet shanks. Hand-tighten, then use a wrench to secure firmly, but do not overtighten.
3. Connect Water Supply Lines: Connect the hot and cold water supply lines from the faucet to the corresponding shut-off valves. Use thread sealant tape on the threads for a watertight seal. Tighten connections with a wrench.
4. Install Spray Hose Weight: Attach the provided weight to the pull-out spray hose, typically at the lowest point of the loop under the sink, to ensure the spray head retracts properly.
5. Test for Leaks: Slowly turn on the hot and cold water supply valves. Check all connections for leaks. Run the faucet for a few minutes to flush out any debris and check for proper operation of the spray head.

Figure 2: Faucet with pull-out spray head.

This image shows the Belanger B1812-50 faucet with its pull-out spray head fully extended, demonstrating the flexibility for various kitchen tasks. The black hose is visible, connecting the spray head to the main faucet body.

5. Operating Instructions

5.1 Water Flow and Temperature Control

The Belanger B1812-50 faucet features a single lever handle for controlling both water flow and temperature.

• To Turn On/Off: Lift the handle upwards to turn on the water. Push the handle downwards to turn off the water.
• To Adjust Water Flow: The further the handle is lifted, the greater the water flow.
• To Adjust Temperature: Move the handle to the left for hot water and to the right for cold water. The center position provides mixed water.

5.2 Pull-Out Spray Head and Diverter

• To Extend: Gently pull the spray head from the spout. The hose will extend, allowing you to direct water to various areas of the sink.
• To Retract: Once finished, guide the spray head back into the spout. The hose weight under the sink will assist in retraction.
• Stream/Spray Selection: The spray head includes a push-button diverter. Press the button to switch between a steady stream and a wide spray pattern.

6. Maintenance

6.1 Cleaning the Faucet

• Clean the faucet regularly with a soft cloth and mild soap and water.
• Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
• Do not use abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the polished chrome finish.

6.2 Aerator Cleaning

If water flow decreases or becomes irregular, the aerator may be clogged with debris.

1. Unscrew the aerator from the tip of the spray head.
2. Rinse the aerator screen under running water to remove any particles.
3. Reassemble the aerator and screw it back onto the spray head.

7. Troubleshooting

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact customer support.

8. Specifications

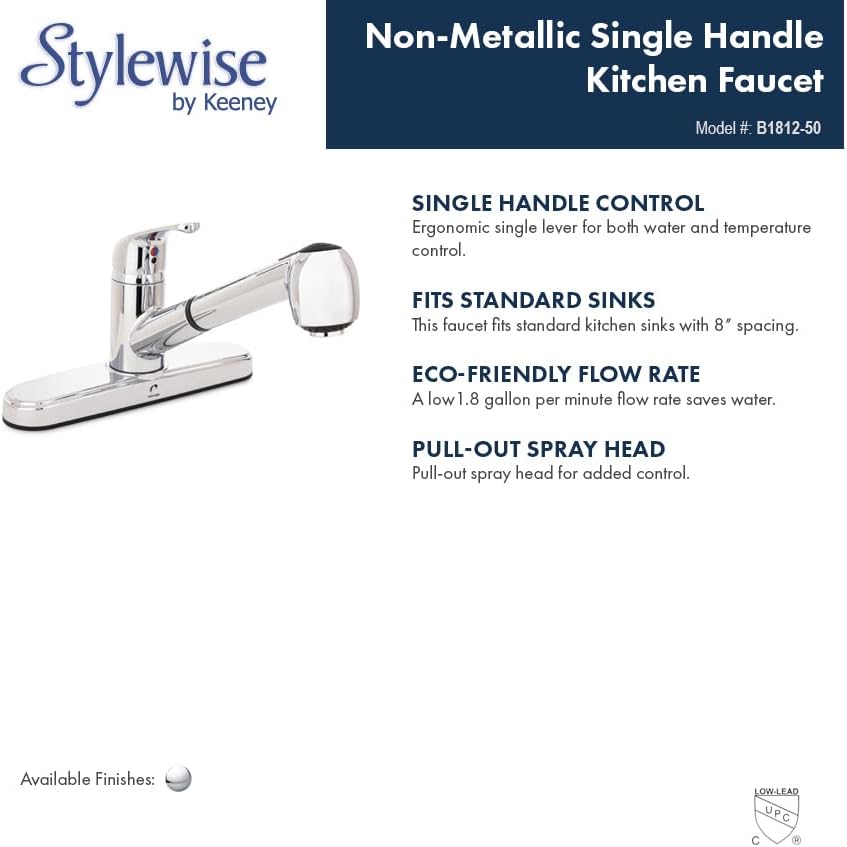

Figure 3: Key features of the Belanger B1812-50 faucet.

This diagram highlights the main features of the Belanger B1812-50 faucet, including its single handle control, compatibility with standard 8-inch sinks, eco-friendly 1.8 GPM flow rate, and pull-out spray head functionality.

• Model: B1812-50
• Brand: Plumb Pak (Manufactured by Belanger)
• Finish: Polished Chrome
• Material: Non-metallic construction (handle material: Brass)
• Mounting Type: Deck Mount, 3-hole installation
• Installation Type: 8-inch Centerset
• Number of Handles: 1 (Single Handle)
• Spout Reach: 7-inch pull-out spout reach
• Flow Rate: 1.8 Gallons Per Minute (GPM)
• Special Features: Lead Free, Pull-Out Sprayer, Push-button diverter for stream/spray
• Compliance: ADA and cUPC
• Item Weight: Approximately 2.74 pounds
• Product Dimensions: 5.5 x 12.25 x 13.75 inches

9. Warranty and Support

This Belanger B1812-50 faucet is backed by a Limited Lifetime Warranty. This warranty covers defects in material and workmanship under normal use and service.

For warranty claims, technical assistance, or replacement parts, please contact the manufacturer, Belanger (Plumb Pak), directly. Please have your model number (B1812-50) and proof of purchase available when contacting support.

For more information, you may visit the Plumb Pak brand page or the product listing for additional details.
