1. Product Overview
The Elica Strip CF 60 NERO is a 60 cm wall-mount kitchen chimney designed for efficient smoke and odor extraction. It features a black finish, push-button controls, and cassette filters for effective filtration.

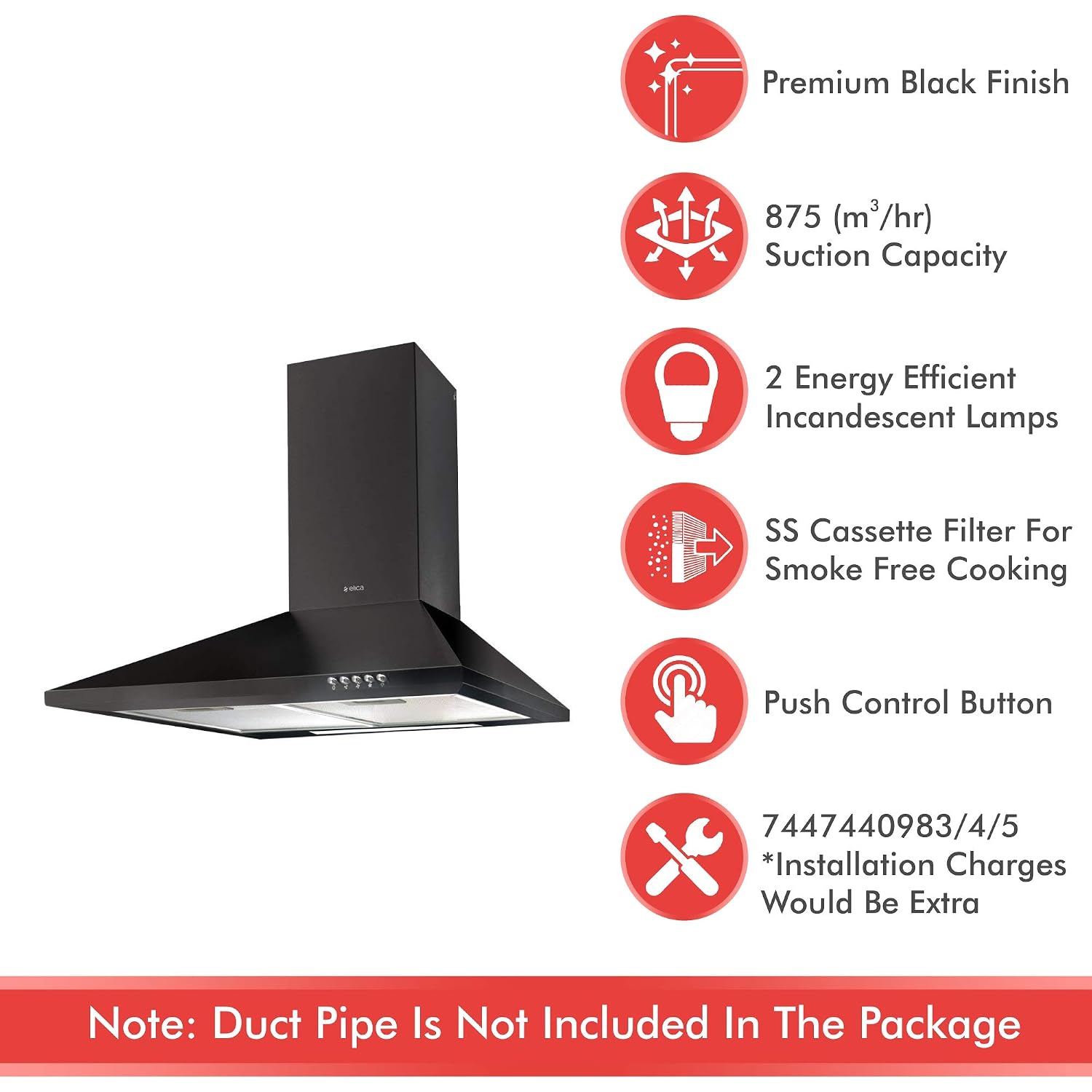

Image 1.1: Elica Strip CF 60 NERO Chimney highlighting premium black finish, 875 m³/hr suction capacity, incandescent lamps, SS cassette filter, and push control buttons.
Key Features:
- Size: 60 cm, suitable for most standard kitchen setups.
- Suction Capacity: 875-880 m³/hr for effective smoke and odor removal.
- Filters: Two durable Stainless Steel Cassette Filters.
- Controls: User-friendly Push Button controls.
- Lighting: Two 40W Incandescent Lamps for illuminating the cooking area.
- Finish: Premium Black Finish.
- Noise Level: Approximately 60 Decibels.
- Mounting Type: Wall-Mount.
2. Important Safety Instructions
Read all instructions carefully before installation and use. Keep this manual for future reference.
- Ensure the electrical supply matches the voltage specified on the rating label.
- Installation must be performed by a qualified technician in accordance with local regulations.
- Do not operate the chimney without filters in place.
- Regularly clean grease filters to prevent fire hazards.
- Maintain adequate ventilation in the room when the chimney is used simultaneously with gas or other fuel-burning appliances.
- Do not flambé under the range hood.
- Keep children away from the appliance.
- Disconnect the appliance from the power supply before any cleaning or maintenance.
3. Installation and Setup
Proper installation is crucial for the chimney's performance and safety. It is recommended to have the chimney installed by a professional.
Image 3.1: Elica chimney integrated into a kitchen environment.
3.1 Unpacking
- Carefully remove the chimney from its packaging.
- Check for any damage during transit. Do not install if damaged.
- Ensure all components listed in the packing list are present.
3.2 Mounting
- Determine the optimal mounting height above the cooking surface, typically 65-75 cm for electric hobs and 70-80 cm for gas hobs.
- Mark drilling points on the wall according to the provided template.
- Secure the mounting bracket to the wall using appropriate fasteners.
- Carefully lift and attach the chimney body to the mounting bracket.
3.3 Electrical Connection
- Ensure the power supply is disconnected before making electrical connections.
- Connect the chimney to a grounded electrical outlet (230V/50Hz).
- All electrical wiring must comply with local codes and regulations.
3.4 Ducting
- Ducting is recommended for optimal performance and is mandatory for certain chimney types.
- Connect the chimney's exhaust outlet to an external vent using a suitable duct pipe (not included).
- Ensure the ducting is as short and straight as possible with minimal bends to maximize airflow.
Note: Installation charges are typically extra and not included with the product purchase.
4. Operating Instructions
The Elica Strip CF 60 NERO chimney features intuitive push-button controls for ease of use.
4.1 Control Panel
The control panel is located on the front of the chimney and consists of several push buttons:
- Power Button: Turns the chimney ON/OFF.
- Speed Buttons (1, 2, 3): Adjusts the suction power to low, medium, or high settings.
- Light Button: Turns the incandescent lamps ON/OFF to illuminate the cooking area.
4.2 Using the Chimney
- Before cooking, press the Power Button to turn on the chimney.
- Select the desired suction speed (1, 2, or 3) based on the intensity of cooking fumes. For light cooking, speed 1 or 2 is usually sufficient. For heavy frying or strong odors, use speed 3.
- Press the Light Button to turn on the cooking area illumination if needed.
- After cooking, allow the chimney to run for a few minutes to clear any remaining fumes, then press the Power Button to turn it off.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Elica chimney.
5.1 Cleaning Filters
The cassette filters should be cleaned regularly, typically every 2-4 weeks depending on usage.
- Disconnect Power: Always switch off the chimney and unplug it from the power outlet before cleaning.
- Remove Filters: Locate the filter latches or clips and carefully remove the cassette filters.
- Clean Filters: Wash the filters in warm, soapy water or use a degreasing agent. For stubborn grease, soak them for a while. Alternatively, some cassette filters are dishwasher safe (check your specific filter type).
- Rinse and Dry: Rinse thoroughly with clean water and allow them to dry completely before re-installing.
- Re-install Filters: Carefully place the dry filters back into their slots and secure the latches.
5.2 Cleaning Surfaces
- Clean the exterior surfaces of the chimney with a soft cloth dampened with mild detergent and water.
- Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the black finish.
- Dry the surfaces thoroughly after cleaning.
5.3 Replacing Lamps
The chimney uses two 40W incandescent lamps.
- Disconnect Power: Ensure the chimney is switched off and unplugged.
- Access Lamps: Refer to the specific lamp access instructions in your full product manual. Typically, a cover or bezel needs to be removed.
- Replace Bulb: Carefully unscrew the old bulb and screw in a new 40W incandescent bulb.
- Reassemble: Replace any covers or bezels removed.
6. Troubleshooting
This section addresses common issues you might encounter with your chimney.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chimney does not turn on. | No power supply. Faulty power button. | Check if the chimney is plugged in and the power outlet is working. Contact customer support if the button is unresponsive. |
| Low suction power. | Clogged grease filters. Obstruction in ducting. Incorrect speed setting. | Clean or replace grease filters. Check ducting for blockages. Select a higher speed setting. |
| Excessive noise during operation. | Loose components. Motor issue. Improper installation. | Check for any loose parts and secure them. If noise persists, contact customer support. Ensure proper installation. |
| Lights not working. | Burnt-out bulb. Loose connection. | Replace the incandescent bulb. Check light connections (requires professional assistance). |
If the problem persists after attempting these solutions, please contact Elica customer support.
7. Technical Specifications
Detailed specifications for the Elica Strip CF 60 NERO chimney.
| Feature | Specification |
|---|---|
| Brand | Elica |
| Model Number | strip cf 60 nero |
| Colour | Black |
| Finish Type | Black Finish |
| Size | 60 cm |
| Air Flow Capacity | 880 Cubic Meters Per Hour (m³/hr) |
| Controls Type | Push Button |
| Filter Type | Cassette (2 filters) |
| Light Source | Incandescent (2 x 40W) |
| Noise Level | 60 Decibels |
| Mounting Type | Wall-Mount |
| Voltage | 230 Volts |
| Rated Motor Input Power | 130 Watts |
| Item Weight | 8.9 Kilograms |
8. Warranty and Support
For warranty registration, service requests, or technical assistance, please use the following resources:
- Warranty Registration: Register your product online at myelica.in. You will need your model number and product serial number.
- Installation & Service Contact: For installation or service-related queries, you may contact Elica support at 7447440983, 7447440984, or 7447440985.
- Manufacturer: Elica
