Stens Scraper Bar 780-022 for Ariens Snow Blowers Instruction Manual

Product Overview

This manual provides essential information for the Stens 780-022 Scraper Bar, designed as a replacement part for various Ariens snowblower models. The scraper bar is a critical component for efficient snow removal, ensuring a clean sweep of surfaces.

Compatibility: This scraper bar is compatible with Ariens snowblower models including ST624E, ST724E, ST7524E, ST8524E, ST5524E, ST724, ST7524, and Compact 24" snowblowers. Always verify part fitment before purchase and installation.

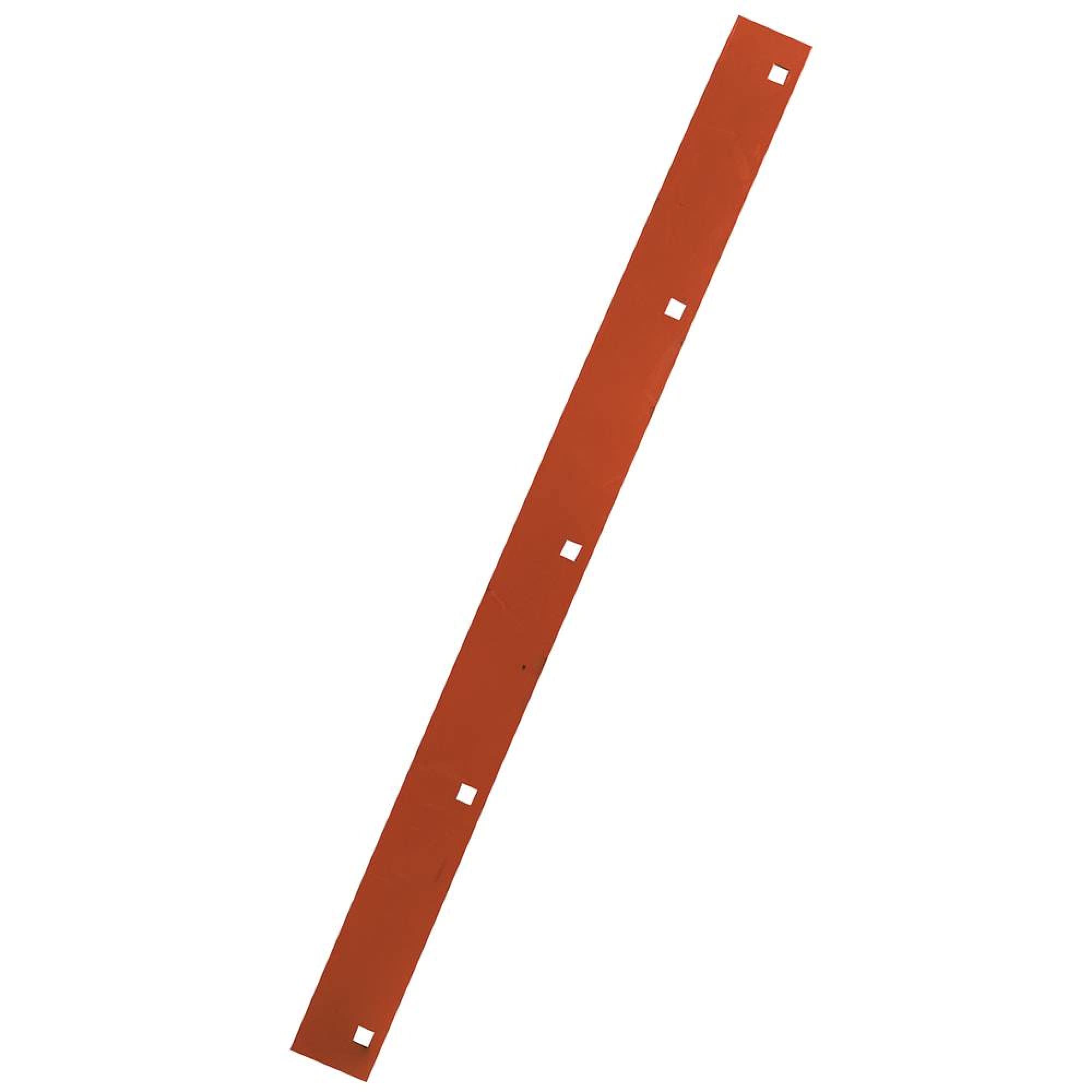

Image: The Stens 780-022 Scraper Bar, a durable orange metal component with precisely cut holes for mounting.

Specifications

Setup and Installation

The scraper bar is designed for easy replacement on compatible Ariens snowblowers. Proper installation ensures optimal performance and longevity of your snowblower.

Installation Steps:

1. Safety First: Before beginning any maintenance or installation, ensure the snowblower is turned off, the spark plug wire is disconnected, and the engine is cool. Refer to your snowblower's owner's manual for specific safety precautions.
2. Locate the Scraper Bar: The scraper bar is typically located at the bottom edge of the snowblower's auger housing.
3. Remove Old Scraper Bar: Using appropriate tools, carefully remove the bolts or fasteners securing the old scraper bar. Note the orientation of the old bar for correct installation of the new one.
4. Clean Mounting Area: Clean any debris, rust, or ice from the mounting area on the auger housing.
5. Install New Scraper Bar: Position the new Stens 780-022 Scraper Bar onto the auger housing. Align the holes on the scraper bar with the mounting holes on the snowblower.
6. Secure the Bar: Insert and tighten the bolts or fasteners to secure the new scraper bar. Ensure all fasteners are tightened to the manufacturer's specifications to prevent loosening during operation.
7. Final Check: Once installed, visually inspect the scraper bar to ensure it is properly seated and all fasteners are secure. Reconnect the spark plug wire.

Operating with a New Scraper Bar

After installing the new scraper bar, your snowblower should operate with improved efficiency, clearing snow closer to the ground surface.

• Initial Operation: Start your snowblower and allow it to warm up according to the manufacturer's instructions.
• Test Performance: Begin clearing snow in a small, clear area to observe the scraper bar's performance. Ensure it is making consistent contact with the ground without excessive scraping or lifting.
• Adjustments: If your snowblower allows for height adjustments, ensure the scraper bar is set to the appropriate height for the surface you are clearing (e.g., pavement, gravel).
• Optimal Clearance: A properly installed and adjusted scraper bar will minimize the amount of snow left behind, providing a cleaner path.

Maintenance Tips

Regular maintenance of your snowblower, including the scraper bar and other components, is crucial for extending its lifespan and ensuring reliable operation.

• Inspect Scraper Bar: Regularly check the scraper bar for wear, damage, or bending. A worn scraper bar will leave snow behind and reduce clearing efficiency. Replace it when signs of significant wear are visible.
• Check Shear Pins: Shear pins are designed to break under excessive load, protecting the auger and gearbox from damage. Always replace broken shear pins with the correct type to prevent damage to the auger system.
• Lubrication: Ensure all moving parts, as specified in your snowblower's manual, are properly lubricated.
• Engine Oil: For cold weather operation, consider using 5W30 oil, which is suitable for snow equipment. Always refer to your engine's manual for recommended oil types and change intervals.
• Belts: Inspect drive belts for wear, cracks, or stretching. Replace them if they show signs of damage to maintain proper power transmission.
• Skids: Check the skids (skid shoes) for wear. Replace them if they are excessively worn to prevent damage to the auger housing and to maintain proper clearing height. Stens offers both non-abrasive and metal skids.

Troubleshooting Common Issues

• Snow Left Behind: If your snowblower is leaving a layer of snow on the ground, it is a strong indicator that the scraper bar is worn and needs replacement. A new scraper bar will restore the snowblower's ability to clear surfaces effectively.
• Auger Not Turning or Jammed: Check the shear pins. If they are broken, replace them. Also, inspect the auger for any obstructions that might be causing a jam.
• Reduced Performance: If the snowblower is not throwing snow as far or as efficiently as it should, inspect the paddles (for single-stage models) and belts for wear or damage.

Warranty and Support

Specific warranty information for this product may vary. Please refer to the product packaging or the official Stens website for the most current warranty details.

For further assistance, technical support, or to explore other Stens products, please visit the Stens Store on Amazon or their official website.
