VLOXO CD-2800

VLOXO CD-2800 Ultrasonic Cleaner Instruction Manual

Model: CD-2800

Introduction

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your VLOXO CD-2800 Ultrasonic Cleaner. Please read this manual thoroughly before using the device and retain it for future reference.

The VLOXO CD-2800 is designed to clean various small items using ultrasonic waves. These waves generate microscopic bubbles in the cleaning solution, which then implode, effectively scrubbing surfaces clean without harsh chemicals or abrasion.

Important Safety Instructions

  • Read all instructions before use.
  • Do not immerse the main unit in water or other liquids.
  • Ensure the power cord and plug are not damaged. Do not operate if damaged.
  • Keep out of reach of children.
  • Do not operate the cleaner continuously for more than 10 minutes. Allow the unit to cool down for at least 10 minutes between continuous uses to prevent overheating.
  • Always unplug the unit from the power outlet when not in use or before cleaning.
  • Do not place rusty items in the cleaner, as ultrasonic cleaning cannot remove rust.
  • Use only tap water or a small amount of mild dish soap. Avoid corrosive or flammable cleaning agents.
  • Do not operate the unit without liquid in the tank.
  • Avoid touching the tank or cleaning solution during operation, as it may become warm.

Product Overview

The VLOXO CD-2800 Ultrasonic Cleaner comes with the following components:

  • 1 x VLOXO CD-2800 Ultrasonic Cleaner Unit
  • 1 x Plastic Cleaning Basket
  • 1 x Watch Stand
  • 1 x Instruction Manual (this document)

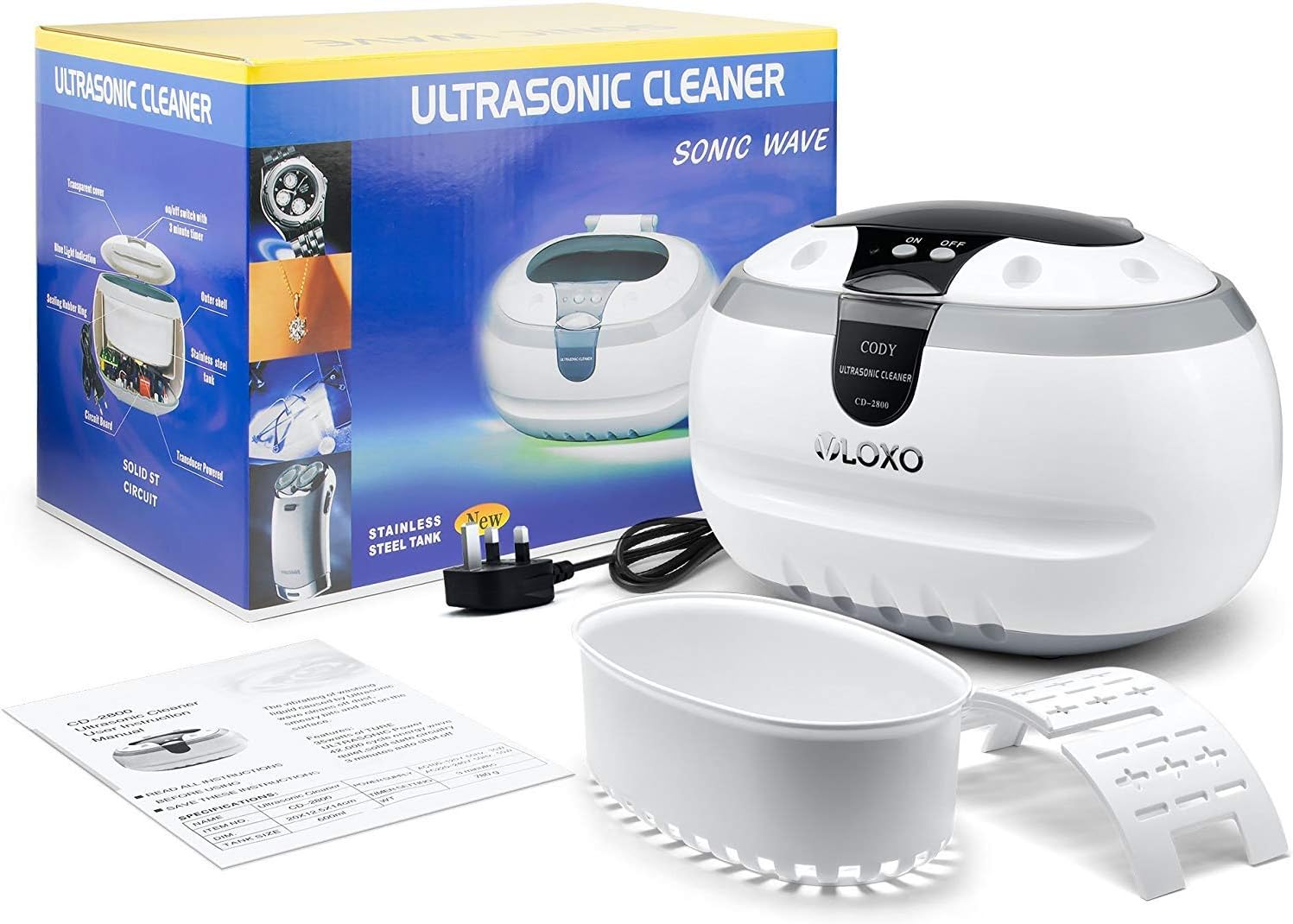

VLOXO CD-2800 Ultrasonic Cleaner and accessories in packaging
Figure 1: Package Contents. The image displays the VLOXO CD-2800 Ultrasonic Cleaner unit, a plastic cleaning basket, a watch stand, and the instruction manual, all neatly arranged with the product packaging in the background.
Labeled parts of the VLOXO CD-2800 Ultrasonic Cleaner
Figure 2: Labeled Components. This image highlights key parts of the ultrasonic cleaner, including the Upper Cover, Supervision Window, Power Indication Light, Stainless Steel Tank, Basket, and ON/OFF buttons with their respective working indication lights.

Setup

  1. Placement: Place the ultrasonic cleaner on a flat, stable, and dry surface, away from heat sources and direct sunlight.
  2. Power Connection: Ensure the unit is unplugged. Open the lid and fill the stainless steel tank with tap water. Do not exceed the maximum fill line. For enhanced cleaning, a few drops of mild dish soap can be added.
  3. Insert Basket: Place the plastic cleaning basket into the tank.
  4. Plug In: Connect the power cord to a suitable electrical outlet.

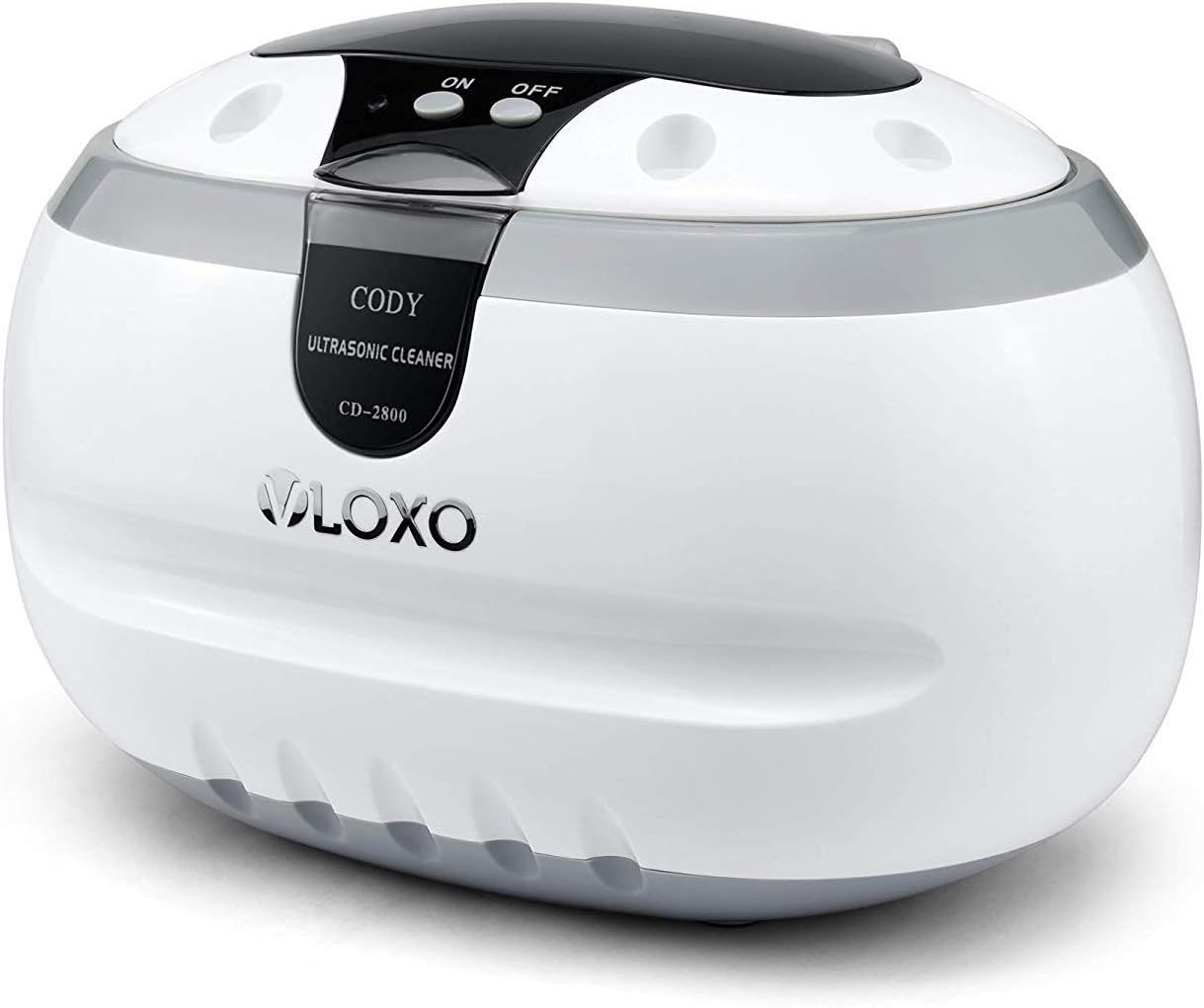

VLOXO CD-2800 Ultrasonic Cleaner main unit
Figure 3: VLOXO CD-2800 Ultrasonic Cleaner. This image shows the main unit of the ultrasonic cleaner with its lid closed, ready for setup.

Operating Instructions

  1. Prepare Items: Place the items to be cleaned into the plastic basket. For watches, use the provided watch stand to keep the watch body out of the water while submerging only the band.
  2. Close Lid: Close the transparent lid securely.
  3. Start Cleaning: Press the ON button. The unit will automatically start a 3-minute cleaning cycle. A small buzz sound indicates operation.
  4. Monitor Progress: You can observe the cleaning process through the supervision window.
  5. Stop Cleaning: To stop the cleaning cycle at any time, press the OFF button.
  6. After Cleaning: Once the cycle is complete or stopped, unplug the unit. Open the lid, carefully remove the basket with the cleaned items, and rinse them under clean water. Dry the items thoroughly with a soft cloth.
VLOXO CD-2800 Ultrasonic Cleaner with glasses inside
Figure 4: Cleaning Glasses. This image shows a pair of glasses placed inside the cleaning basket within the ultrasonic cleaner's tank, ready for the cleaning process.

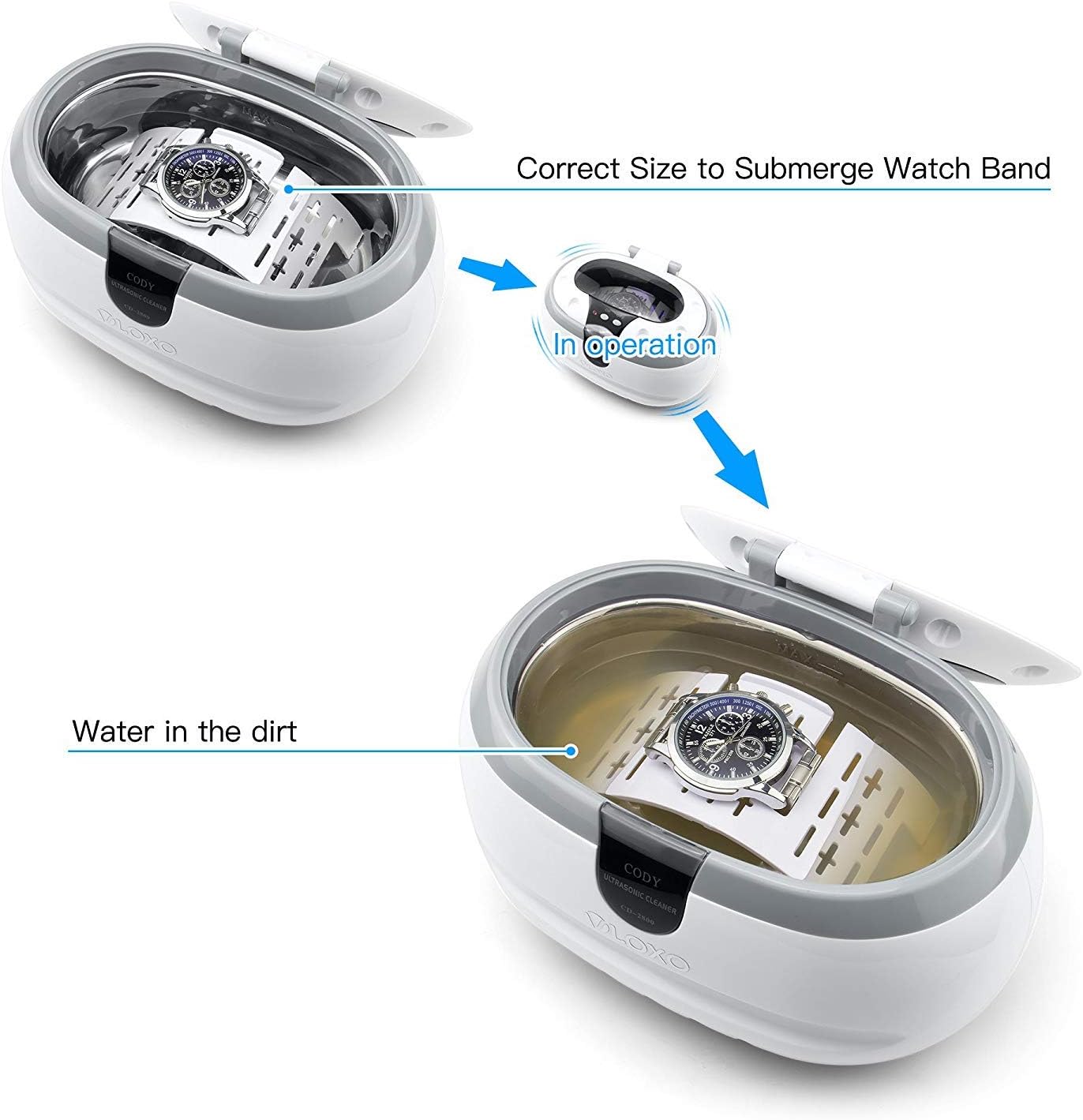

VLOXO CD-2800 Ultrasonic Cleaner demonstrating watch band cleaning
Figure 5: Watch Band Cleaning. This illustration demonstrates the correct method for cleaning a watch band, showing the watch body suspended above the water using the watch stand, while the band is submerged in the cleaning solution.

Suitable Items for Cleaning:

  • Jewelry (rings, earrings, necklaces, bracelets)
  • Eyeglasses, sunglasses, contact lens accessories
  • Watch bands (metal and waterproof types)
  • Dentures, retainers, mouthguards
  • Razor heads, toothbrush heads
  • Small metal items, coins, valves, injectors, gears, bearings
  • Printer heads, ink cartridges
  • Baby items (e.g., bottle nipples)

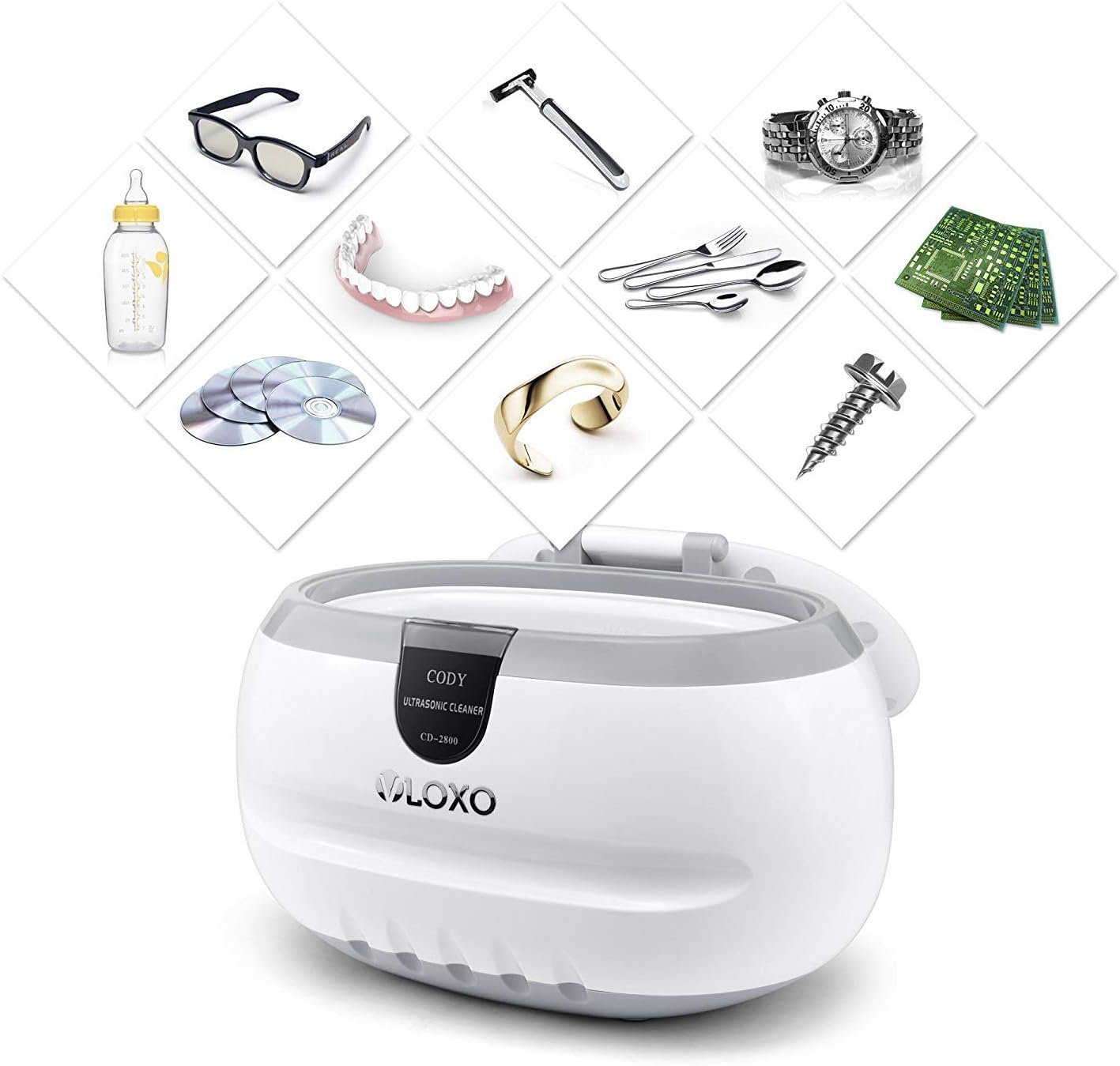

Various items that can be cleaned by the VLOXO CD-2800 Ultrasonic Cleaner
Figure 6: Diverse Applications. This image illustrates a range of items suitable for ultrasonic cleaning, including eyeglasses, razors, watches, baby bottles, dentures, cutlery, circuit boards, CDs, rings, and screws.

Items NOT Suitable for Ultrasonic Cleaning:

  • Soft or porous gemstones (e.g., pearls, emeralds, opals, turquoise)
  • Items with loose stones or settings
  • Items that are not waterproof (e.g., non-waterproof watches)
  • Items made of wood, leather, or fabric
  • Items with existing cracks or damage
  • Rusty items (ultrasonic cleaning does not remove rust)

Maintenance

  1. Empty Tank: After each use, unplug the unit and carefully pour out the used cleaning solution.
  2. Clean Tank: Wipe the stainless steel tank with a soft cloth. Do not use abrasive cleaners or scrubbers.
  3. Exterior Cleaning: Wipe the exterior of the unit with a damp cloth. Do not use excessive water.
  4. Storage: Store the cleaner in a cool, dry place with the lid slightly ajar to allow for air circulation.

Troubleshooting

ProblemPossible CauseSolution
Unit does not turn on.Not plugged in; power outlet issue; unit malfunction.Check power connection. Try a different outlet. If problem persists, contact customer support.
Cleaning is not effective.Insufficient cleaning solution; items too dirty; incorrect cleaning agent; items not suitable.Ensure tank is filled to appropriate level. Pre-rinse heavily soiled items. Add a few drops of mild dish soap. Verify items are suitable for ultrasonic cleaning. Run multiple cycles if needed, allowing cooling time.
Unit stops during operation.Automatic 3-minute cycle completed; overheating protection activated.This is normal for the 3-minute cycle. If running continuously, allow the unit to cool down for 10 minutes before restarting.

Specifications

Model:CD-2800 (Z802UKUC01)
Brand:VLOXO
Tank Material:Stainless Steel SUS304
Housing Material:ABS Plastic
Tank Capacity:600ml
Ultrasonic Frequency:42 KHz
Wattage:50W
Product Dimensions (L x W x H):20 x 12.5 x 14 cm (7.99 x 5.31 x 5.39 inches)
Tank Dimensions (L x W x H):16.1 x 8.5 x 5.0 cm (6.34 x 3.35 x 1.97 inches)
Net Weight:0.98 kg (2.16 lbs)
Gross Weight:1.23 kg (2.71 lbs)
Certifications:CE, PSE, TUV, GS
Dimensions of the VLOXO CD-2800 Ultrasonic Cleaner
Figure 7: Product Dimensions. This image provides a visual representation of the VLOXO CD-2800 Ultrasonic Cleaner's external dimensions in both inches and millimeters.

Warranty and Support

The VLOXO CD-2800 Ultrasonic Cleaner is manufactured with quality and safety in mind, holding CE, PSE, TUV, and GS certifications.

For any questions or concerns regarding your product, please contact VLOXO customer support. We are committed to providing a satisfactory response within 24 hours.

Please refer to your purchase documentation for specific warranty terms and contact information.

© 2023 VLOXO. All rights reserved.
