BONTEC MWS02 Mobile Standing Desk

Introduction

Thank you for choosing the BONTEC MWS02 Mobile Standing Desk. This versatile and ergonomic workstation is designed to enhance your productivity and comfort, whether you are sitting or standing. Its adjustable height, multiple shelves, and mobile design make it an ideal solution for various environments, including home offices, classrooms, and professional settings.

This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read these instructions carefully before use and retain them for future reference.

Image: The BONTEC MWS02 Mobile Standing Desk, showcasing its multi-level design and mobility.

Safety Information

• Ensure all components are securely fastened before use. Loose parts can cause instability and potential injury.
• Do not exceed the maximum load capacity for each shelf as specified in the 'Specifications' section. Overloading can lead to structural failure.
• Keep children and pets away from the desk during assembly and adjustment to prevent accidents.
• Use the desk on a flat, stable surface. Uneven surfaces can compromise stability.
• When moving the desk, ensure the path is clear and all items on the shelves are secure to prevent them from falling. Lock the wheels once the desk is in its desired position.
• Avoid placing hot items directly on the desk surfaces without protective padding.
• Do not attempt to modify the desk structure. Unauthorized modifications may void the warranty and pose safety risks.

Package Contents

Before beginning assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Desk Shelves (4 units: 2 large, 2 small)
• Main Support Columns (Vertical poles)
• Base Frame with Wheels (4 universal wheels, 2 with locking mechanism)
• Height Adjustment Knobs
• Assembly Hardware (Screws, bolts, tools if provided)
• Instruction Manual

Assembly Instructions

The BONTEC MWS02 Mobile Standing Desk is designed for easy assembly. Follow these steps to set up your desk.

1. Attach the Base Frame: Secure the main support columns to the base frame using the provided hardware. Ensure the wheels are properly oriented.
2. Install the Shelves: Slide the shelves onto the support columns. The two larger shelves are typically for the monitor/laptop and keyboard, while the two smaller shelves are for accessories.
3. Secure Height Adjustment Knobs: Insert and tighten the height adjustment knobs into the designated holes on the support columns to fix the shelves at your desired initial height.
4. Final Check: Once all components are assembled, gently shake the desk to ensure stability. Tighten any loose screws or connections.

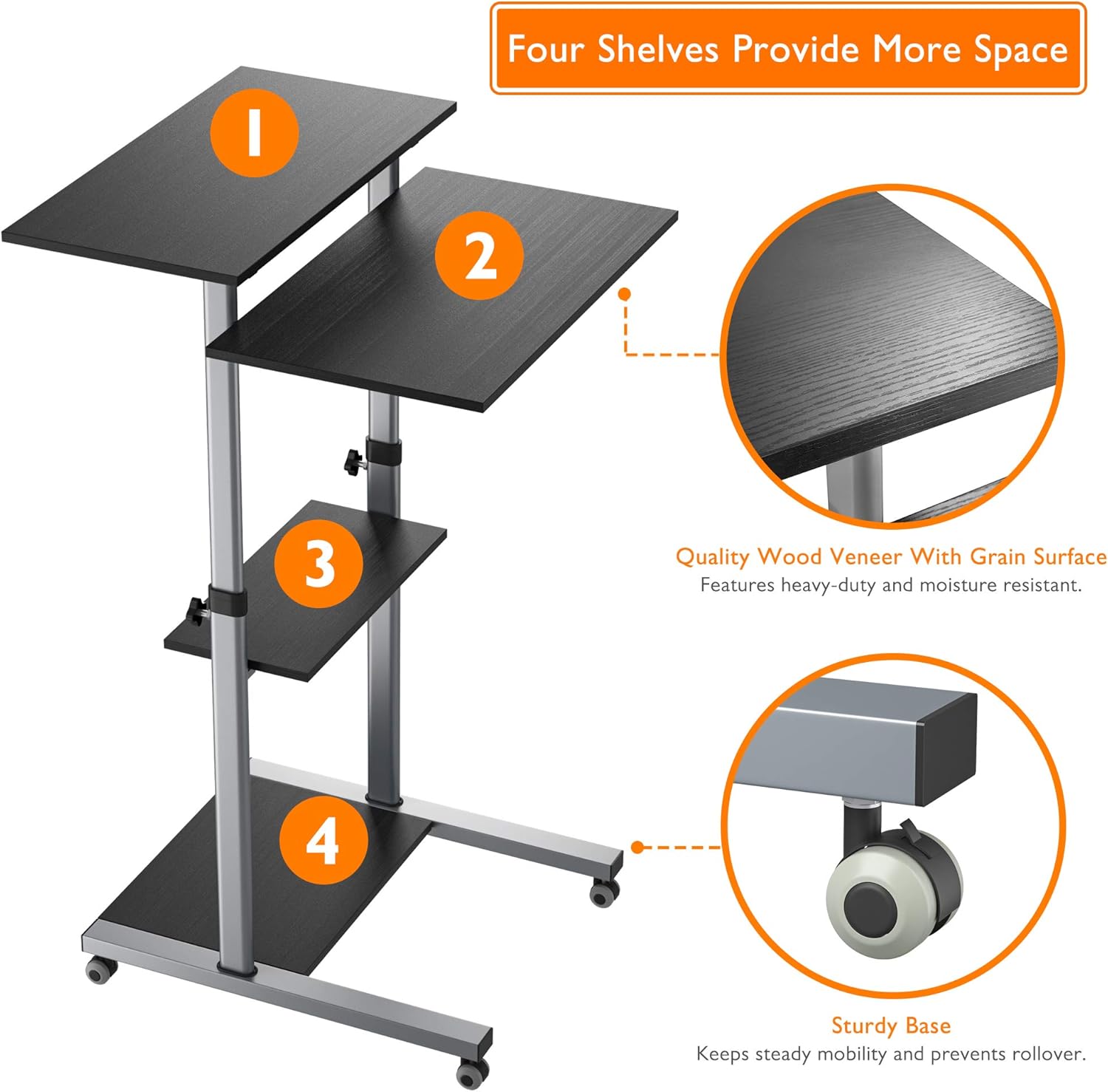

Image: Illustration of the four shelves and the sturdy base with lockable wheels.

Operating Instructions

Height Adjustment

The BONTEC MWS02 desk features stepless height adjustment, allowing you to easily switch between sitting and standing positions. The desk can be adjusted from a minimum height of 950 mm to a maximum height of 1390 mm.

1. Unlock: Loosen the height adjustment knobs located on the main support columns for the desired shelf.
2. Adjust: Carefully slide the shelf up or down to your preferred ergonomic height.
3. Lock: Once the desired height is reached, firmly tighten the adjustment knobs to secure the shelf in place. Ensure all knobs are fully tightened before placing items on the desk.

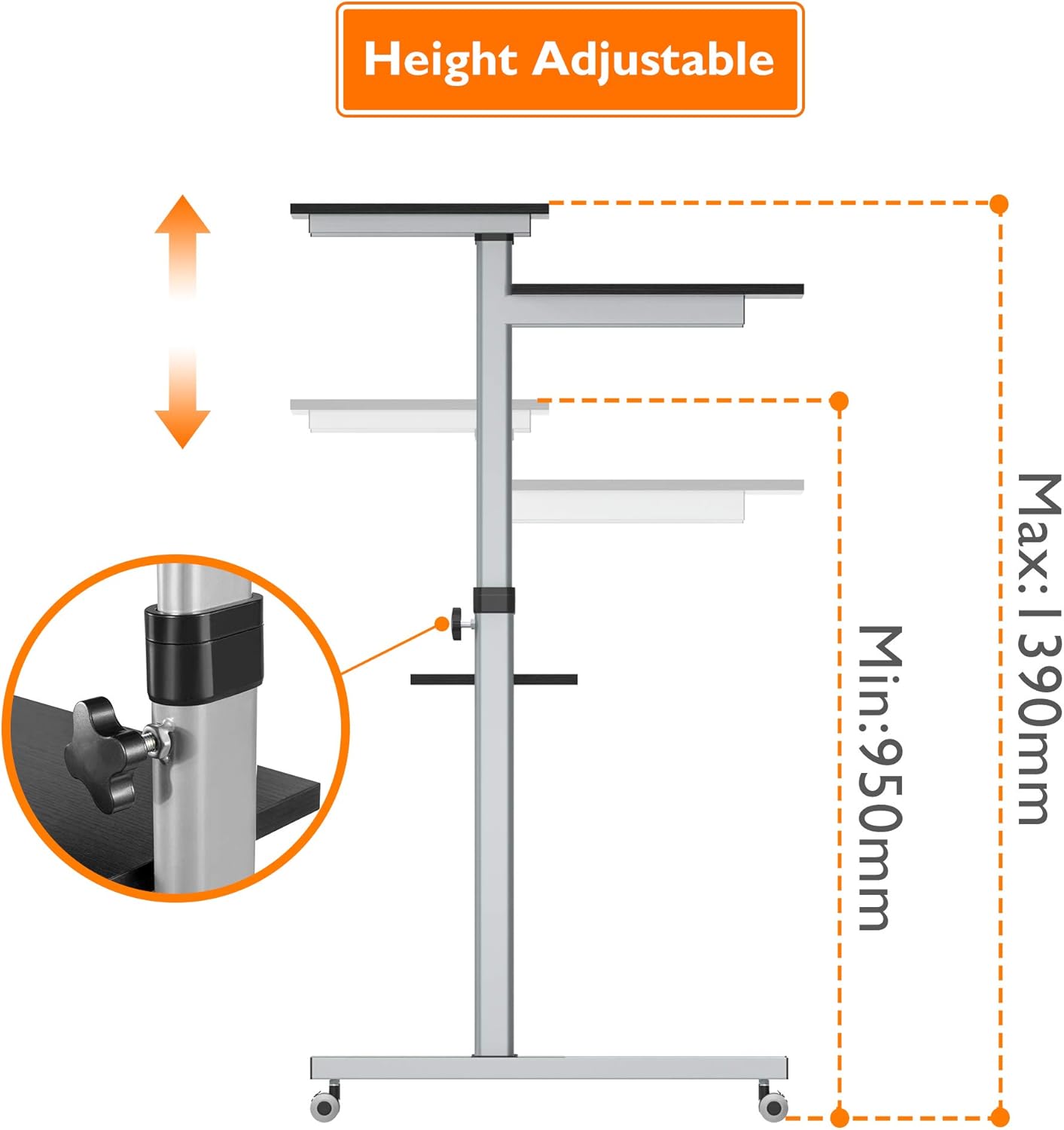

Image: Diagram showing the minimum (950mm) and maximum (1390mm) height adjustment range.

Image: Visual representation of comfortable sitting (950mm) and standing (1390mm) positions.

Mobility and Locking

The desk is equipped with four universal wheels for easy movement. Two of these wheels include a locking mechanism to keep the desk stationary.

• To Move: Ensure the wheel locks are disengaged. Gently push the desk to your desired location.
• To Lock: Once the desk is in position, press down on the levers of the two locking wheels until they click into place. This will prevent unintended movement.
• To Unlock: Lift the levers on the locking wheels to disengage the lock.

Shelf Usage and Load Capacity

The desk features four spacious platforms designed to accommodate various equipment. Adhere to the specified load capacities to ensure stability and longevity of the product.

• Top Shelf (Monitor/Laptop): Maximum load capacity of 20 kg (44 lbs).
• Second Shelf (Keyboard/Documents): Maximum load capacity of 20 kg (44 lbs).
• Middle Shelf (Accessories): Maximum load capacity of 10 kg (22 lbs). Suitable for books, small speakers, or personal items.
• Base Shelf (PC Tower/Printer): Maximum load capacity of 10 kg (22 lbs). Ideal for larger equipment.

Image: The BONTEC MWS02 desk configured for a complete workstation, demonstrating practical use of its multiple shelves.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten as necessary.
• Wheel Care: Keep the wheels free of debris to ensure smooth movement. Lubricate if necessary.
• Storage: If storing the desk for an extended period, ensure it is clean, dry, and stored in a stable environment.

Troubleshooting

Specifications

Image: Technical diagram showing detailed dimensions and individual shelf load capacities.

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact BONTEC customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official BONTEC website or contact their support team through the contact details provided with your product.
