1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Palram - Canopia Olympia Patio Cover 10' x 24'. This outdoor canopy is designed to offer shade and shelter, enhancing your outdoor living space. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: The Palram - Canopia Olympia Patio Cover 10' x 24' providing shade over an outdoor seating area next to a pool.
2. Safety Information
WARNING: This product requires assembly and must be secured to a stable foundation. Always follow the assembly instructions carefully to avoid injury. This product has a weight limit of 310.7 pounds and should not be used beyond its capacity. Exercise caution when handling heavy components during assembly or disassembly to prevent injury.
- Always wear appropriate safety gear, including gloves and eye protection, during assembly.
- Ensure the assembly area is clear of obstructions and hazards.
- Do not attempt to assemble the patio cover alone. A minimum of two people is recommended for safe and efficient setup.
- Verify all parts are present and undamaged before starting assembly.
- Regularly inspect the structure for loose fasteners or signs of wear and tear.
3. Setup & Assembly
The Olympia Patio Cover is designed for DIY-friendly assembly. All necessary hardware is included, and components are pre-drilled for convenience. A two-person setup is highly recommended to ensure stability and ease of installation.
3.1 Site Preparation
Before assembly, ensure your chosen installation site has a flat, stable surface for attachment. The patio cover must be securely anchored to a wall and the ground.
3.2 Component Identification
Familiarize yourself with all components. The kit includes robust aluminum posts and frame elements, along with polycarbonate panels.
Image 3.1: Dimensional diagram of the Olympia Patio Cover, showing length, width, and height measurements.
3.3 Frame Assembly
Assemble the aluminum frame according to the detailed instructions provided in the separate assembly guide. Pay close attention to the orientation of each piece and ensure all bolts are tightened securely. The frame features 8x8 heavy-duty aluminum posts for robust support.

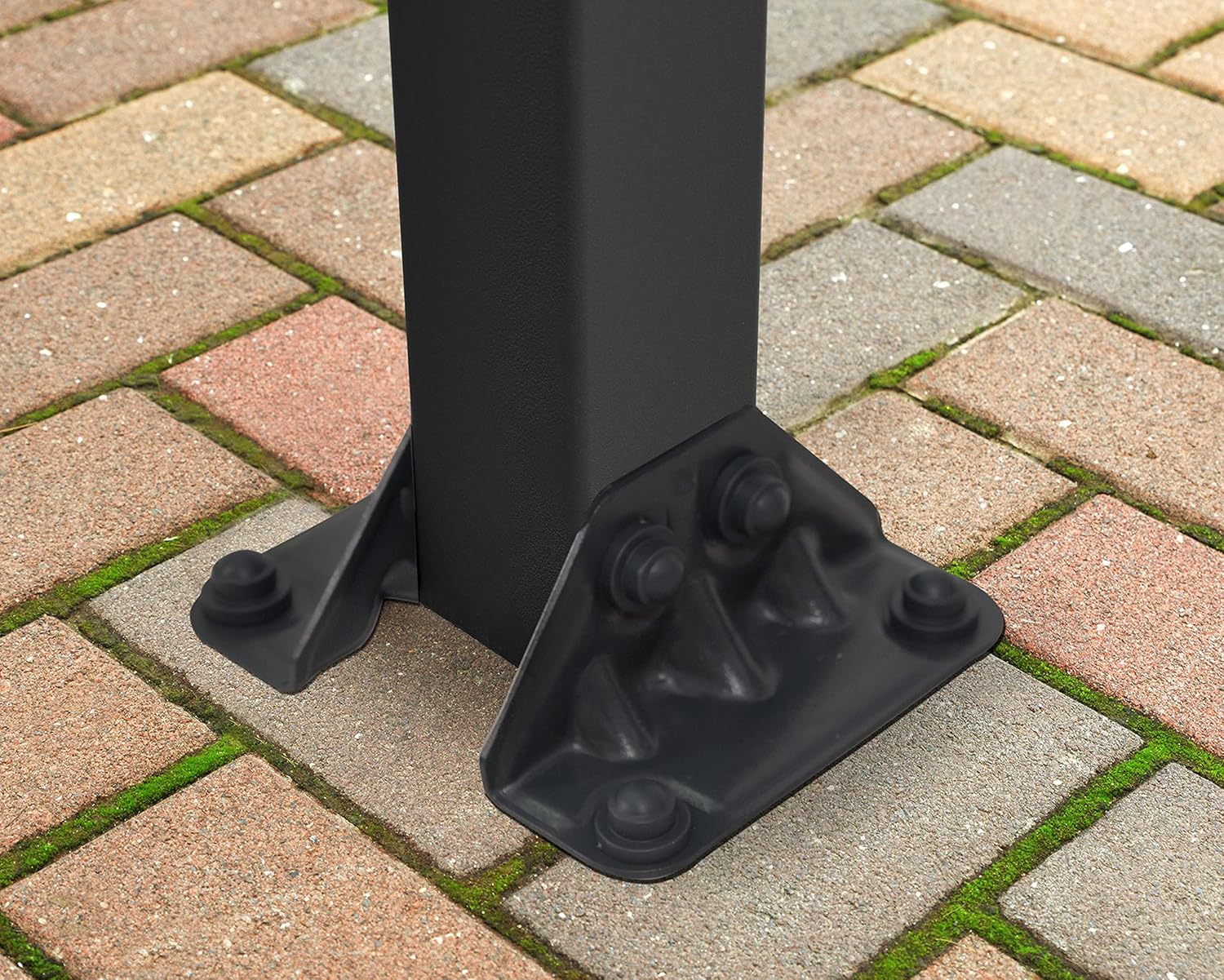

Image 3.2: Detail of a post base, illustrating how it is secured to the ground.
3.4 Panel Installation
Install the polycarbonate panels into the frame. Ensure the side marked "THIS SIDE OUT" faces upwards to maximize UV protection. The panels are designed to slide into place and connect securely.
Image 3.3: Detail showing the connection mechanism between two polycarbonate roof panels.
Image 3.4: A polycarbonate panel clearly marked with "THIS SIDE OUT" for correct installation.
3.5 Gutter System
Install the integrated gutter system. Ensure the downspouts are correctly positioned to direct water away from the foundation. The downspouts are adjustable for optimal water drainage.

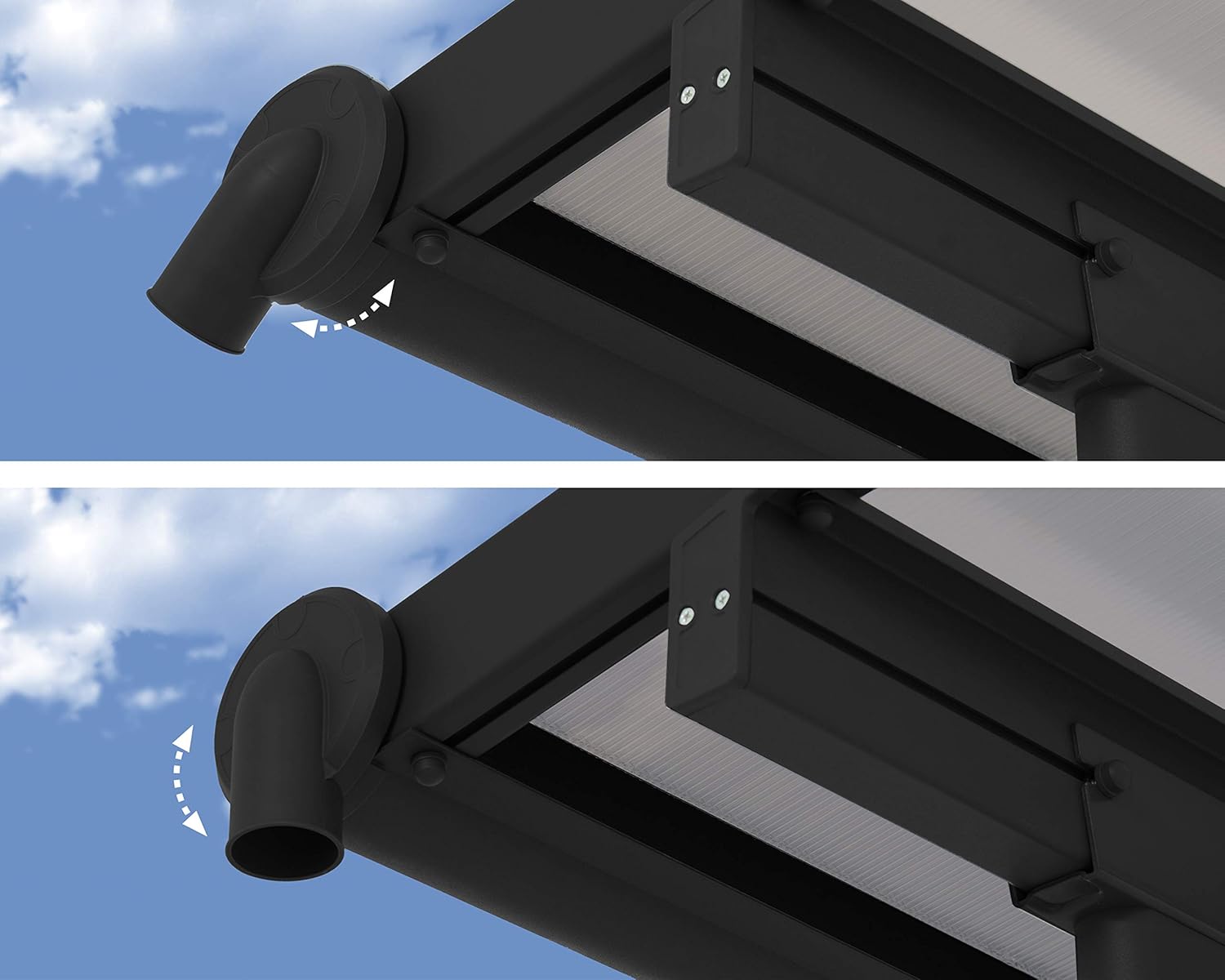

Image 3.5: Illustration of the adjustable gutter downspout, demonstrating its directional flexibility.
3.6 Assembly Video
For a visual guide to the assembly process and key features, please watch the official product video below.
Video 3.6: Official product video showcasing the features and assembly of the Palram - Canopia Olympia Patio Cover.
4. Operation
The Palram - Canopia Olympia Patio Cover is designed to provide a comfortable outdoor environment year-round.
4.1 Weather Protection
The robust construction and polycarbonate panels offer excellent protection against various weather conditions:
- UV Protection: The roof panels provide 100% UV protection, shielding you and your outdoor furniture from harmful sun rays.
- Waterproof Design: The canopy is fully waterproof, ensuring your patio remains dry during rain.
- Wind Resistance: Engineered to withstand high winds, providing a secure shelter.
- Snow Load: Designed to handle significant snow loads, making it suitable for various climates.
Image 4.1: Graphic illustrating the patio cover's resistance to sun, snow, wind, and rain.
4.2 Light Transmission
The bronze polycarbonate panels allow for optimal light transmission (61%), creating a bright yet shaded area without the harsh glare of direct sunlight.
5. Maintenance
Your Olympia Patio Cover requires minimal maintenance to ensure its longevity and appearance.
- Cleaning: Clean the polycarbonate panels and aluminum frame periodically with mild soap and water. Avoid abrasive cleaners or brushes that could scratch the surfaces. Rinse thoroughly with clean water.
- Inspection: Annually inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners.
- Gutter System: Keep the gutters and downspouts clear of leaves and debris to ensure proper water drainage.
- Snow Removal: While designed for snow load, heavy accumulation should be gently removed to prevent excessive stress on the structure.
6. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage from roof panels. | Improper panel installation or sealant issues. | Ensure panels are correctly seated and all sealing strips are properly installed. Check for any gaps and apply silicone sealant if necessary. |
| Structure feels unstable. | Loose anchor bolts or improper foundation. | Verify all wall and ground anchor bolts are securely tightened. Ensure the foundation is level and stable. |
| Gutter overflow. | Blocked gutters or downspouts. | Clear any debris (leaves, dirt) from the gutters and downspouts. Ensure downspouts are angled correctly for drainage. |
| Damaged or missing parts upon delivery. | Shipping damage or packaging error. | Contact customer support immediately with details of the damaged or missing components. Provide proof of purchase and relevant part numbers. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Palram - Canopia |
| Model Number | HG8824 |
| Product Dimensions (L x W x H) | 290.9" x 116.1" x 120" (739 cm x 295 cm x 305 cm) |
| Floor Area | 240 Square Feet |
| Item Weight | 310.7 Pounds (140.9 kg) |
| Frame Material | Aluminum |
| Panel Material | Polycarbonate |
| Color | Gray/Bronze |
| Water Resistance Level | Waterproof |
| UV Protection | Yes, 100% UV Protected Panels |
| Assembly Required | Yes |
| GTIN | 763552428004 |
Image 7.1: Certifications including ISO 9001, 14001, 45001, CE mark, and recyclable symbol, along with a 12-year warranty badge.
8. Warranty & Support
The Palram - Canopia Olympia Patio Cover comes with a 12-year limited warranty, providing peace of mind regarding its quality and durability.
For warranty claims, missing parts, or technical assistance, please contact Palram - Canopia customer support:
- Phone: 877-627-8476
- Online: Visit the Palram - Canopia Store on Amazon for more information and support resources.
