1. Safety Information
Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read and understand all instructions before operating this tool.
General Power Tool Safety
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug. Do not abuse the cord. Keep the cord away from heat, oil, sharp edges, or moving parts.
- Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
Specific Planer Safety
- Blades: Keep hands away from rotating blades. Ensure blades are properly installed and secured before operation.
- Workpiece: Always secure the workpiece. Never plane material that is too small to be safely held.
- Dust: Connect a dust collection device to minimize airborne dust. Wood dust can be hazardous.
2. Product Overview
The WEN 6534 8-Amp 4-3/8-Inch Electric Hand Planer is designed for smoothing and leveling wooden surfaces, ideal for tasks such as fitting doors, squaring boards, and creating chamfers. Its powerful motor and adjustable features provide precision and control for various woodworking projects.
The WEN 6534 8-Amp 4-3/8-Inch Electric Hand Planer, showcasing its compact design and ergonomic handles.
Key Features
- Powerful 8-amp motor delivers up to 32,000 cuts per minute.
- Spacious 4-3/8-inch cutting capacity, suitable for planing 2x4s and 4x4s.
- 16 positive stops for precise cutting depth adjustment from 0 to 1/8 inches.
- Two-way dust port allows shavings to be directed left or right.
- Includes two fully reversible HSS planer blades for extended use.
- Features two V-shaped chamfer grooves for easily flattening sharp post corners.
- Comes with a parallel fence bracket and a rabbeting guide for versatile applications.
- Automatic kickstand protects both the blade and the workpiece between cuts.
3. Components Included
The WEN 6534 Electric Hand Planer comes with the following components:
- WEN 6534 Electric Hand Planer Unit
- Dust Adapter
- Two (2) Fully Reversible HSS Planer Blades (pre-installed or included separately)
- Parallel Fence Bracket
- Rabbeting Guide
- Blade Wrench (for adjustments)
The WEN 6534 Hand Planer displayed with its accessories, including the parallel fence bracket, rabbeting guide, and wrench.
4. Setup
Initial Inspection
Before first use, inspect the planer for any damage. Ensure all components are present and securely attached. Verify that the blades are sharp and correctly installed.
Attaching Accessories
- Parallel Fence Bracket: Attach the parallel fence bracket to the side of the planer base when precise, straight cuts along an edge are required. Secure it firmly with the provided fasteners.
- Rabbeting Guide: For creating rabbets (grooves) along the edge of a board, attach the rabbeting guide. This guide helps control the depth and width of the rabbet.
The planer equipped with the parallel fence bracket, ensuring straight and consistent planing along the edge of a workpiece.
The planer shown with the rabbeting guide installed, illustrating its use for creating rabbets in wooden boards.
Dust Collection
The planer features a two-way dust port. Attach the dust adapter to the desired side (left or right) to direct wood shavings away from your work area. Connect a shop vacuum to the dust adapter for efficient dust extraction.
Official product overview video for the WEN 6534 Electric Hand Planer, demonstrating its features and included accessories.
5. Operating Instructions
Adjusting Cutting Depth
The front knob on the planer allows for precise adjustment of the cutting depth. It features 16 positive stops, enabling adjustments from 0 to 1/8 inches in 1/128 inch intervals. Rotate the knob to select the desired depth before beginning your cut.
A detailed view of the front knob used to adjust the cutting depth of the planer, with clear markings for precision.
Planing Technique
- Starting a Cut: Apply pressure to the front of the planer as you begin the cut, with minimal pressure on the rear.
- Mid-Cut: As the planer moves through the middle of the workpiece, allow the tool's weight to apply even pressure.
- Exiting a Cut: When finishing a pass, maintain pressure on the rear of the planer, lifting the front slightly as you move off the workpiece. This technique helps ensure a flat and even surface.

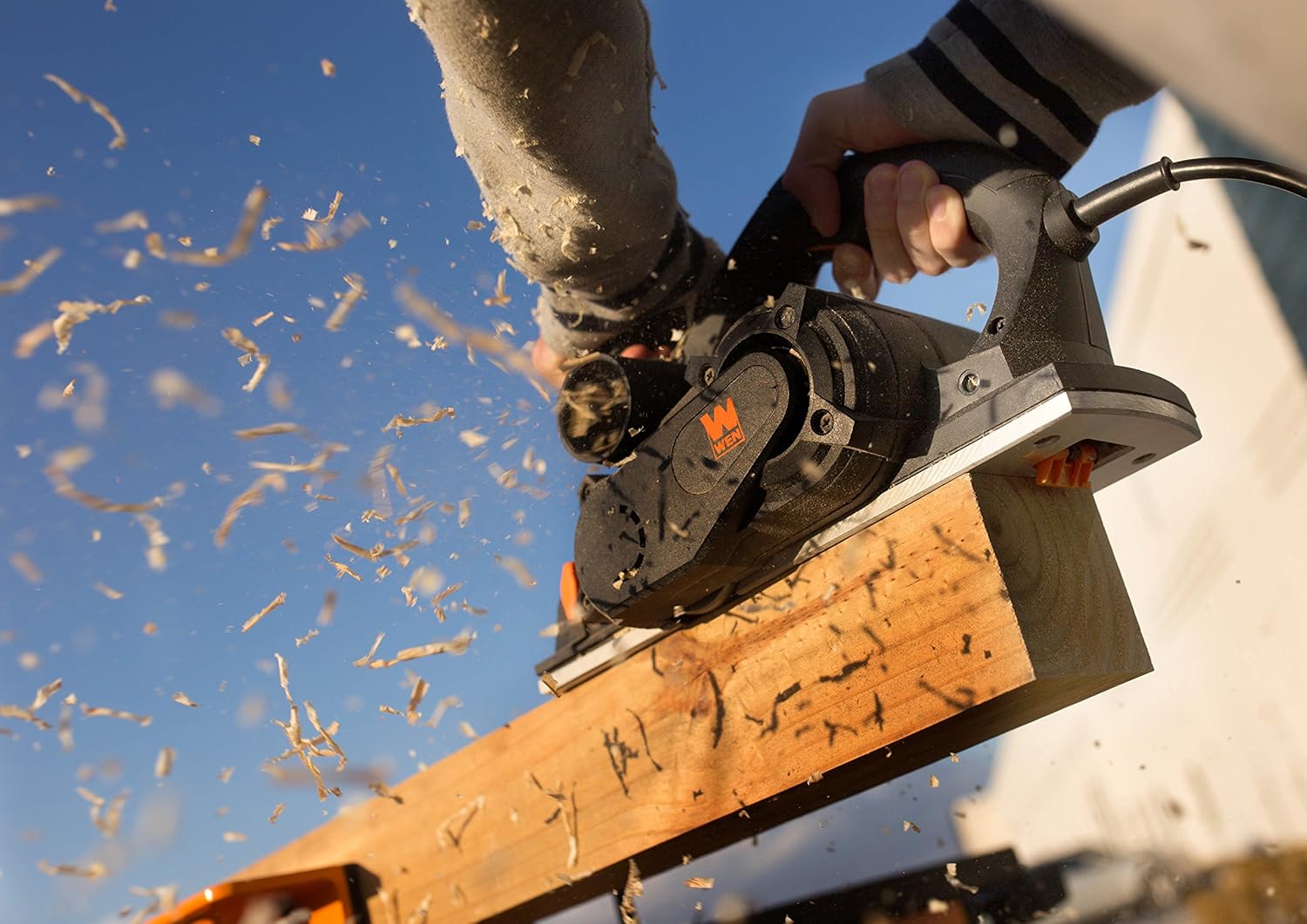

The electric hand planer in operation, demonstrating its ability to remove material and create wood chips, highlighting the dust port.
The planer positioned on a wooden board, ready for use, with a clear view of its side profile and dust port.
Using Chamfer Grooves
The base plate includes two V-shaped chamfer grooves. These are designed to easily flatten sharp corners on posts or other workpieces, creating a beveled edge. Simply align the groove with the corner and pass the planer along the edge.
The planer being used to create a chamfered edge on a wooden post, utilizing one of the integrated V-shaped grooves on the base plate.
6. Maintenance
Blade Replacement and Adjustment
The WEN 6534 uses two fully reversible HSS planer blades. When one side becomes dull, the blades can be flipped to use the other sharp edge. To replace or flip blades:
- Disconnect Power: Always unplug the planer from the power source before performing any maintenance.
- Access Blades: Carefully turn the planer over to access the blade drum.
- Loosen Screws: Use the provided blade wrench to loosen the screws securing the blades.
- Replace/Flip Blades: Carefully remove the dull blade. Insert a new blade or flip the existing one to its sharp edge. Ensure the blade is seated correctly and parallel to the base plate.
- Tighten Screws: Securely tighten the blade screws. Ensure the blades are firmly held in place.
An inverted view of the planer, revealing the cutting blades and the automatic kickstand mechanism designed to protect the blades and workpiece.
Cleaning
Regularly clean the dust port and surrounding areas to prevent blockages and maintain efficient dust extraction. Use compressed air or a brush to remove accumulated wood chips and dust. Ensure the motor vents are clear of debris to prevent overheating.
7. Troubleshooting
This section addresses common issues you might encounter with your WEN 6534 Electric Hand Planer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven or Tilted Cuts | Misaligned blades or base plate. | Carefully check blade alignment. Ensure blades are parallel to the base plate. Adjust if necessary using the blade wrench. |
| Motor Stalls During Operation | Excessive cutting depth or dull blades. | Reduce the cutting depth. Replace or flip to the sharp side of the blades. Ensure the power supply is adequate. |
| Poor Dust Collection | Clogged dust port or improperly attached dust adapter. | Clear any blockages from the dust port. Ensure the dust adapter is securely attached and the vacuum hose is properly connected. |
| Tool Not Starting | No power, faulty switch, or safety lock engaged. | Check power connection and outlet. Ensure the safety lock-off button is pressed before engaging the trigger. If issues persist, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | WEN |
| Model Number | 6534 |
| Motor | 8 Amps |
| Cutting Width | 4-3/8 Inches |
| Maximum Cutting Depth | 1/8 Inches |
| No-Load Speed | 16,000 RPM (implied from 32,000 cuts/min with 2 blades) |
| Product Dimensions | 12"L x 9.75"W x 8.25"H |
| Item Weight | 9.5 Pounds |
| Power Source | AC |
| Material | Metal, Cast Iron (Base) |
| UPC | 044459065340 |
9. Warranty and Support
The WEN 6534 Electric Hand Planer comes backed by a two-year warranty. For technical assistance, parts, or warranty claims, please contact WEN customer support.
- Customer Help Line: Refer to the product packaging or the official WEN Products website for the most current contact information.
- Online Support: Visit WENPRODUCTS.COM for product information, FAQs, and service center locations.
