1. Introduction
Thank you for choosing the Arendo Single 0.5L Stainless Steel Kettle. This appliance is designed for efficient and precise water heating with adjustable temperature settings and a convenient keep-warm function. Please read this manual carefully before first use to ensure safe operation and optimal performance. Keep this manual for future reference.
2. Safety Instructions
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Electrical Safety: Ensure the voltage indicated on the appliance matches your local mains voltage. Do not immerse the kettle, power base, cord, or plug in water or other liquids. Do not operate the kettle with a damaged cord or plug.
- Hot Surfaces: The kettle's exterior features a double-wall design to keep it relatively cool, but the interior and steam can still be very hot. Always handle with care and avoid contact with steam.
- Water Level: Do not fill the kettle above the 'MAX' mark or below the 'MIN' mark. Overfilling may cause boiling water to spill out, while underfilling can cause the kettle to dry-boil.
- Placement: Place the kettle on a stable, flat, heat-resistant surface, away from the edge of the countertop and out of reach of children. Do not place near hot gas or electric burners, or in a heated oven.
- Children and Supervision: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Dry-Boil and Overheat Protection: The kettle is equipped with dry-boil and overheat protection. If the kettle is accidentally switched on without water or with insufficient water, it will automatically switch off. Allow it to cool down before refilling.
- Intended Use: This kettle is intended for boiling water only. Do not use it for heating other liquids or food.
3. Product Features
The Arendo Single Kettle offers a range of features for convenient and precise water heating:
- Compact 0.5L Capacity: Ideal for single servings or small households.
- 5 Adjustable Temperature Levels: Select from 50°C, 70°C, 80°C, 90°C, and 100°C for various beverage preparations.
- Keep Warm Function: Maintains the selected temperature for up to 60 minutes.
- Double-Wall Design: Ensures the exterior remains relatively cool to the touch, enhancing safety and energy efficiency.
- Stainless Steel Interior: Water only comes into contact with high-quality stainless steel, ensuring purity and durability.
- BPA-Free: Constructed with BPA-free materials for your health and safety.
- Strix Controller: Provides reliable and precise temperature control.
- Automatic Shut-off: The kettle automatically turns off once the desired temperature is reached or if it runs dry.
- 360° Rotational Base: Allows for cordless operation and easy placement from any angle.
- Acoustic Signal: Notifies you when the heating process is complete.
- Anti-Slip Feet: Ensures stability on various surfaces.
Image: Overview of the Arendo Single Kettle's features and dimensions, highlighting its 0.5L capacity, keep-warm function, temperature settings, double-wall design, and safety features. Dimensions are shown as 19.5 cm height, 12.5 cm width, and 18.5 cm depth.
4. Setup
- Unpack: Carefully remove the kettle and its base from the packaging. Retain packaging for future storage or transport.
- Initial Cleaning: Before first use, fill the kettle with water to the 'MAX' level. Boil the water at 100°C and then discard it. Repeat this process 2-3 times to remove any manufacturing residues.
- Placement: Place the power base on a dry, flat, and stable surface. Ensure the power cord is not dangling or in a position where it could be tripped over.
- Connect Power: Plug the power cord into a suitable wall outlet.
5. Operating Instructions
Follow these steps to operate your Arendo Single Kettle:
- Fill the Kettle: Open the lid and fill the kettle with fresh water. Ensure the water level is between the 'MIN' and 'MAX' indicators inside the kettle. Close the lid securely.
- Place on Base: Position the kettle firmly onto the power base.
- Select Temperature: Use the temperature selection button on the handle to cycle through the desired temperature settings: 50°C, 70°C, 80°C, 90°C, or 100°C. The corresponding LED indicator will light up in a specific color:
- 50°C: Green (e.g., for cocoa)
- 70°C: Blue (e.g., for green tea)
- 80°C: Pink (e.g., for white tea)
- 90°C: Yellow (e.g., for instant coffee)
- 100°C: Red (e.g., for black tea)
- Start Heating: Press the Power ON/OFF button (usually indicated by a power symbol). The kettle will begin heating, and the LED will illuminate.
- Keep Warm Function: To activate the keep warm function, press and hold the Power ON/OFF button for a few seconds after selecting your desired temperature (for temperatures below 100°C). The kettle will maintain the selected temperature for up to 60 minutes.
- Completion: Once the water reaches the selected temperature, the kettle will automatically switch off, and an acoustic signal will sound.
- Pouring: Carefully lift the kettle from the base and pour the hot water. Be mindful of steam.
Image: Close-up of the kettle's handle, showing the temperature control buttons (50°C, 70°C, 80°C, 90°C, 100°C) and the power button. The image also illustrates the LED indicators and the keep-warm function symbol.

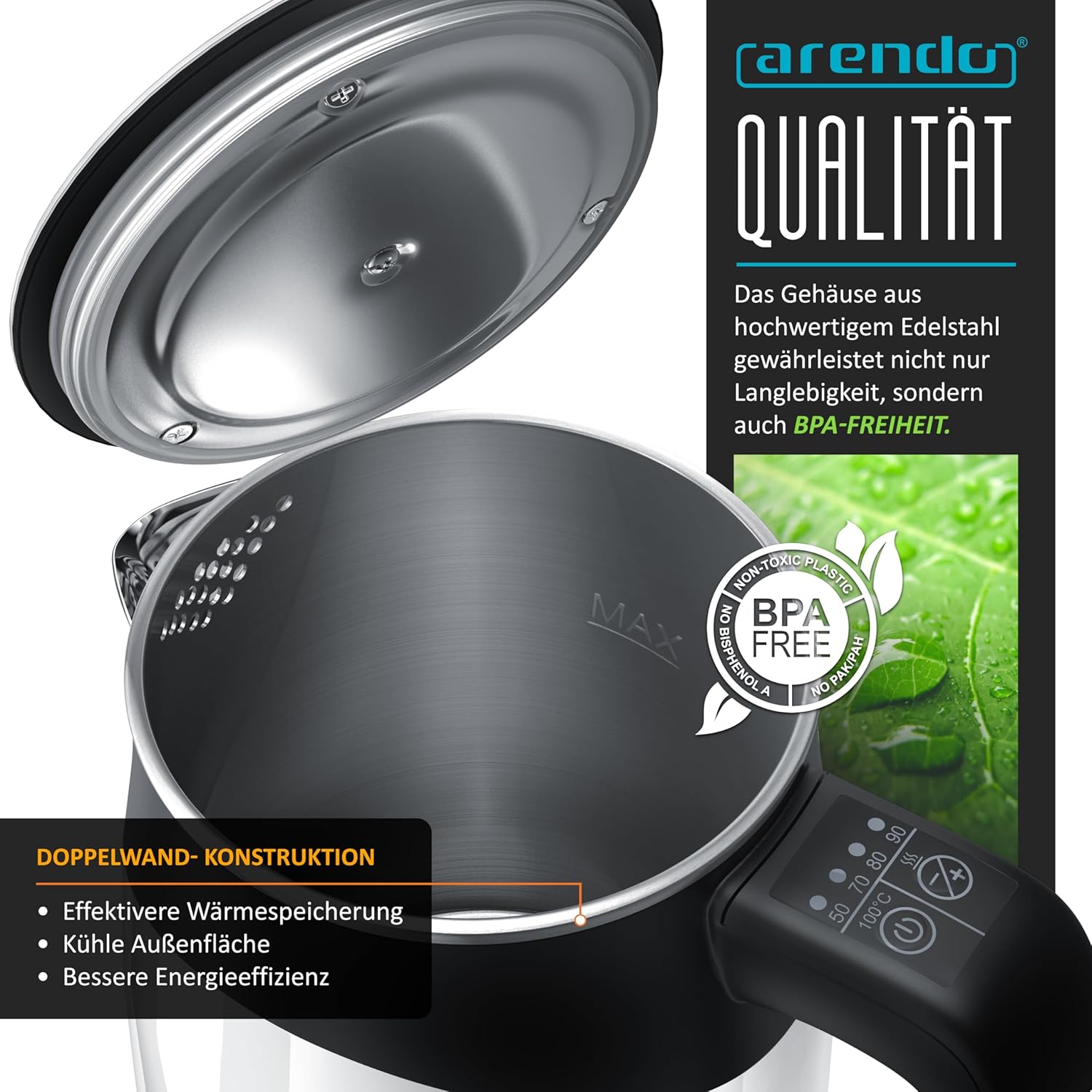

Image: View of the kettle's interior, showing the stainless steel construction and the 'MAX' fill line. A 'BPA FREE' label is visible, emphasizing the use of safe materials.
6. Maintenance and Cleaning
Regular cleaning and maintenance will prolong the life of your kettle.
- Before Cleaning: Always unplug the kettle from the power outlet and allow it to cool completely before cleaning.
- Exterior Cleaning: Wipe the exterior of the kettle with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may scratch the surface.
- Interior Cleaning/Descaling: Over time, mineral deposits (limescale) may build up inside the kettle, especially in hard water areas. To descale:
- Fill the kettle with a mixture of white vinegar and water (1:2 ratio) or a commercial descaling solution.
- Boil the mixture and let it stand for at least 30 minutes, or longer if the limescale is heavy.
- Pour out the mixture and rinse the interior thoroughly with fresh water several times.
- For stubborn deposits, gently scrub with a non-abrasive brush.
- Lime Filter: The kettle includes a lime filter. This filter can be removed and rinsed under running water to clean any accumulated limescale. Ensure it is properly reinserted before use.
- Storage: When not in use, store the kettle in a dry place. You can wrap the power cord around the base for tidy storage.
7. Troubleshooting
If you encounter any issues with your Arendo Single Kettle, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Kettle does not turn on. | No power supply; Kettle not properly seated on base; Dry-boil protection activated. | Check power outlet and plug connection. Ensure kettle is correctly placed on the base. If dry-boil protection is active, allow the kettle to cool down for 10-15 minutes before refilling and restarting. |
| Water is not heating. | Kettle not switched on; Insufficient water. | Press the Power ON/OFF button. Ensure water level is above the 'MIN' mark. |
| Kettle switches off too soon. | Limescale buildup; Dry-boil protection activated. | Descale the kettle as per maintenance instructions. Allow the kettle to cool if dry-boil protection was triggered. |
| Water has an unusual taste. | First use residues; Limescale buildup. | Perform initial cleaning steps (boil and discard water several times). Descale the kettle if necessary. |
| Lid does not close properly. | Obstruction; Lid mechanism issue. | Check for any obstructions around the lid. Ensure the lid is aligned correctly. If the issue persists, contact customer support. |
If the problem persists after trying these solutions, please contact Arendo customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Arendo |
| Model Number | 23030012 |
| Capacity | 0.5 Liters |
| Power Consumption | 920-1100 Watts |
| Voltage | 220-240V AC, 50/60Hz |
| Material | Stainless Steel (interior), Plastic (exterior) |
| Dimensions (H x W x D) | 19.5 x 12.5 x 18.5 cm |
| Weight (Device only) | 665 g |
| Weight (Base only) | 165 g |
| Cable Length | 65 cm |
| Temperature Settings | 50°C, 70°C, 80°C, 90°C, 100°C |
| Special Features | Keep Warm Function (60 min), Double-Wall Design, Automatic Shut-off, Dry-Boil & Overheat Protection, Strix Controller, BPA-Free, Acoustic Signal, Anti-Slip Feet |
9. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Arendo products are designed for quality and reliability.
For technical support, spare parts, or any questions regarding your Arendo Single Kettle, please visit the official Arendo website or contact their customer service department.
Official Arendo Website: https://www.arendo.de/
10. Product Overview Images
Image: Front-angle view of the Arendo Single 0.5L Stainless Steel Kettle in white and black, showcasing its sleek design and illuminated base ring.

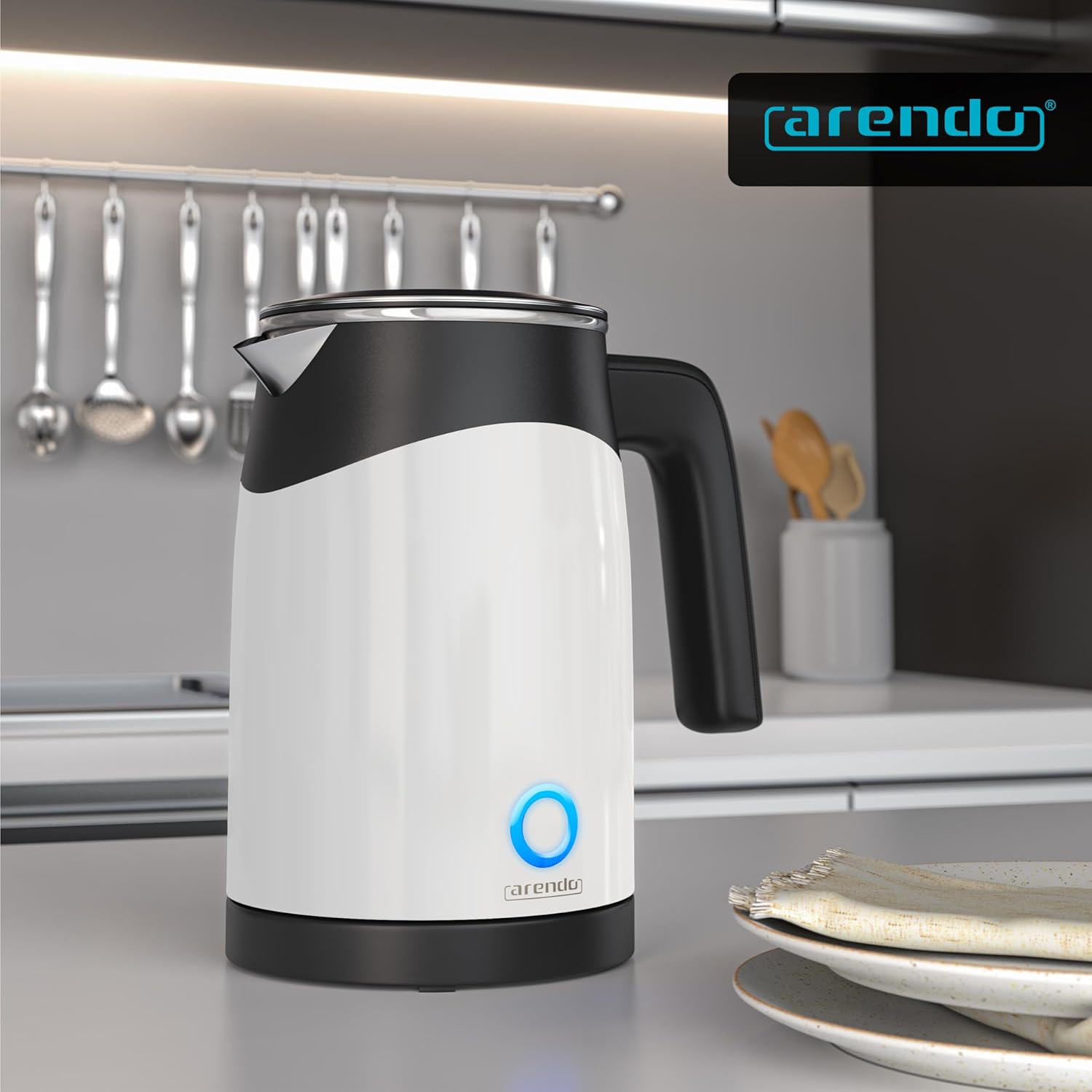

Image: The Arendo Single Kettle placed on a kitchen counter, demonstrating its compact size and modern aesthetic within a home environment.
Image: The Arendo Single Kettle displayed alongside its retail packaging, which highlights key features and certifications.
