Hyper Tough 4 Tier Wire Shelving Rack (Model B35B-1) User Manual

Introduction

Thank you for choosing the Hyper Tough 4 Tier Wire Shelving Rack. This manual provides detailed instructions for the safe and efficient assembly, operation, and maintenance of your new shelving unit. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This shelving unit is designed for organizing items in various indoor environments such as garages, utility rooms, offices, and pantries. It features a durable wire construction and a black finish, offering a practical storage solution.

Assembly Instructions

Before assembly, ensure all components are present and undamaged. Clear a spacious area for assembly. Two people are recommended for easier assembly.

Parts List:

• 4 x Bottom Poles
• 4 x Top Poles
• 4 x Leveling Feet
• 4 x Wire Shelves
• 32 x Plastic Shelf Clips (8 per shelf)
• 4 x Top Caps

Step-by-Step Assembly:

1. Attach Leveling Feet: Screw one leveling foot into the bottom of each of the four bottom poles. Ensure they are securely tightened.
2. Assemble Bottom Shelf:

   Take one bottom pole and attach two plastic shelf clips at the desired height for the lowest shelf. Ensure the arrow on each clip points upwards and the clips snap together around the pole grooves. Repeat this for all four bottom poles, ensuring the clips are at the same height on each pole.

   Carefully slide one wire shelf down over the four bottom poles until it rests firmly on the plastic clips. Gently tap the shelf corners with a rubber mallet (not included) if needed to ensure it is fully seated and level.
3. Connect Top Poles: Insert the top poles into the top ends of the bottom poles. The poles are designed to fit snugly.
4. Install Remaining Shelves:

   Determine the desired height for the next shelf. Attach two plastic shelf clips to each pole at the chosen height, ensuring they are level across all four poles. Slide a wire shelf down over the poles until it rests on the clips.

   Repeat this process for the remaining two shelves. Ensure all shelves are level and securely seated on their clips.

5. Attach Top Caps: Place a plastic top cap onto the top of each pole.
6. Final Adjustment: Once fully assembled, adjust the leveling feet on the bottom poles to ensure the entire unit is stable and does not wobble on uneven surfaces.

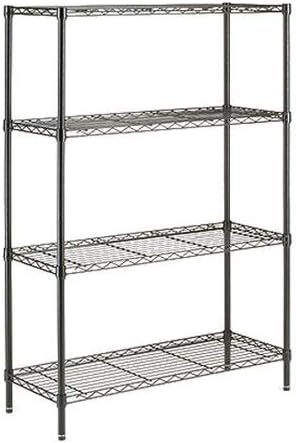

Image: The Hyper Tough 4 Tier Wire Shelving Rack fully assembled, showcasing its structure and black finish.

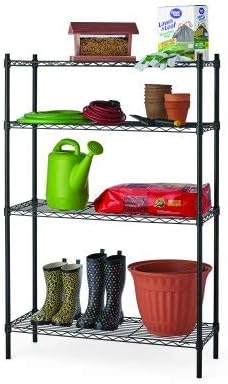

Image: The Hyper Tough 4 Tier Wire Shelving Rack shown in a typical usage scenario, holding various household and garden items.

Operation and Usage

This shelving unit is designed for general storage purposes. To ensure safe and effective use, please observe the following guidelines:

• Weight Distribution: Distribute weight evenly across each shelf. Avoid placing heavy items solely on one side or corner of a shelf.
• Load Capacity: Do not exceed the maximum recommended weight capacity per shelf (refer to Specifications section). Overloading can cause damage to the unit and potential injury.
• Stability: Ensure the unit is placed on a flat, level surface. Use the leveling feet to adjust for minor unevenness.
• Placement: For indoor use only. Avoid placing the unit in areas with excessive moisture or extreme temperatures.
• Safety: Do not climb on the shelving unit. Keep children and pets away from the unit during assembly and when loading/unloading heavy items.

Care and Maintenance

Proper care will extend the life of your Hyper Tough shelving unit:

• Cleaning: Wipe the unit with a dry cloth to remove dust and debris. For more stubborn dirt, a damp cloth with mild soap can be used, followed by immediate drying.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• Regular Inspection: Periodically check all connections and ensure shelves are securely seated on their clips. Tighten leveling feet if necessary.
• Rust Prevention: While the unit has a durable finish, prolonged exposure to moisture can lead to rust. Keep the unit dry.

Troubleshooting

Problem: The shelving unit is wobbly or unstable.

Solution: Ensure the unit is on a flat, level surface. Adjust the leveling feet on the bottom poles until the unit is stable. Check that all shelves are fully seated on their plastic clips and that the clips are securely snapped around the poles at the same height.

Problem: A shelf is not sitting level.

Solution: Verify that the plastic clips for that shelf are installed at the exact same height on all four poles. Ensure the clips are fully closed and properly seated in the pole grooves. Gently tap the shelf with a rubber mallet to ensure it is fully seated on the clips.

Problem: Difficulty sliding shelves over clips.

Solution: Ensure the plastic clips are correctly oriented with the arrow pointing upwards and are fully snapped together around the pole grooves. Sometimes, a slight wiggle or gentle tap can help the shelf slide down. Do not force it, as this may damage the clips or poles.

Product Specifications

Image: Diagram illustrating the dimensions of the Hyper Tough 4 Tier Wire Shelving Rack: 14 inches deep, 36 inches wide, and 54 inches high.

Warranty and Support

Specific warranty information for the Hyper Tough 4 Tier Wire Shelving Rack (Model B35B-1) is not provided in this manual. Please refer to the product packaging or the manufacturer's official website for detailed warranty terms and customer support contact information.

For assistance with assembly, missing parts, or product inquiries, please contact Hyper Tough customer service.
