Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your MotoRad 1010-180 Integrated Housing Thermostat. This component is designed to regulate engine coolant temperature, ensuring optimal engine performance and efficiency. Adherence to these instructions will help ensure the longevity and correct function of the thermostat within your vehicle's cooling system.
Product Overview
The MotoRad 1010-180 Integrated Housing Thermostat is engineered to meet or exceed original equipment manufacturer (OEM) standards. It features a robust design with high-grade stainless steel and copper construction, ensuring durability and reliable performance in demanding automotive cooling systems. The copper case and wax compound facilitate a rapid and precise response to changes in coolant temperature, maintaining the engine at its ideal operating temperature.
Key features include:
- High-grade stainless steel and copper construction for durability.
- Meets or exceeds OEM standards for fit and function.
- Consistent and precise response to cooling system needs.
What's in the Box
Your package should contain the following components:
- One (1) MotoRad 1010-180 Thermostat
- One (1) Integrated Thermostat Housing
- One (1) Seal
Image 1: The MotoRad 1010-180 Integrated Housing Thermostat, showing the complete assembly including the housing, thermostat, and seal.
Installation Instructions
Warning: Working on a vehicle's cooling system can be hazardous. Ensure the engine is cool before beginning any work. Wear appropriate personal protective equipment, including safety glasses and gloves. Consult your vehicle's service manual for specific procedures and torque specifications. If you are not confident in performing this installation, it is recommended to seek professional assistance.
Required Tools and Materials:
- Socket/Wrench Set
- Screwdriver Set
- Drain Pan
- New Engine Coolant (compatible with your vehicle)
- Clean Rags
- Gasket Scraper (if necessary)
Step-by-Step Procedure:
- Prepare the Vehicle: Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool completely.
- Drain Coolant: Place a drain pan under the radiator drain plug or lower radiator hose. Carefully open the drain plug or disconnect the hose to drain the engine coolant. Collect all coolant for proper disposal.
- Locate and Remove Old Thermostat: Identify the thermostat housing, typically located at the engine end of the upper radiator hose. Disconnect any hoses or sensors attached to the housing. Remove the bolts securing the housing to the engine.
- Clean Mounting Surface: Carefully remove the old thermostat and gasket. Clean the engine's mounting surface thoroughly to ensure a proper seal with the new thermostat housing. Remove any old gasket material.
- Install New Thermostat Housing: Position the new MotoRad 1010-180 Integrated Housing Thermostat with its seal onto the clean mounting surface. Ensure it is correctly oriented according to your vehicle's specifications.
- Secure Housing: Install the bolts and tighten them to the manufacturer's specified torque. Overtightening can damage the housing or engine block.
- Reconnect Components: Reattach all hoses and sensors that were disconnected from the thermostat housing. Ensure all clamps are secure.
- Refill Coolant: Close the radiator drain plug or reconnect the lower radiator hose. Refill the cooling system with the appropriate type and amount of new engine coolant.
- Bleed Air from System: Start the engine and allow it to reach operating temperature with the heater on full blast. Monitor the coolant level and add more as needed. Air pockets must be removed from the system to prevent overheating. Refer to your vehicle's manual for specific air bleeding procedures.
- Inspect for Leaks: After the engine has reached operating temperature and the cooling system is pressurized, carefully inspect all connections for any signs of coolant leaks.

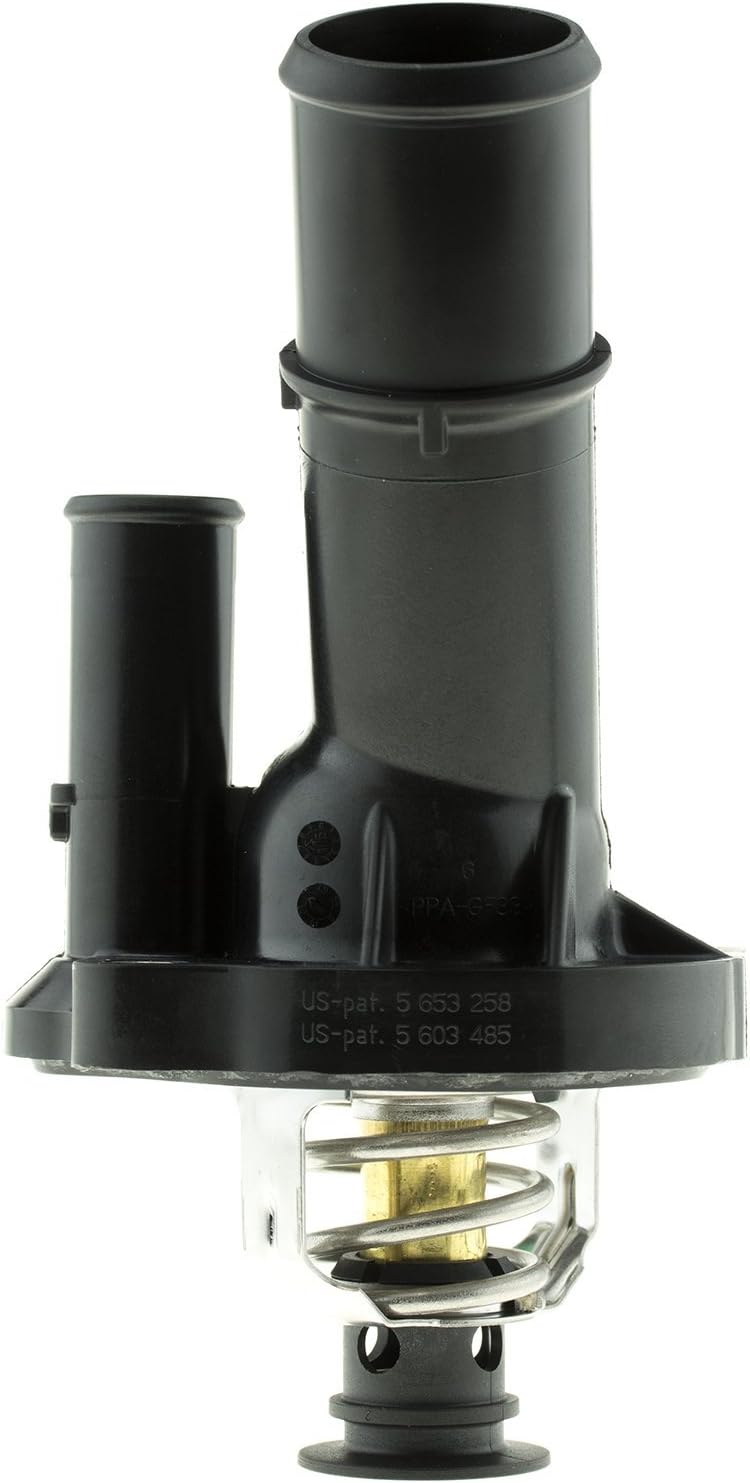

Image 2: A side view of the thermostat and housing, showing the integrated design and patent markings.
Image 3: A top-down view into the housing, illustrating the coolant passage.
Image 4: A view from the bottom of the thermostat, highlighting the spring-loaded valve mechanism.
Operation
The MotoRad 1010-180 thermostat is designed to open at 180 degrees Fahrenheit (approximately 82 degrees Celsius). Its primary function is to regulate the flow of coolant between the engine and the radiator. When the engine is cold, the thermostat remains closed, allowing the engine to warm up quickly to its optimal operating temperature. Once the coolant reaches 180°F, the thermostat begins to open, allowing coolant to flow to the radiator for cooling. This precise temperature control helps maintain engine efficiency, reduce emissions, and prevent both overheating and undercooling.
Maintenance
The thermostat itself is a sealed unit and does not require specific maintenance. However, regular maintenance of the overall cooling system is crucial for the thermostat's proper function and the longevity of your engine. This includes:
- Coolant Level Check: Regularly check the coolant level in the reservoir and radiator.
- Coolant Quality: Ensure the coolant is clean and free of debris or discoloration. Flush and replace coolant according to your vehicle manufacturer's recommendations.
- Hose Inspection: Inspect radiator and heater hoses for cracks, leaks, or swelling.
- Radiator Condition: Keep the radiator fins clean and free of obstructions to ensure efficient heat dissipation.
Troubleshooting
If you experience issues with your vehicle's cooling system after thermostat installation, consider the following common problems:
- Engine Overheating: This could indicate a thermostat stuck in the closed position, preventing coolant flow to the radiator. It could also be caused by air in the cooling system, a faulty water pump, or a clogged radiator.
- Engine Running Cold (Slow to Warm Up): This may suggest a thermostat stuck in the open position, allowing coolant to flow to the radiator constantly, even when the engine is cold.
- Coolant Leaks: Check all connections and the thermostat housing for proper sealing. Ensure bolts are tightened to specification and the seal is correctly seated.
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified automotive technician.
Specifications
| Attribute | Detail |
|---|---|
| Brand | MotoRad |
| Model Number | 1010-180 |
| Opening Temperature | 180 Degrees Fahrenheit |
| Item Weight | 8.8 ounces |
| Product Dimensions | 4.13 x 3 x 8.13 inches |
| Exterior Finish | Machined |
| Manufacturer | Motorad |
Warranty and Support
For information regarding warranty coverage or technical support for your MotoRad 1010-180 Integrated Housing Thermostat, please refer to the documentation provided with your purchase or visit the official MotoRad website. You may also contact MotoRad customer service directly for assistance.
MotoRad Contact Information: Please refer to the manufacturer's official website or product packaging for the most current contact details.
