1. Introduction

The AIRTHEREAL CA300 is an advanced air purification system designed to improve indoor air quality. It combines ozone generation, True HEPA filtration, and ionization to address various air contaminants, including odors, allergens, and airborne particles. This manual provides essential information for the safe and effective operation and maintenance of your device.

2. Safety Instructions

Read all instructions before operating the appliance.
Ozone Safety: When using the ozone generation function, ensure the area is unoccupied by humans, pets, or plants. Ventilate the treated area thoroughly before re-entry.
Electrical Safety: Always plug the unit into a grounded outlet. Do not operate with a damaged cord or plug. Keep the power cord away from heated surfaces.
Placement: Place the unit on a stable, level surface. Do not block air inlets or outlets. Maintain adequate clearance around the unit for proper airflow.
Moisture: Do not use the unit in wet or damp environments. Keep away from water and other liquids.
Maintenance: Unplug the unit before cleaning or performing any maintenance.
Children and Pets: Keep the appliance out of reach of children and pets.

3. Product Overview

The AIRTHEREAL CA300 features a robust design with multiple purification stages and user-friendly controls.

3.1 Components

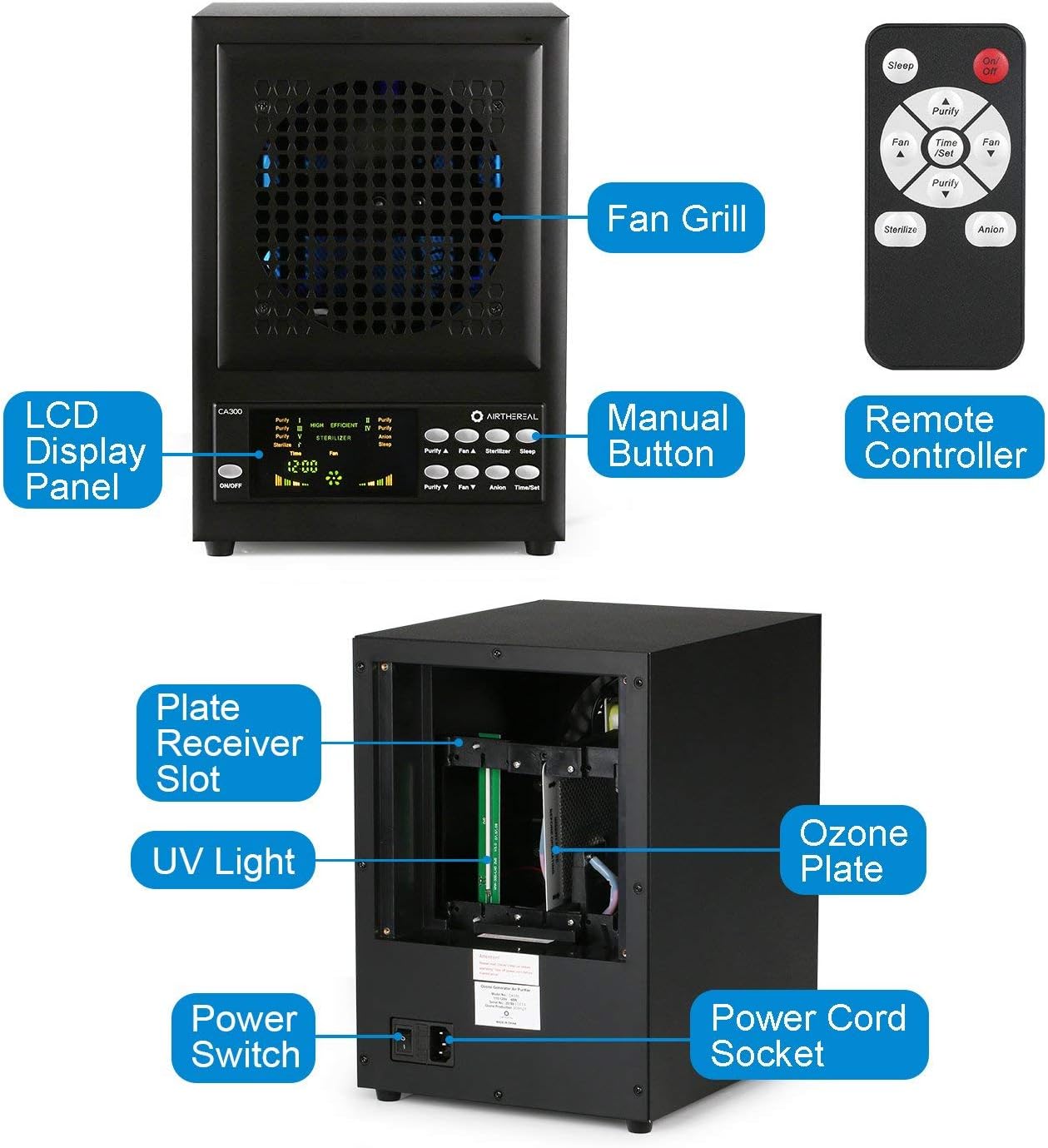

Airthereal CA300 components labeled: LCD Display Panel, Manual Buttons, Remote Controller, Fan Grill, Plate Receiver Slot, UV Light, Ozone Plate, Power Switch, Power Cord Socket.

Figure 1: Key components of the AIRTHEREAL CA300 unit, including the LCD display, control buttons, fan grill, and internal parts like the ozone plate and UV light.

LCD Display Panel: Shows current settings and operational status.
Manual Buttons: For direct control of functions on the unit.
Remote Controller: Provides convenient control from a distance.
Fan Grill: Protects the internal fan and directs airflow.
Plate Receiver Slot: Area for inserting the ozone plate.
UV Light: Utilized for sterilization.
Ozone Plate: Generates ozone for powerful odor removal and sterilization.
Power Switch: Main power control for the unit.
Power Cord Socket: Connection point for the power cord.

3.2 4-Stage Filtration System

Diagram showing the 4 stages of the Airthereal CA300 filtration system: Pre-filter, HEPA Filter, Activated Carbon Filter, and TiO2 Photo-catalytic Filter.

Figure 2: Illustration of the multi-stage air filtration process within the unit.

Pre-filter: Captures large particles like dust, lint, and pet dander, extending the life of subsequent filters.
HEPA Filter: Traps fine particles, including pollen, dust mites, and other allergens.
Activated Carbon Filter: Absorbs odors from cooking, pets, smoke, and other volatile organic compounds (VOCs).
TiO2 Photo-catalytic Filter: Works with UV light to break down pollutants at a molecular level.

4. Setup

Follow these steps to prepare your AIRTHEREAL CA300 for first use or after filter maintenance.

Six-step visual guide for installing filters and ozone plate in the Airthereal CA300. Steps include unscrewing nails, removing filter covers, inserting ozone plate, ensuring trigger placement, placing filters in sequence, and turning on power.

Figure 3: Step-by-step guide for filter and ozone plate installation.

Unscrew four nails: Locate and remove the four screws securing the back panel.
Remove four filter covers: Carefully detach the filter covers to access the filter compartments.
Insert one ozone plate: Slide the ozone plate into its designated slot.
Ensure the trigger is placed correctly as above: Verify that the ozone plate's trigger mechanism is properly aligned.
Place the filters in sequence: Install the pre-filter, HEPA filter, activated carbon filter, and TiO2 photo-catalytic filter in the correct order. Refer to Figure 2 for the sequence.
Use a secure socket or power strip, turn on the power switch: Connect the power cord to a suitable electrical outlet and then flip the main power switch on the unit.

5. Operating Instructions

The AIRTHEREAL CA300 can be operated using the manual buttons on the unit or the provided remote control.

Airthereal CA300 control panel with labels for various functions: Purify, Fan, Sterilizer, Sleep, Anion, Time/Set, and ON/OFF button.

Figure 4: Control panel and function descriptions.

5.1 Power On/Off

Press the ON/OFF button on the unit or the remote control to power the device on or off.

5.2 Function Modes

Purity (Ozone Generation): Adjusts the level of activated oxygen (ozone). Use the 'Purify A' and 'Purify V' buttons to increase or decrease ozone output. Caution: Ensure no occupants are present during ozone generation.
Fan Speed: Controls the airflow speed. Use the 'Fan A' and 'Fan V' buttons to adjust.
Sterilizer (UV Lamp & Photo-catalytic Filter): Activates the UV lamps and photo-catalytic filter for enhanced sterilization. Press the 'Sterilizer' button to toggle.
Anion: Controls the dispersal of negative ions, which help to clump airborne particles for easier filtration. Press the 'Anion' button to toggle.
Sleep Mode: Dims the LCD panel and maintains current settings while operating quietly. Press the 'Sleep' button to activate.
Time/Set (Timer Function): Sets the start and shut-off times for operation. Use the 'Time/Set' button to configure the timer.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your AIRTHEREAL CA300.

6.1 Filter Replacement

The multi-stage filters should be checked and replaced periodically based on usage and air quality. Refer to the setup section (Figure 3) for instructions on accessing and replacing filters.

Pre-filter: Clean every 2-4 weeks, replace every 6-12 months.
HEPA & Activated Carbon Filter: Replace every 6-12 months.
TiO2 Photo-catalytic Filter: Replace every 12-24 months.

6.2 Ozone Plate Cleaning/Replacement

The ozone plate may require cleaning or replacement if ozone output decreases. Unplug the unit, remove the ozone plate as shown in Figure 3, and clean with a dry cloth or replace if necessary.

6.3 General Cleaning

Wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.

7. Troubleshooting

If you encounter issues with your AIRTHEREAL CA300, refer to the following common problems and solutions.

Problem	Possible Cause	Solution
Unit does not power on.	No power supply; Power cord not connected; Power switch off.	Check power outlet; Ensure power cord is securely plugged in; Turn on the main power switch.
Weak airflow.	Filters are clogged; Fan speed is too low.	Clean or replace filters; Increase fan speed using 'Fan A' button.
Unusual odor (not ozone).	New unit smell; Filters need replacement.	Allow unit to run in a well-ventilated area for a few hours; Replace activated carbon filter.
Ozone function not working.	Ozone plate is dirty or damaged; Purity mode not activated.	Clean or replace ozone plate; Ensure 'Purity' mode is selected and level is set.

8. Specifications

Brand: AIRTHEREAL
Model Number: CA300
Power Source: Corded Electric
Item Weight: 15 Pounds
Control Method: Remote, Manual Buttons
Filter Type: HEPA
Controller Type: Remote Control

9. Warranty and Support

AIRTHEREAL products are designed for reliability and performance. For warranty information, technical support, or to purchase replacement parts, please refer to the official AIRTHEREAL website or contact their customer service directly. Keep your purchase receipt for warranty claims.
