1. Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Festool CTM 26 E AC 1200W Vacuum Cleaner. Please read this manual thoroughly before using the product for the first time and keep it for future reference.
The Festool CTM 26 E AC is designed for professional use, offering high suction power and automatic filter cleaning (AUTOCLEAN) to maintain consistent performance. Its robust design and antistatic function ensure reliable operation in demanding environments.
2. Safety Instructions
WARNING: Always observe the following safety precautions to prevent electric shock, fire, and serious injury.
- Ensure the power supply matches the voltage specified on the vacuum cleaner's rating plate.
- Do not operate the vacuum cleaner in wet conditions or immerse it in water.
- Do not vacuum flammable or explosive materials, hot ashes, or sharp objects.
- Always unplug the vacuum cleaner before performing any maintenance, cleaning, or when changing accessories.
- Keep children and unauthorized persons away from the operating area.
- Use only genuine Festool accessories and spare parts.
- Regularly inspect the power cord and hose for damage. Do not use if damaged.
- Wear appropriate personal protective equipment (PPE) such as hearing protection, especially during prolonged use, as the unit can be noisy.
3. Product Overview
The Festool CTM 26 E AC is a powerful mobile dust extractor designed for efficient dust collection. Below are key components and features.
3.1 Main Components
Figure 3.1: The Festool CTM 26 E AC 1200W Vacuum Cleaner shown with its main components including the vacuum unit, suction hose, and filter bags.
- Vacuum Unit: The main body housing the motor, filter, and collection tank.

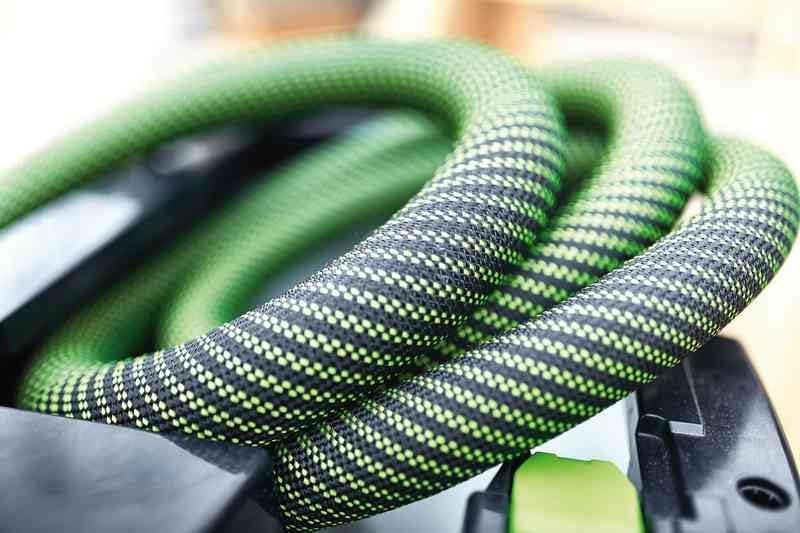

- Suction Hose: Flexible hose for connecting to tools or for general vacuuming.
- Filter Bags: SELFCLEAN filter bags for efficient dust collection and disposal.
- SYS-Dock: Integrated system for connecting SYSTAINER cases directly to the vacuum.
- Control Panel: Located on the front, with various switches and indicators.
3.2 Control Panel and Features
Figure 3.2: Detailed view of the control panel, showing power buttons, suction control, and the AUTOCLEAN activation switch.
- Power Switch: On/Off control for the unit.
- Suction Power Control: Rotary knob to adjust suction strength.
- AUTOCLEAN (AC) Function: Automatic main filter cleaning system to maintain consistent suction.
- Antistatic Function: Prevents static charge buildup during operation.
- Cable Reel: Integrated storage for the power cord.
4. Setup
4.1 Unpacking and Inspection
Carefully remove the vacuum cleaner and all accessories from the packaging. Inspect for any signs of damage during transit. Report any damage to your dealer immediately.
4.2 Installing the Filter Bag
Open the vacuum unit's lid. Insert a new SELFCLEAN filter bag into the designated compartment, ensuring it is properly seated and sealed. Close the lid securely.
4.3 Connecting the Suction Hose
Figure 4.3: The suction hose properly connected to the vacuum cleaner's inlet port.
Connect the suction hose to the inlet port on the front of the vacuum cleaner. Ensure a secure, airtight connection. For tool connection, attach the other end of the hose to your Festool power tool's dust extraction port.
4.4 Power Connection
Extend the power cord from the integrated cable reel. Plug the power cord into a suitable grounded electrical outlet. Ensure the outlet's voltage matches the vacuum cleaner's requirements.
5. Operation
5.1 Starting the Vacuum Cleaner
Press the main power switch on the control panel to turn on the vacuum cleaner. The unit will start in normal operation mode.
5.2 Adjusting Suction Power
Rotate the suction power control knob on the control panel to increase or decrease the suction strength as needed for your application.
5.3 Using the AUTOCLEAN (AC) Function
The AUTOCLEAN function automatically cleans the main filter to maintain optimal suction power. This function is particularly useful when working with fine dust. The system will periodically pulse to dislodge dust from the filter.
5.4 Connecting SYSTAINER Cases
Figure 5.4: A Festool SYSTAINER case securely docked onto the vacuum cleaner's SYS-Dock for integrated transport and workflow.
Place your Festool SYSTAINER case onto the SYS-Dock on top of the vacuum cleaner. Use the T-LOC function to securely lock the SYSTAINER in place for convenient transport and organization.
5.5 Transporting the Unit
Figure 5.5: The Festool CTM 26 E AC being transported, demonstrating its portability and integrated handles for easy lifting.
The vacuum cleaner is designed for easy transport. Utilize the integrated handles and wheels to move the unit. For lifting, ensure a firm grip on the designated handles.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Festool CTM 26 E AC vacuum cleaner.
6.1 Emptying/Replacing the Filter Bag
When the filter bag full indicator illuminates or suction power decreases significantly, it's time to empty or replace the SELFCLEAN filter bag. Unplug the unit, open the lid, and carefully remove the full bag. Dispose of dust responsibly and insert a new bag.
6.2 Cleaning the Main Filter
The AUTOCLEAN function largely handles main filter cleaning. However, for thorough cleaning or if suction remains low, manually activate the AUTOCLEAN function or remove and gently tap the main filter to dislodge stubborn dust. Do not wash the main filter with water.
6.3 Cleaning the Housing and Accessories
Wipe down the exterior of the vacuum cleaner with a damp cloth. Clean the suction hose and accessories as needed to prevent blockages. Ensure all parts are dry before reassembly or storage.
6.4 Cord and Hose Inspection
Periodically inspect the power cord and suction hose for cuts, kinks, or other damage. Replace damaged components immediately to ensure safety and performance.
7. Troubleshooting
This section provides solutions to common issues you might encounter with your Festool CTM 26 E AC vacuum cleaner.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Not plugged in; tripped circuit breaker; damaged cord. | Check power connection; reset circuit breaker; inspect cord for damage. |
| Low suction power | Full filter bag; clogged hose/accessories; dirty main filter; improper lid seal. | Replace/empty filter bag; clear blockages; activate AUTOCLEAN or clean main filter; ensure lid is securely closed. |
| Unusual noise | Foreign object in fan/motor; worn motor bearings. | Unplug and inspect for foreign objects (if safe); contact Festool service for motor issues. |
| Dust escaping from unit | Damaged filter bag; improperly installed filter bag; damaged main filter. | Replace filter bag; ensure filter bag is correctly installed; inspect and replace main filter if damaged. |
If the problem persists after attempting these solutions, please contact Festool customer support or an authorized service center.
8. Specifications
| Parameter | Value |
|---|---|
| Model Name | CTM 26 and AC |
| Item Model Number | 574978 |
| Power | 350 - 1200 W |
| Max. Capacity (Airflow) | 3900 l/min |
| Maximum Depression | 24000 Pa |
| Filtering Surface | 6318 cm² |
| Power Cord Length | 7.50 m (rubber insulation) |
| Container/Filter Bag Volume | 26 / 24 l |
| Dimensions (L x W x H) | 630 x 365 x 540 mm |
| Maximum Power Output | 2400 W |
| Dust Class | M |
| Weight | 14.70 kg (34.7 pounds) |
| Filter Type | Cartridge (HEPA Filter included) |
| Noise Level | 65 dB |
| Amperage | 5.22 Amps |
| GTIN | 04014549283332 |
9. Warranty and Support
Festool products are known for their quality and durability. For specific warranty information, please refer to the warranty card included with your product or visit the official Festool website. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or service inquiries, please contact Festool customer service or an authorized Festool dealer in your region. You can find contact information on the official Festool website or through your point of purchase.
