1. Introduction
The Digitus DN-95117 is a high-performance 24-port 10G PoE+ Mid-Span hub, also known as a PoE injector. This device is designed to simplify network infrastructure by providing both data connectivity and electrical power to compatible devices over standard Ethernet cables. It features 24 input ports for data and 24 output ports that deliver both data and Power over Ethernet (PoE).
Each PoE output port supports devices compliant with IEEE802.3af (15.4 W) and IEEE802.3at (30 W) standards, making it suitable for powering various network devices such as PoE-enabled access points, IP phones, and IP cameras. The injector offers a robust maximum total power budget of 370 W across all ports, with a maximum of 30 W available per individual port.
2. Package Contents
Please verify that all items listed below are included in your package. If any items are missing or damaged, please contact your vendor.
- 1 x 24-port 10G PoE+ Injector (Digitus DN-95117)
- 1 x Quick Start Guide
- 1 x Power Cable
- Mounting Accessories (e.g., rack-mount brackets, screws, rubber feet)
Image 2.1: The Digitus DN-95117 PoE+ Injector shown with its power cable and mounting accessories.
3. Product Overview
The Digitus DN-95117 is designed for efficient and reliable power and data delivery in network environments. Its robust construction and comprehensive features ensure stable operation for various applications.
3.1 Key Features
- 24-Port 10G Ethernet PoE+ Injector: Provides 24 data input ports and 24 data+PoE output ports.
- High Power Budget: Offers a total power budget of 370 Watts, with up to 30 Watts per port.
- Standard Compliance: Fully compatible with IEEE802.3af and IEEE802.3at PoE standards.
- Automatic Detection: Features auto-MDI/MDI-X for cable detection and auto-detection of full-duplex/half-duplex modes.
- Surge Protection: Includes automatic surge protection for enhanced device safety.
- Energy-Efficient Operation: Designed for optimized power consumption.
- Plug and Play: Simple installation process.
Image 3.1: Overview of the Digitus DN-95117 highlighting its key features such as 10 Gbps support, 100m transmission range, and 370 Watt PoE power budget.
3.2 Port Layout and Dimensions
The device features 24 data input ports and 24 data+PoE output ports on its front panel. The rear panel includes the power input socket and a power switch.

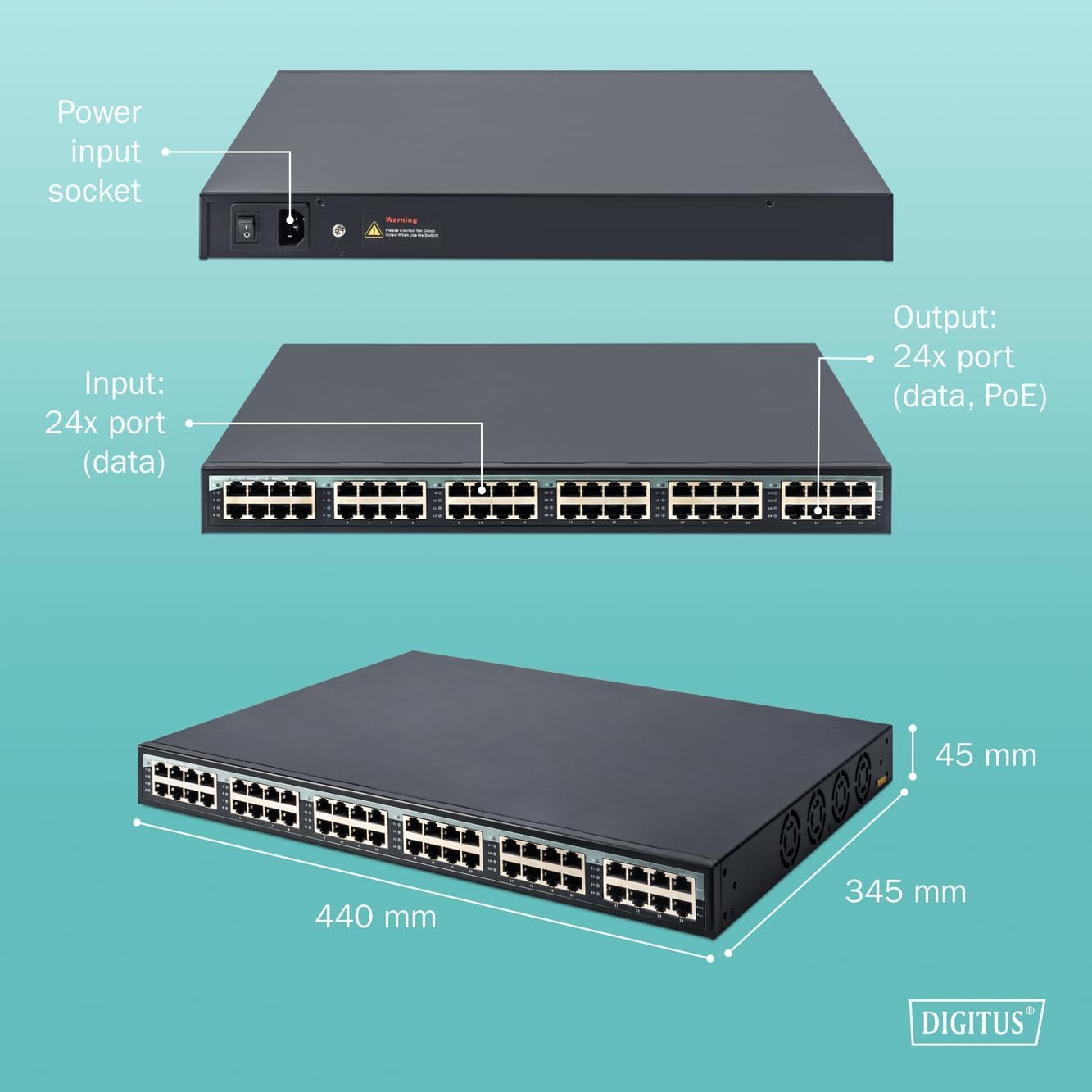

Image 3.2: Detailed view of the Digitus DN-95117, illustrating the front panel with 24 data input and 24 data+PoE output ports, the rear panel with the power input socket, and overall dimensions (440mm L x 345mm W x 45mm H).
Image 3.3: Rear view of the Digitus DN-95117 showing the power input socket and power switch.
4. Setup Instructions
Follow these steps to set up your Digitus DN-95117 PoE+ Injector:
- Unpack the Device: Carefully remove the PoE+ injector and all accessories from the packaging.
- Choose a Location: Select a stable, well-ventilated location for the injector. Ensure it is away from direct sunlight, heat sources, and moisture. The device can be rack-mounted using the included accessories or placed on a flat surface.
- Connect Data Input: Connect your non-PoE network switch or router to the 24 data input ports on the front panel using standard Ethernet cables.
- Connect PoE Output: Connect your PoE-enabled devices (e.g., IP cameras, wireless access points, VoIP phones) to the 24 data+PoE output ports on the front panel using Ethernet cables. These cables will carry both data and power to your devices.
- Connect Power: Connect the provided power cable to the power input socket on the rear panel of the injector, then plug the other end into a standard AC power outlet (100VAC ~ 240VAC).
- Power On: Flip the power switch on the rear panel to the 'ON' position. The device will power on, and indicator lights on the front panel will illuminate to show status.
- Verify Connection: Check the status indicators for each connected port to ensure proper data and PoE connectivity to your devices.
Image 4.1: The Digitus DN-95117 can be integrated into various network setups, connecting a non-PoE switch to multiple PoE-powered devices.
5. Operating Instructions
Once the Digitus DN-95117 is set up, its operation is largely automatic. The device functions as a transparent data and power injector.
- Automatic PoE Detection: The injector automatically detects if a connected device is PoE-compatible and provides the appropriate power (IEEE802.3af or IEEE802.3at).
- Data Transmission: Data is passed through the injector at Gigabit speeds (10/100/1000Mbps/2.5/10G) without modification.
- Status Indicators: Observe the LED indicators on the front panel for each port. These indicators typically show link status, activity, and PoE power status. Refer to the Quick Start Guide for specific LED behavior.
- Power Budget Management: The injector manages the total 370W power budget. If the total power demand from connected devices exceeds this budget, the injector may prioritize power delivery or shut down power to lower-priority ports. Ensure your total power consumption does not exceed 370W.
Image 5.1: The Digitus DN-95117 facilitates high-speed 10 Gbps data and power delivery to various network devices.
6. Maintenance
The Digitus DN-95117 is designed for minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Cleaning: Keep the device clean and free from dust. Use a soft, dry cloth for cleaning. Do not use liquid or aerosol cleaners.
- Ventilation: Ensure that the ventilation openings are not blocked. Proper airflow is crucial for heat dissipation.
- Cable Management: Organize network cables to prevent strain on ports and ensure good airflow around the device.
- Firmware Updates: Periodically check the Digitus website for any available firmware updates. Follow the instructions provided with the update carefully.
7. Troubleshooting
If you encounter issues with your Digitus DN-95117, refer to the following common troubleshooting steps:
- No Power:
- Ensure the power cable is securely connected to both the injector and the power outlet.
- Verify the power switch on the rear panel is in the 'ON' position.
- Check the power outlet with another device to confirm it is functional.
- No Data Connection:
- Check all Ethernet cable connections between the source device, the injector's input ports, and the destination device.
- Ensure the Ethernet cables are not damaged and are correctly terminated.
- Verify the network devices connected to the injector are functioning correctly.
- No PoE Power to Device:
- Confirm the connected device is PoE-compatible (IEEE802.3af or IEEE802.3at).
- Check the PoE status LED for the specific port on the injector.
- Ensure the total power consumption of all connected PoE devices does not exceed the 370W budget. Disconnect some devices if necessary to test.
- Try a different Ethernet cable.
- Slow Network Speed:
- Ensure all connected devices and cables support Gigabit Ethernet speeds.
- Check for network congestion or issues with other network components.
If problems persist after following these steps, please contact Digitus technical support.
8. Specifications
| Feature | Description |
|---|---|
| Model Number | DN-95117 |
| Brand | DIGITUS |
| Data Transfer Rate | 10/100/1000Mbps/2.5/10G (Gigabit Ethernet) |
| Number of Ports | 24 (Data Input) + 24 (Data+PoE Output) |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Power Supply | PIN 1,2(V-) and PIN 3,6(V+) |
| Maximum Total PoE Power | 370 Watts |
| Maximum Power Per Port | 30 Watts |
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Auto-Negotiation | Auto-MDI/MDI-X, Full-duplex/Half-duplex |
| Power Supply | 100VAC ~ 240VAC |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 70 °C |
| Dimensions (L x W x H) | 440 mm x 345 mm x 45 mm |
| Item Weight | 4.4 Kilograms |
| MTBF (Mean Time Between Failures) | 100,000 hours |
| Power Consumption | 20W (idle) |
| Special Features | LED Indicators |
| Product Type | 1U Rackmount |
| Interface Type | RJ45 |
| Country of Origin | China |
9. Warranty and Support
DIGITUS products are known for their high quality and reliability. This product comes with a 1-year warranty for spare parts availability.
For technical support, product information, or warranty claims, please visit the official DIGITUS website or contact your local distributor. You can find more solutions and information at the following link:
Image 9.1: DIGITUS brand information and link to solutions.
