1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Tecnolite CTLLED-152/30/N LED Pendant Lamp. Please read these instructions carefully before installation and retain them for future reference.

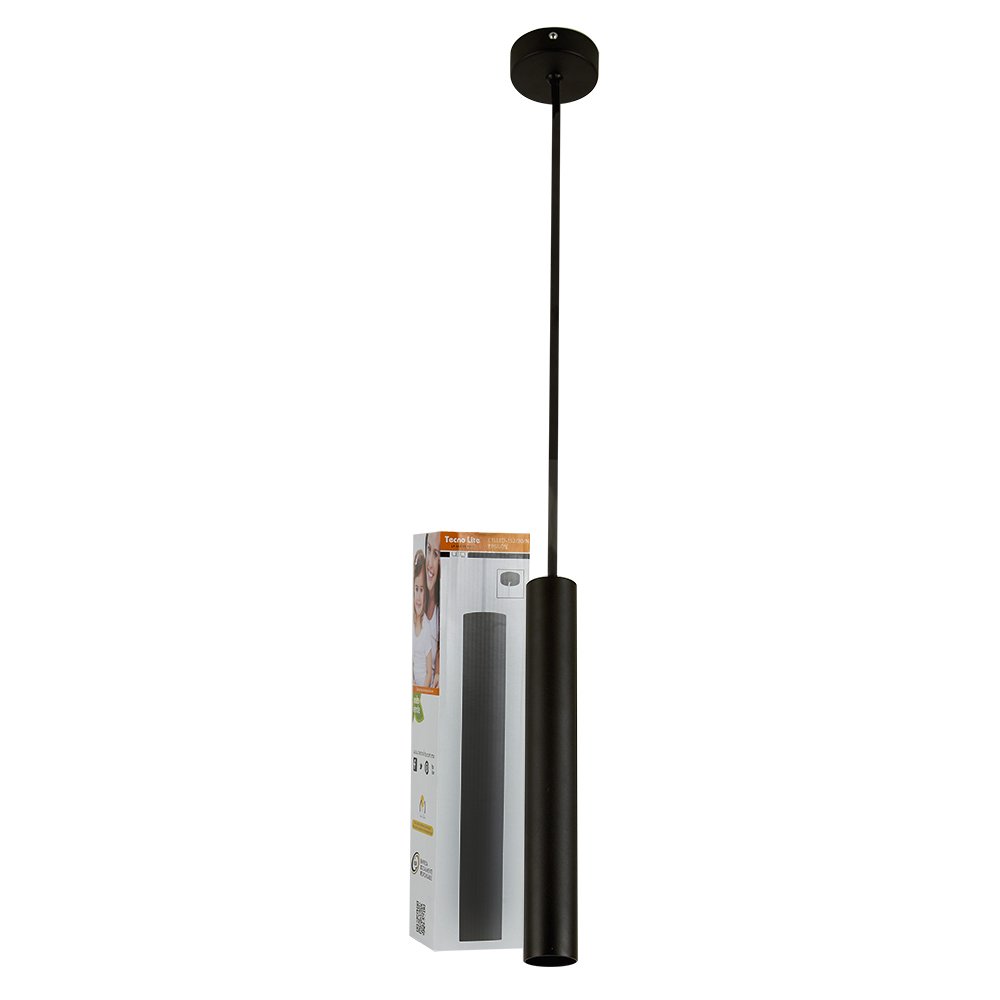

Image: The Tecnolite CTLLED-152/30/N LED Pendant Lamp, featuring a sleek black cylindrical design.
2. Safety Information
WARNING: To reduce the risk of electric shock, fire, or injury to persons, read and follow all warnings and instructions.
- Always disconnect power at the main circuit breaker before installation or servicing.
- Installation must be performed by a qualified electrician in accordance with local electrical codes.
- Do not modify the lamp or its components.
- Ensure the mounting surface can support the weight of the fixture.
- This product is designed for indoor use only.
- Do not look directly into the LED light source.
3. Package Contents
Verify that all components are present before beginning installation:
- 1x LED Pendant Lamp Fixture (Model CTLLED-152/30/N)
- 1x Ceiling Canopy with adjustable cable
- 1x Instruction Manual (this document)
- Mounting Hardware (screws, anchors, wire connectors)
Image: Overview of key features including integrated LED, warm light, and easy installation.
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | CTLLED-152/30/N |
| Brand | Tecnolite |
| Color | Black |
| Material | Aluminum |
| Style | Modern |
| Power Source | Corded Electric |
| Voltage | 127 Volts |
| Wattage | 3 Watts |
| Bulb Type | Integrated LED |
| Luminous Flux | 300 Lumens |
| Special Features | Energy Efficient |
| Usage | Indoor Use Only |
| Product Dimensions | 4 x 4 x 153 cm (Length x Width x Height) |
| Weight | 650 g |

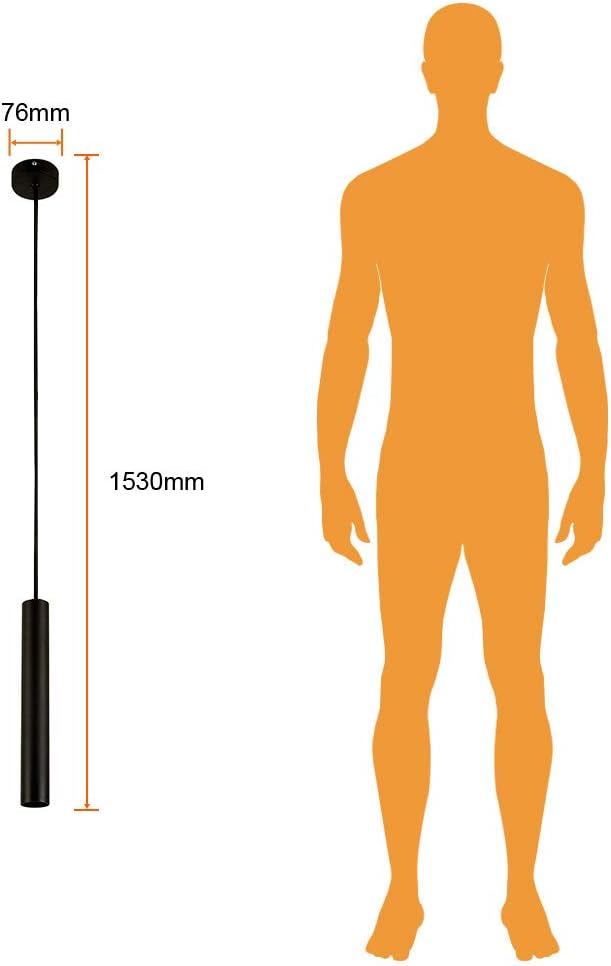

Image: Detailed dimensions of the pendant lamp.
5. Setup and Installation
The Tecnolite CTLLED-152/30/N pendant lamp is designed for easy installation without the need for drilling into the ceiling for embedding. Follow these steps for proper installation:
- Prepare for Installation: Ensure the power supply to the installation area is turned off at the circuit breaker.
- Mount the Ceiling Box: Secure the ceiling box (canopy) to the ceiling using the provided mounting hardware. Ensure it is firmly attached to a structural element.
- Connect Wiring: Connect the lamp's electrical wires to your household wiring. Typically, this involves connecting live to live, neutral to neutral, and ground to ground. Use appropriate wire connectors.
- Secure the Canopy: Once wiring is complete, attach the lamp's canopy to the ceiling box, ensuring all wires are tucked safely inside.
- Adjust Height: The pendant lamp features an adjustable cable. You can customize the height by pulling the excess cable into the ceiling canopy.
- Restore Power: Once installation is complete and secure, restore power at the circuit breaker.
Video: This video demonstrates the installation process of a similar pendant light, including securing the ceiling box and connecting wires. Note: The product shown in the video may vary slightly in appearance from your specific model.

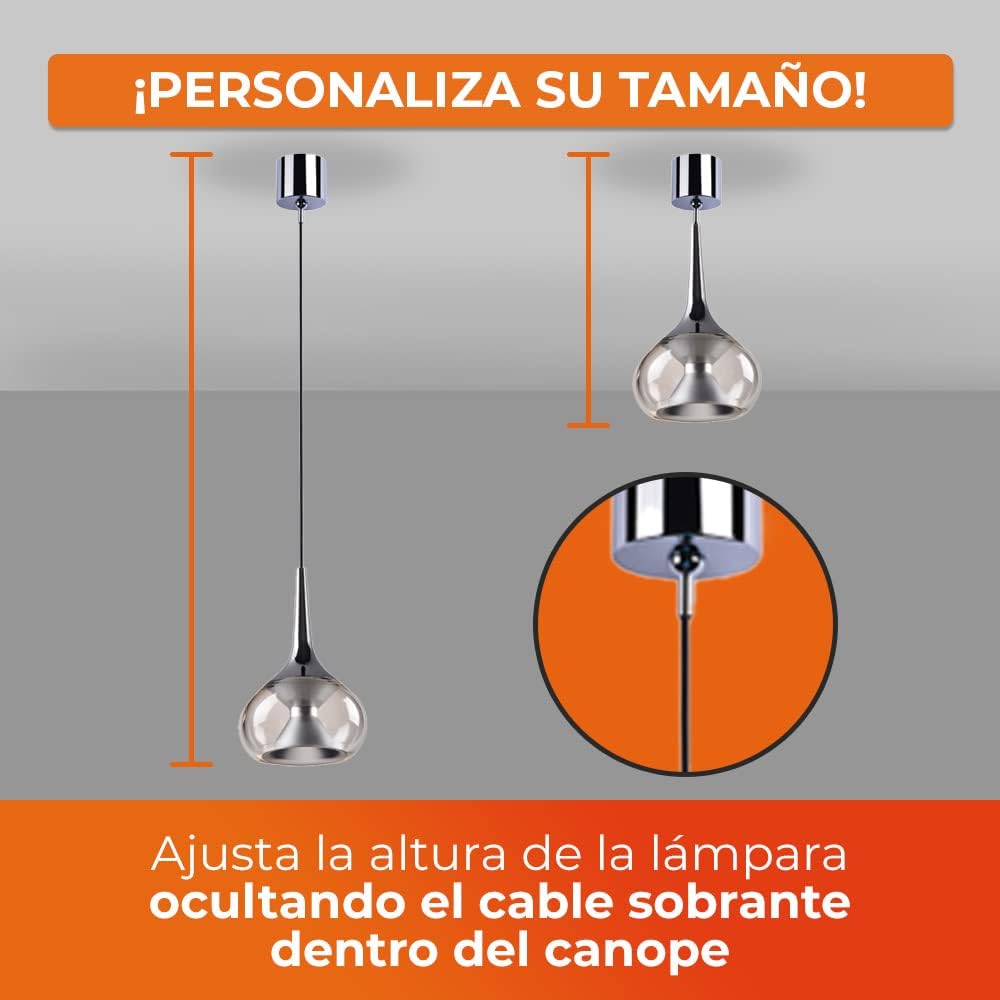

Image: Illustration of how to adjust the lamp's height by concealing the excess cable within the canopy.
6. Operating Instructions
The Tecnolite CTLLED-152/30/N pendant lamp features an integrated LED light source, providing soft warm light. It operates with a standard toggle switch (not included with the lamp, but part of your home's electrical system).
- Turning On/Off: Use your existing wall switch to turn the lamp on or off.
- Light Output: The lamp provides 300 lumens of soft warm light (3000K color temperature).
- Energy Efficiency: The integrated LED technology offers significant energy savings, up to 90% compared to traditional lighting, and has a long lifespan of approximately 15,000 hours.
Image: Top view of the lamp, showing the connection to the ceiling.
7. Maintenance
To ensure the longevity and optimal performance of your Tecnolite LED pendant lamp, follow these simple maintenance guidelines:
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the lamp's surface. Avoid abrasive cleaners, solvents, or liquids that could damage the finish or electrical components.
- LED Care: The LED is integrated and does not require replacement. Do not attempt to disassemble the LED module.
- Inspection: Periodically check the lamp for any signs of damage or loose connections. If any issues are found, consult a qualified electrician.
8. Troubleshooting
If you encounter issues with your pendant lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power supply. Loose wiring connection. Faulty wall switch. | Check the circuit breaker. Ensure all wire connections are secure (with power off). Test the wall switch with another device or consult an electrician. |
| Light flickers. | Loose wiring. Incompatible dimmer switch (if applicable). | Check wiring connections (with power off). This lamp is not specified as dimmable. If using a dimmer, remove it or replace it with a standard switch. |
| Lamp is physically damaged. | Impact or improper handling. | Discontinue use and contact Tecnolite customer support or a qualified technician. |
9. Warranty and Support
Tecnolite offers a 5-year warranty on LED products, ensuring quality and performance. For warranty claims, technical support, or any questions regarding your product, please contact Tecnolite customer service.
Please refer to your purchase receipt for specific warranty terms and conditions.
Image: Warranty information for LED products.
