BLACK+DECKER BXCH1201IN Electric Mini Chopper User Manual

Product Overview

The BLACK+DECKER BXCH1201IN Electric Mini Chopper is designed for efficient food preparation. It features a 120-watt motor, a 350ml food-grade jar, and a durable stainless steel blade. This appliance is ideal for chopping vegetables, mincing garlic and herbs, and pureeing ingredients for dressings and sauces.

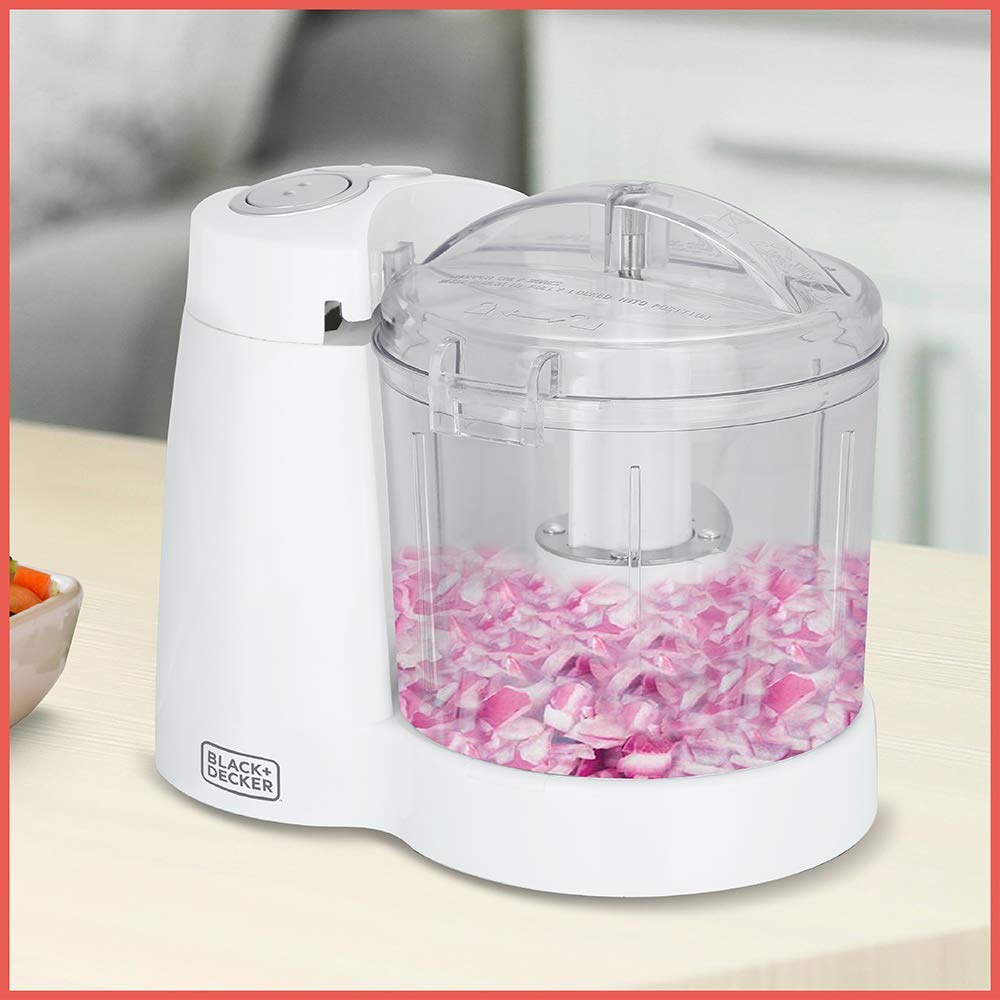

Image: Front view of the BLACK+DECKER BXCH1201IN Electric Mini Chopper with chopped onions in the bowl.

Key Features:

• 350ml Food Grade Bowl: Suitable for everyday use and easy to wash.
• 2 Speed Function: Provides versatility for processing various types of food.
• One Pulse Operation: Offers better control over chopping consistency.
• Safety Lock on Lid: Ensures secure operation.
• High Grade Stainless Steel Blade: Durable and efficient for chopping and mincing.
• Power: 120 watts.
• Operating Voltage: 220 - 240 volts.

Setup Instructions

1. Unpack the Unit: Carefully remove all components from the packaging.
2. Clean Components: Before first use, wash the chopping bowl, lid, and blade assembly in warm, soapy water. Rinse thoroughly and dry. The bowl is dishwasher-safe.
3. Assemble the Blade: Place the stainless steel blade assembly onto the central shaft inside the chopping bowl. Ensure it is securely seated.

Image: Close-up view highlighting the stainless steel quality blade and the safety lock mechanism on the chopper.
4. Attach the Bowl: Place the chopping bowl onto the motor base, aligning the tabs on the bowl with the slots on the base. Twist gently until it locks into place.
5. Secure the Lid: Place the lid onto the chopping bowl, ensuring the safety lock mechanism engages properly. The chopper will not operate if the lid is not correctly secured.


Image: Front view of the assembled BLACK+DECKER BXCH1201IN Electric Mini Chopper, ready for use.

6. Connect to Power: Plug the power cord into a standard 220-240 volt electrical outlet.

Visual Setup Guide:

Operating Instructions

1. Prepare Ingredients: Cut larger food items into smaller, uniform pieces (approximately 1-2 cm) to ensure even chopping. Do not overfill the 350ml bowl.
2. Load Ingredients: Place the prepared ingredients into the chopping bowl.
3. Secure Lid: Ensure the lid is properly placed and locked onto the bowl. The safety lock prevents operation if the lid is not secure.
4. Select Speed: The chopper features two speed buttons on the top of the motor unit.
   • Use the lower speed for softer ingredients or coarser chops.
   • Use the higher speed for harder ingredients or finer chops.

Image: Top-down view of the chopper highlighting the two speed buttons and the 350ml jar capacity.
5. Pulse Operation: For best results and to control consistency, use the pulse function by pressing and releasing the desired speed button in short bursts. This prevents over-processing and allows you to achieve the desired texture.
6. Monitor Chopping: Observe the ingredients through the transparent bowl to achieve the desired consistency.
7. Unplug After Use: Once chopping is complete, unplug the appliance from the power outlet before disassembling or cleaning.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your mini chopper.

1. Unplug: Always ensure the chopper is unplugged from the power outlet before cleaning.
2. Disassemble: Remove the lid, then carefully lift out the blade assembly. Finally, remove the chopping bowl from the motor base.
3. Clean Blade and Bowl: The stainless steel blade assembly and the 350ml chopping bowl are dishwasher-safe. Alternatively, wash them by hand in warm, soapy water. Use a brush for thorough cleaning of the blade, exercising caution due to its sharpness.
4. Clean Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water or any other liquid.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the appliance.

Troubleshooting

If you encounter issues with your BLACK+DECKER Mini Chopper, refer to the following common solutions:

• Chopper does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Verify that the chopping bowl and lid are correctly assembled and the safety lock is engaged. The appliance will not operate if these components are not properly secured.
• Ingredients are not chopping evenly:
  • Ensure ingredients are cut into small, uniform pieces before placing them in the bowl.
  • Do not overfill the bowl. Process smaller batches if necessary.
  • Use the pulse function for better control over chopping consistency.
• Motor sounds strained:
  • This may indicate that the bowl is overfilled or the ingredients are too hard. Reduce the quantity of ingredients or cut them into smaller pieces.
  • Ensure the blade is not obstructed.

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Image: Side view of the mini chopper illustrating its compact size with a height of approximately 15 cm (6.2 inches).

Warranty and Support

The BLACK+DECKER BXCH1201IN Electric Mini Chopper comes with a 2-year warranty on the product, ensuring peace of mind and product reliability.

For any service-related queries or support during the warranty period, on-site service is available. Please contact the manufacturer's customer service for assistance.

Manufacturer/Importer: Stovekraft Limited, 81/1, Harohalli Industrial Area, Kanakapura Taluk, Ramanagara, Bangalore, Karnataka 562112, India.

Customer Service Contact: 1800-425-66666
