Safety Information
DANGER - Risk Of Fire or Explosion.
- Flammable Refrigerant Used.
- Do Not Use Mechanical Devices To Defrost Refrigerator.
- Do Not Puncture Refrigerant Tubing.
Always read and understand all safety warnings and instructions before using this appliance. Keep this manual for future reference.
Product Overview
Key Features
- Stainless Steel Look
- Adjustable Mechanical Thermostat Control (32℉ to 47℉)
- 2 Liter Bottle Door Storage
- Half-Width Chiller Compartment
- Coated Wire Slide-Out Shelf
- Reversible Door
- 2 Leveling Front Legs
- R600a high-efficiency and low-energy consumption compressor for low-noise operation.
Internal Components
- Temperature Control Dial
- Chiller Compartment
- Coated Wire Slide-Out Shelves
- Door Storage (for bottles/cans)
- R600a Compressor
Image showing the internal components: 1. Temperature Control Dial, 2. Chiller Compartment, 3. R600a Compressor.
Setup & Installation
Placement
Ensure adequate ventilation around the unit. Do not place the refrigerator in direct sunlight or near heat sources such as stoves, heaters, or radiators. Allow at least 5 inches (12.7 cm) of space between the back and sides of the refrigerator and any adjacent walls or cabinets for proper air circulation.
Leveling
The refrigerator is equipped with 2 leveling front legs. Adjust these legs by turning them clockwise or counter-clockwise to ensure the unit is stable and level on the floor. Proper leveling helps the door close securely and the refrigerator operate efficiently.
Power Connection
Connect the power cord to a grounded electrical outlet. After placing the refrigerator in its final position, allow it to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerants to settle, which is crucial for optimal performance and longevity of the compressor.
Reversible Door
The refrigerator door is designed to be reversible, allowing it to open from either the left or right side to accommodate different kitchen layouts or personal preferences. For detailed instructions on how to reverse the door, please refer to the comprehensive manual provided with your product.
Operating Instructions
Temperature Control
The adjustable mechanical thermostat control is located inside the refrigerator compartment. Turn the dial to your desired setting. The temperature range is from 32℉ (0℃) to 47℉ (8℃). Generally, higher numbers on the dial indicate colder temperatures. Adjust the setting based on the ambient room temperature and the amount of food stored.
Chiller Compartment
The half-width chiller compartment is designed for short-term storage of items that require colder temperatures than the main compartment. It typically maintains temperatures between 27℉ (-3℃) and 37℉ (3℃). This area is suitable for items like ice packs or small frozen goods, but it is not a full freezer and should not be used for long-term freezing.
Close-up of the temperature control dial and chiller compartment.
Maintenance & Cleaning
Defrosting
This refrigerator features a manual defrost system. Frost will accumulate on the interior surfaces of the chiller compartment. When the frost layer reaches a thickness of approximately 1/4 inch (6mm) or more, the unit should be defrosted. To defrost, turn off the refrigerator, unplug it from the power outlet, and remove all food items. Allow the frost to melt naturally. Do not use sharp objects, electric heaters, or other mechanical devices to speed up the defrosting process, as this can damage the cooling system.
General Cleaning
Regular cleaning of both the interior and exterior of your refrigerator is recommended to maintain hygiene and appearance. Always unplug the refrigerator before cleaning. Use a soft cloth dampened with a mild detergent and warm water to wipe down surfaces. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Dry all surfaces thoroughly after cleaning.
Shelf Care
The coated wire slide-out shelf can be easily removed for cleaning. Simply slide it out, wash it with mild soap and water, and then rinse thoroughly. Ensure the shelf is completely dry before placing it back into the refrigerator. This helps prevent odors and maintains cleanliness.
Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
Refrigerator Not Cooling
- Power Supply: Ensure the power cord is securely plugged into a functional electrical outlet. Check if the circuit breaker has tripped.
- Thermostat Setting: Verify that the thermostat control dial is set to an appropriate temperature (not too high/warm).
- Door Seal: Ensure the refrigerator door is closed properly and the door seal is intact, preventing warm air from entering.
- Ventilation: Check for proper ventilation around the unit. Obstructions can hinder cooling efficiency.
Excessive Noise
- Leveling: Ensure the refrigerator is level on the floor. Adjust the leveling legs if necessary to prevent vibrations.
- Contact with Objects: Check if the unit is touching a wall, cabinet, or other objects, which can cause rattling noises.
- Normal Operation: Some noise from the compressor and refrigerant circulation is normal during operation.
Frost Buildup
- Manual Defrost: This is a manual defrost unit; regular defrosting as described in the Maintenance section is required.
- Door Seal: Inspect the door seal for any gaps or damage that could allow moist air to enter and cause excessive frost.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 2.7 Cu.Ft |
| Refrigerant | R600a |
| Voltage | 120 Volts / 60Hz |
| Annual Energy Consumption | 230 kWh |
| Installation Type | Free Standing |
| Defrost System Type | Manual Defrost |
| Product Dimensions (W x D x H) | 19.13 x 19.69 x 24.69 inches |
| Item Weight | 36.3 pounds |
| Color | Stainless Steel Look |
| Door Hinges | Reversible |
Image illustrating the dimensions of the Willz WLR27S5 Compact Refrigerator.
Energy Guide label for the Willz WLR27S5 Compact Refrigerator, showing estimated yearly energy cost and electricity use.
Package Contents
The following items are included in the package:
- 1 x Willz WLR27S5 Refrigerator
- 2 x Coated Wire Slide-Out Shelves
- 1 x Power Cord
Interior view of the Willz WLR27S5 Compact Refrigerator showing the coated wire slide-out shelves and door storage.
Warranty & Support
For detailed warranty information, product registration, and customer support, please refer to the warranty card or documentation included with your Willz WLR27S5 Compact Refrigerator. You may also visit the official Willz website for the most up-to-date support resources and contact information.
Additional Product Views
Willz Compact Refrigerator in stainless steel look, highlighting features like low-energy consumption and adjustable temperature.

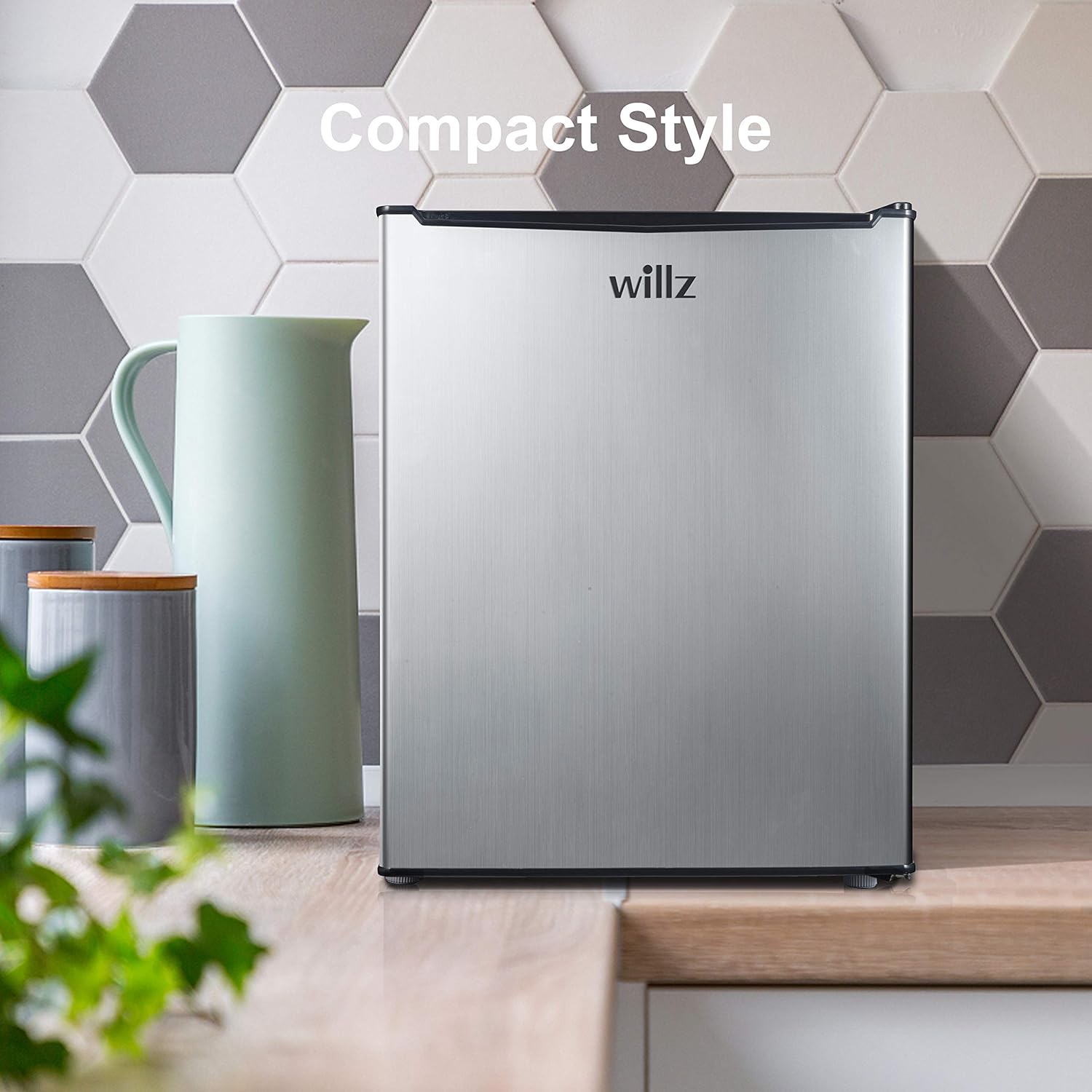

Willz Compact Refrigerator in a kitchen setting, showcasing its compact style.
Willz Compact Refrigerator placed in a dining area, demonstrating its versatile placement.
Front view of the Willz Compact Refrigerator with a stainless steel finish.
