Philips MyGarden Samondra LED Outdoor Wall Light with Motion Sensor

1. Product Overview

The Philips MyGarden Samondra LED Outdoor Wall Light is designed to provide efficient and welcoming illumination for outdoor spaces. Constructed from durable anthracite aluminum, this fixture integrates a motion sensor for automatic activation, enhancing both convenience and security. It emits a powerful, warm white light, suitable for various outdoor applications.

Key Features:

• Integrated motion sensor for automatic light activation.
• Energy-saving LED technology.
• Durable, high-quality aluminum and synthetic materials, designed for outdoor use (IP44 rating).
• Provides warm white light (2700 Kelvin) with 1200 lumens output.
• Long lifespan of 25,000 hours.

Figure 1: A close-up view of the Philips MyGarden Samondra LED outdoor wall light, showcasing its anthracite finish and illuminated diffuser.

2. Safety Information

Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Electrical Safety: Always disconnect power at the main fuse or circuit breaker before attempting any installation, maintenance, or repair.
• Professional Installation: If you are unsure about the installation process, consult a qualified electrician.
• Grounding: Ensure the product is properly grounded according to local electrical codes.
• Product Modification: Do not modify the product in any way. Unauthorized modifications may void the warranty and create safety risks.
• Intended Use: This product is designed for outdoor use only (IP44 rated). Do not use it in applications for which it is not intended.
• Voltage: Ensure the supply voltage matches the product's specified voltage (220 Volts).

3. Package Contents

Verify that all components are present before beginning installation:

• Philips MyGarden Samondra LED Outdoor Wall Light (1 unit)
• Mounting hardware (screws, wall plugs)
• Instruction Manual

Figure 2: The retail packaging for the Philips MyGarden Samondra LED outdoor wall light, highlighting key features like motion sensor and LED technology.

4. Setup and Installation

Follow these steps for proper installation of your outdoor wall light:

4.1. Preparation

1. Power Disconnection: Turn off the power supply at the main circuit breaker before starting any work.
2. Location Selection: Choose a suitable outdoor location on a wall, ensuring it is within reach of the electrical wiring. Consider the motion sensor's detection range.
3. Unpack: Carefully remove the light fixture and all components from the packaging.

4.2. Mounting the Fixture

1. Marking: Use the mounting bracket (if separate) or the fixture itself to mark the drilling points on the wall.
2. Drilling: Drill holes at the marked positions. Insert the provided wall plugs if necessary.
3. Secure Mounting: Attach the fixture securely to the wall using the provided screws. Ensure it is stable and level.

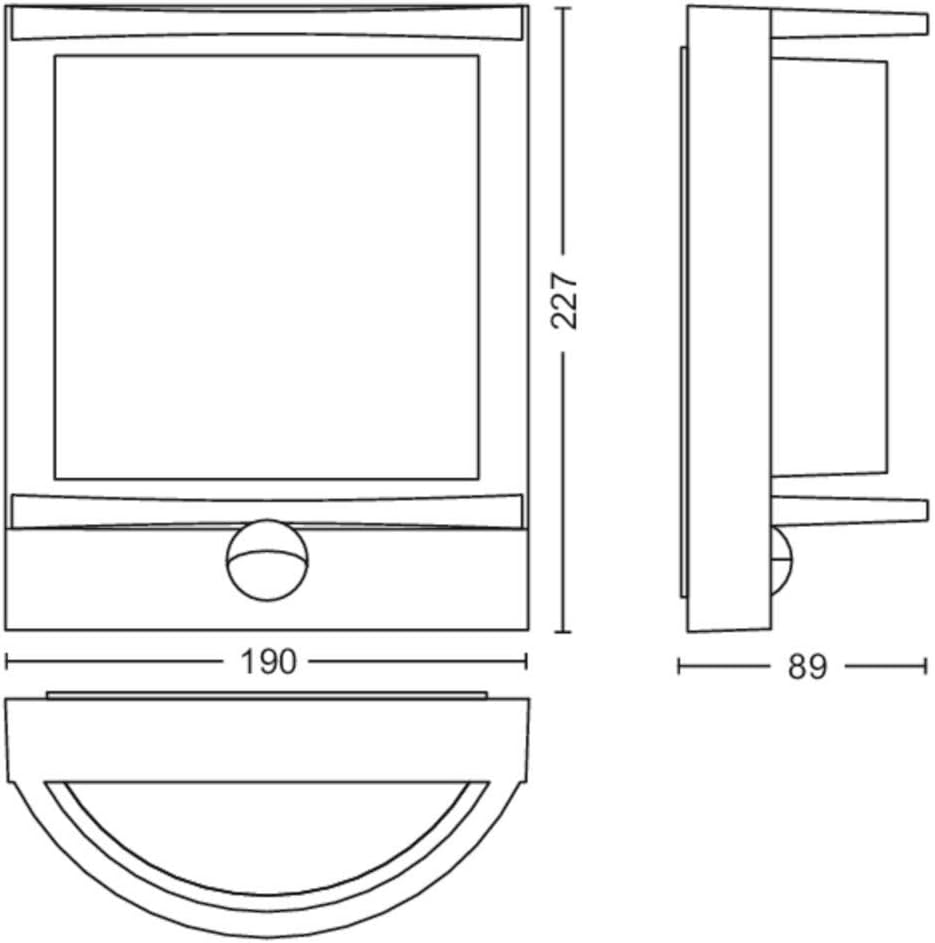

Figure 3: A schematic diagram illustrating the dimensions of the Philips MyGarden Samondra LED outdoor wall light in millimeters, including front and side views.

4.3. Electrical Connection

1. Wiring: Connect the electrical wires from your mains supply to the corresponding terminals on the light fixture. Typically, this involves Live (L), Neutral (N), and Earth (E) connections. Refer to the wiring diagram inside the fixture if available.
2. Secure Connections: Ensure all connections are tight and secure.
3. Close Fixture: Carefully close the fixture, ensuring no wires are pinched and the seals are properly seated to maintain the IP44 rating.

Figure 4: The Philips MyGarden Samondra LED outdoor wall light mounted on a brick wall, providing illumination for a doorway at night.

5. Operating Instructions

The Philips MyGarden Samondra LED Outdoor Wall Light operates automatically via its integrated motion sensor.

5.1. Motion Sensor Functionality

• The light will automatically turn on when motion is detected within its sensing range, provided the ambient light level is below a certain threshold.
• After a set duration without further motion, the light will turn off.

Figure 5: A detailed view of the integrated motion sensor located at the bottom of the Philips MyGarden Samondra LED outdoor wall light.

5.2. Adjusting Sensor Settings

The motion sensor typically has adjustable settings for detection sensitivity and illumination duration. These controls are usually located on the sensor unit itself. Refer to the specific markings on your product for adjustment details.

• Sensitivity: Adjusts how easily the sensor detects motion. Higher sensitivity means it will detect smaller movements or movements at a greater distance.
• Time Duration: Sets how long the light remains on after motion is detected and no further motion is sensed.
• Lux/Daylight Sensor: Some sensors also have a setting to determine at what ambient light level the motion sensor becomes active (e.g., only at dusk/night).

6. Maintenance

The Philips MyGarden Samondra LED Outdoor Wall Light requires minimal maintenance.

• Cleaning: To clean the fixture, ensure the power is off. Use a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
• LED Light Source: The LED light source is integrated and not replaceable. The fixture is designed for a long operational life of approximately 25,000 hours.
• Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.

7. Troubleshooting

If you encounter issues with your Philips MyGarden Samondra LED Outdoor Wall Light, refer to the following common troubleshooting steps:

• Light does not turn on:
  • Check if the power supply is connected and the circuit breaker is on.
  • Verify that the motion sensor settings (sensitivity, daylight sensor) are correctly configured. The ambient light might be too bright for the sensor to activate.
  • Ensure there is actual motion within the sensor's detection range.
• Light stays on continuously:
  • Check the motion sensor's time duration setting; it might be set to a very long period.
  • Ensure there is no continuous motion within the sensor's range (e.g., moving branches, pets).
  • The daylight sensor might be faulty or set incorrectly, causing it to remain active during daylight hours.
• Light flickers:
  • Check all electrical connections for tightness. Loose connections can cause flickering.
  • Ensure the voltage supply is stable and within the specified range.
• Motion sensor not detecting:
  • Adjust the sensor's sensitivity setting to a higher level.
  • Ensure there are no obstructions blocking the sensor's field of view.
  • Clean the sensor lens if it is dirty.

If these steps do not resolve the issue, please contact customer support.

8. Specifications

Figure 6: An energy efficiency label for the Philips 1739293P0 LED luminaire, indicating its A++ rating and built-in LED light source.

9. Warranty and Support

9.1. Warranty Information

This product is covered by a manufacturer's warranty. Please refer to your purchase documentation, retailer, or the official Philips Lighting website for specific warranty terms and conditions applicable to your region.

9.2. Customer Support

For technical assistance, troubleshooting, or any other inquiries regarding your Philips MyGarden Samondra LED Outdoor Wall Light, please contact Philips Lighting customer service or visit their official website:

• Philips Lighting Website: www.lighting.philips.com
• Contact Information: Refer to the Philips Lighting website for local contact numbers and support options.
