1. Introduction
This manual provides essential information for the installation, operation, and maintenance of the Dorman 47276 Windshield Washer Nozzle. This product is designed as a direct replacement for the original equipment washer nozzle, restoring proper functionality to your vehicle's rear window washing system. Please read these instructions carefully before proceeding with installation.
2. Product Overview
The Dorman 47276 is a replacement windshield washer nozzle constructed from durable materials to ensure reliable performance and a long service life. It is engineered to match the fit, function, and appearance of the original equipment part.
Figure 2.1: Top-front view of the Dorman 47276 Windshield Washer Nozzle. This image shows the overall shape and the two spray orifices.
3. Compatibility
The Dorman 47276 Windshield Washer Nozzle is compatible with the following vehicle models. Always verify fitment for your specific vehicle trim before installation.
- Infiniti QX4: 1999, 2000, 2001, 2002, 2003
- Nissan Pathfinder: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
- Nissan Xterra: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
4. What's in the Box
Upon opening the product packaging, you should find the following item:
- 1 x Dorman 47276 Windshield Washer Nozzle
5. Installation Instructions (Setup)
The following steps outline the general procedure for replacing your vehicle's rear windshield washer nozzle. For detailed, vehicle-specific instructions, consult your vehicle's service manual.
- Safety First: Ensure the vehicle is parked on a level surface with the engine off and the parking brake engaged.
- Locate the Existing Nozzle: Identify the current rear windshield washer nozzle, typically located on the rear wiper arm or directly on the rear hatch.
- Disconnect Washer Hose: Carefully disconnect the washer fluid hose from the existing nozzle. A small flathead screwdriver may be needed to gently pry it off, or it may simply pull off. Be prepared for a small amount of residual washer fluid to leak.
- Remove Old Nozzle: Depending on your vehicle, the old nozzle may be clipped in, threaded, or held by a nut. Remove any retaining clips or nuts, then carefully extract the old nozzle.
- Install New Nozzle: Insert the Dorman 47276 replacement nozzle into the opening. Ensure it seats properly and securely. If applicable, reattach any retaining clips or nuts.
- Reconnect Washer Hose: Firmly push the washer fluid hose onto the new nozzle's connection point. Ensure a snug fit to prevent leaks.
- Test Functionality: Turn on your vehicle and activate the rear windshield washer function. Verify that fluid sprays correctly onto the rear window and that there are no leaks at the nozzle connection.
Figure 5.1: Side view of the Dorman 47276 Windshield Washer Nozzle, showing the profile and spray orifices.

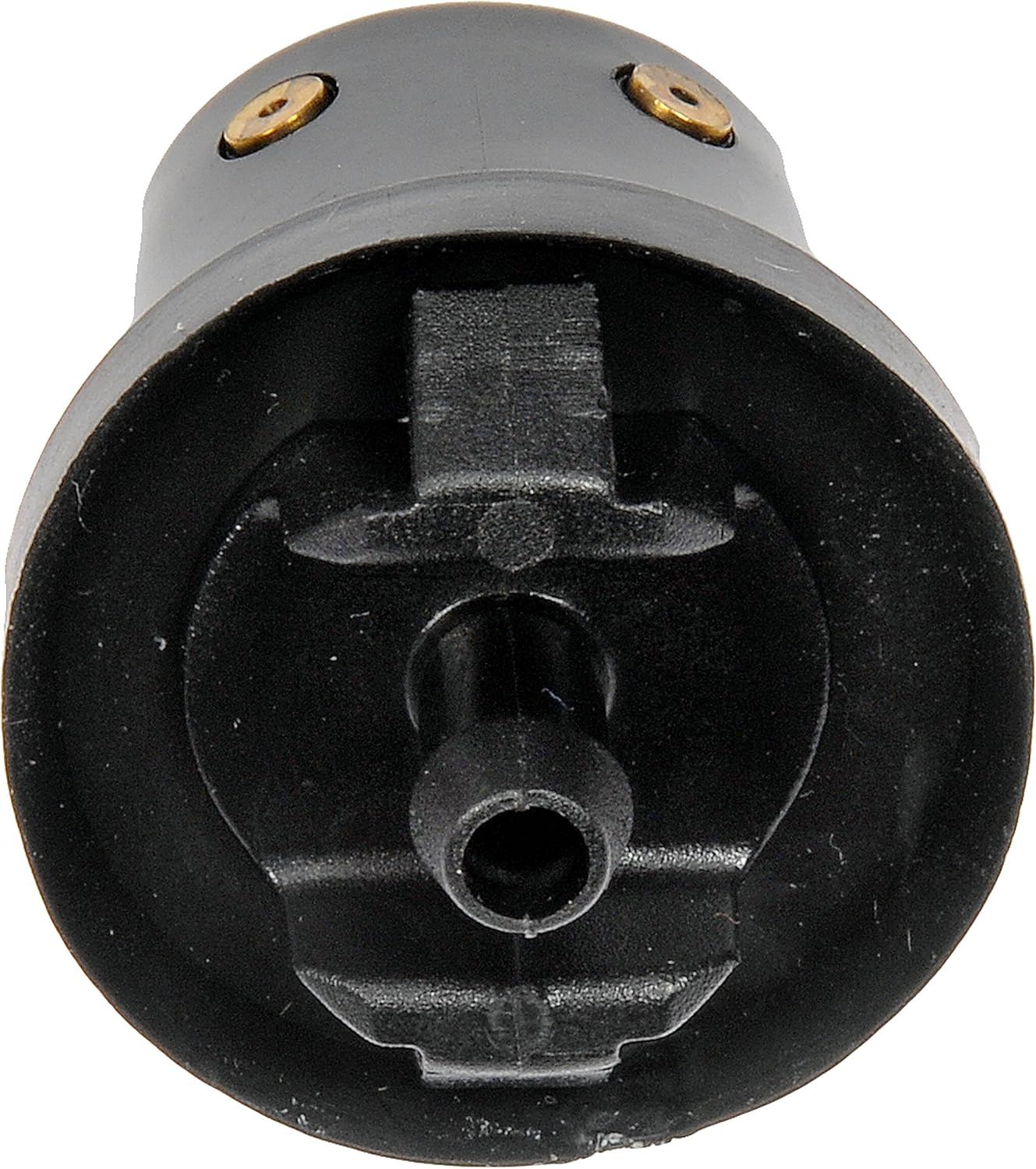

Figure 5.2: Bottom view of the Dorman 47276 Windshield Washer Nozzle, highlighting the hose connection point for installation.
6. Operation
Once installed, the Dorman 47276 Windshield Washer Nozzle operates in conjunction with your vehicle's existing rear windshield washer system. Activate the washer function from your vehicle's controls, and the nozzle will spray washer fluid onto the rear window to assist with cleaning.
7. Maintenance
To ensure optimal performance and longevity of your washer nozzle:
- Regular Cleaning: Periodically inspect the nozzle for dirt, debris, or wax buildup that might obstruct the spray. Gently clean the orifices with a soft brush or a fine needle if necessary.
- Washer Fluid Level: Ensure your vehicle's washer fluid reservoir is adequately filled with appropriate windshield washer fluid, especially in freezing temperatures.
- Hose Inspection: Occasionally check the washer fluid hose for cracks, kinks, or loose connections that could impede fluid delivery.
8. Troubleshooting
If you encounter issues with your Dorman 47276 Windshield Washer Nozzle, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No fluid sprays from nozzle. |
|
|
| Fluid sprays incorrectly (e.g., too low, not hitting window). |
|
|
| Fluid leaks around the nozzle. |
|
|
9. Specifications
| Attribute | Detail |
|---|---|
| Brand | Dorman |
| Model Number | 47276 |
| Item Weight | 0.32 ounces |
| Product Dimensions | 1.2 x 3.2 x 4 inches |
| Manufacturer Part Number | 47276 |
| OEM Part Number | 289700W000 |
| Exterior Finish | Machined |
10. Warranty and Support
For specific warranty information regarding your Dorman 47276 Windshield Washer Nozzle, please refer to the documentation included with your purchase or visit the official Dorman Products website. Dorman Products has over 100 years of experience providing quality automotive replacement parts.
For technical support or further assistance, please contact Dorman Products directly through their official customer service channels.
