Pemberly Row Twin Over Queen Bunk Bed Instruction Manual

1. Product Overview

The Pemberly Row Twin Over Queen Bunk Bed is designed for durability and functionality, featuring a twin-sized upper bunk and a queen-sized lower bunk. Constructed from high-quality wood with a rich espresso finish, this bunk bed includes integrated storage drawers for added convenience. It is designed to support mattresses without the need for a box spring, extending mattress lifespan and providing excellent support. The overall dimensions are 65"H x 83"W x 63"D.

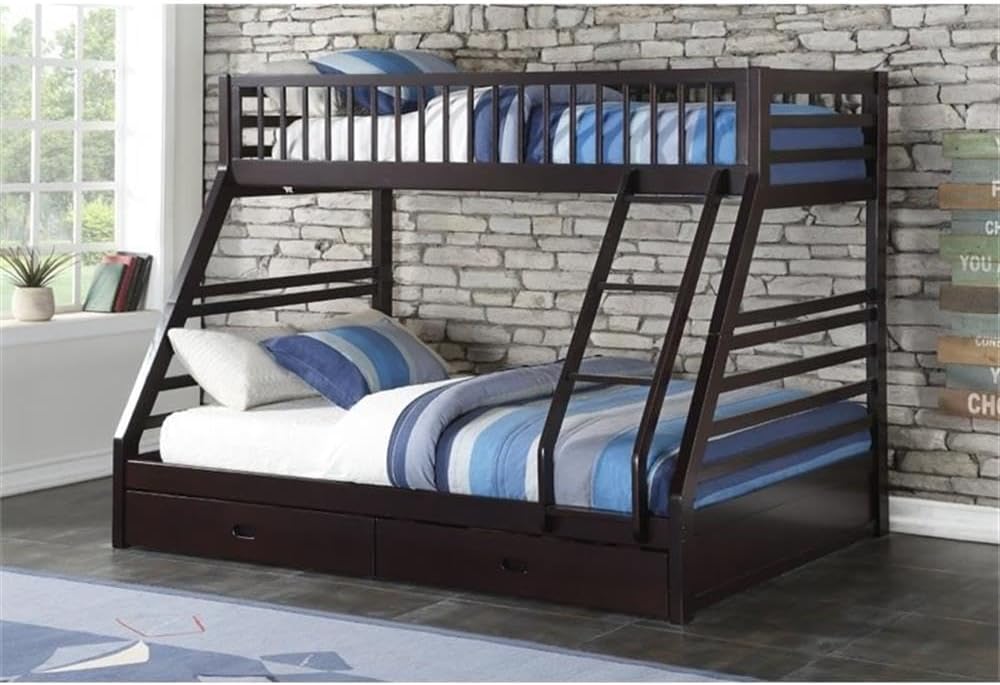

Image 1.1: Front view of the assembled Pemberly Row Twin Over Queen Bunk Bed with storage drawers.

2. Safety Information

Please read and understand all safety warnings and instructions before assembling and using this bunk bed. Failure to follow these instructions can result in serious injury.

• Maximum Weight Capacity: The upper twin bunk has a weight limit of 160 lbs. The lower queen bunk has a higher capacity suitable for adults. Do not exceed these limits.
• Age Recommendation: The upper bunk is not recommended for children under 6 years of age.
• Guardrails: Always use the guardrails on both sides of the upper bunk. Ensure they are properly installed and secured.
• Ladder Safety: Use the ladder for entering and exiting the upper bunk. Do not use other means of access. Ensure the ladder is securely attached before use.
• Mattress Requirements: Use only mattresses that meet the specified dimensions for each bunk. The upper bunk requires a twin-sized mattress, and the lower bunk requires a queen-sized mattress. Ensure the mattress thickness on the upper bunk does not exceed the maximum height indicated by the guardrail safety label.
• No Jumping: Do not allow jumping or rough play on or around the bunk bed.
• Assembly: This product requires assembly. Ensure all parts are correctly assembled and all fasteners are tightened before use. Periodically check and re-tighten all fasteners.
• Ventilation: Ensure adequate ventilation around the bed.
• Location: Place the bunk bed against a wall to prevent accidental falls.

3. Package Contents

Before beginning assembly, ensure all parts listed in the included hardware and parts list are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• All necessary wooden components for the bunk bed frame.
• Wooden slats for both twin and queen mattresses.
• Integrated storage drawers (components and hardware).
• Ladder components.
• All required assembly hardware (screws, bolts, nuts, etc.).
• Assembly tools (e.g., Allen wrench).
• Detailed assembly instructions.

4. Setup and Assembly Instructions

Assembly of the Pemberly Row Twin Over Queen Bunk Bed is designed to be straightforward. It is recommended that two adults perform the assembly to ensure safety and ease of construction. All necessary tools and detailed instructions are included in the packaging.

1. Preparation:
   • Clear a spacious area for assembly, preferably near the final placement of the bed.
   • Unpack all components and lay them out on a soft, clean surface to prevent scratches.
   • Identify all parts using the provided parts list.
2. Assemble the Lower Queen Bed Frame:
   • Follow the step-by-step diagrams in the included manual to connect the headboard, footboard, and side rails for the queen bed.
   • Ensure all bolts are finger-tightened initially.
3. Install Queen Bed Slats:
   • Place the wooden slats across the queen bed frame and secure them according to the instructions.
4. Assemble the Upper Twin Bed Frame:
   • Assemble the headboard, footboard, and side rails for the twin bed, including the guardrails.
   • Ensure all bolts are finger-tightened initially.
5. Attach Upper Bunk to Lower Bunk:
   • Carefully lift the assembled twin bunk frame and align it with the designated connection points on the queen bed frame.
   • Secure the upper bunk to the lower bunk using the provided hardware. This step requires two people.
6. Install Twin Bed Slats:
   • Place the wooden slats across the twin bed frame and secure them.
7. Assemble and Attach Ladder:
   • Assemble the ladder components.
   • Attach the ladder to the upper bunk in the desired position, ensuring it is stable and secure.
8. Assemble Storage Drawers:
   • Follow the instructions to assemble the storage drawers and install them under the queen bed.
9. Final Tightening:
   • Once all components are in place, go back and securely tighten all bolts and screws using the provided tools. Do not overtighten.

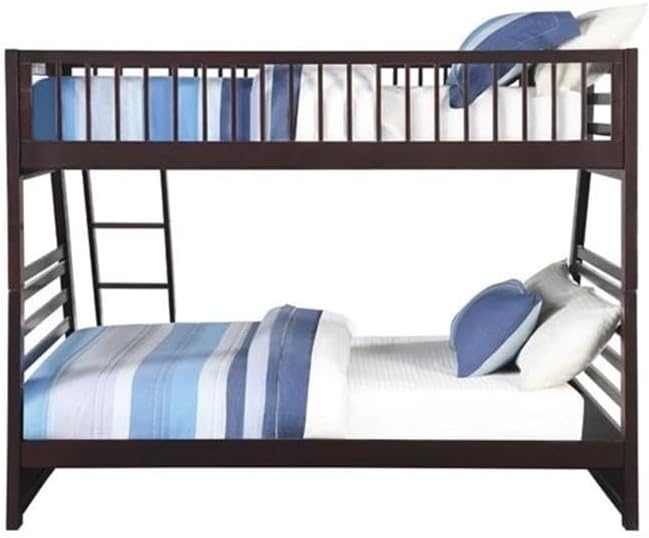

Image 4.1: Side view illustrating the bunk bed structure and ladder placement.

5. Operating Instructions

Using your Pemberly Row Twin Over Queen Bunk Bed is straightforward, but adherence to safety guidelines is essential.

• Accessing the Upper Bunk: Always use the provided ladder to climb to and descend from the upper bunk. Ensure the ladder is stable before use.
• Using Storage Drawers: The integrated drawers are designed for storing lightweight items such as bedding, clothes, or toys. Avoid overloading the drawers to ensure smooth operation and prevent damage.
• Mattress Placement: Ensure mattresses are properly seated on the wooden slats. For the upper bunk, verify that the mattress height does not compromise the effectiveness of the guardrails.

6. Maintenance

Proper maintenance will ensure the longevity and safety of your bunk bed.

• Cleaning: Wipe down the wooden surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Fastener Checks: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and other fasteners. Re-tighten any that have become loose. Do not overtighten.
• Slats Inspection: Check the wooden slats for any signs of damage or cracking. Replace any damaged slats immediately to maintain mattress support and safety.
• Ladder Stability: Ensure the ladder remains securely attached and stable.

7. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common troubleshooting tips:

• Squeaking Noises: Squeaking often indicates loose fasteners. Re-tighten all bolts and screws throughout the bed frame. Ensure the bed is on a level surface.
• Wobbly Frame: A wobbly frame is typically due to loose connections. Systematically check and tighten all assembly hardware. Ensure the bed is assembled correctly according to the instructions.
• Drawers Sticking: Check for any obstructions in the drawer glides. Ensure the drawers are properly aligned on their tracks. Clean any dust or debris from the glides.
• Ladder Instability: Verify that the ladder hooks are fully engaged and secured to the upper bunk. Ensure all ladder fasteners are tight.

8. Specifications

9. Warranty and Support

Pemberly Row is dedicated to quality craftsmanship and excellent design. For any questions regarding assembly, missing parts, or product issues, please contact our customer service team. Our customer service, operating out of North America, is committed to providing exceptional support for your needs.

Please refer to your purchase documentation or the Pemberly Row website for specific warranty details and contact information.
