Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler Capanna 16-inch Outdoor Wall Light, Model 49926BKT. Please read these instructions thoroughly before beginning installation and retain them for future reference. This fixture is designed for outdoor use and features a textured black finish with clear water glass.

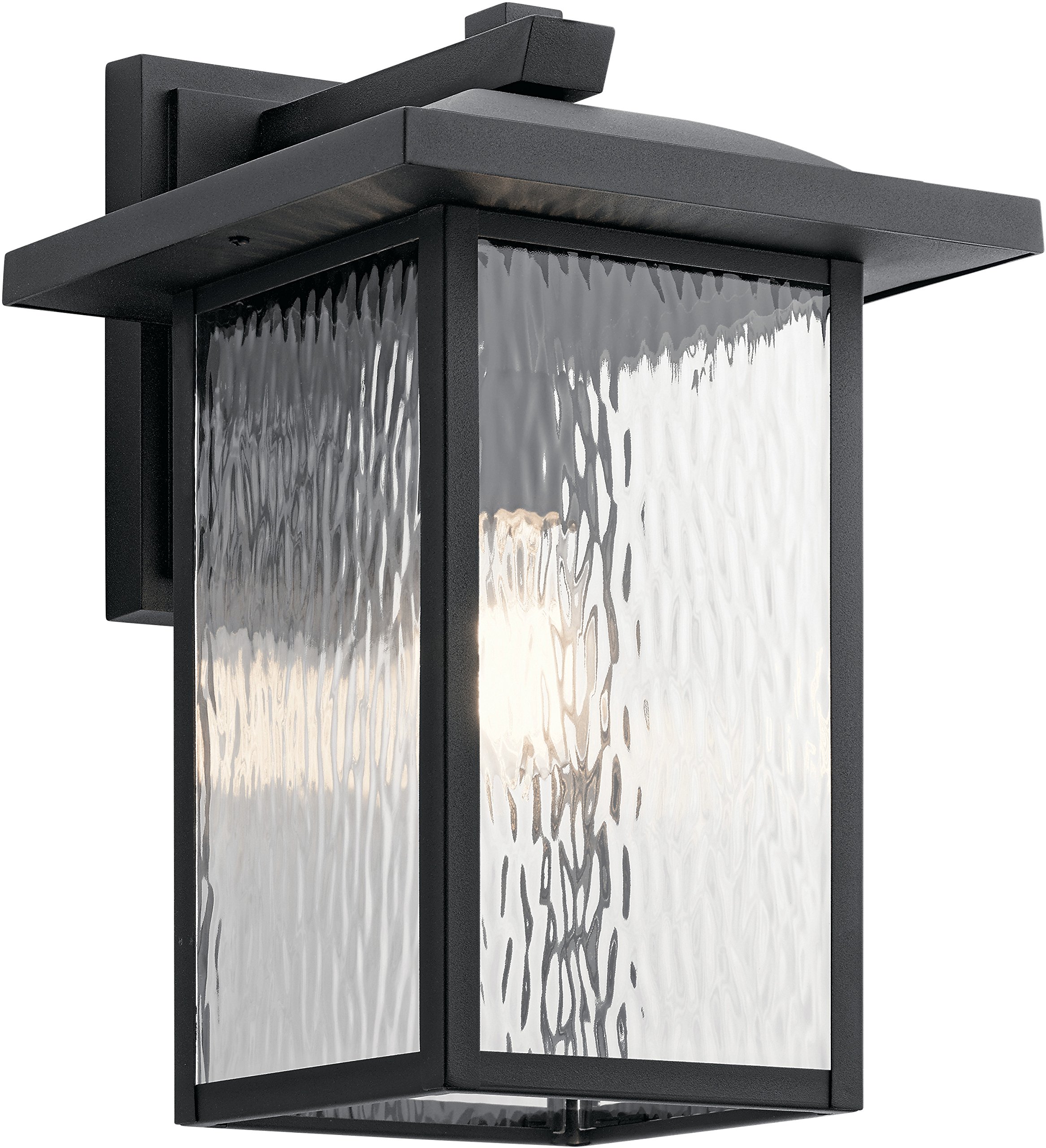

Image: The Kichler Capanna 16-inch outdoor wall light, Model 49926BKT, showcasing its textured black finish and clear water glass, installed on an exterior wall.
Important Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- Do not install this fixture in hazardous locations.
- Ensure all connections are secure and properly insulated.
- This fixture is wet rated, suitable for direct exposure to rain, water spray, or other liquid.
- Use only bulbs of the specified type and wattage.
- Do not exceed the maximum wattage indicated on the fixture.
What's Included
Verify that all components are present before beginning installation:
- Light Fixture (1)
- Glass Panel (1)
- Mounting Hardware (Screws, Wire Nuts, Mounting Plate)
- Instruction Manual (This document)
Setup and Installation
Follow these steps to install your Kichler Capanna outdoor wall light. It is recommended to have a second person assist during installation.
- Turn Off Power: Before starting, ensure the power supply to the junction box is turned off at the circuit breaker or fuse box.
- Prepare Mounting Surface: Ensure the mounting surface is clean, dry, and structurally sound.
- Attach Mounting Bracket: Secure the mounting bracket (included in hardware) to the junction box using the provided screws. Ensure the bracket is level.
- Wire the Fixture:
- Connect the black wire from the fixture to the black (hot) wire from the junction box using a wire nut.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box using a wire nut.
- Connect the ground wire from the fixture to the ground wire from the junction box (or to the green ground screw on the mounting bracket) using a wire nut.
Ensure all wire connections are tight and secure. Carefully tuck wires into the junction box.
- Secure Fixture: Align the fixture with the mounting bracket and secure it using the provided screws.
- Install Bulb: Insert one 100W maximum incandescent bulb (E26 Medium base, not included) into the socket. Do not exceed the maximum wattage. This fixture is dimmable with compatible bulbs and dimmer switches.
- Install Glass Panel: Carefully place the clear water glass panel into the fixture, ensuring it is seated correctly and secured according to the fixture design.
- Restore Power: Once installation is complete and all components are secure, restore power at the circuit breaker or fuse box.
Image: Dimensional diagram of the Kichler Capanna outdoor wall light, indicating a depth of 12 inches, width of 10.5 inches, and height of 16 inches.
Operating Instructions
The Kichler Capanna outdoor wall light is operated by a standard wall switch connected to its electrical circuit. Simply toggle the wall switch to turn the light fixture on or off.
This fixture is designed to be dimmable. If you wish to utilize the dimming feature, ensure you use a dimmable E26 medium base bulb and a compatible dimmer switch (both sold separately).
Maintenance
- Cleaning: To clean the fixture, first ensure the power is off. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or glass.
- Bulb Replacement:
- Turn off power to the fixture at the circuit breaker.
- Allow the old bulb to cool completely before touching.
- Carefully remove the glass panel if necessary to access the bulb.
- Unscrew the old bulb and replace it with a new E26 medium base bulb, not exceeding 100 watts.
- Reinstall the glass panel.
- Restore power.
- Inspection: Periodically inspect the fixture for any signs of wear, damage, or loose connections. Address any issues promptly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Bulb is faulty or loose. Incorrect wiring. | Check circuit breaker/fuse. Replace bulb or tighten. Verify wiring connections (refer to Setup section). |
| Light flickers. | Loose bulb. Loose wiring connection. Incompatible dimmer switch/bulb. | Tighten bulb. Check wiring connections. Ensure dimmable bulb and compatible dimmer are used. |
| Glass panel is loose. | Improperly seated glass. | Ensure glass panel is correctly positioned and secured within the fixture. |
If you experience issues not listed here or if the problem persists, contact Kichler customer support.
Specifications
| Brand | Kichler |
| Model Number | 49926BKT |
| Product Dimensions | 12"L x 10.5"W x 16"H |
| Material | Aluminum (Fixture), Glass (Shade) |
| Finish | Textured Black (Fixture), Clear Water (Glass) |
| Power Source | Hardwire |
| Voltage | 120 Volts (AC) |
| Wattage (Max) | 100 watts |
| Bulb Base | E26 Medium |
| Light Source Type | Incandescent (Dimmable with compatible bulb/switch) |
| Indoor/Outdoor Usage | Outdoor |
| Water Resistance Level | Waterproof (Wet Rated) |
| Special Features | Anti-Rust, Dimmable |
| Included Components | Light Fixture, Glass Panel, Mounting Hardware, Instruction Manual |
| Assembly Required | Yes |
| Certification | ETL Listed |
Warranty and Support
Warranty: This Kichler Capanna outdoor wall light is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Customer Support: For technical assistance, replacement parts, or warranty inquiries, please visit the official Kichler website or contact their customer service department. Contact information can typically be found on the Kichler website or product packaging.
