1. Product Overview
The CHACON 54661 Set provides a convenient solution for wirelessly controlling your electrical appliances and lighting. This set includes two remote-controlled sockets and one remote control, allowing you to switch devices on or off from a distance within your home.
- Wireless Control: Operate devices without direct access to the wall socket.
- Easy Installation: Simple plug-and-play setup.
- Wide Compatibility: Suitable for various household appliances.
- Operating Frequency: 433.92 MHz.
- Maximum Power: 2000 Watts.
- Transmission Range: Up to 25 meters in open field conditions.
Image: CHACON remote control and a socket in a typical home environment, demonstrating wireless control.
2. Safety Information
Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Indoor Use Only: This product is designed for indoor use in dry locations. Do not expose to rain or moisture.
- Maximum Load: Do not exceed the maximum load of 2000 Watts. Overloading can cause overheating and fire.
- Ventilation: Ensure adequate ventilation around the sockets. Do not cover them.
- Children and Pets: Keep out of reach of children and pets.
- Disassembly: Do not attempt to open, modify, or repair the device. Refer all servicing to qualified personnel.
- Cleaning: Disconnect from power before cleaning. Use a dry, soft cloth. Do not use liquid cleaners.
- Disposal: Dispose of batteries and the product according to local regulations.

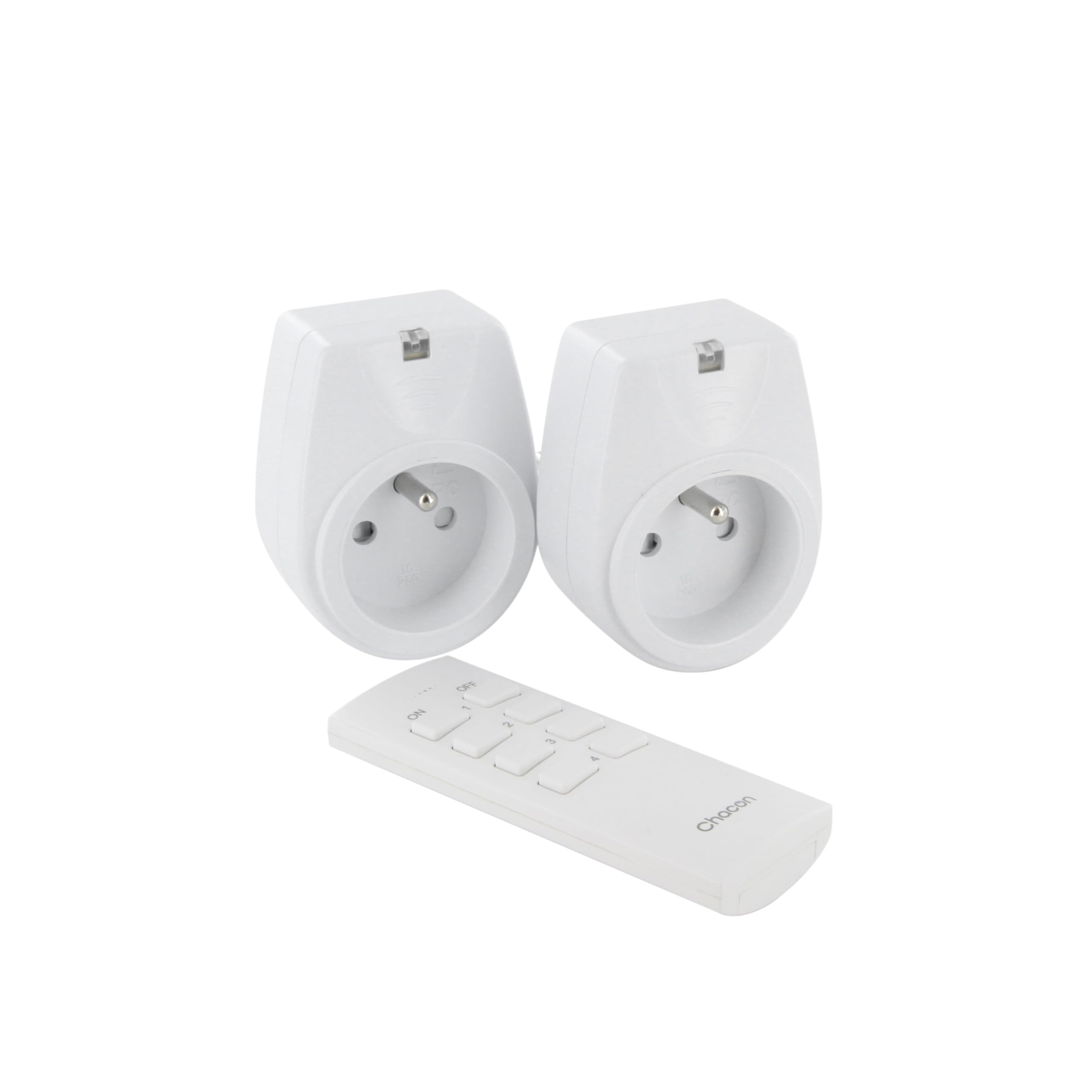

3. Package Contents
Verify that all items are present in the package:
- 2 x CHACON Remote Controlled Sockets
- 1 x CHACON Remote Control
- 1 x Lithium-ion Battery (pre-installed in remote or supplied separately)
- 1 x User Manual (this document)
4. Setup
4.1. Remote Control Battery Installation
The remote control requires one Lithium-ion battery. If not pre-installed, follow these steps:
- Locate the battery compartment on the back of the remote control.
- Open the battery compartment cover.
- Insert the Lithium-ion battery, ensuring correct polarity (+ and -).
- Close the battery compartment cover securely.
Image: Close-up view of the CHACON remote control, showing the ON/OFF buttons and channel selectors (1, 2, 3, 4).
4.2. Pairing Sockets with Remote Control
Each socket needs to be paired with the remote control to establish communication. The remote control has four channels (1, 2, 3, 4) which can be used to control individual sockets or groups of sockets.
- Plug one CHACON remote controlled socket into a standard wall outlet. The LED indicator on the socket may flash.
- Within 5 seconds of plugging in the socket, press and hold the small pairing button located on the side or front of the socket until the LED indicator starts flashing rapidly.
- While the socket's LED is flashing, press the desired "ON" button (e.g., "1 ON") on the remote control.
- The socket's LED indicator will stop flashing and remain solid for a moment, then turn off, indicating successful pairing.
- Repeat this process for the second socket, assigning it to a different channel (e.g., "2 ON") or the same channel if you wish to control both simultaneously.
- To unpair a socket, plug it in, then press and hold the pairing button until the LED flashes rapidly. Then, press the corresponding "OFF" button on the remote control.
Image: A CHACON remote controlled socket plugged into a wall outlet, ready for pairing.
5. Operating Instructions
Once your sockets are paired, you can easily control your connected devices.
- Plug the appliance you wish to control into the CHACON remote controlled socket.
- Ensure the appliance's own power switch is in the "ON" position (if applicable).
- To turn the appliance ON, press the corresponding "ON" button (1, 2, 3, or 4) on your remote control.
- To turn the appliance OFF, press the corresponding "OFF" button (1, 2, 3, or 4) on your remote control.
You can control devices individually or, if multiple sockets are paired to the same channel, control them simultaneously.
Image: A hand holding the CHACON remote control, demonstrating its use to switch on a lamp.
6. Maintenance
6.1. Cleaning
To clean the sockets and remote control, ensure they are disconnected from power. Use a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse in water.
6.2. Remote Control Battery Replacement
If the remote control's range decreases or it stops responding, the battery may need replacement. Follow the steps in Section 4.1 to replace the Lithium-ion battery with a new one of the same type.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Socket does not respond to remote control. |
|
|
| Connected appliance does not turn on/off. |
|
|
| Reduced transmission range. |
|
|
8. Specifications
| Brand | CHACON |
| Model Number | 54661 |
| Color | White |
| Special Features | Wireless |
| Compatible Devices | Air conditioner, Game console, Iron, Speaker, Lamp, DVD player, MP3 player, E-reader, Coffee machine, Modem, Laptop, Heater, Router, Refrigerator, Set-top box, Smartphone, Smartwatch, Audio system, Hair dryer, Tablet, Television |
| Remote Battery Type | Lithium-ion (1 included) |
| Max Power | 2000 Watts |
| Transmission Distance | 25m (open field) |
| Frequency | 433.92 MHz |
| Voltage | 230V |
| Number of Sockets | 2 |
| Plug Type | FR (Type E/F) |
| Material | Polyvinyl Chloride (PVC) |
| Country of Origin | China |
9. Warranty
This CHACON product is covered by a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
Please retain your proof of purchase for warranty claims.
10. Support
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact CHACON customer support.
Visit the official CHACON website for the most up-to-date support information and contact details.
Note: Specific contact information may vary by region.
