1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Gladiator Premium 12V 140A Alternator. This alternator is designed to meet or exceed OEM specifications for various John Deere Marine engines and Ag-Chem Sprayer models.
Compatible Applications:
- John Deere Marine Engines: 6081AFM01 (8.1L), 6081AFM75 (8.1L), 6125AFM01 (12.5L), 6125AFM75 (12.5L), 6125SFM75 (12.5L)
- Ag-Chem Sprayer 6103 TERRAGATOR (1998-2004)
- John Deere 3510 (8.1L, 1998-2000)
2. Safety Information
Always prioritize safety when working with electrical components and machinery. Failure to follow these safety guidelines may result in personal injury or damage to equipment.
- Disconnect Battery: Before beginning any work, always disconnect the negative (-) battery cable first, followed by the positive (+) cable.
- Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
- Avoid Short Circuits: Ensure no tools or metal objects come into contact with battery terminals or electrical connections simultaneously.
- Professional Installation: If you are unsure about any step, consult a qualified technician.
- Ventilation: Ensure adequate ventilation when working with batteries, as they can produce explosive gases.
3. Product Overview
The Gladiator Premium Alternator is a high-quality replacement unit designed for reliable performance. It features an internal regulator and internal fan for efficient operation, and comes with an 8-groove pulley.
Key Features:
- 12 Volt, 140 Amp output
- Internal Regulator and Internal Fan
- Clockwise (CW) Rotation
- Equipped with an 8-Groove Pulley
- Meets or exceeds OEM specifications

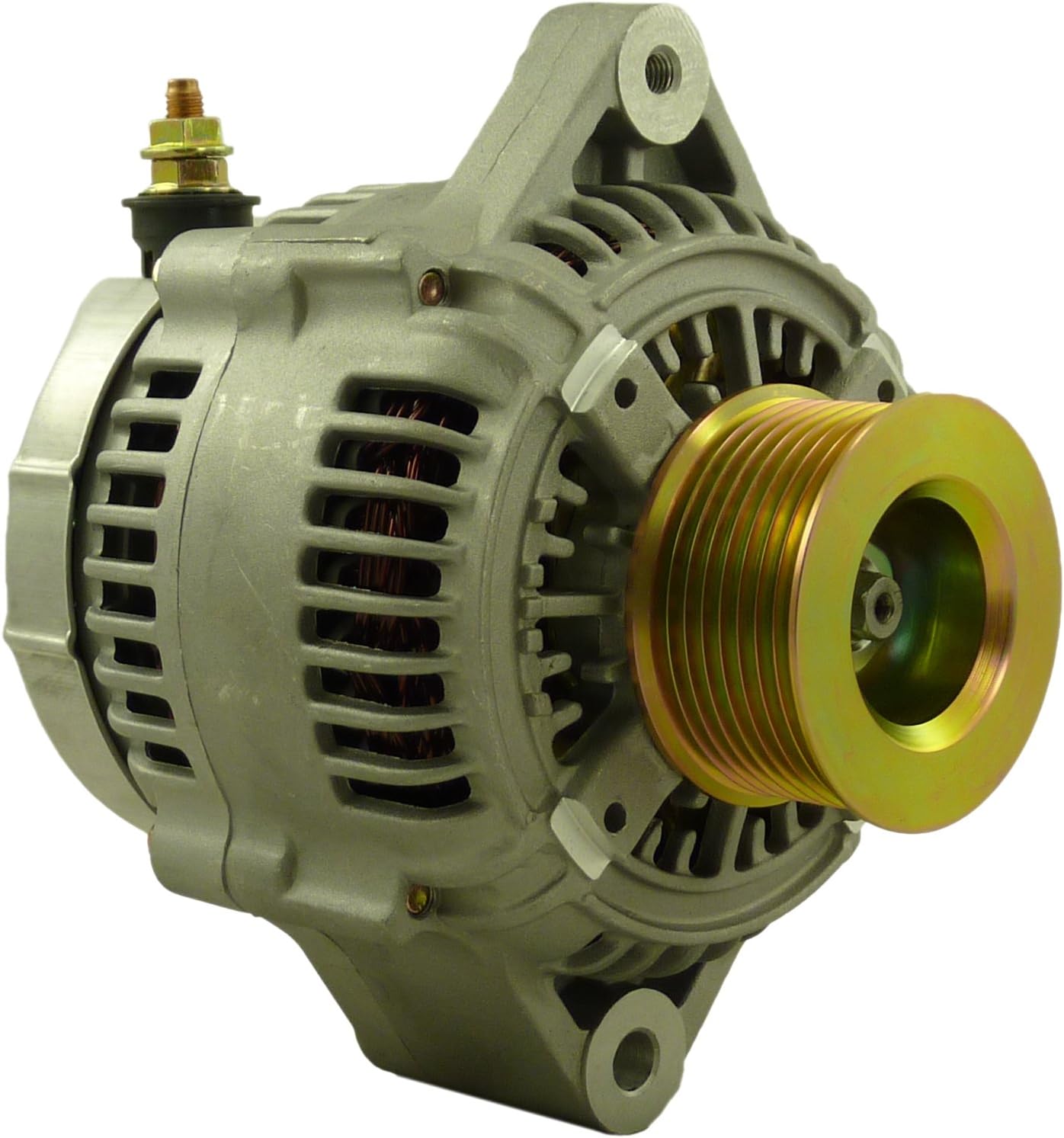

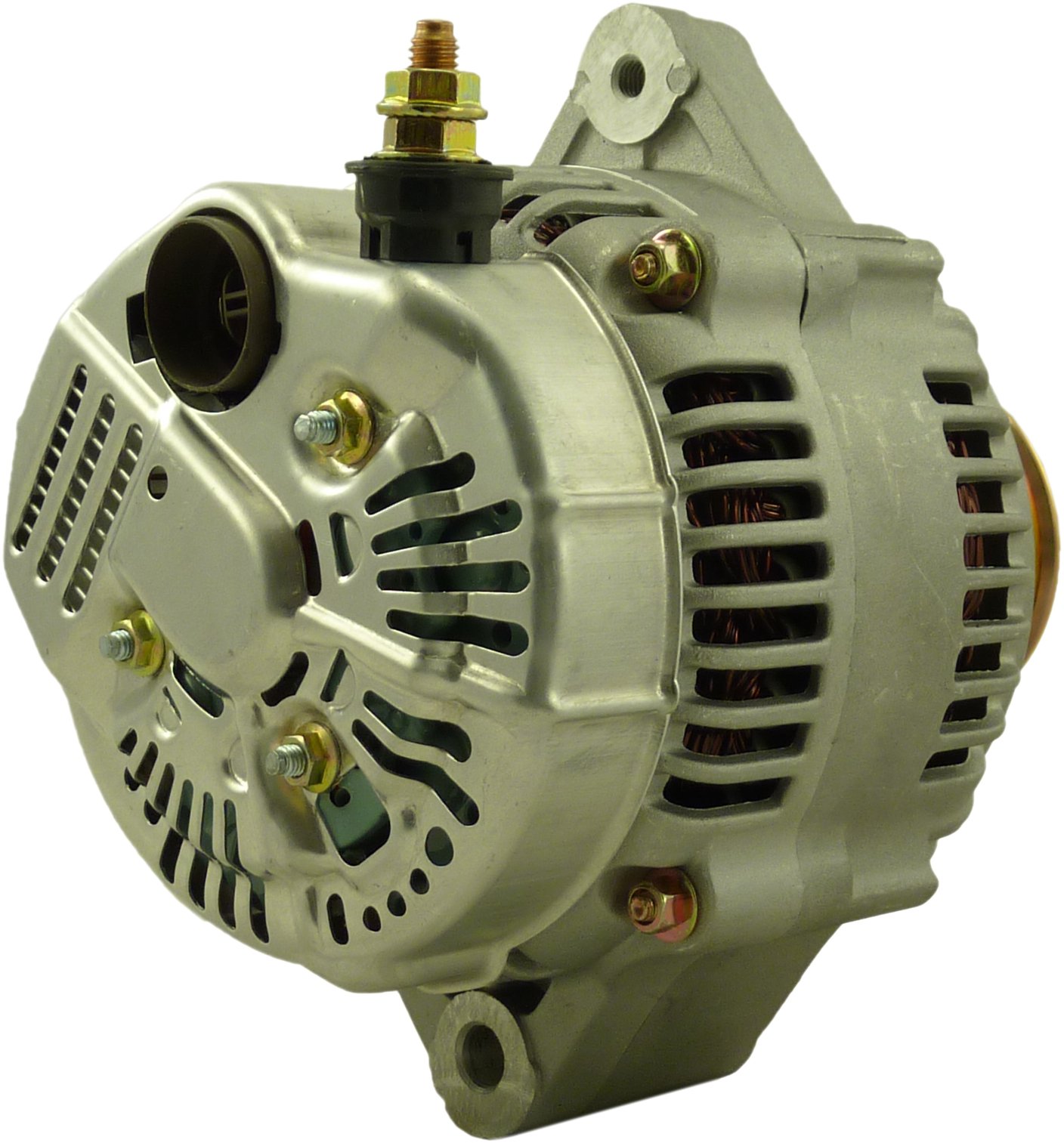

Product Images:
4. Setup and Installation
Proper installation is crucial for the alternator's performance and longevity. Refer to your vehicle's specific service manual for detailed instructions, as procedures may vary.
Pre-Installation Checks:
- Ensure the new alternator matches the specifications and mounting configuration of the original unit.
- Inspect the drive belt for wear or damage. Replace if necessary.
- Check battery condition. A weak or faulty battery can stress a new alternator.
- Clean all electrical connections and mounting surfaces.
Installation Steps (General):
- Disconnect Battery: Disconnect the negative (-) battery cable first, then the positive (+) cable.
- Remove Drive Belt: Loosen the tensioner and remove the serpentine or V-belt from the alternator pulley.
- Disconnect Wiring: Carefully disconnect all electrical connections from the old alternator (main output wire, regulator wires). Note their positions for reinstallation.
- Remove Old Alternator: Unbolt the old alternator from its mounting brackets and remove it from the engine compartment.
- Install New Alternator: Position the new Gladiator alternator into the mounting brackets. Install and tighten the mounting bolts to the manufacturer's specified torque.
- Connect Wiring: Reconnect all electrical wires to the new alternator. Ensure connections are clean and secure.
- Install Drive Belt: Route the drive belt correctly around all pulleys. Adjust the tensioner to achieve the proper belt tension according to your vehicle's specifications.
- Reconnect Battery: Reconnect the positive (+) battery cable first, then the negative (-) cable.
5. Operating Instructions
After installation, perform the following checks before operating the vehicle:
- Initial Start-up: Start the engine and observe the dashboard warning lights. The battery or charging system warning light should turn off shortly after the engine starts.
- Voltage Check: With the engine running, use a voltmeter to check the battery voltage. It should typically read between 13.8V and 14.8V, indicating proper charging.
- Listen for Noise: Listen for any unusual noises (e.g., squealing, grinding) that might indicate an issue with the belt or alternator.
During normal operation, the alternator continuously charges the battery and powers the vehicle's electrical systems. If the charging system warning light illuminates during operation, refer to the troubleshooting section.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your alternator.
- Belt Inspection: Periodically inspect the drive belt for cracks, fraying, or excessive wear. Ensure it has the correct tension. A loose belt can cause insufficient charging, while an overly tight belt can damage alternator bearings.
- Wiring Connections: Check all electrical connections to the alternator for corrosion or looseness. Clean and tighten as needed.
- Cleanliness: Keep the alternator free from excessive dirt, oil, and debris, which can impede cooling and affect performance.
- Battery Health: Ensure your battery is in good condition. A failing battery can overwork the alternator.
7. Troubleshooting
If you experience issues with your charging system, consider the following common problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Battery/Charge Warning Light On | Loose or worn drive belt, faulty wiring connection, failing alternator, faulty battery. | Check belt tension and condition. Inspect all wiring. Test alternator output and battery health. |
| Low Battery Voltage / Slow Cranking | Alternator not charging, excessive electrical load, faulty battery. | Check alternator output. Reduce electrical load. Test and charge/replace battery. |
| Unusual Noise (Squealing, Grinding) | Loose or worn drive belt, worn alternator bearings. | Inspect and adjust/replace drive belt. If noise persists, alternator may require replacement. |
| Overcharging (High Voltage) | Faulty internal voltage regulator. | Alternator requires replacement. |
If troubleshooting steps do not resolve the issue, it is recommended to have the charging system professionally diagnosed.
8. Specifications
| Specification | Value |
|---|---|
| Voltage | 12V |
| Amperage | 140A |
| Regulator Type | Internal |
| Fan Type | Internal |
| Pulley Type | 8-Groove |
| Rotation | Clockwise (CW) |
| Product Dimensions | 7.3 x 8 x 6 inches |
| Item Weight | 13 pounds |
| Manufacturer | Gladiator |
| ASIN | B078MNDGZF |
9. Warranty Information
This Gladiator Premium Alternator comes with a One Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to improper installation, misuse, neglect, accident, or unauthorized modifications.
10. Support
For technical assistance, warranty claims, or further inquiries, please contact your retailer or the manufacturer directly. When contacting support, please have your product model numbers and purchase information readily available.
