1. Product Overview
The Ruiandsion P13.5S 1W LED Upgrade Flashlight Bulb is designed to replace traditional incandescent bulbs in compatible flashlights and torches. It offers enhanced brightness, energy efficiency, and a longer lifespan. This bulb features a warm white 3000K color temperature and provides 120 lumens of light output. It operates within a DC 5V-24V voltage range and is designed for negative earth polarity systems.
Image 1: Two Ruiandsion P13.5S 1W LED upgrade flashlight bulbs. These bulbs are designed for direct replacement in compatible flashlight and torch models.
2. Setup and Installation
Follow these steps to install your new Ruiandsion P13.5S LED bulb:
- Ensure the flashlight or torch is turned off and any batteries are removed to prevent accidental activation or electrical shock.
- Unscrew the head of the flashlight or torch from its body.
- Carefully remove the retaining collar, if present, and the old incandescent bulb. Dispose of the old bulb responsibly.
- Insert the new Ruiandsion P13.5S LED bulb into the socket. Ensure proper alignment and a secure fit.
- Verify the polarity: This bulb requires a negative earth system, meaning the positive terminal of the battery connects to the bulb tip. If your flashlight uses a positive earth system, this bulb is not suitable.
- Replace the retaining collar and screw the flashlight head back onto the body.
- Reinsert batteries and test the flashlight.

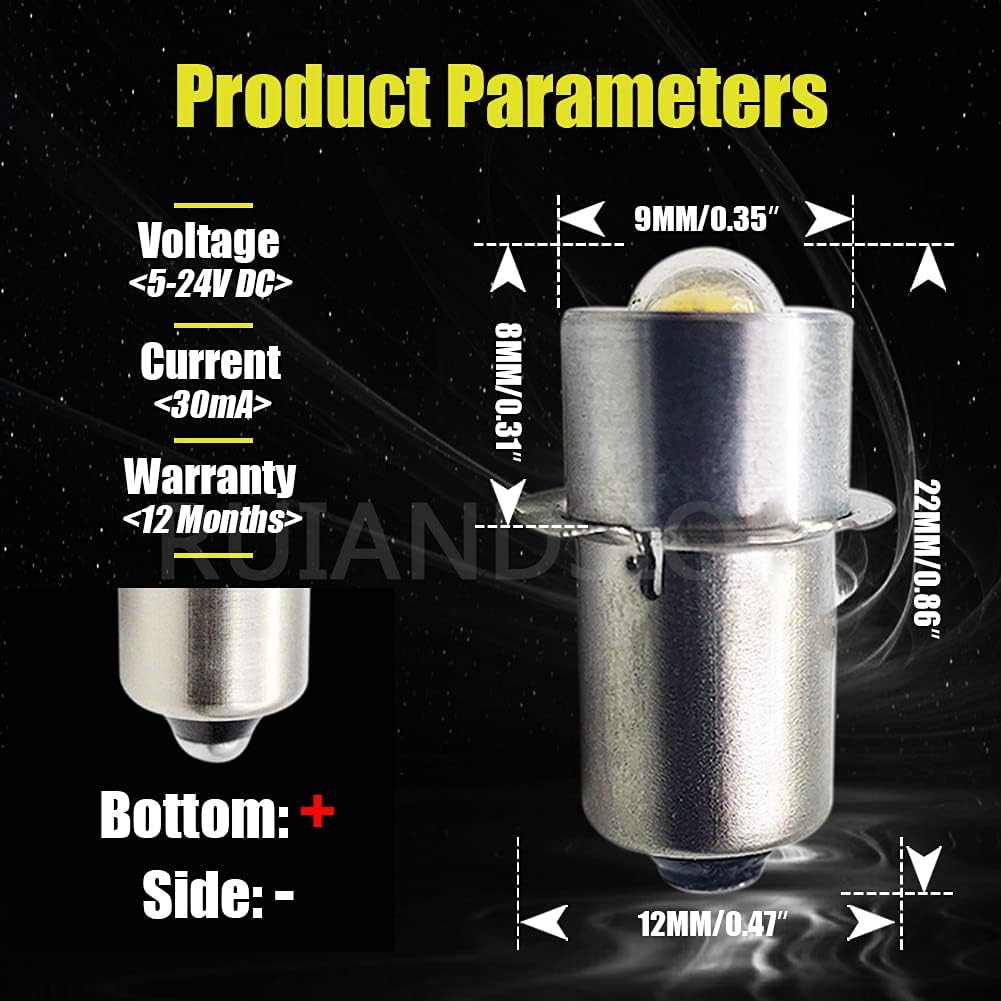

Image 2: A diagram illustrating the dimensions (0.86" L x 0.35" D) and polarity (bottom positive, side negative) of the P13.5S LED bulb, crucial for correct installation.
3. Operating Instructions
The Ruiandsion P13.5S LED bulb is designed for simple operation once installed. It functions as a direct replacement for incandescent bulbs in compatible flashlights and torches.
- Voltage Compatibility: This bulb is designed for DC 5V-24V systems. While it can operate up to 24V, continuous operation at the maximum voltage for extended periods is not recommended to ensure longevity.
- Polarity: The bulb requires a negative earth (negative ground) system, where the positive terminal of the battery connects to the bulb tip. Incorrect polarity will prevent the bulb from lighting up.
- Instant Illumination: The LED bulb provides instant light-up (0.1 seconds) without warm-up time.
Image 3: The P13.5S LED bulb producing a focused beam of light, demonstrating its effectiveness as an upgrade for flashlights.
4. Maintenance
The Ruiandsion P13.5S LED bulb is designed for minimal maintenance due to its robust construction and long lifespan.
- Cleaning: If necessary, gently wipe the bulb's surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Heat Dissipation: The bulb features good heat dissipation properties, utilizing aviation-grade aluminum to maintain optimal operating temperatures.
- Water Resistance: With an IP65 rating, the bulb offers good waterproof effect, protecting it from dust and low-pressure water jets. However, it is not designed for submersion.
- Lifespan: The bulb has an estimated lifespan of up to 30,000 hours, significantly longer than traditional bulbs.
Image 4: An illustration highlighting the good heat dissipation provided by aviation-grade aluminum and the IP65 waterproof rating of the LED bulb, ensuring durability.
5. Troubleshooting
If your Ruiandsion P13.5S LED bulb is not functioning as expected, consider the following:
- Bulb Not Lighting Up:
- Check battery charge and ensure batteries are correctly inserted.
- Verify the flashlight's switch is functioning correctly.
- Confirm the bulb is securely seated in the socket.
- Ensure your flashlight uses a negative earth (negative ground) system. This bulb is not compatible with positive earth systems.
- Dim Light Output:
- Check battery charge. Low battery voltage can result in reduced brightness.
- Ensure the flashlight's internal contacts are clean and free of corrosion.
- Flickering Light:
- Check for loose connections in the flashlight or bulb socket.
- Ensure stable voltage supply from the batteries.
6. Specifications
| Feature | Specification |
|---|---|
| Model | ASP13.5S-1W-3-18V-4K |
| Base Type | P13.5S |
| LED Type | COB SMD x 1 |
| Color Temperature | Warm White 3000K |
| Lumen Output | 120 LM |
| Voltage | DC 5V-24V |
| Power | 1W (theoretical) |
| Beam Angle | 180° |
| Polarity | Negative Earth (Positive at bulb tip) |
| Lifespan | Up to 30,000 Hours |
| Operating Temperature | -40°C to +75°C |
| Certification | CE, RoHS |
| Dimensions (L x D) | 0.86" x 0.35" (22mm x 9mm) |
| Material | LED, Aviation Grade Aluminum |
| IP Rating | IP65 |
7. Warranty and Support
Ruiandsion provides a 12-month warranty for this product. If you encounter any issues with your bulb within this period, please contact customer support for assistance.
- Warranty Claim: To claim warranty service, you may be required to provide product photos to confirm the issue. A replacement will be provided free of charge upon confirmation.
- Customer Support: For any questions, technical assistance, or warranty inquiries, please refer to the seller's contact information on the purchase platform or visit the official Ruiandsion store page.
Image 5: Ruiandsion's commitment to customer support, including a one-year guarantee and prompt response for product inquiries.
