NewPowerGear Cover Plate Replacement Instruction Manual

1. Introduction

This manual provides instructions for the installation and maintenance of the NewPowerGear Cover Plate Replacement, model JCEC201712250400001. This cover plate is designed as a direct replacement part for specific Elna sewing machine models, including 3002, 3003, 3004, 3005, 3006, and 3007. It ensures proper function and protection of internal sewing machine components.

2. Setup and Installation

Before beginning installation, ensure your sewing machine is turned off and unplugged from the power source to prevent accidental operation or injury.

1. Identify the Existing Cover Plate: Locate the cover plate on your Elna sewing machine that requires replacement. This is typically found over the bobbin area or needle plate.
2. Remove the Old Cover Plate: Depending on your specific Elna model, the cover plate may be held in place by small screws or a snap-on mechanism. Use an appropriate screwdriver if screws are present, or gently pry it off if it's a snap-on type. Store any removed screws safely.
3. Clean the Area: With the old cover plate removed, clean any lint, dust, or debris from the area where the new cover plate will be installed. This ensures a proper fit and prevents future issues.
4. Position the New Cover Plate: Carefully align the NewPowerGear replacement cover plate with the opening on your sewing machine. Ensure all tabs or screw holes match the corresponding slots or posts.
5. Secure the New Cover Plate: If your original cover plate used screws, reinsert and tighten them gently until snug. Do not overtighten. If it was a snap-on type, press firmly around the edges until it clicks securely into place.
6. Verify Fit: Once installed, gently test the cover plate to ensure it is securely in place and does not wobble.

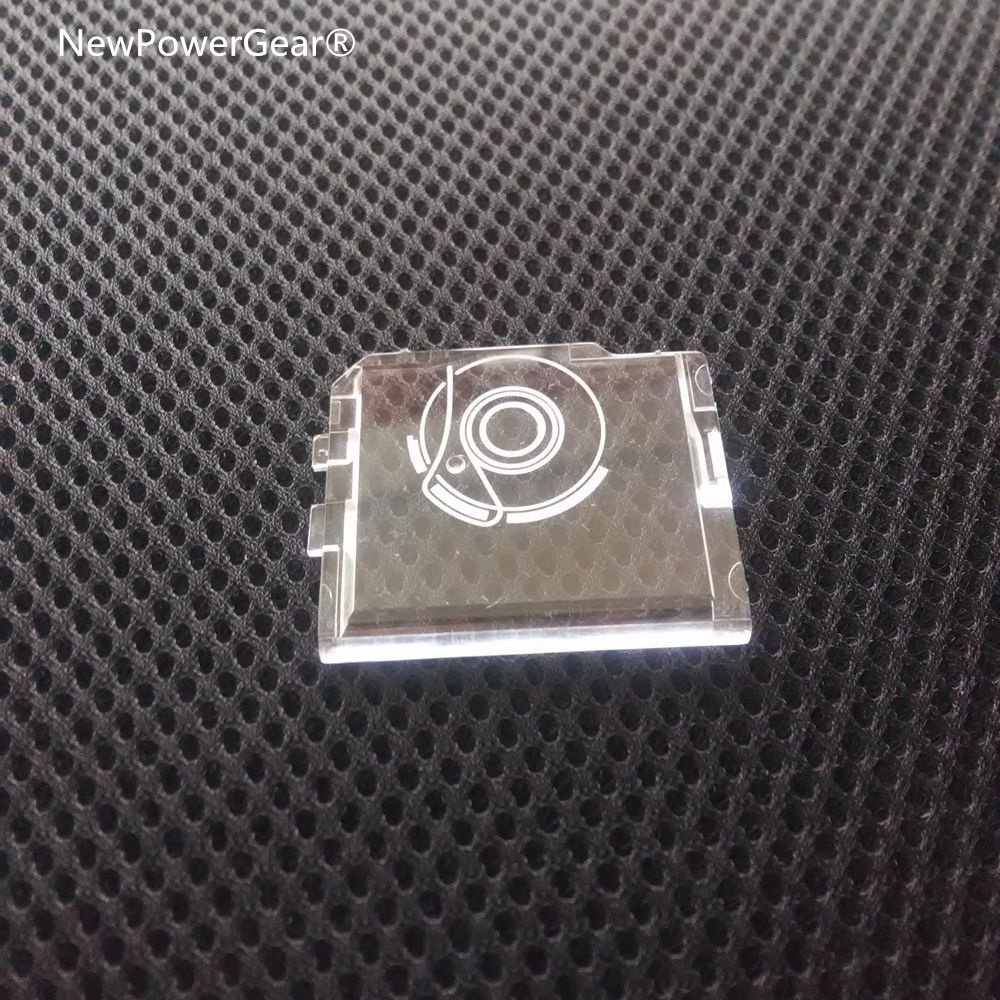

Image 1: The NewPowerGear Cover Plate Replacement. This image displays the replacement part, highlighting its design and material, ready for installation into compatible Elna sewing machines.

3. Usage and Function

The cover plate serves a critical function in your sewing machine by protecting the bobbin case, feed dogs, and other delicate internal mechanisms from dust, lint, and accidental damage during operation. It also provides a smooth surface for fabric to glide over, contributing to consistent stitch quality. Ensure the cover plate is always properly installed before operating your sewing machine.

4. Maintenance

To ensure the longevity and proper function of your cover plate and sewing machine:

• Regular Cleaning: Periodically remove the cover plate and use a soft brush or lint roller to clean any accumulated lint or dust from both the cover plate and the underlying machine components.
• Avoid Harsh Chemicals: Clean the cover plate with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals, as these can damage the plastic material.
• Inspect for Damage: Regularly check the cover plate for cracks, warping, or excessive wear. A damaged cover plate can affect stitch quality or expose internal parts. Replace if significant damage is observed.

5. Troubleshooting

• Cover Plate Does Not Fit:
  • Double-check that your Elna sewing machine model (3002, 3003, 3004, 3005, 3006, or 3007) is listed as compatible.
  • Ensure the cover plate is oriented correctly.
  • Verify that no debris is obstructing the installation area.
• Cover Plate is Loose After Installation:
  • If secured by screws, ensure they are tightened appropriately (do not overtighten).
  • If snap-on, ensure all clips are fully engaged. Press firmly around the edges.
  • Inspect the cover plate and machine for any broken tabs or mounting points.

6. Specifications

7. Warranty and Support

This NewPowerGear Cover Plate Replacement comes with a Fit and Function Guarantee, ensuring the part will fit and perform as expected for the specified Elna models. For any issues or support inquiries, please refer to your original purchase documentation or contact the seller directly.

Return Policy: A return policy of 30 days for refund/replacement is typically offered. Please consult your purchase receipt or the retailer's policy for specific details regarding returns or exchanges.
