OREGON 620-230 Professional Chainsaw Sharpener

Product Overview

The OREGON 620-230 is a professional-grade chainsaw sharpener designed for efficient and precise maintenance of saw chains. Featuring a robust 230 Volt motor and a hydraulic clamping system, this sharpener ensures consistent results for various chain types and sizes. Its versatile design allows for both bench and wall mounting, making it suitable for any workshop environment.

Key Features:

• Professional Performance: Equipped with a hydraulic clamping system for strong, consistent performance, ideal for frequent and high-volume chain sharpening.
• Versatile Mounting: Can be securely attached to a workbench or wall using the included screws, optimizing space in your workshop or garage.
• Universal Compatibility: Sharpens chains with a pitch up to 404 inches, accommodating most saw chains from leading manufacturers including Oregon Tool, Stihl, and Husqvarna.
• Precision Sharpening: Multiple adjustment points allow for fine-tuning sharpening accuracy, complemented by built-in lighting for enhanced visibility of the sharpening area.

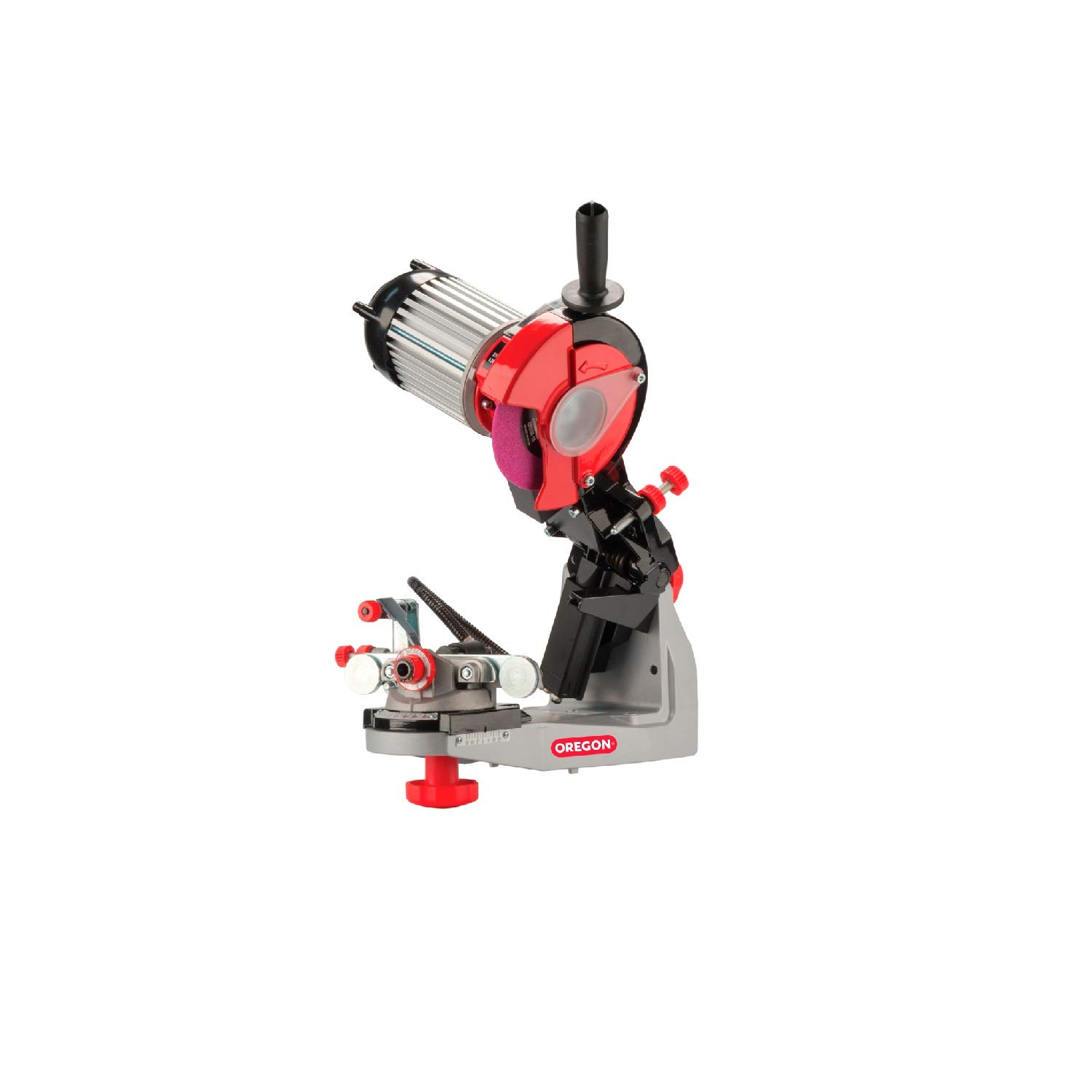

Image 1: The OREGON 620-230 sharpener in operation, demonstrating its hydraulic clamping system and grinding wheel.

Important Safety Information

Always read and understand all safety warnings and instructions before operating this tool. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Personal Protective Equipment: Always wear safety glasses, hearing protection, and gloves when operating the sharpener.
• Work Area: Ensure your work area is clean, well-lit, and free from clutter. Do not operate in damp or wet conditions.
• Electrical Safety: Ensure the power supply matches the tool's requirements (230V). Do not use the tool if the power cord is damaged.
• Secure Mounting: Always ensure the sharpener is securely mounted to a stable workbench or wall before use.
• Chain Handling: Handle chainsaw chains with care. They are sharp and can cause injury.
• Unplug When Not in Use: Disconnect the sharpener from the power source before making adjustments, changing accessories, or storing the tool.

Package Contents

Verify that all items are present upon unpacking:

• 1 x OREGON 620-230 Chainsaw Sharpener
• Grinding Wheels (various sizes for different chain pitches)
• Dressing Brick
• Hex Wrenches
• Instruction Manual
• Mounting Hardware (screws for bench/wall mounting)

Image 2: The OREGON 620-230 sharpener with its main components visible.

Setup and Assembly

Mounting the Sharpener:

1. Choose a stable and level surface for mounting, such as a workbench or a sturdy wall.
2. Position the sharpener and mark the drilling points for the mounting screws.
3. Drill appropriate pilot holes.
4. Secure the sharpener using the provided mounting hardware, ensuring it is firmly attached and does not wobble.

Installing the Grinding Wheel:

1. Ensure the sharpener is unplugged from the power source.
2. Remove the protective cover over the grinding wheel spindle.
3. Place the appropriate grinding wheel onto the spindle, ensuring it sits flush.
4. Secure the grinding wheel with the retaining nut, tightening it firmly but without over-tightening.
5. Replace the protective cover.

Image 3: Various grinding wheels suitable for the OREGON 620-230 sharpener.

Operating Instructions

Preparing the Chainsaw Chain:

1. Remove the chainsaw chain from the chainsaw. Clean the chain thoroughly to remove any dirt, sawdust, or debris.
2. Inspect the chain for any damaged or missing cutters. Replace the chain if necessary.

Sharpening Process:

1. Adjusting the Vise: Place the chain into the vise. Adjust the vise to securely hold the chain, ensuring the cutter to be sharpened is positioned correctly under the grinding wheel. The hydraulic clamping system will assist in holding the chain firmly.
2. Setting Sharpening Angles: Adjust the grinding angle, tilt angle, and depth stop according to the specifications for your chainsaw chain. Refer to your chainsaw chain manufacturer's recommendations for precise angles.
3. Power On: Plug the sharpener into a 230V power outlet. Turn on the sharpener.
4. Sharpening Each Cutter: Gently lower the grinding wheel onto the cutter. Apply light, consistent pressure. Sharpen each cutter with one or two passes until a sharp edge is achieved. Ensure all cutters on one side are sharpened before proceeding to the other side.
5. Depth Gauge Adjustment: After sharpening the cutters, check the depth gauges. If necessary, use a flat file and depth gauge tool to file down the depth gauges to the correct height.
6. Repeat for Other Side: Adjust the vise and grinding angles for the opposite side of the chain and repeat the sharpening process for all remaining cutters.
7. Power Off and Unplug: Once all cutters are sharpened, turn off the sharpener and unplug it from the power source.

Maintenance

Cleaning:

• After each use, unplug the sharpener and use a brush or compressed air to remove grinding dust and debris from the machine, especially around the motor and moving parts.
• Wipe down exterior surfaces with a clean, dry cloth.

Grinding Wheel Replacement:

• When the grinding wheel becomes worn or damaged, it needs to be replaced.
• Ensure the sharpener is unplugged.
• Follow the steps for "Installing the Grinding Wheel" in the Setup section to replace the old wheel with a new one.

Dressing the Grinding Wheel:

• Use the provided dressing brick to clean and reshape the grinding wheel as it becomes glazed or uneven. This maintains optimal sharpening performance.
• Follow the instructions provided with the dressing brick for proper use.

Image 4: Close-up view of the chain clamping mechanism and grinding wheel, essential for proper maintenance.

Troubleshooting

Technical Specifications

Warranty and Support

This OREGON 620-230 Chainsaw Sharpener comes with a standard manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included in your product packaging or visit the official Oregon website. For technical support, spare parts, or service inquiries, please contact Oregon customer service or an authorized service center.

You can find more information and contact details on the Oregon Brand Store.
