VIPARSPECTRA PAR600 600W LED Grow Light Instruction Manual

1. Product Overview

The VIPARSPECTRA PAR600 LED Grow Light is engineered to provide an optimal full spectrum for indoor plants throughout all stages of growth, from vegetative to flowering. This light features a 12-band spectrum, designed through extensive testing to support robust plant development and yield. It incorporates advanced cooling technology for efficient and quiet operation.

Key features include:

• Scientifically engineered PAR/Lumen output and coverage balance.
• Optimal full spectrum for all plant growth stages.
• Equipped with high-intensity 5-watt Bridgelux/Epileds LED bulbs.
• Revolutionary aluminum cooling heat sinks and high-speed silent front-fans for efficient heat dissipation.
• Individual Red, White, and Blue switches for spectrum control.

2. Package Contents

Upon unpacking your VIPARSPECTRA PAR600 LED Grow Light, please verify that all the following components are included:

• 1 x PAR600W LED Grow Light Unit
• 1 x Hanging Kits
• 1 pair of Adjustable Grow Light Rope Hanger
• 1 x 6ft US Standard 110V Grounded 3-Prong Power Cord
• 1 x User Instructions Manual

3. Specifications

4. Setup Instructions

4.1 Unpacking and Inspection

1. Carefully remove all components from the packaging.
2. Inspect the grow light and all accessories for any signs of damage during transit. If any damage is found, contact customer support immediately.
3. Retain the original packaging for future storage or transport.

4.2 Hanging the Grow Light

The VIPARSPECTRA PAR600 comes with a hanging kit and adjustable rope hangers for easy installation.

1. Attach the provided hanging wires to the four mounting points on the top of the grow light unit.
2. Connect the adjustable rope hangers to the hanging wires.
3. Securely hang the grow light from a sturdy support structure in your grow area. Ensure the support can safely bear the weight of the light (approximately 13.7 lbs).
4. Adjust the height of the light using the rope hangers to achieve the desired distance from your plants. Refer to Section 5.2 for recommended hanging heights.

4.3 Power Connection

1. Ensure all switches on the grow light are in the OFF position before connecting power.
2. Plug the 6ft power cord into the power inlet on the grow light unit.
3. Connect the other end of the power cord to a standard 110V grounded 3-prong electrical outlet. No external ballast is required.

5. Operating Instructions

5.1 Understanding the Switches

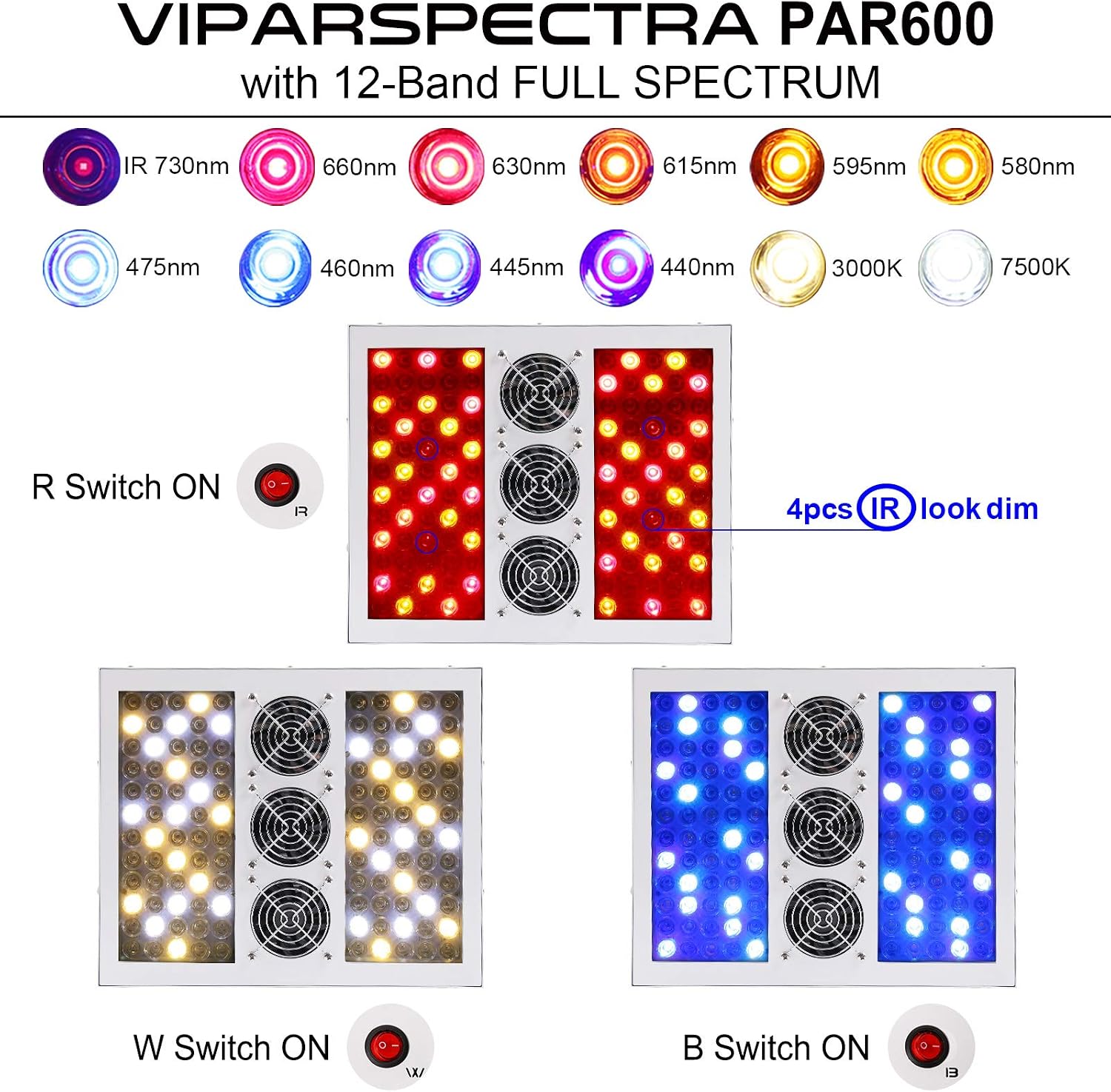

The VIPARSPECTRA PAR600 features three independent switches: Red (R), White (W), and Blue (B). These switches allow you to customize the light spectrum to suit different plant growth stages.

• R Switch (Red Spectrum): Activates the red and infrared (IR) LEDs. The IR LEDs may appear dim or off to the human eye but are functional. This spectrum is crucial for flowering and fruiting stages.
• W Switch (White Spectrum): Activates the white LEDs (3000K and 7500K). This provides a broad spectrum of light, beneficial for overall plant health and growth.
• B Switch (Blue Spectrum): Activates the blue LEDs. This spectrum is essential for vegetative growth, promoting strong stems and leaves.

5.2 Recommended Usage for Plant Growth Stages

Adjust the light settings and hanging height based on your plant's current growth stage:

• Germination/Seedling Stage: Use the W (White) and B (Blue) switches. Hang the light at approximately 30-36 inches above the plant canopy.
• Vegetative Stage: Use the W (White) and B (Blue) switches. Hang the light at approximately 24-30 inches above the plant canopy. The core coverage at 24" height is 3x3ft.
• Flowering Stage: Use all three switches: R (Red), W (White), and B (Blue). Hang the light at approximately 18-24 inches above the plant canopy. The core coverage at 24" height is 3x3ft.

Note: These are general recommendations. Observe your plants closely and adjust height and spectrum as needed.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your grow light.

• Cleaning: Periodically clean the light fixture, especially the LED lenses and cooling fans, to prevent dust buildup. Use a soft, dry cloth. Ensure the unit is unplugged before cleaning.
• Fan Inspection: Check the cooling fans regularly for any obstructions or unusual noises. Clear any debris to maintain proper airflow.
• Cable Inspection: Routinely inspect the power cord and hanging wires for any signs of wear or damage. Replace if necessary.

7. Troubleshooting

If you encounter issues with your VIPARSPECTRA PAR600, refer to the following common problems and solutions:

• Light Not Turning On:
  • Ensure the power cord is securely plugged into both the light unit and the electrical outlet.
  • Verify that the electrical outlet is functional by plugging in another device.
  • Check if the individual R, W, and B switches are in the ON position.
• Some LEDs Appear Dim or Off:
  • Infrared (IR) LEDs are part of the red spectrum and emit light outside the visible spectrum, making them appear dim or off to the human eye. This is normal operation.
  • If visible LEDs are out, contact customer support.
• Unusual Fan Noise:
  • Check for any dust or debris obstructing the fan blades. Clean if necessary (ensure power is disconnected).
  • If the noise persists, contact customer support.
• Light is Too Intense/Causing Plant Stress:
  • Increase the hanging distance between the light and your plants.
  • Consider turning off one of the spectrum switches (e.g., Red during early vegetative stage) if the light is too powerful for young plants.

8. Safety Information

• Eye Protection: The LED bulbs are extremely bright. Do not look directly at the LED bulbs when the light is working to prevent eye strain or damage.
• Indoor Use Only: This product is designed for indoor use only and is not waterproof. Do not expose it to water or high humidity environments.
• Ventilation: Ensure adequate ventilation in your grow area to maintain optimal operating temperatures for the light and your plants.
• Electrical Safety: Always ensure the power cord is in good condition and connected to a grounded outlet. Do not overload electrical circuits.
• Handling: Allow the light to cool down before handling or performing any maintenance.

9. Warranty and Support

The VIPARSPECTRA PAR600 LED Grow Light comes with a 3-year limited warranty. This warranty covers defects in materials and workmanship under normal use.

Additionally, a 30-day return policy is available for repair, exchange, or refund from the date of purchase.

For warranty claims, technical support, or any questions regarding your product, please contact VIPARSPECTRA customer service through their official website or the retailer where the product was purchased. Please have your model number (PAR600) and proof of purchase ready when contacting support.
