EBL C9041UW 8-Slot AA/AAA Ni-MH/Ni-Cd Battery Charger with 8 AAA 1100mAh Batteries User Manual

1. Introduction

Thank you for choosing the EBL C9041UW 8-Slot Battery Charger. This charger is designed to efficiently and safely charge 1-8 pieces of AA or AAA Ni-MH/Ni-Cd rechargeable batteries. It also features a convenient USB output for charging other 5V USB devices. This package includes the charger and 8 EBL AAA 1100mAh Ni-MH rechargeable batteries. Please read this manual thoroughly before use to ensure optimal performance and safety.

2. Product Overview and Features

The EBL C9041UW charger offers advanced features for a reliable charging experience:

• 8 Independent Charging Slots: Allows for simultaneous charging of 1 to 8 AA or AAA Ni-MH/Ni-Cd batteries, each slot operating independently.
• Dual Functionality (AC & USB): Charges batteries via AC power and provides a 5V 2A USB output to charge smartphones, tablets, cameras, MP3/MP4 players, and other 5V USB devices simultaneously.
• Advanced Safety Protections: Equipped with multiple safety features including overcharge protection, overcurrent protection, overvoltage protection, overheat protection, and short-circuit protection.
• Battery Repair Function: The smart charger can detect damaged or non-rechargeable batteries, indicated by a flashing red light. It attempts to repair damaged batteries within 15 seconds, after which normal charging resumes if successful.
• Trickle Charge: Utilizes trickle charging to maximize battery capacity, ensuring batteries are charged up to 99% and extending battery lifespan.
• Low Self-Discharge Batteries: The included EBL Ni-MH batteries feature low self-discharge technology, retaining approximately 75% of their capacity even after 3 years of storage.
• Eco-Friendly Design: Batteries are free from harmful substances like Hg/Cd/Pd, making them an environmentally conscious choice.
• Sealed Structure: Prevents liquid leakage from the batteries.

Image: The EBL C9041UW charger with its 8 independent charging slots, highlighting the ability to charge various battery types simultaneously.

Image: The EBL C9041UW charger demonstrating its USB output port, capable of charging external devices like smartphones and tablets while batteries are charging.

3. Setup Instructions

1. Unpack: Carefully remove the EBL C9041UW charger and the included batteries from their packaging.
2. Connect Power: Plug the charger into a standard AC 100-240V wall outlet. The charger is designed for global use.
3. Insert Batteries: Insert 1 to 8 AA or AAA Ni-MH/Ni-Cd rechargeable batteries into the charging slots. Ensure correct polarity (+ and - ends) as indicated on the charger and batteries.

4. Operating Instructions

4.1 Charging Batteries

1. Once batteries are correctly inserted and the charger is powered on, the LED indicator for each slot will illuminate.
2. A red light indicates that the battery is currently charging.
3. A green light indicates that the battery is fully charged. The charger will automatically stop charging to prevent overcharge.
4. If the light is flashing red, it indicates a damaged or non-rechargeable battery. Remove the battery from the slot.

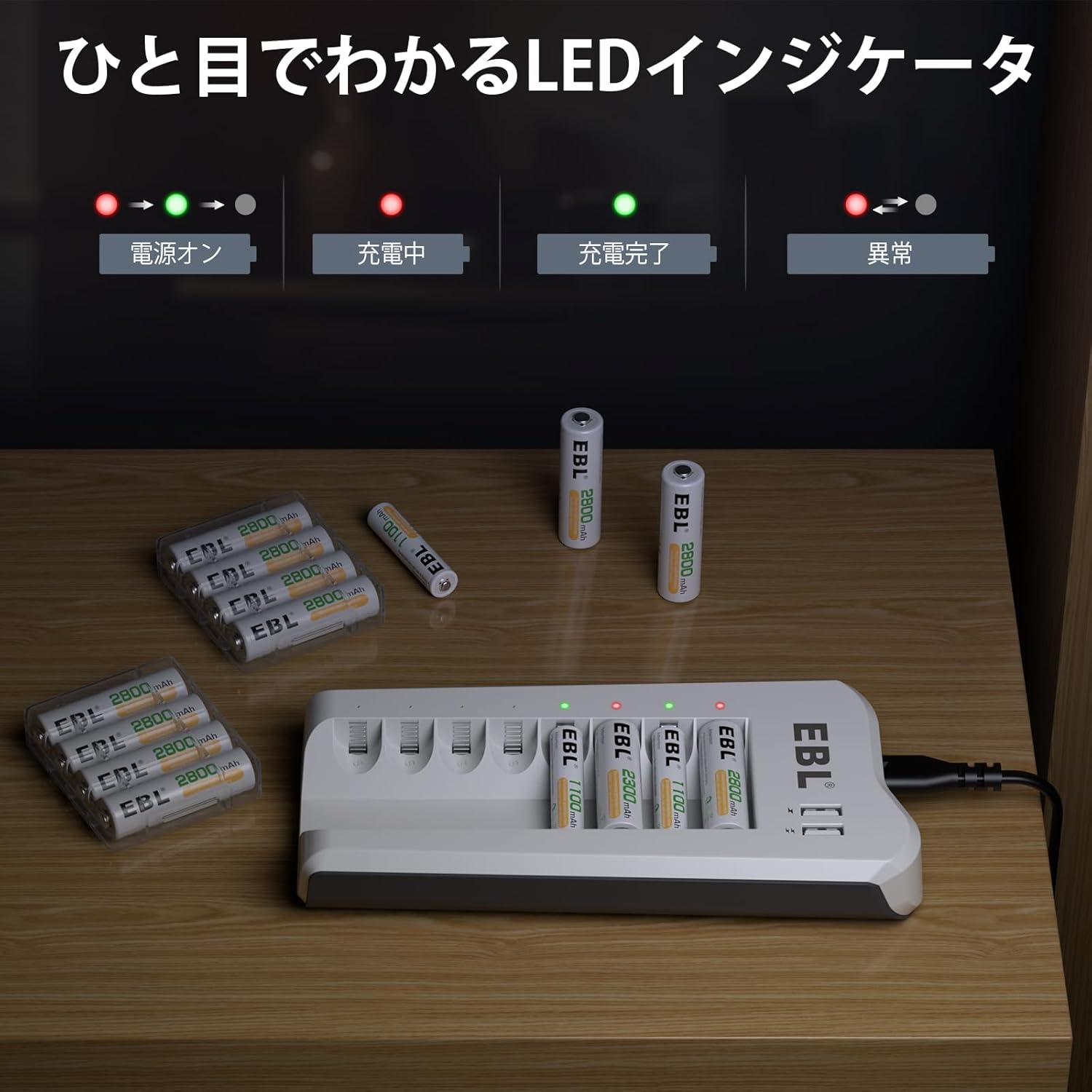

Image: Visual guide to the LED indicators on the EBL C9041UW charger, showing states for power on, charging, fully charged, and abnormal conditions.

4.2 Using the USB Output

The charger features a USB output port (DC 5V 2A) on the side. You can connect your USB-powered devices (e.g., smartphone, tablet) to this port using a compatible USB cable to charge them simultaneously while the batteries are charging.

5. Safety Information

Your safety is paramount. Please observe the following precautions:

• Only charge Ni-MH or Ni-Cd rechargeable batteries. Do not attempt to charge alkaline, carbon-zinc, or other types of batteries, as this may lead to leakage, rupture, or explosion.
• Do not disassemble or modify the charger or batteries.
• Keep the charger and batteries away from water, moisture, and high temperatures.
• Do not use the charger if it or the power cord is damaged.
• Ensure proper ventilation during charging. Do not cover the charger.
• Keep out of reach of children.
• The charger features multiple protections: overcharge, overcurrent, overvoltage, overheat, and short-circuit protection to ensure safe operation.

Image: An illustration of the EBL C9041UW charger surrounded by icons representing its comprehensive safety features, including protection against overcharge, overcurrent, overvoltage, overheating, and short circuits.

Image: A cutaway diagram of an EBL battery, illustrating its internal structure designed for enhanced safety, including features for liquid leakage prevention and stable voltage output.

6. Maintenance

• Cleaning: Disconnect the charger from the power source before cleaning. Use a dry, soft cloth to wipe the charger and battery contacts. Do not use abrasive cleaners or solvents.
• Storage: When not in use, store the charger and batteries in a cool, dry place, away from direct sunlight and extreme temperatures. The included batteries come with storage cases for convenience.
• Battery Longevity: EBL batteries are designed for repeated charging with minimal degradation. Their low self-discharge rate ensures they remain ready for use even after extended periods.

Image: EBL AAA 1100mAh batteries neatly stored in their transparent cases, demonstrating proper storage for longevity and organization.

7. Troubleshooting

8. Specifications

9. Warranty and Support

EBL is committed to providing high-quality products and excellent customer service. This product comes with a 1-year limited warranty from the date of purchase. If you encounter any issues during use, please do not hesitate to contact our customer support team. We are available to assist you with any questions or concerns.

For support, please refer to the contact information provided on the product packaging or the official EBL website.
