MOZA AirCross S
MOZA AirCross S Gimbal Stabilizer User Manual
Model: MOZA AirCross S
1. Introduction
The MOZA AirCross S is a versatile 3-axis handheld gimbal stabilizer designed for a wide range of cameras, including mirrorless cameras, action cameras, and mobile phones. Its compact and lightweight design, combined with advanced stabilization technology, allows users to capture smooth, professional-grade footage. This manual provides detailed instructions for setting up, operating, and maintaining your AirCross S gimbal.

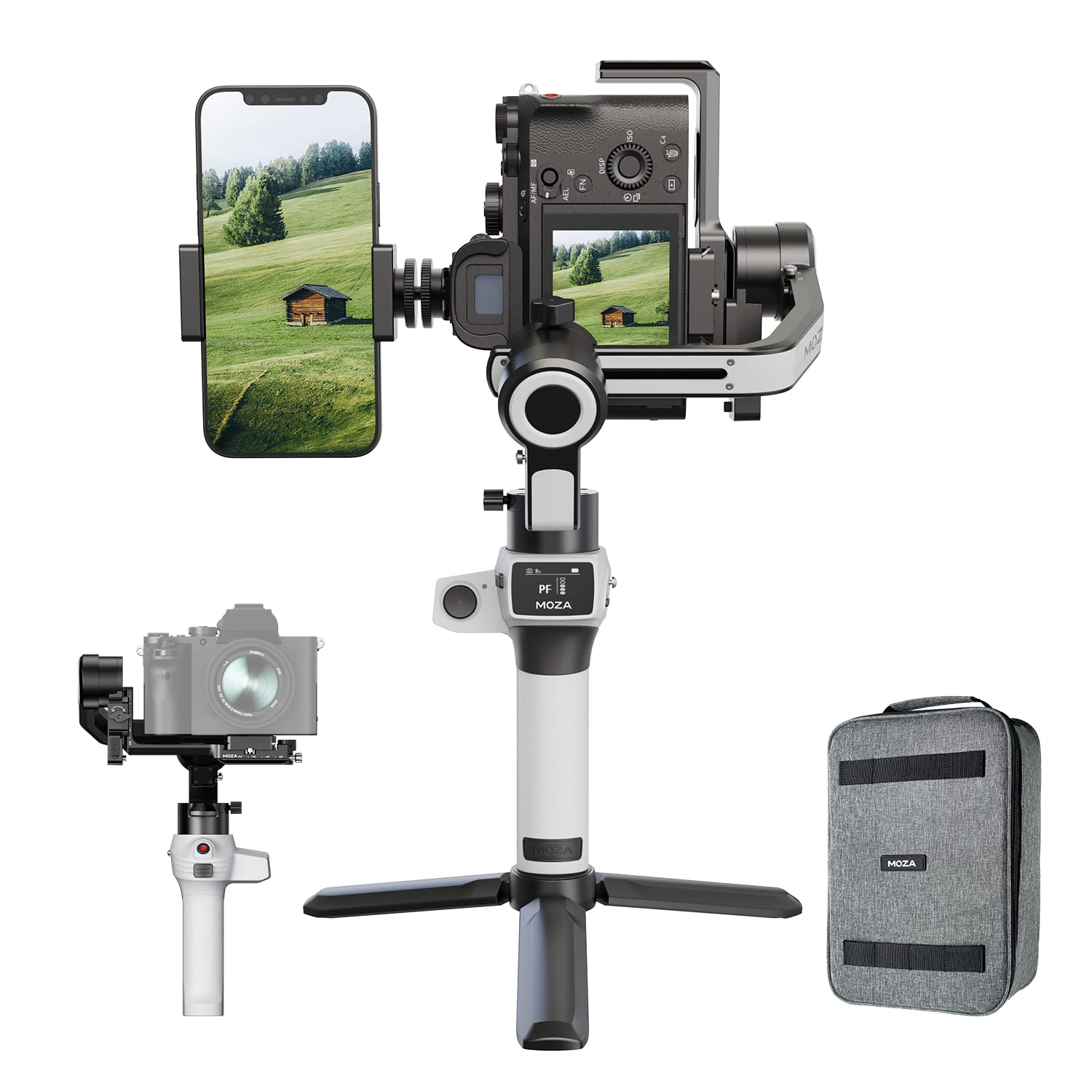

Image 1.1: MOZA AirCross S Gimbal Stabilizer with camera and phone mounted, illustrating its multi-device compatibility.
2. Setup Guide
2.1 Unboxing and Initial Inspection
Upon receiving your MOZA AirCross S, carefully unpack all components. Verify that the package contains the gimbal and any included accessories as listed in the product packaging. Inspect the device for any visible damage.
- MOZA AirCross S Gimbal
- Quick Release Plate
- Mini Tripod
- Charging Cable
- User Manual (this document)
2.2 Charging the Battery
The MOZA AirCross S is equipped with a built-in high-capacity battery. Before first use, fully charge the gimbal using the provided charging cable. The gimbal supports fast charging up to 9V 2A. A full charge provides approximately 10 hours of operation.
- Connect the charging cable to the gimbal's charging port.
- Connect the other end to a USB power adapter (not included) or a power bank.
- The indicator light will show charging status and turn off when fully charged.
2.3 Mounting Your Camera or Mobile Phone
The AirCross S features a dual-layer quick-release plate for easy mounting of various devices.
- Attach the quick-release plate to the bottom of your camera or to the mobile phone holder.
- Slide the quick-release plate with the mounted device onto the gimbal's mounting platform until it locks securely.
- Ensure the device is centered and stable.
Image 2.1: The MOZA AirCross S demonstrating its dual camera mount capability, holding both a camera and a smartphone.
Image 2.2: Detailed view of the dual camera mount on the MOZA AirCross S, highlighting its adjustable design.
2.4 Balancing the Gimbal
Proper balancing is crucial for optimal performance and to prevent motor strain. Adjust the camera position on the quick-release plate and the gimbal arms until the camera remains level when powered off.
- Tilt Axis Balance: Adjust the camera forward or backward until it stays level.
- Roll Axis Balance: Adjust the camera left or right until it stays level.
- Pan Axis Balance: Adjust the horizontal arm until the gimbal remains stable when tilted.
2.5 Auto-Tuning
After balancing, use the auto-tune function for optimal motor parameters. This feature, powered by DeepRed technology, automatically adjusts the gimbal's settings based on the total weight of your mounted device.
- Ensure the gimbal is powered on and balanced.
- Access the MOZA App and initiate the auto-tune function.
- The gimbal will perform a series of movements to calibrate itself.
3. Operating Instructions
3.1 Power On/Off
Press and hold the power button located on the handle to turn the gimbal on or off. The indicator lights will confirm the power status.
3.2 Basic Controls
The integrated two-button handgrip provides intuitive control over the gimbal's movements and modes.
- Joystick: Controls pan and tilt movements.
- Mode Button: Cycles through different operating modes (e.g., Pan-Follow, Lock Mode, FPV Mode). Refer to the MOZA App for detailed mode descriptions.
- Trigger Button: Often used for quick re-centering or activating specific functions.
Image 3.1: The control panel on the MOZA AirCross S handle, showing the joystick and mode buttons.
3.3 Advanced Shooting Modes
The MOZA AirCross S supports several advanced shooting modes accessible via the MOZA App.
- Vertical Mode: Allows for native vertical video capture without additional accessories. This is ideal for social media content.
- Long-Exposure Motion Timelapse: Create dynamic timelapses with defined shutter time, duration, intervals, and path.
- Dolly Zoom: Achieve the classic "Vertigo effect" by smoothly zooming while moving the camera.
Image 3.2: The MOZA AirCross S configured for vertical mode shooting, ideal for social media content.
Image 3.3: User operating the MOZA AirCross S gimbal with a camera, demonstrating typical usage.
3.4 MOZA App Connectivity
Download the MOZA App from your device's app store to unlock the full potential of your AirCross S. The app allows for fine-tuning parameters, accessing advanced shooting modes, and remote control.
- Enable Bluetooth on your mobile device.
- Open the MOZA App and select your AirCross S from the list of available devices.
- Follow the on-screen prompts for connection.
4. Maintenance
4.1 Cleaning
Regularly clean the gimbal with a soft, dry cloth. Avoid using liquid cleaners or solvents, as these can damage the electronic components. Ensure no dust or debris accumulates in the motor joints.
4.2 Storage
When not in use, store the MOZA AirCross S in a dry, cool place, away from direct sunlight and extreme temperatures. It is recommended to store the gimbal in its original packaging or a protective case to prevent damage.
4.3 Battery Care
To prolong battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to approximately 50-60% every three months.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gimbal vibrates or motors twitch. | Improper balancing; payload exceeds limits; auto-tune not performed. | Ensure the camera is perfectly balanced. Perform auto-tuning via the MOZA App. Verify payload is within the 4lb limit. |
| Gimbal does not power on. | Battery is depleted. | Charge the gimbal battery fully. |
| Cannot connect to MOZA App. | Bluetooth is off; app not updated; gimbal not in pairing mode. | Ensure Bluetooth is enabled on your phone. Restart the app and gimbal. Check for app updates. |
| Gimbal overheats and shuts down. | Overloaded motors; prolonged heavy use; poor ventilation. | Reduce payload if possible. Allow the gimbal to cool down. Ensure proper balancing to reduce motor strain. |
6. Specifications
| Feature | Detail |
|---|---|
| Brand | MOZA |
| Model Name | AirCross S |
| Product Dimensions | 24 x 17 x 39 cm |
| Item Weight | 1.1 kg |
| Maximum Payload | 4 lb (approx. 1.8 kg) |
| Compatible Devices | Mirrorless Cameras, Action Cameras, Mobile Phones |
| Battery Average Life | 10 Hours |
| Charging Rate | Up to 9V 2A (Fast Charging) |
| Image Stabilization Technology | Yes |
| Country of Origin | China |
Image 6.1: Compatibility chart showing various camera models supported by the MOZA AirCross S.
7. Warranty and Support
7.1 Warranty Information
The MOZA AirCross S Gimbal Stabilizer comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.
7.2 Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact MOZA customer support. You can also visit the official MOZA website for FAQs and additional resources.
- Email: care@nikitadistributors.com
- Phone: 18002668571
- Online Resources: Refer to the official MOZA website for updated support information.
