1. Introduction
This manual provides detailed instructions for the proper installation, operation, and maintenance of your KASINGS Needle Plate Replacement. The needle plate is a critical component of your sewing machine, providing a smooth surface for fabric movement and supporting the fabric around the needle during stitching. Replacing a worn or damaged needle plate ensures optimal sewing performance and stitch quality.
2. Safety Information
- Always unplug your sewing machine from the power outlet before installing, removing, or performing any maintenance on parts.
- Exercise caution when handling sewing machine needles, as they are sharp and can cause injury.
- Keep fingers and loose clothing away from moving parts of the sewing machine.
- Ensure all screws are securely tightened after installation to prevent parts from loosening during operation.
3. Package Contents
Please verify that your package contains the following item:
- 1 x KASINGS Needle Plate Replacement
4. Installation Instructions
Follow these steps carefully to install your new needle plate:
- Prepare the Machine: Unplug the sewing machine from the power source. Raise the needle to its highest position and lift the presser foot.
- Remove the Old Needle Plate: Locate the screws holding the existing needle plate in place. Using an appropriate screwdriver, carefully loosen and remove these screws. Lift the old needle plate off the machine.
- Clean the Area: Use a small brush or lint remover to clean any dust, lint, or debris from the bobbin case area and the feed dog mechanism. This ensures proper seating of the new needle plate.
- Position the New Needle Plate: Carefully align the KASINGS Needle Plate Replacement over the feed dogs and the screw holes. Ensure it sits flush with the machine bed.
- Secure the New Needle Plate: Insert the screws into their respective holes and gently tighten them. Do not overtighten, as this can strip the threads or damage the plate. Ensure the plate is stable and does not wobble.
- Test Installation: Plug in the machine. Manually turn the handwheel a few times to ensure the needle passes through the needle plate hole without obstruction. Perform a test stitch on a scrap piece of fabric to confirm proper function.

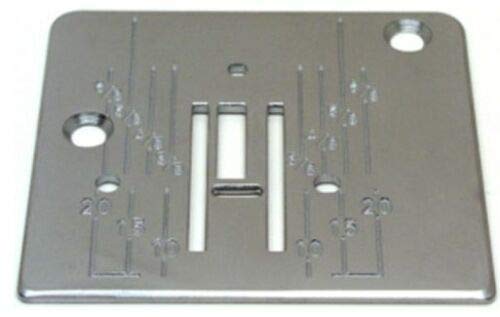

Image showing the KASINGS Needle Plate Replacement, highlighting its design and screw holes for proper alignment during installation.
5. Operating
Once installed, the KASINGS Needle Plate Replacement functions as an integral part of your sewing machine's fabric feeding system. It provides a stable surface for the fabric to move across while the feed dogs pull it, and it ensures the needle has a precise opening to pass through, preventing skipped stitches and fabric damage. No special operating procedures are required beyond the normal use of your sewing machine.
6. Maintenance
Regular maintenance of your needle plate will prolong its life and ensure consistent sewing performance:
- Cleaning: Periodically remove the needle plate (following installation steps 1 and 2) and use a small brush to remove any accumulated lint, dust, or thread fragments from underneath and around the feed dogs.
- Inspection: Regularly inspect the needle plate for any signs of wear, burrs, scratches, or damage around the needle hole. A damaged needle plate can snag fabric or cause needle breakage. Replace the plate if significant damage is observed.
7. Troubleshooting
If you encounter issues after installing the new needle plate, consider the following:
- Needle Breaking: Ensure the needle plate is correctly aligned and securely fastened. A misaligned plate can cause the needle to strike the plate, leading to breakage. Also, check if the needle is inserted correctly and is the appropriate size for your fabric.
- Skipped Stitches: A damaged or improperly installed needle plate can contribute to skipped stitches. Re-check the installation and inspect the needle plate for any burrs or damage around the needle hole.
- Fabric Not Feeding Properly: Ensure the needle plate is seated flush and not obstructing the feed dogs. Clean any lint or debris from the feed dog area.
8. Specifications
- Manufacturer: KASINGS
- Part Number: JCEC201712061400006
- ASIN: B077YKT59G
- Date First Available: December 6, 2017
9. Warranty and Support
For warranty information or technical support regarding your KASINGS Needle Plate Replacement, please refer to the seller's return policy or contact the manufacturer directly through their official channels. Keep your purchase receipt as proof of purchase.
