Manitowoc SFA-191-161 Ice Bin and Dispenser User Manual

1. Product Overview

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Manitowoc SFA-191-161 Ice Bin and Dispenser. Please read this manual thoroughly before operating the unit.

The Manitowoc SFA-191-161 is a robust ice bin and dispenser designed for commercial use, offering convenient access to ice and water. Key features include:

• 120 lbs storage bin capacity: Provides ample storage for ice, suitable for various commercial settings.
• Polyethylene bin liner and polyurethane insulation: Designed to store ice longer by minimizing melting.
• Patented rocking chute dispense mechanisms: Engineered to reduce ice spillage during dispensing.
• Quick on/off push-button activation: Ensures ease of use for dispensing ice and water.

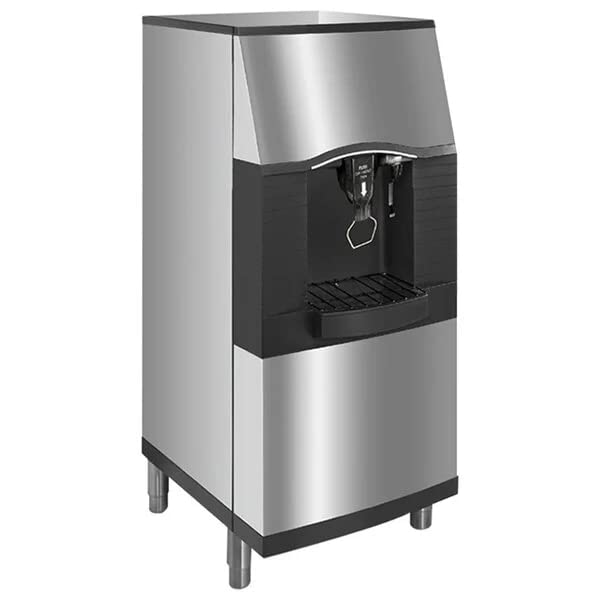

Figure 1: Front view of the Manitowoc SFA-191-161 Ice Bin and Dispenser, showing the dispensing area and push-button controls.

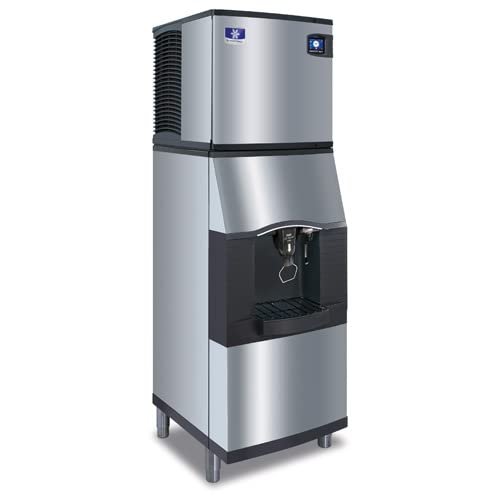

Figure 2: Manitowoc SFA-191-161 Ice Bin and Dispenser shown with a compatible ice machine unit installed on top, illustrating the complete system.

2. Setup and Installation

2.1 Unpacking

Carefully unpack the unit and inspect for any shipping damage. Report any damage to the carrier immediately. Retain all packaging materials for potential future transport or return.

2.2 Placement

• Place the unit on a level, stable surface capable of supporting its weight when full of ice.
• Ensure adequate clearance around the unit for ventilation and maintenance access. Refer to local codes for specific requirements.
• Avoid direct sunlight or proximity to heat-generating equipment to maintain optimal ice storage conditions.

2.3 Electrical Connection

The Manitowoc SFA-191-161 operates on 120 Volts. Ensure the electrical supply matches the unit's requirements. Connect the unit to a dedicated, grounded electrical outlet. Do not use extension cords or adapters.

2.4 Water Connection

Connect the unit to a potable water supply using appropriate plumbing. Ensure all connections are secure and leak-free. A water filter is recommended for optimal water quality and to prolong the life of the unit.

2.5 Initial Cleaning

Before first use, clean the interior of the ice bin and dispensing area thoroughly with a mild, food-safe sanitizer solution. Rinse completely with clean water.

3. Operating Instructions

3.1 Filling the Ice Bin

This unit is an ice bin and dispenser. It requires a separate ice machine (typically mounted on top) to produce ice and fill the bin. Ensure the ice machine is properly installed and operating according to its own manual.

3.2 Dispensing Ice

1. Place a cup or container under the ice chute.
2. Press and hold the "Ice" dispense button. Ice will be dispensed into the container.
3. Release the button to stop dispensing.

3.3 Dispensing Water

1. Place a cup or container under the water spigot (if applicable, typically integrated with the ice chute).
2. Press and hold the "Water" dispense button. Water will be dispensed into the container.
3. Release the button to stop dispensing.

Note: The unit dispenses water that has passed through the ice machine's water supply, which may or may not be filtered depending on your ice machine setup.

4. Maintenance

Regular maintenance is crucial for the longevity and hygienic operation of your Manitowoc SFA-191-161 Ice Bin and Dispenser.

4.1 Daily Cleaning

• Wipe down the exterior surfaces with a clean, damp cloth.
• Clean the dispensing area and drip tray to remove any ice or water residue.

4.2 Weekly Cleaning

• Remove and clean the drip tray and grille.
• Inspect the ice chute for any blockages or ice buildup and clear as necessary.

4.3 Monthly / Bi-Monthly Cleaning (or as needed)

• Empty the ice bin completely.
• Clean the interior of the ice bin with a food-safe sanitizer solution. Follow the sanitizer manufacturer's instructions for dilution and contact time.
• Rinse the bin thoroughly with clean water to remove all sanitizer residue.
• Allow the bin to air dry before refilling with ice.

4.4 Professional Servicing

It is recommended to have the unit professionally inspected and serviced at least once a year to ensure optimal performance and hygiene, especially for the connected ice machine.

5. Troubleshooting

This section provides solutions to common issues you might encounter with your ice bin and dispenser.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact a qualified service technician.

6. Specifications

7. Warranty and Support

Manitowoc products are manufactured to high standards and typically come with a manufacturer's warranty covering defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please refer to the warranty card included with your product or visit the official Manitowoc website for detailed warranty information.

For technical support, service inquiries, or to order replacement parts, please contact Manitowoc customer service or an authorized service provider. Contact information can usually be found on the manufacturer's website or in the documentation provided with your purchase.

Note: Always provide your model number (SFA-191-161) and serial number when contacting support to expedite assistance.
